F High：817 - 825 MHz× Clear all
matches 42 models Default Newest
ZLPF5-L0-820-3072 Filter

Filter ZLPF5-L0-820-3072

PassbandDC~820MHz, Rejection1150-2200MHz≥35dB, SMD
In Stock View Details →
ZBF13-L720-200-1524 Filter

Filter ZBF13-L720-200-1524

Passband620~820MHz, DC-500MHz≥40dB, 960-2000MHz≥40dB, SMD
In Stock View Details →
ZBF13-L720-200-1525 Filter

Filter ZBF13-L720-200-1525

Passband620~820MHz, DC-500MHz≥40dBc, 960-3000MHz≥50dBc, SMA
In Stock View Details →
ZBSF6-C791-821-4737 Filter

Filter ZBSF6-C791-821-4737

Stopband F791~821MHz, ≥60dB, PassbandDC~781MHz, 831~4000MHz, N
In Stock View Details →
K6-791-821-10S60100-006 Notch filter

Notch filter K6-791-821-10S60100-006

Stopband F791~821MHz, ≥60dB, PassbandDC~781MHz, 831~4000MHz, SMA
In Stock View Details →
ZBSF2-M758-821-1479 Filter

Filter ZBSF2-M758-821-1479

Stopband F758~821MHz, ≥50dB, PassbandDC~706MHz, 888~1200MHz, SMA
In Stock View Details →
ZLPF13-L0-820-077 Filter

Filter ZLPF13-L0-820-077

PassbandDC~820MHz, 0.9-2.0GHz≥50dBc, dB, N
View Details →
ZCB4-C832-791-250 Diplexer

Diplexer ZCB4-C832-791-250

Passband L791~821MHz, Passband H832~862MHz, SMA
View Details →
ZCB15-2L20-8000-1182 Diplexer

Diplexer ZCB15-2L20-8000-1182

20~820MHz, 900~8000MHz, ~MHz, ~MHz, ~MHz, SMA
View Details →
ZBSF6-L806-825-6152 Filter

Filter ZBSF6-L806-825-6152

Stopband F806~825MHz, ≥50dB, PassbandDC~730MHz, 900~4000MHz, SMA
View Details →
ZBSF6-C807-824-5075 Filter

Filter ZBSF6-C807-824-5075

Stopband F807~824MHz, ≥40dB, PassbandDC~797MHz, 834~4000MHz, SMA
View Details →
ZBSF6-C791-821-6010 Filter

Filter ZBSF6-C791-821-6010

Stopband F791~821MHz, ≥105dB, PassbandDC~770MHz, 842~3000MHz, SMA
View Details →
ZBSF6-C758-821-300 Filter

Filter ZBSF6-C758-821-300

Stopband F758~821MHz, ≥55dB, PassbandDC~748MHz, 832~3000MHz, N, -120dBc@2*43dBm
View Details →
ZBF6-C813.5-15-5150 Filter

Filter ZBF6-C813.5-15-5150

Passband806~821MHz, DC-794MHz≥70dB, 833-2000MHz≥70dB, SMA
View Details →
ZBF5-L720-200-3692 Filter

Filter ZBF5-L720-200-3692

Passband620~820MHz, DC-520MHz≥40dBc, 900-2500MHz≥40dBc, Pin
View Details →
ZBF5-L720-200-3168 Filter

Filter ZBF5-L720-200-3168

Passband620~820MHz, Pin
View Details →
ZBF5-L720-200-2741 Filter

Filter ZBF5-L720-200-2741

Passband620~820MHz, DC-500MHz≥40dBc, Pin
View Details →
ZBF5-L667-817-W314 Filter

Filter ZBF5-L667-817-W314

Passband667~817MHz, 540-600MHz≥20dBc, 980-1000MHz≥30dBc, Pin
View Details →
ZBF3-L800-40-2080 Filter

Filter ZBF3-L800-40-2080

Passband780~820MHz, DC-580MHz≥40dBc, 1020-3000MHz≥40dBc, SMA
View Details →

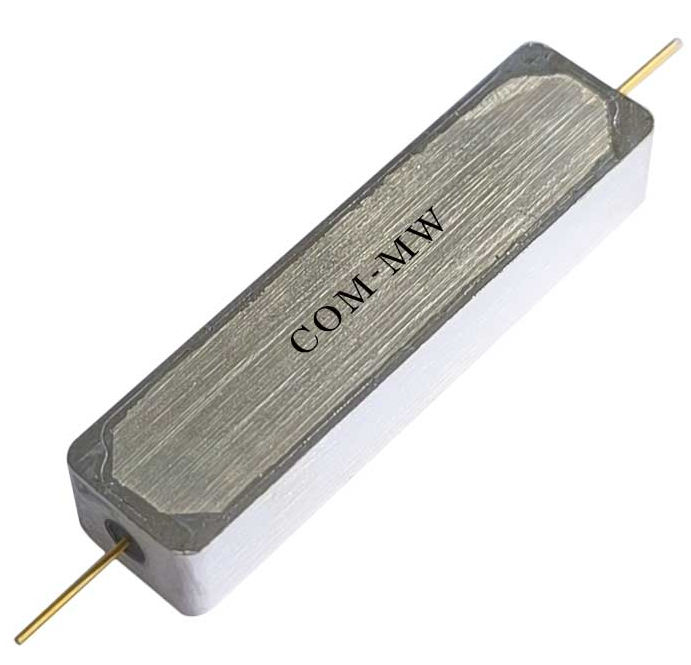

ZBF3-L720-200-4500 Filter

Filter ZBF3-L720-200-4500

Passband620~820MHz, 590MHz≥10dB, 850MHz≥20dB, Pin
View Details →
ZBF2-L720-200-1690 Filter

Filter ZBF2-L720-200-1690

Passband620~820MHz, DC-500MHz≥60dBc, 1-3GHz≥60dBc, Pin
View Details →

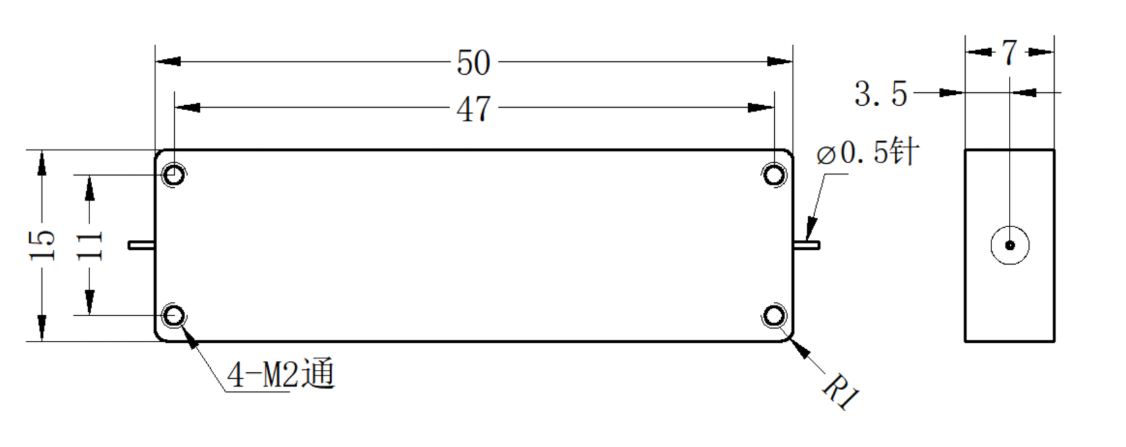

ZBF2-L720-200-1681 Filter

Filter ZBF2-L720-200-1681

Passband620~820MHz, DC-540MHz≥60dBc, 900-2000MHz≥60dBc, Pin
View Details →
ZBF16-C806-30-036 Filter

Filter ZBF16-C806-30-036

Passband791~821MHz, DC-781MHz≥50dBc, 831-1000MHz≥50dBc, SMA
View Details →
ZBF15-L800-50-485 Filter

Filter ZBF15-L800-50-485

Passband775~825MHz, DC-675MHz≥60dBc, 875MHz≥20dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
