RF Filter

Total 16 models
Categories
Categories RF Filter
RF Filter16048
RF Filter15376 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
8045 1 8050 11 8060 1 8070 1 8075 2
–
Connector
SMA 6 2.92 1 Microstrip needle 9
Power Handling
2 1 5 5 10 8 15 1 20 1
–
Maximum loss of side frequency dB
0.8 - 1 7 1.5 - 2 3 2.5 - 3 3 3.5 2
–
Rejection dB
40 - 50 3 55 - 60 7 65 - 70 6
–
F Low MHz
0 - 5950 6 7150 - 7850 2 7950 - 7955 5 7960 - 8015 3
–
Feature
Bandpass 14 low pass 1
Center frequency MHz
7000 - 7600 4 7950 - 8000 6 8010 - 8045 3 9000 1
–
IL on center frequency dB
0.4 1 0.5 6 1 2 1.5 1 2 4
–
Insertion loss dB
1.5 1
–
Filter type
Cavity&waveguide 14 stripline 1
F High：8045 - 8075 MHz× Clear all
matches 16 models Default Newest
ZLPF4-M0-8.05G-1392 Filter

Filter ZLPF4-M0-8.05G-1392

PassbandDC~8.05GHz, 9.2-10GHz≥50dB, 11-16GHz≥70dB, SMA
In Stock View Details →
ZCB4-M8.5-30G-1618 Diplexer

Diplexer ZCB4-M8.5-30G-1618

Passband F1DC~8.07GHz, Passband F28.93~30GHz, 2.92
View Details →
ZBF6-8.01-0.1G-713 Filter

Filter ZBF6-8.01-0.1G-713

Passband7960~8060MHz, DC-7600MHz≥60dB, 8400-12000MHz≥60dB, SMA
View Details →
ZBF5-C9000-2100-1006 Filter

Filter ZBF5-C9000-2100-1006

Passband5950~8050MHz, DC-7000MHz≥60dBc, 11000-17000MHz≥60dBc, Pin
View Details →
ZBF5-C8000-100-3240 Filter

Filter ZBF5-C8000-100-3240

Passband7950~8050MHz, DC-7750MHz≥40dBc, 7400-7780MHz≥65dBc, Pin
View Details →
ZBF5-C7950-200-2492 Filter

Filter ZBF5-C7950-200-2492

Passband7850~8050MHz, DC-6GHz≥60dBc, 6-7GHz≥50dBc, Pin
View Details →

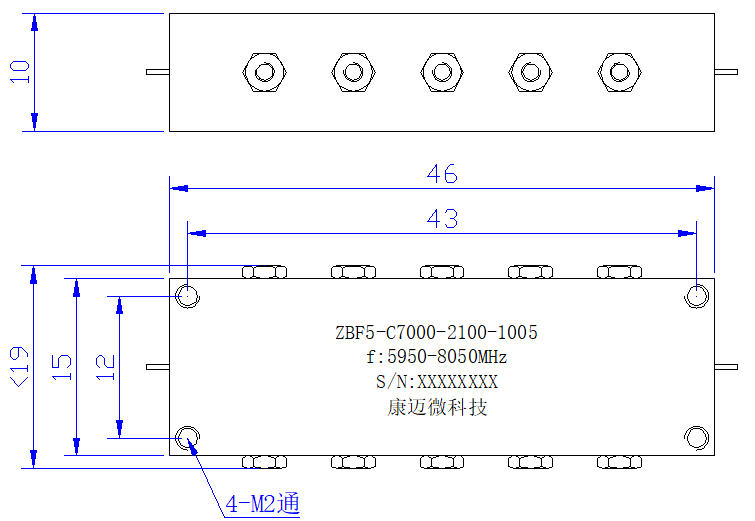

ZBF5-C7000-2100-1005 Filter

Filter ZBF5-C7000-2100-1005

Passband5950~8050MHz, DC-5000MHz≥60dBc, 9000-16000MHz≥60dBc, Pin
View Details →
ZBF5-C7-2.1G-831 Filter

Filter ZBF5-C7-2.1G-831

Passband5.95~8.05GHz, DC-4GHz≥50dBc, 10-15GHz≥50dBc, SMA
View Details →
ZBF3-C7600-900-3777 Filter

Filter ZBF3-C7600-900-3777

Passband7150~8050MHz, DC-6000MHz≥50dB, 8200-9000MHz≥20dB, Pin
View Details →
ZBF20-C8000-100-256 Filter

Filter ZBF20-C8000-100-256

Passband7950~8050MHz, DC-7.8GHz≥70dBc, 8.2-14GHz≥70dBc, Pin
View Details →
ZBF13-C8045-60-2414 Filter

Filter ZBF13-C8045-60-2414

Passband8015~8075MHz, DC-7GHz≥65dBc, 9-18GHz≥65dBc, SMA
View Details →
ZBF13-C8045-60-2240 Filter

Filter ZBF13-C8045-60-2240

Passband8015~8075MHz, DC-7GHz≥65dBc, 9-18GHz≥65dBc, SMA
View Details →

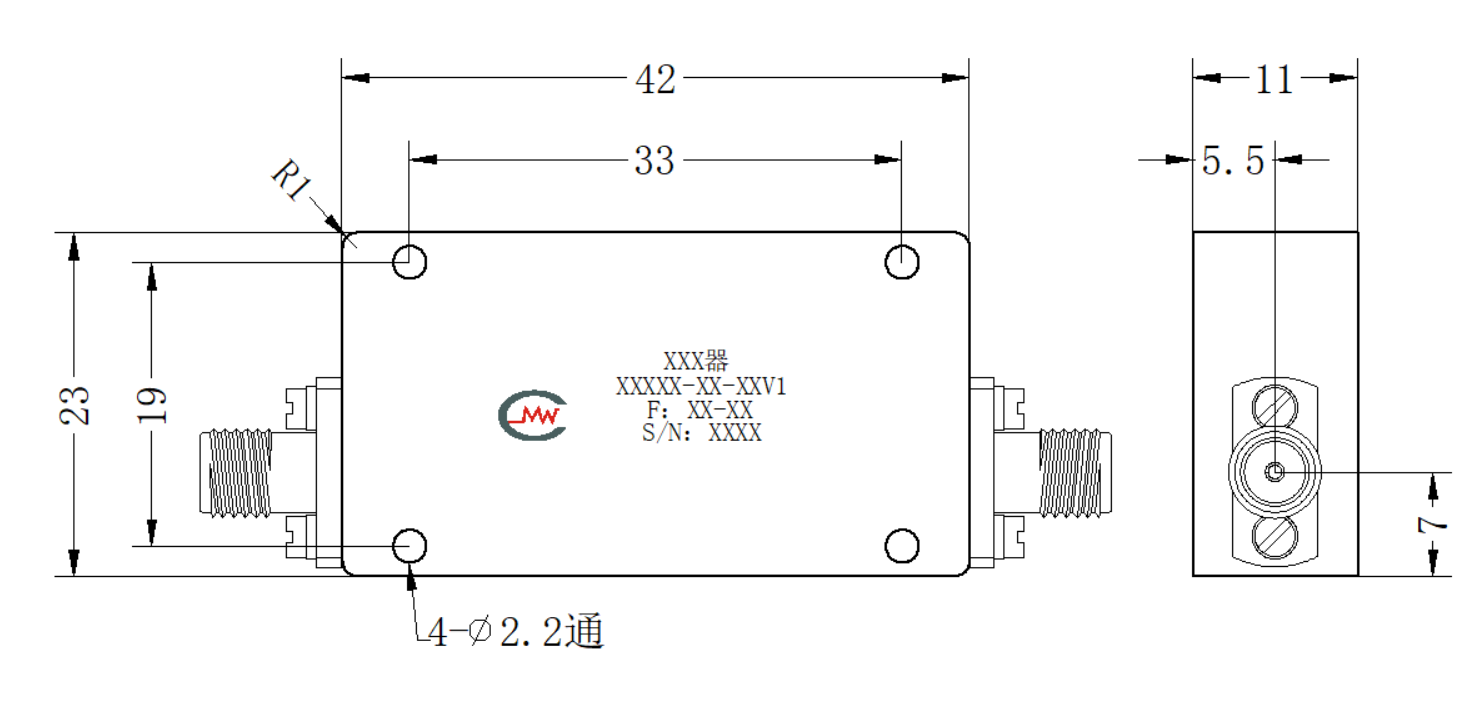

ZBF13-C8000-90-1477 Filter

Filter ZBF13-C8000-90-1477

Passband7955~8045MHz, F0±120MHz≥40dBc, SMA
View Details →

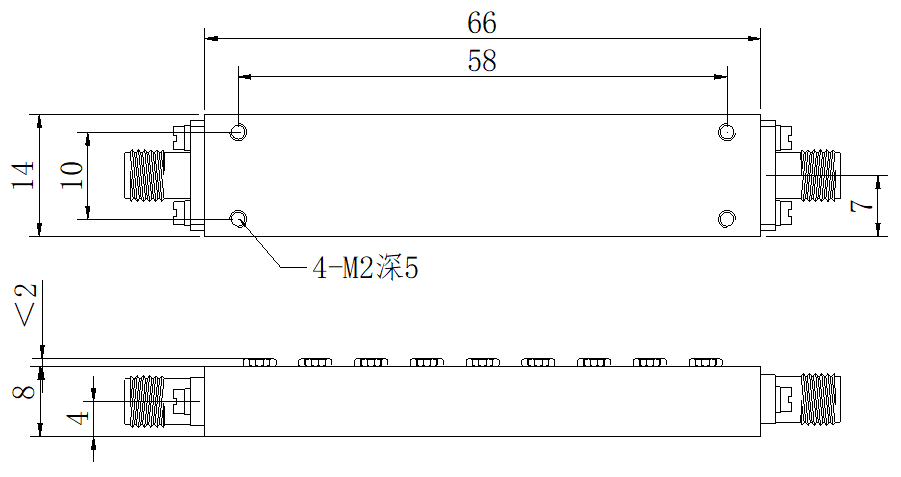

ZBF-8.0-0.1G-443 Filter

Filter ZBF-8.0-0.1G-443

Passband7.95~8.05GHz, DC-7.5GHz≥55dBc, 8.5-20GHz≥55dBc, SMA
View Details →

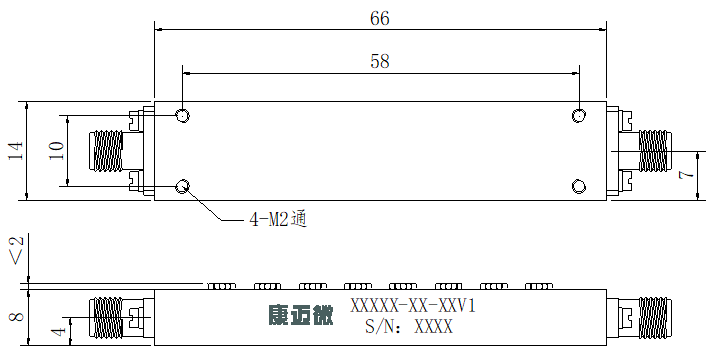

ZBF-8-0.1G-443 Filter

Filter ZBF-8-0.1G-443

Passband7.95~8.05GHz, DC-7.5GHz≥55dBc, 8.5-20GHz≥55dBc, SMA
View Details →

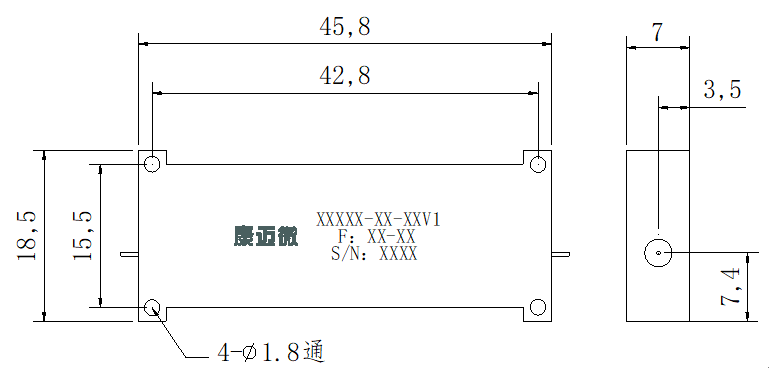

HBF-C7000QT2100A Filter

Filter HBF-C7000QT2100A

Passband5950~8050MHz, DC-4000MHz≥60dBc, 9000-12000MHz≥60dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
