F High：775 - 783 MHz× Clear all
matches 24 models Default Newest
ZBF5-L730-100-3471 Filter

Filter ZBF5-L730-100-3471

Passband680~780MHz, DC-580MHz≥45dB, SMD
In Stock View Details →
LF086 Filter

Filter LF086

PassbandDC~780MHz, 1100-1400MHz≥50dB, 1400-2000MHz≥65dB, SMA
In Stock View Details →
ZBF13-L750-50-1528 Filter

Filter ZBF13-L750-50-1528

Passband725~775MHz, DC-675MHz≥40dB, 825-2000MHz≥40dB, SMA
In Stock View Details →
ZBF13-L750-50-1527 Filter

Filter ZBF13-L750-50-1527

Passband725~775MHz, DC-680MHz≥40dB, 825-2000MHz≥40dB, SMD
In Stock View Details →
ZBF6-C770-10-2335 Filter

Filter ZBF6-C770-10-2335

Passband765~775MHz, DC-755MHz≥55dB, 785-2000MHz≥55dB, L29, -150dBc@2*43dBmdesign assurance
View Details →
ZBF5-L750-50-1865 Filter

Filter ZBF5-L750-50-1865

Passband725~775MHz, 1dB BW50~60MHz, DC-670MHz≥50dBc, 840-2000MHz≥50dBc, Pin
View Details →
ZBF5-L750-50-1648 Filter

Filter ZBF5-L750-50-1648

Passband725~775MHz, Pin
View Details →
ZBF5-L720-120-3169 Filter

Filter ZBF5-L720-120-3169

Passband660~780MHz, Pin
View Details →
ZBF5-L720-120-2742 Filter

Filter ZBF5-L720-120-2742

Passband660~780MHz, DC-600MHz≥40dBc, Pin
View Details →
ZBF5-L720-120-2107 Filter

Filter ZBF5-L720-120-2107

Passband660~780MHz, DC-600MHz≥45dB, 840-2000MHz≥45dB, Pin
View Details →
ZBF3-L720-125-3910 Filter

Filter ZBF3-L720-125-3910

Passband657.5~782.5MHz, DC-595MHz≥40dB, 880-3000MHz≥40dB, SMD
View Details →
ZBF15-L720-120-1307 Filter

Filter ZBF15-L720-120-1307

Passband660~780MHz, DC-550MHz≥60dBc, 900-3000MHz≥60dBc, Pin
View Details →
ZBF13-L720-120-2939 Filter

Filter ZBF13-L720-120-2939

Passband660~780MHz, DC-0.6GHz≥40dBc, 0.84-4GHz≥40dBc, Pin
View Details →
ZBF13-L720-120-2840 Filter

Filter ZBF13-L720-120-2840

Passband660~780MHz, DC-500MHz≥50dBc, 1.2-6GHz≥50dBc, Pin
View Details →
ZBF13-L720-120-2441 Filter

Filter ZBF13-L720-120-2441

Passband660~780MHz, F0±400MHz≥40dBc, 5594MHz≥65dBc, Pin
View Details →

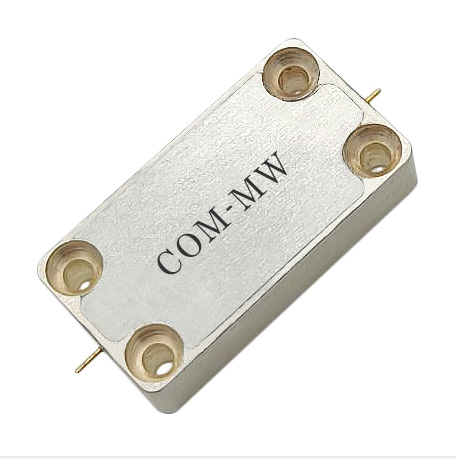

ZBF13-L650-260-608 Filter

Filter ZBF13-L650-260-608

Passband520~780MHz, DC-470MHz≥25dBc, 0.84-1.0GHz≥25dBc, Pin
View Details →

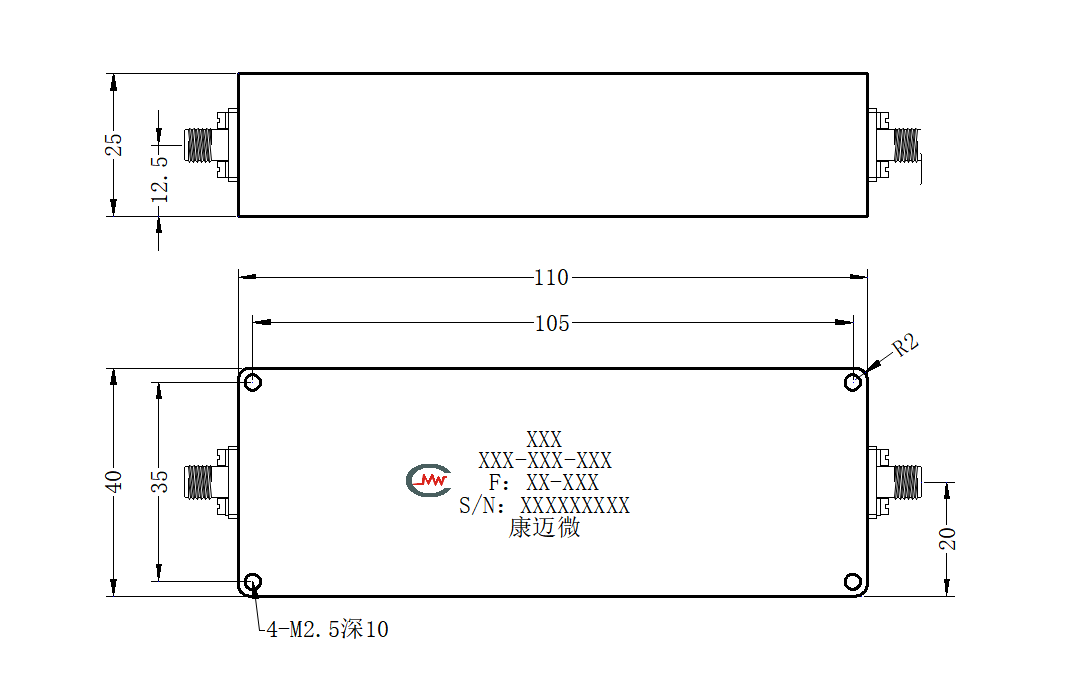

ZBF13-C750-60-743 Filter

Filter ZBF13-C750-60-743

Passband720~780MHz, DC-700MHz≥40dB, 0.8-1.5GHz≥40dB, SMA
View Details →
ZBF-L720-100-S2010 Filter

Filter ZBF-L720-100-S2010

Passband660~780MHz, DC-500MHz≥40dB, 1000-4000MHz≥40dB, SMD
View Details →
K6-768-778-8S4050-001 Filter

Filter K6-768-778-8S4050-001

Stopband F768~778MHz, ≥40dB, PassbandDC~760MHz, 786~2500MHz, SMA
View Details →
K6-768-778-8N4050-002 Filter

Filter K6-768-778-8N4050-002

Stopband F768~778MHz, ≥40dB, PassbandDC~760MHz, 786~2500MHz, N
View Details →
K6-768-778-30S5050-003 Filter

Filter K6-768-778-30S5050-003

Stopband F768~778MHz, ≥50dB, PassbandDC~738MHz, 808~3300MHz, SMA
View Details →
K6-768-778-30N5050-004 Filter

Filter K6-768-778-30N5050-004

Stopband F768~778MHz, ≥50dB, PassbandDC~738MHz, 808~3300MHz, N
View Details →
K6-717-783-30S5050-001 Filter

Filter K6-717-783-30S5050-001

Stopband F717~783MHz, ≥50dB, PassbandDC~687MHz, 813~3000MHz, SMA
View Details →
K6-717-783-30N5050-002 Filter

Filter K6-717-783-30N5050-002

Stopband F717~783MHz, ≥50dB, PassbandDC~687MHz, 813~3000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
