Filters
Filters 1
F High MHz
731.5 1 733 15 734.4 2 735 3 735.5 1
–
Connector
SMD 4 SMA 11 N 4 Microstrip needle 2
Power Handling
1 - 2 6 10 - 15 3 20 - 50 9 120 - 150 4
–
Maximum loss of side frequency dB
1.2 - 2 6 2.5 - 3 13 3.5 - 4 2 4.5 1
–
Rejection dB
40 - 45 5 50 - 55 8 60 - 65 8 70 1
–
F Low MHz
494.4 - 685 3 703 - 705 17 708.5 - 715.5 2
–
Feature
Bandpass 8 Notch 13
Center frequency MHz
614.4 2 710 1 718 3 720 3
–
IL on center frequency dB
1 4 1.5 1 2 2 3 1
–
Filter type
LC 8 Cavity&waveguide 14
F High：731.5 - 735.5 MHz× Clear all
matches 22 models Default Newest
ZBF13-L614.4-240-3748 Filter

Filter ZBF13-L614.4-240-3748

Passband494.4~734.4MHz, DC-399.4MHz≥50dB, 464.4MHz≥20dB, SMD
In Stock View Details →
ZBSF6-C715.5-735.5-4042 Filter

Filter ZBSF6-C715.5-735.5-4042

Stopband F715.5~735.5MHz, ≥55dB, PassbandDC~695.5MHz, 755.5~2400MHz, SMA
View Details →
ZBSF6-C703-733-5595 Filter

Filter ZBSF6-C703-733-5595

Stopband F703~733MHz, ≥60dB, PassbandDC~693MHz, 743~4000MHz, N
View Details →

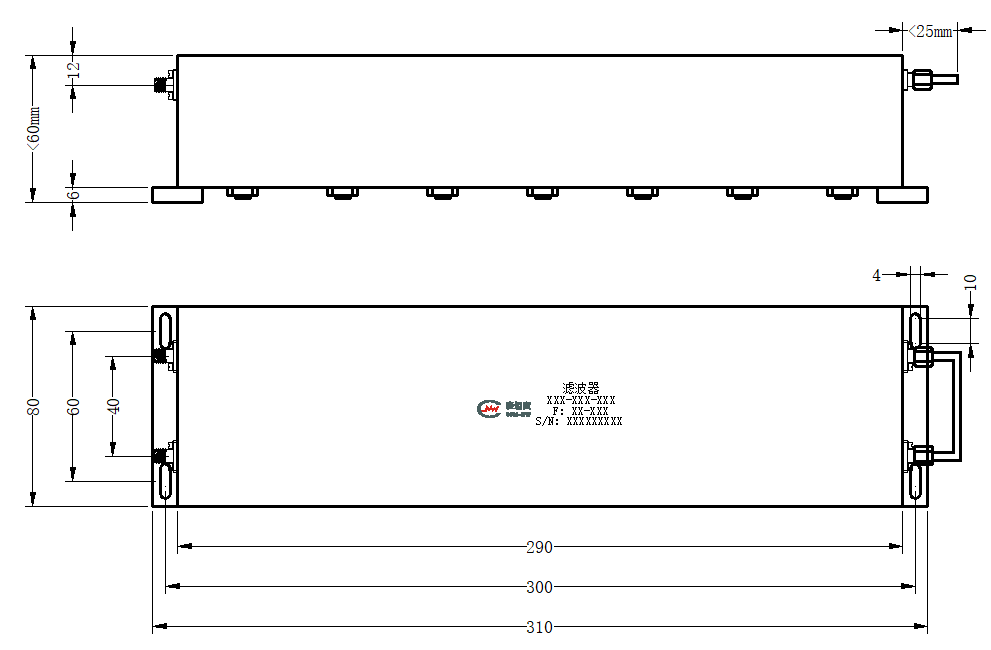

ZBSF6-C703-733-4668 Filter

Filter ZBSF6-C703-733-4668

Stopband F703~733MHz, ≥60dB, PassbandDC~693MHz, 743~3000MHz, SMA
View Details →

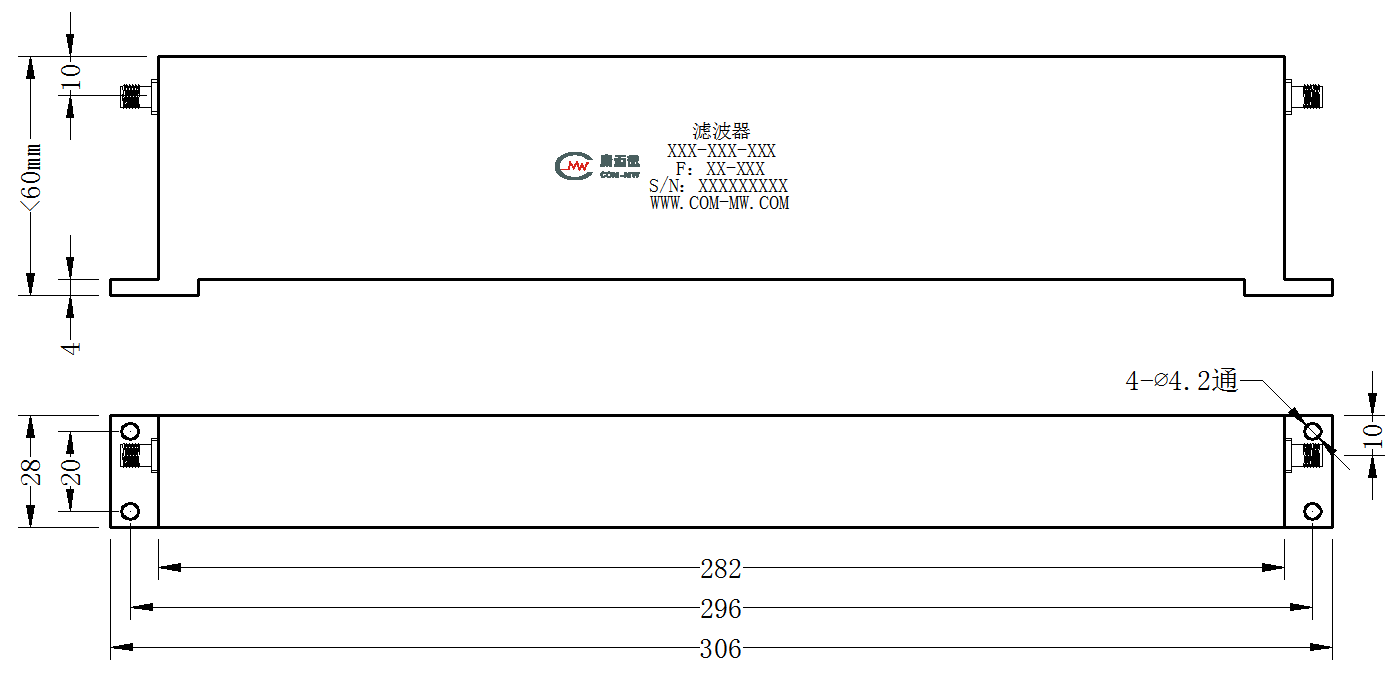

ZBSF6-C703-733-3706 Filter

Filter ZBSF6-C703-733-3706

View Details →
ZBSF6-C703-733-1687 Filter

Filter ZBSF6-C703-733-1687

Stopband F703~733MHz, ≥60dB, PassbandDC~693MHz, 743~3000MHz, N
View Details →

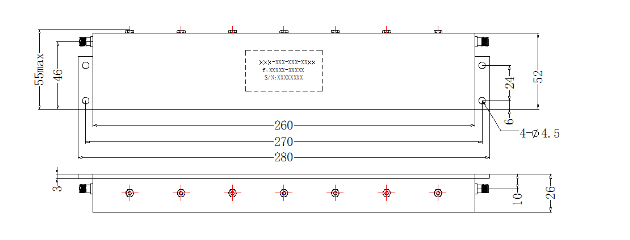

ZBSF4-703-733-CC1574 Notch filter

Notch filter ZBSF4-703-733-CC1574

Stopband F703~733MHz, ≥40dB, PassbandDC~693MHz, 743~2500MHz, SMA
View Details →

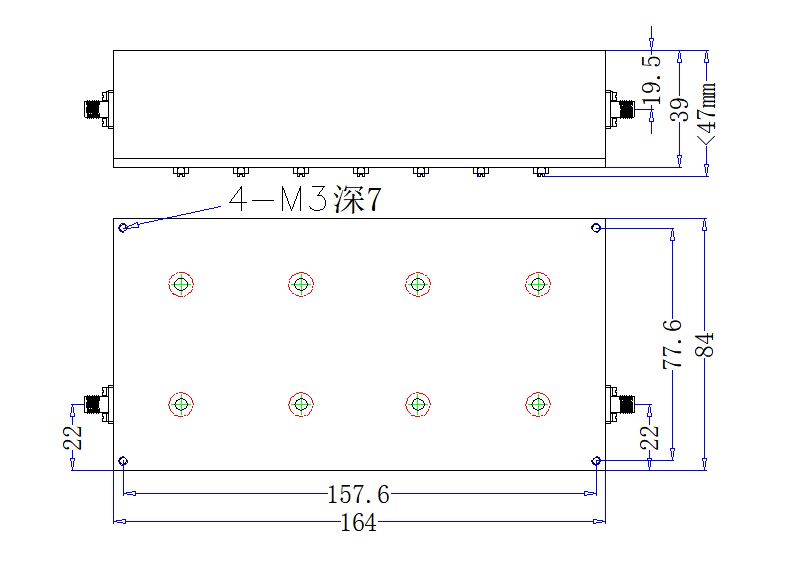

ZBF6-C718-30-3713 Filter

Filter ZBF6-C718-30-3713

Passband703~733MHz, DC-680MHz≥50dB, 756-1400MHz≥50dB, SMA
View Details →
ZBF3-L720-23-3145 Filter

Filter ZBF3-L720-23-3145

Passband708.5~731.5MHz, DC-580MHz≥65dBc, 860-2300MHz≥40dBc, Pin
View Details →
ZBF15-L720-30-1369 Filter

Filter ZBF15-L720-30-1369

Passband705~735MHz, DC-540MHz≥60dBc, 980-990MHz≥60dBc, SMD
View Details →
ZBF15-L720-30-1308 Filter

Filter ZBF15-L720-30-1308

Passband705~735MHz, DC-600MHz≥60dBc, 850-3000MHz≥60dBc, Pin
View Details →
ZBF15-L710-50-749 Filter

Filter ZBF15-L710-50-749

Passband685~735MHz, 850MHz≥40dB, 1845-2625MHz≥50dB, Microstrip pad
View Details →
ZBF13-L614.4-240-3865 Filter

Filter ZBF13-L614.4-240-3865

Passband494.4~734.4MHz, DC-398.4MHz≥45dBc, 830.4-3000MHz≥45dBc, SMD
View Details →
OQZBSF6-C703-733-3706 Filter

Filter OQZBSF6-C703-733-3706

Stopband F703~733MHz, ≥40dB, PassbandDC~693MHz, 743~2000MHz, SMA
View Details →
OQZBF6-C718-30-3713 Filter

Filter OQZBF6-C718-30-3713

Passband703~733MHz, DC-680MHz≥50dB, 756-1400MHz≥50dB, SMA
View Details →

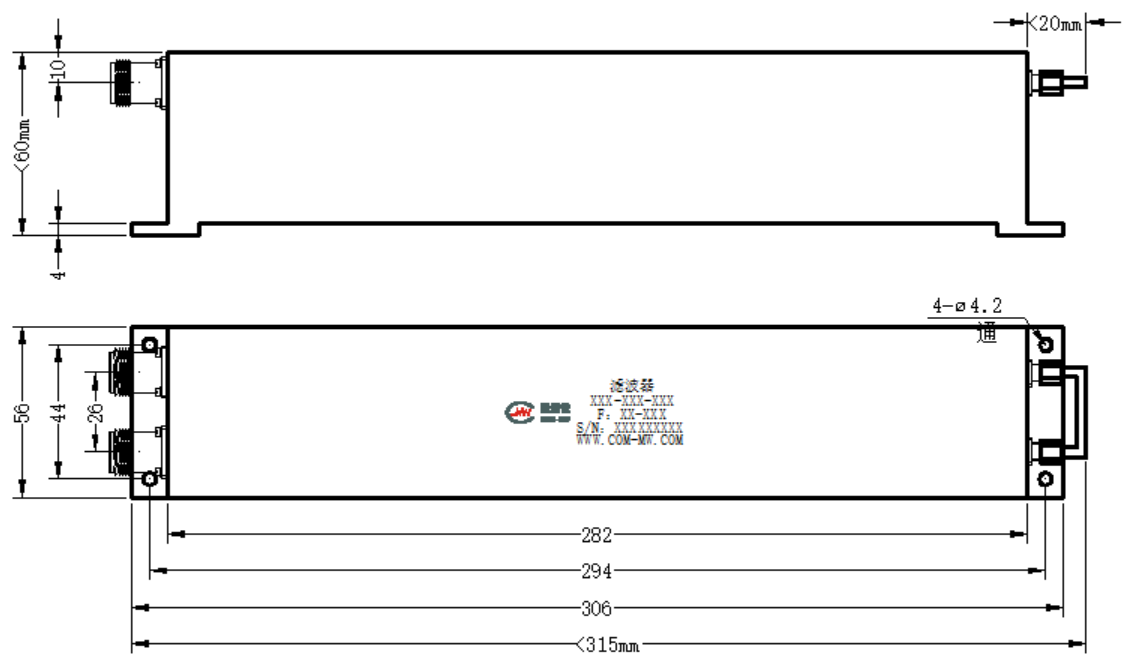

K6-703-743-10N6050-004 Filter

Filter K6-703-743-10N6050-004

Stopband F703~733MHz, ≥60dB, PassbandDC~693MHz, 743~3000MHz, N
View Details →

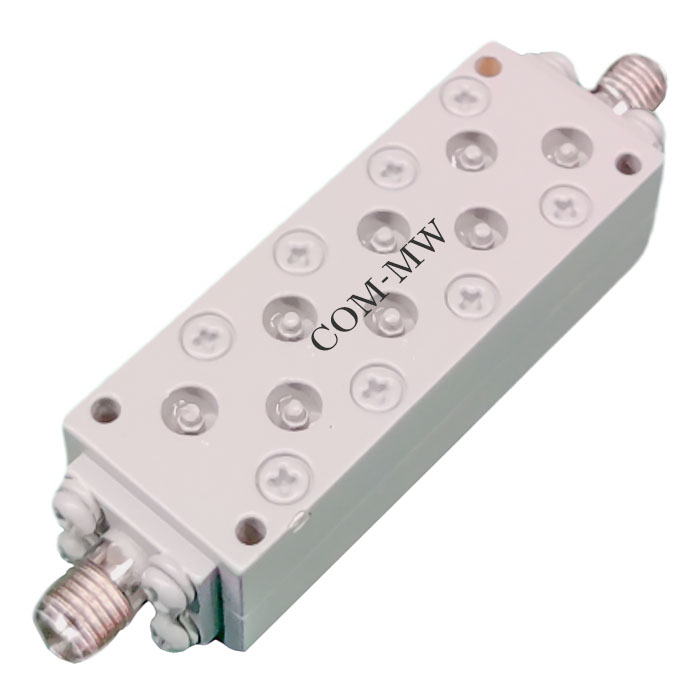

K6-703-733-30S5050-006 Filter

Filter K6-703-733-30S5050-006

Stopband F703~733MHz, ≥50dB, PassbandDC~673MHz, 763~3000MHz, SMA
View Details →
K6-703-733-30S5050-005 Filter

Filter K6-703-733-30S5050-005

Stopband F703~733MHz, ≥50dB, PassbandDC~673MHz, 763~3300MHz, SMA
View Details →
K6-703-733-10S6050-003 Filter

Filter K6-703-733-10S6050-003

Stopband F703~733MHz, ≥60dB, PassbandDC~693MHz, 743~3000MHz, SMA
View Details →

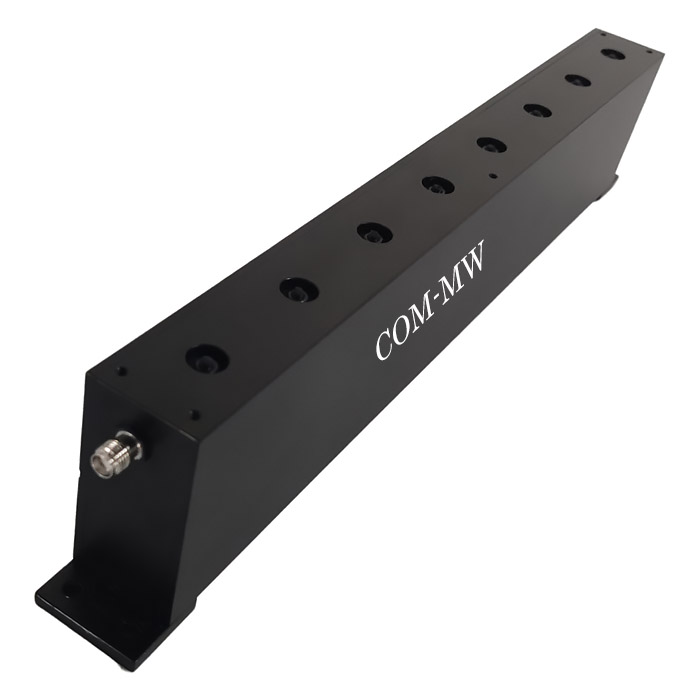

K6-703-733-10S4050-002 Filter

Filter K6-703-733-10S4050-002

Stopband F703~733MHz, ≥40dB, PassbandDC~693MHz, 743~2500MHz, SMA
View Details →

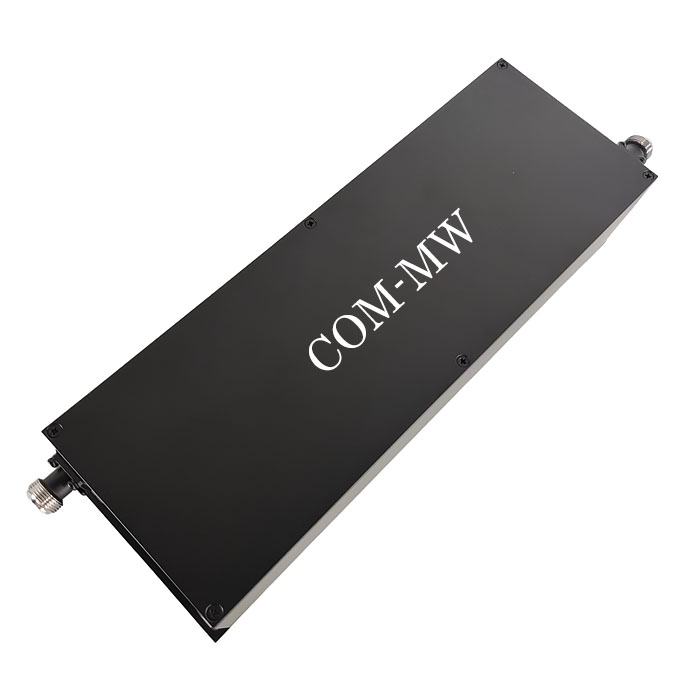

K6-703-733-10N70150M-007 Filter

Filter K6-703-733-10N70150M-007

Stopband F703~733MHz, ≥70dB, PassbandDC~693MHz, 743~3000MHz, N
View Details →
K6-703-733-10N6050-004 Filter

Filter K6-703-733-10N6050-004

Stopband F703~733MHz, ≥60dB, PassbandDC~693MHz, 743~3000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
