RF Filter

Total 33 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
7115 1 7120 2 7125 26 7140 1 7150 3
–
Connector
SMD 2 SMA 26 N 1 Microstrip needle 4
Power Handling
2 - 5 5 10 - 15 16 20 - 40 8 50 4
–
Maximum loss of side frequency dB
1.2 - 1.5 4 2 - 2.5 9 3 - 3.5 13 4 - 5 5
–
Rejection dB
35 - 40 9 50 - 55 16 60 - 70 7 80 1
–
F Low MHz
0 - 5550 5 5925 - 6425 14 6525 - 6850 4 6875 - 7040 10
–
Feature
Bandpass 11 Notch 20
Center frequency MHz
6012.5 - 6250 2 6350 - 6525 3 6615 - 6775 2 7000 - 7060 2 7070 - 7090 2
–
IL on center frequency dB
0.4 1 1 5 2 1 3 2 4 1
–
Insertion loss dB
1 1 1.5 1
–
Filter type
Cavity&waveguide 19 stripline 12
F High：7115 - 7150 MHz× Clear all
matches 33 models Default Newest
CA0587 SMD Filter

SMD Filter CA0587

Bandwidth6.425-7.125GHz, Rejection35@5.9GHz, 35@7.7GHz
In Stock View Details →
CA0249 SMD Filter

SMD Filter CA0249

Bandwidth5.55-7.15GHz, Rejection40@DC-4.6GHz, 35@8.0-16.0GHz
In Stock View Details →
ZBSF6-M5925-7125-2818 Filter

Filter ZBSF6-M5925-7125-2818

Stopband F5925~7125MHz, ≥40dB, PassbandDC~5525MHz, 7525~18000MHz, SMA
In Stock View Details →
ZBF6-L6525-1200-2658 Filter

Filter ZBF6-L6525-1200-2658

Passband5925~7125MHz, DC~5500MHz≥50dB, 7500~9000MHz≥50dB, SMA
In Stock View Details →
K6-6875-7125-150S4020-003 Filter

Filter K6-6875-7125-150S4020-003

Stopband F6875~7125MHz, ≥40dB, PassbandDC~6725MHz, 7275~18000MHz, SMA
In Stock View Details →
K6-5925-7125-500S5020-001 Notch filter

Notch filter K6-5925-7125-500S5020-001

Stopband F5925~7125MHz, ≥50dB, PassbandDC~5700MHz, 7455~18000MHz, SMA
In Stock View Details →
ZCB4-M7.5-30G-1616 Diplexer

Diplexer ZCB4-M7.5-30G-1616

Passband F1DC~7.12GHz, Passband F27.88~30GHz, 2.92
View Details →
ZBSF6-M6875-7125-5062 Filter

Filter ZBSF6-M6875-7125-5062

Stopband F6875~7125MHz, ≥50dB, PassbandDC~6700MHz, 7300~15000MHz, SMA
View Details →
ZBSF6-M6525-7125-2914 Filter

Filter ZBSF6-M6525-7125-2914

Stopband F6525~7125MHz, ≥50dB, PassbandDC~6250MHz, 7400~13000MHz, SMA
View Details →
ZBSF6-M5925-7125-5583 Filter

Filter ZBSF6-M5925-7125-5583

Stopband F5925~7125MHz, ≥50dB, PassbandDC~5550MHz, 7500~14500MHz, SMA
View Details →
ZBSF6-M5925-7125-5413 Filter

Filter ZBSF6-M5925-7125-5413

Stopband F5925~7125MHz, ≥50dB, PassbandDC~5550MHz, 7500~18000MHz, SMA
View Details →
ZBSF6-C6875-7125-3310 Filter

Filter ZBSF6-C6875-7125-3310

Stopband F6875~7125MHz, ≥50dB, PassbandDC~6845MHz, 7165~10000MHz, SMA
View Details →
ZBSF6-C6875-7125-2954 Filter

Filter ZBSF6-C6875-7125-2954

Stopband F6875~7125MHz, ≥40dB, PassbandDC~6835MHz, 7165~10000MHz, SMA
View Details →

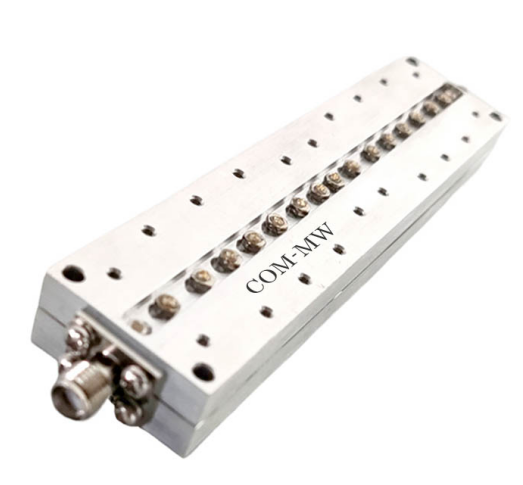

ZBSF6-C6525-7125-5440 Filter

Filter ZBSF6-C6525-7125-5440

Stopband F6525~7125MHz, ≥40dB, PassbandDC~6325MHz, 7325~18000MHz, SMA
View Details →
ZBSF6-C6425-7125-4168 Filter

Filter ZBSF6-C6425-7125-4168

Stopband F6425~7125MHz, ≥60dB, PassbandDC~6385MHz, 7165~11000MHz, SMA
View Details →
ZBSF6-C6105-7125-762 Filter

Filter ZBSF6-C6105-7125-762

Stopband F6105~7125MHz, ≥40dB, PassbandDC~5925MHz, 7305~10000MHz, SMA
View Details →
ZBSF6-C5925-7125-732 Filter

Filter ZBSF6-C5925-7125-732

Stopband F5925~7125MHz, ≥50dB, PassbandDC~5775MHz, 7275~10000MHz, , SMA
View Details →
ZBSF6-C5925-7125-4423 Filter

Filter ZBSF6-C5925-7125-4423

Stopband F5925~7125MHz, ≥55dB, PassbandDC~5425MHz, 7625~18000MHz, SMA
View Details →

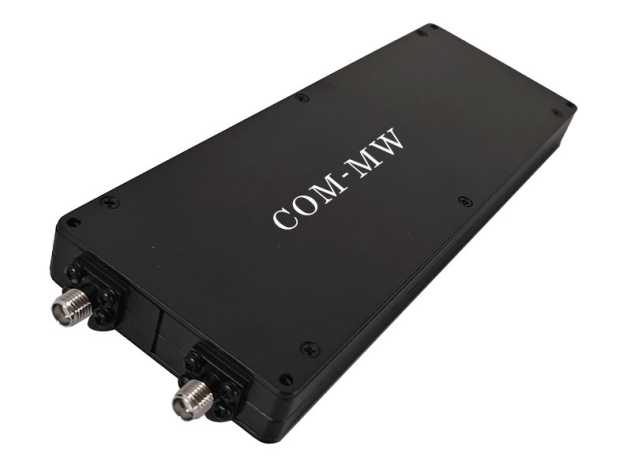

ZBSF6-C4900-7125-5296 Filter

Filter ZBSF6-C4900-7125-5296

Stopband F4900~7125MHz, ≥50dB, PassbandDC~4400MHz, 7625~18000MHz, SMA
View Details →

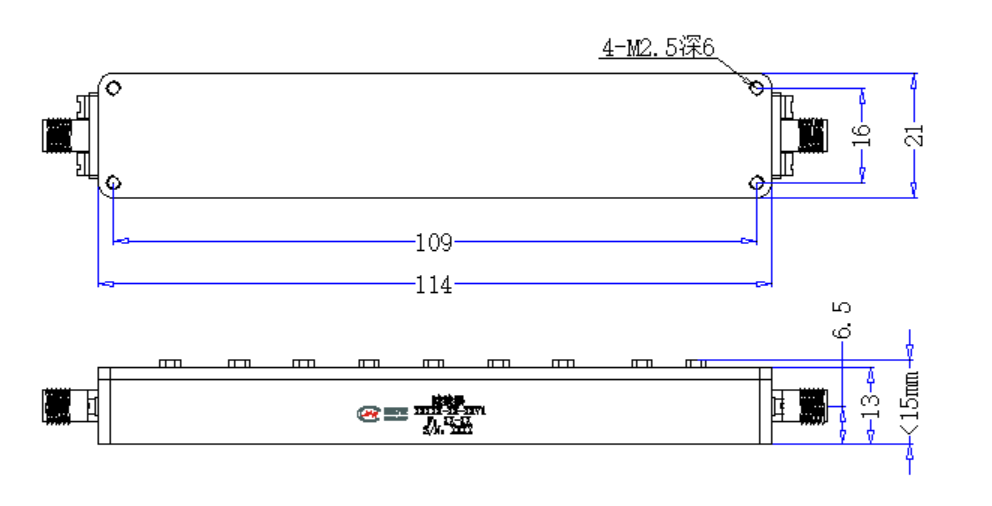

ZBF6-C6525-1200-4150 Filter

Filter ZBF6-C6525-1200-4150

Passband5925~7125MHz, DC-5GHz≥50dBc, 8-16GHz≥50dBc, SMA
View Details →
ZBF6-C6012.5-2225-5295 Filter

Filter ZBF6-C6012.5-2225-5295

Passband4900~7125MHz, DC-3580MHz≥60dB, 8430-12750MHz≥60dB, SMA
View Details →
ZBF5-C7060-110-1008 Filter

Filter ZBF5-C7060-110-1008

Passband7005~7115MHz, 7130-7200MHz≥5dBc, 7200-20000MHz≥70dBc, Pin
View Details →
ZBF5-C7000-300-2464 Filter

Filter ZBF5-C7000-300-2464

Passband6850~7150MHz, DC-6700MHz≥55dBc, 7300-10000MHz≥55dBc, SMA
View Details →
ZBF3-C7090-100-3514 Filter

Filter ZBF3-C7090-100-3514

Passband7040~7140MHz, 6570MHz≥60dB, 6050MHz≥70dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
