Filters
Filters 1
F High MHz
6518 1 6520 1 6525 13 6532.5 1 6545 2
–
Connector
SMA 15 Microstrip needle 3
Power Handling
1 1 10 11 20 2 50 4
–
Maximum loss of side frequency dB
1 - 2 5 2.5 - 3 9 4 - 4.5 3 5 1
–
Rejection dB
40 5 50 9 55 2 60 1 70 1
–
F Low MHz
5182 - 5830 2 5924 - 5925 3 5976 - 6425 10 6467.5 - 6480 2 6505 1
–
Feature
Bandpass 5 Notch 13
Center frequency MHz
5850 1 6187.5 1 6250 1 6500 2
–
IL on center frequency dB
0.5 1 1 2 1.5 1 3 1
–
Filter type
LC 1 Cavity&waveguide 12 stripline 5
F High：6518 - 6545 MHz× Clear all
matches 18 models Default Newest
K6-6425-6525-120S4020-003 Filter

Filter K6-6425-6525-120S4020-003

Stopband F6425~6525MHz, ≥50dB, PassbandDC~6325MHz, 6625~18000MHz, SMA
In Stock View Details →
ZBSF6-M6425-6525-5060 Filter

Filter ZBSF6-M6425-6525-5060

Stopband F6425~6525MHz, ≥50dB, PassbandDC~6300MHz, 6650~14000MHz, SMA
View Details →
ZBSF6-M5925-6525-2913 Filter

Filter ZBSF6-M5925-6525-2913

Stopband F5925~6525MHz, ≥50dB, PassbandDC~5650MHz, 6800~11700MHz, SMA
View Details →
ZBSF6-M5924-6525-5439 Filter

Filter ZBSF6-M5924-6525-5439

Stopband F5924~6525MHz, ≥40dB, PassbandDC~5724MHz, 6725~18000MHz, SMA
View Details →
ZBSF6-C6505-6545-4209 Filter

Filter ZBSF6-C6505-6545-4209

Stopband F6505~6545MHz, ≥55dB, PassbandDC~6475MHz, 6575~10000MHz, SMA
View Details →
ZBSF6-C6425-6525-3308 Filter

Filter ZBSF6-C6425-6525-3308

Stopband F6425~6525MHz, ≥50dB, PassbandDC~6395MHz, 6555~10000MHz, SMA
View Details →
ZBSF6-C6425-6525-2952 Filter

Filter ZBSF6-C6425-6525-2952

Stopband F6425~6525MHz, ≥40dB, PassbandDC~6385MHz, 6565~10000MHz, SMA
View Details →
ZBF6-C6500-65-4440 Filter

Filter ZBF6-C6500-65-4440

Passband6467.5~6532.5MHz, DC-6230MHz≥50dB, 6770-18597.5MHz≥50dB, SMA
View Details →
ZBF5-C6250-550-1804 Filter

Filter ZBF5-C6250-550-1804

Passband5975~6525MHz, DC-5GHz≥50dBc, 5-5.5GHz≥40dBc, Pin
View Details →
ZBF4-C6500-40-020 Filter

Filter ZBF4-C6500-40-020

Passband6480~6520MHz, DC-6415MHz≥60dB, 6625-12000MHz≥60dB, SMA
View Details →
ZBF3-L6187.5-715-1649 Filter

Filter ZBF3-L6187.5-715-1649

Passband~6545MHz, 8275-8750MHz≥70dB, dB, Pin
View Details →
ZBF13-C5850-1336-219 Filter

Filter ZBF13-C5850-1336-219

Passband5182~6518MHz, DC-4.8GHz≥55dBc, 7-13GHz≥55dBc, Pin
View Details →
K6-6425-6525-30S50100-001 Filter

Filter K6-6425-6525-30S50100-001

Stopband F6425~6525MHz, ≥50dB, PassbandDC~6395MHz, 6555~10000MHz, SMA
View Details →
K6-6425-6525-30S5010-004 Filter

Filter K6-6425-6525-30S5010-004

Stopband F6425~6525MHz, ≥50dB, PassbandDC~6395MHz, 6555~10000MHz, SMA
View Details →
K6-6425-6525-30S5010-002 Filter

Filter K6-6425-6525-30S5010-002

Stopband F6425~6525MHz, ≥50dB, PassbandDC~6395MHz, 6555~10000MHz, SMA
View Details →
K6-6425-6525-30S4010-001 Filter

Filter K6-6425-6525-30S4010-001

Stopband F6425~6525MHz, ≥40dB, PassbandDC~6395MHz, 6555~10000MHz, SMA
View Details →
K6-6425-6525-120S4010-003 Filter

Filter K6-6425-6525-120S4010-003

Stopband F6425~6525MHz, ≥40dB, PassbandDC~6305MHz, 6645~18000MHz, SMA
View Details →

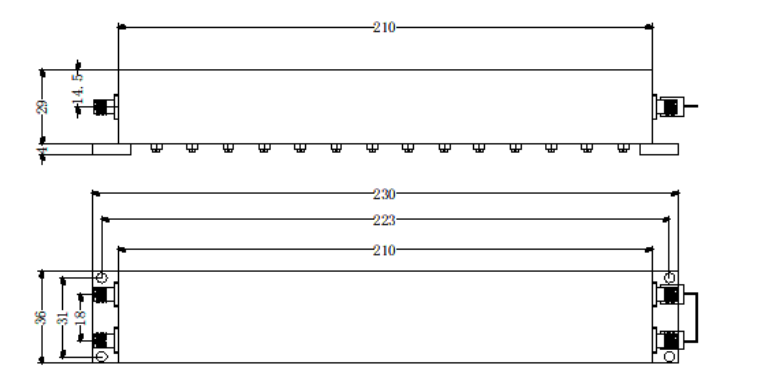

DCBSF4-C5925-6525-907 Notch filter

Notch filter DCBSF4-C5925-6525-907

Stopband F5925~6525MHz, ≥40dB, PassbandDC~5815MHz, 6635~9000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
