RF Filter

Total 29 models
Categories
Categories RF Filter
RF Filter16039
RF Filter15367 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
5800 24 5805 1 5810 1 5813.5 1 5815 2
–
Connector
SMD 2 SMA 18 N 1 Microstrip pad 1 Microstrip needle 7
Power Handling
0.5 - 2 3 3 - 5 6 10 - 20 16 30 - 100 3 110 1
–
Maximum loss of side frequency dB
1 7 1.5 8 2 7 3 5 4.3 1
–
Rejection dB
25 - 35 3 40 - 50 14 55 - 70 10 75 - 80 2
–
F Low MHz
0 - 3800 10 4200 - 4800 4 5100 - 5400 6 5600 - 5755 7 5790 - 5798.5 2
–
Feature
Bandpass 24 low pass 2 Notch 2
Center frequency MHz
4500 - 4800 8 5000 - 5200 3 5500 - 5600 5 5700 - 5787.5 6 5795 - 5806 2
–
IL on center frequency dB
0.5 6 1 14 2 3 3 1
–
Insertion loss dB
1.5 1
–
Filter type
LC 1 Cavity&waveguide 23 stripline 2 Coaxial 1 Thin film 1
F High：5800 - 5815 MHz× Clear all
matches 29 models Default Newest
CA0502-2549 SMD Filter

SMD Filter CA0502-2549

Bandwidth3.8-5.8GHz, Rejection35@DC-2.7GHz, 25@6.7-10.5GHz
In Stock View Details →
STBP5R2-1R3-M669 Thin film filter

Thin film filter STBP5R2-1R3-M669

Bandwidth4.5-5.8GHz, Rejection40@DC-3.7GHz, 38@6.7-12.0GHz
In Stock View Details →
ZBF25-C4.5-2.6G-549 Filter

Filter ZBF25-C4.5-2.6G-549

Passband3.2~5.8GHz, DC-2.8GHz≥50dB, 6-6.2GHz≥20dB, SMA-MF
In Stock View Details →
CC0112 Filter

Filter CC0112

Bandwidth3.6-5.8GHz, Rejection40@DC-2.2GHz, 40@7.0-13.0GHz
In Stock View Details →
ZCB1-2M4.8-17.4G-368 Diplexer

Diplexer ZCB1-2M4.8-17.4G-368

Passband F14.8~5.8GHz, Passband F29.6~17.4GHz, SMA
In Stock View Details →
ZBF25-C4.5-2.6G-405 Filter

Filter ZBF25-C4.5-2.6G-405

Passband3.2~5.8GHz, DC-2.8GHz≥50dB, 6-6.2GHz≥20dB, SMA-MF
In Stock View Details →
ZLPF3-L0-5800-4374 Filter

Filter ZLPF3-L0-5800-4374

PassbandDC~5800MHz, 6200-8500MHz≥50dB, MHz≥dB, SMD
View Details →
ZLPF13-M0-5.8G-137 Filter

Filter ZLPF13-M0-5.8G-137

PassbandDC~5.8GHz, 11.5-14.5GHz≥70dBc, dB, Pin
View Details →
ZBSF6-C5150-5800-5327 Filter

Filter ZBSF6-C5150-5800-5327

Stopband F5100~5800MHz, ≥50dB, PassbandDC~5000MHz, ~MHz, N
View Details →
ZBF6-C5806-15-6160 Filter

Filter ZBF6-C5806-15-6160

Passband5798.5~5813.5MHz, DC-5776.5MHz≥25dB, 5835.5-10000MHz≥25dB, SMA
View Details →
ZBF5-C5700-200-2081 Filter

Filter ZBF5-C5700-200-2081

Passband5600~5800MHz, DC-5GHz≥45dBc, 6.2-11GHz≥45dBc, Pin
View Details →
ZBF5-C5600-400-2420 Filter

Filter ZBF5-C5600-400-2420

Passband5400~5800MHz, DC-4GHz≥70dB, 6.4-10GHz≥70dB, Pin
View Details →
ZBF5-C5500-600-1568 Filter

Filter ZBF5-C5500-600-1568

Passband5200~5800MHz, DC-5000MHz≥80dBc, 7500-15000MHz≥80dBc, SMA
View Details →
ZBF5-C5-1.6G-367 Filter

Filter ZBF5-C5-1.6G-367

Passband4.2~5.8GHz, DC-3.8GHz≥40dB, 8-12GHz≥60dB, Pin
View Details →

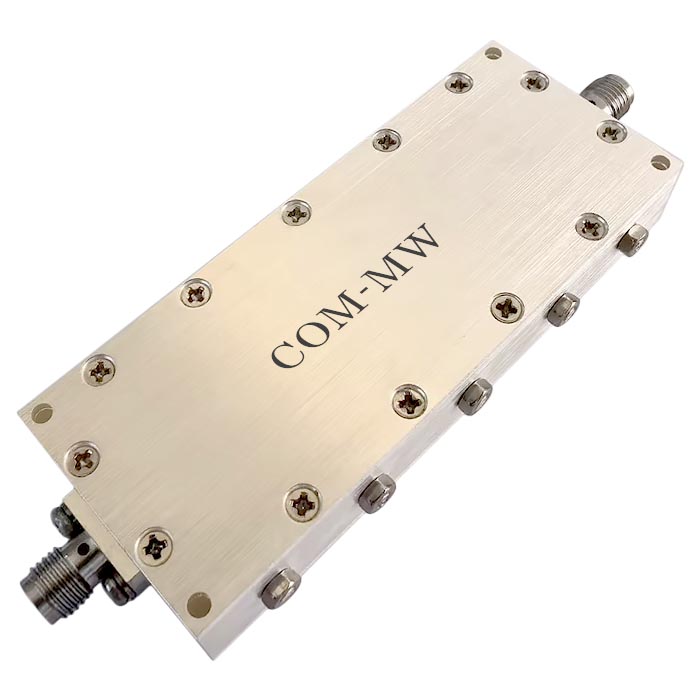

ZBF5-C4.5-2.6G-1246 Filter

Filter ZBF5-C4.5-2.6G-1246

Passband3.2~5.8GHz, DC-2.6GHz≥50dBc, 6.4-10GHz≥50dBc, SMA
View Details →
ZBF4-C5787.5-125-1193 Filter

Filter ZBF4-C5787.5-125-1193

Passband5725~5805MHz, 5487.5MHz≥40dB, 6087.5MHz≥40dB, SMA
View Details →
ZBF4-C5.76-0.1G-314 Filter

Filter ZBF4-C5.76-0.1G-314

Passband5710~5810MHz, DC-5400MHz≥75dB, 6010-10000MHz≥75dB, Pin
View Details →
ZBF4-C5.7-0.2G-1470 Filter

Filter ZBF4-C5.7-0.2G-1470

Passband5.6~5.8GHz, DC-5.4GHz≥40dB, 6-13GHz≥50dB, SMA-KDetachable
View Details →
ZBF3-C5600-400-3937 Filter

Filter ZBF3-C5600-400-3937

Passband5400~5800MHz, DC-5100MHz≥30dBc, 6300-12000MHz≥40dB, SMA
View Details →
ZBF3-C5550-500-1780 Filter

Filter ZBF3-C5550-500-1780

Passband5300~5800MHz, 4500-5000MHz≥60dB, 6100-8300MHz≥20dB, Pin
View Details →
ZBF3-C5.55-0.5G-517 Filter

Filter ZBF3-C5.55-0.5G-517

Passband5300~5800MHz, 4800MHz≥60dB, 6150-10000MHz≥70dB, Pin
View Details →

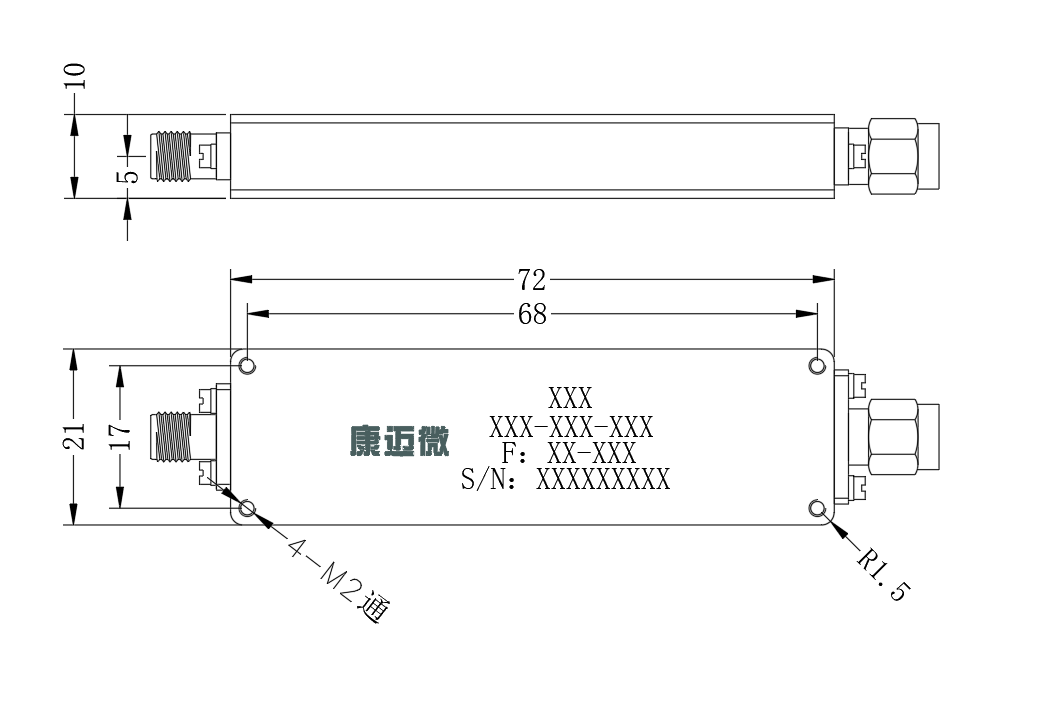

ZBF16-C4500-2600-2138 Filter

Filter ZBF16-C4500-2600-2138

Passband3200~5800MHz, DC~2800MHz≥60dB, 6200~9000MHz≥60dB, SMA
View Details →

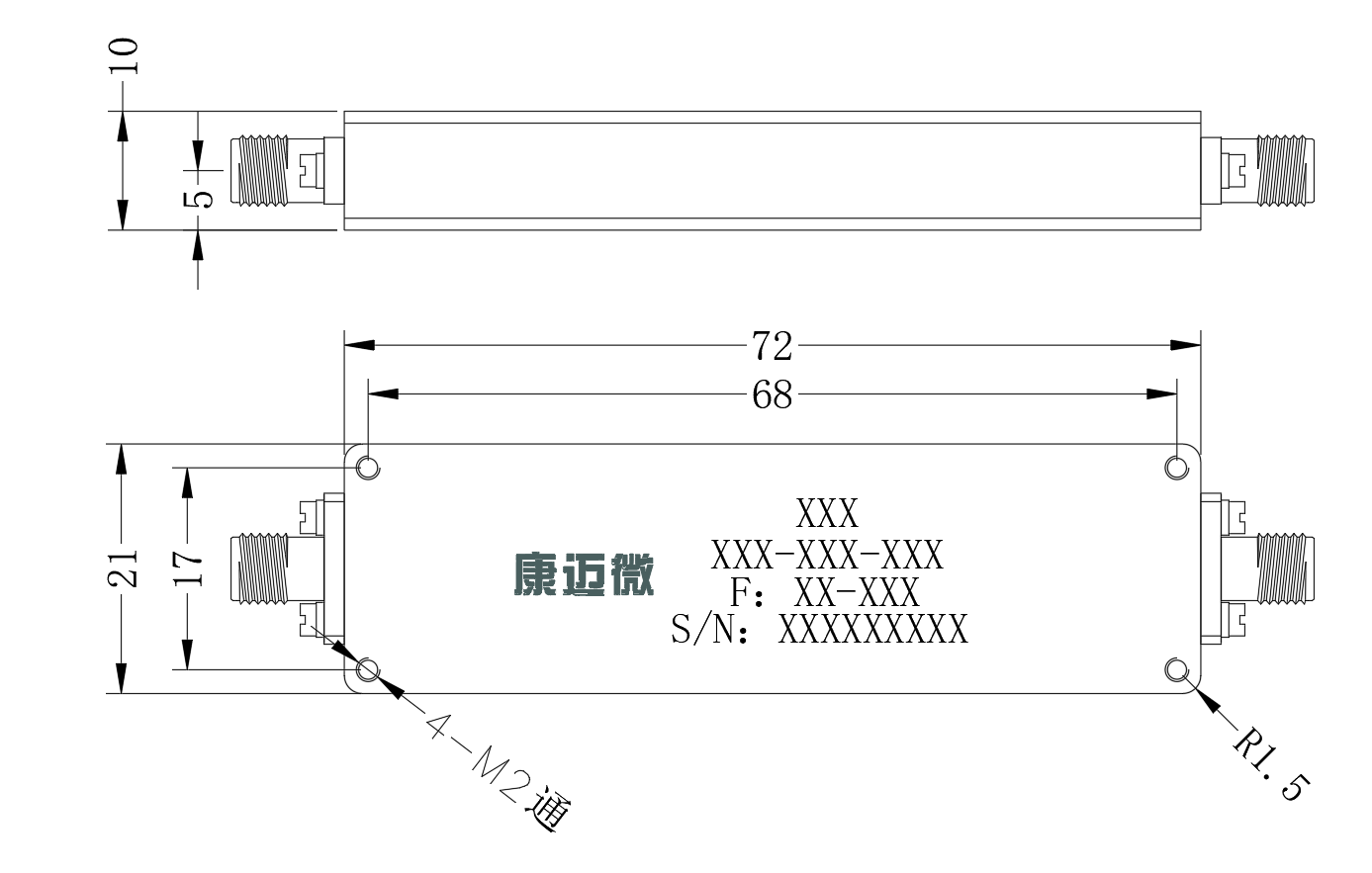

ZBF16-C4500-2600-2071 Filter

Filter ZBF16-C4500-2600-2071

Passband3200~5800MHz, DC~2800MHz≥60dB, 6200~9000MHz≥60dB, SMA
View Details →
ZBF13-C5795-10-098 Filter

Filter ZBF13-C5795-10-098

Passband5790~5800MHz, DC-5.7GHz≥30dB, 5.83-5.84GHz≥30dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
