F High：540 - 580 MHz× Clear all
matches 77 models Default Newest
LF058 Filter

Filter LF058

PassbandDC~550MHz, 600-630MHz≥20dB, 630-2030MHz≥35dB, SMD, Replace SXLP-550A+
In Stock View Details →
LF083 Filter

Filter LF083

PassbandDC~580MHz, 840-1120MHz≥60dB, 1120-2000MHz≥60dB, SMA
In Stock View Details →
ZLPF5-L0-550-3066 Filter

Filter ZLPF5-L0-550-3066

PassbandDC~550MHz, Rejection700-2000MHz≥35dB, SMD
In Stock View Details →
WLD004005K Filter

Filter WLD004005K

Passband460~540MHz, 300MHz≥40dBc, 680MHz≥27dBc, Microstrip pad, MMIC
In Stock View Details →
WLD003006K Filter

Filter WLD003006K

Passband350~550MHz, 270MHz≥20dBc, 650MHz≥20dBc, Microstrip pad, MMIC
In Stock View Details →
LF057 Filter

Filter LF057

PassbandDC~550MHz, 800-1050MHz≥20dB, 1050-2000MHz≥35dB, SMD, Replace SXLP-550+
In Stock View Details →
BF057 Filter

Filter BF057

Passband460~560MHz, 300MHz≥20dB, 615MHz≥20dB, SMD, Replace SXBP-507+
In Stock View Details →
ZBF5-L560-10-3722 Filter

Filter ZBF5-L560-10-3722

Passband555~565MHz, DC-500MHz≥40dB, SMD
In Stock View Details →
ZBF13-L490-105-4014 Filter

Filter ZBF13-L490-105-4014

Passband437.5~542.5MHz, DC-355MHz≥40dB, 595MHz≥25dB, SMA
In Stock View Details →
ZLPF15-L30-560-1061 Filter

Filter ZLPF15-L30-560-1061

Passband30~560MHz, 800-3000MHz≥35dBc, dB, SMD
In Stock View Details →
ZBF13-L525-50-1522 Filter

Filter ZBF13-L525-50-1522

Passband500~550MHz, DC-450MHz≥40dB, 600-1500MHz≥40dB, SMD
In Stock View Details →
ZBF3-L510-140-4649 Filter

Filter ZBF3-L510-140-4649

Passband440~580MHz, DC-320MHz≥30dBc, 700-1000MHz≥30dBc, SMD
In Stock View Details →
ZBF13-L525-50-1523 Filter

Filter ZBF13-L525-50-1523

Passband500~550MHz, DC-450MHz≥40dB, 600-1500MHz≥40dB, SMA
In Stock View Details →

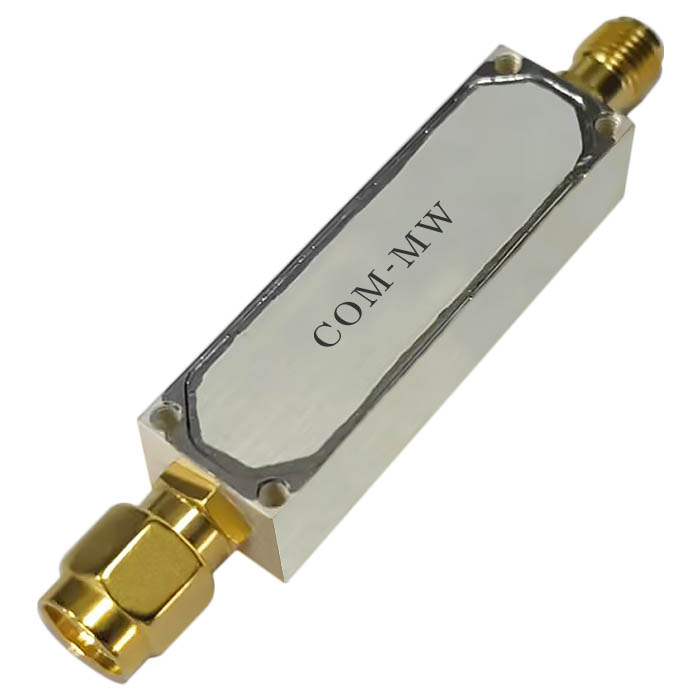

ZLPF15-L1-575-156 Filter

Filter ZLPF15-L1-575-156

PassbandDC~575MHz, 1000-2500MHz≥40dBc, 2500-4400MHz≥20dBc, dBc, dBc, SMA
In Stock View Details →

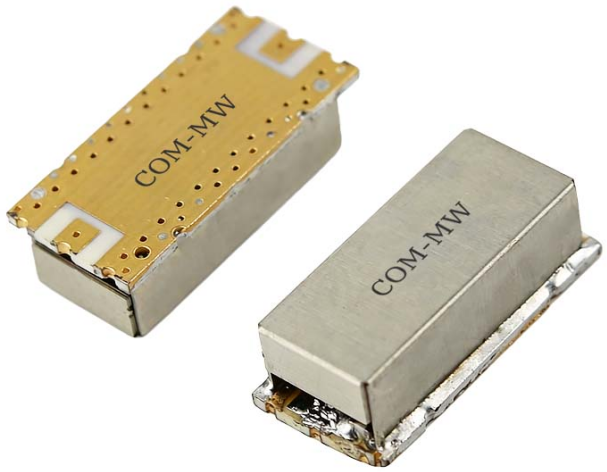

SC-BP507.5-115 Filter

Filter SC-BP507.5-115

Passband450~565MHz, DC-88MHz≥50dBc, 225-392.5MHz≥30dBc, SMD
In Stock View Details →
ZLPF2-L0-550-1657 Filter

Filter ZLPF2-L0-550-1657

PassbandDC~550MHz, 625-750MHz≥40dBc, 750-1000MHz≥50dBc, Pin
In Stock View Details →
ZBF15-L554-24-1458 Filter

Filter ZBF15-L554-24-1458

Passband542~566MHz, DC-516MHz≥30dBc, 592-2000MHz≥30dBc, SMD
In Stock View Details →
ZBF15-L530-24-1457 Filter

Filter ZBF15-L530-24-1457

Passband518~542MHz, DC-492MHz≥30dBc, 568-2000MHz≥30dBc, SMD
In Stock View Details →
ZBF15-L475-170-1452 Filter

Filter ZBF15-L475-170-1452

Passband390~560MHz, DC-310MHz≥40dB, 640-2000MHz≥40dB, SMD
In Stock View Details →
ZBF-H554-8-7 Filter

Filter ZBF-H554-8-7

Passband550~558MHz, 518MHz≥40dB, 590MHz≥40dB, SMA
In Stock View Details →
SM0006 MEMS Filter

MEMS Filter SM0006

Bandwidth0.37-0.54GHz, Rejection40@DC-0.22GHz, 40@0.72GHz,
In Stock View Details →
ZBF3-L525-50-2791 Filter

Filter ZBF3-L525-50-2791

Passband500~550MHz, DC-450MHz≥40dB, 580-1500MHz≥30dB, Pin
In Stock View Details →
ZLPF5-L0-580-446 Filter

Filter ZLPF5-L0-580-446

PassbandDC~580MHz, 1000-1500MHz≥70dBc, 1500-6500MHz≥25dBc, SMA
View Details →
ZLPF5-L0-550-596 Filter

Filter ZLPF5-L0-550-596

PassbandDC~550MHz, 650-1500MHz≥50dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
