RF Filter

Total 29 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
549 1 550 25 550.8 1 551 1 553 1
–
Connector
SMD 7 SMA 8 Microstrip pad 1 Microstrip needle 12
Power Handling
0.32 - 0.5 3 1 - 2 20 5 - 10 3 50 - 150 2 200 1
–
Maximum loss of side frequency dB
1 - 1.5 8 2 - 2.5 11 3 - 3.8 7 4 3
–
Rejection dB
20 - 35 5 40 - 45 16 50 - 55 7 65 1
–
F Low MHz
0 - 250 9 350 - 425 4 450 - 500 11 510 - 529 3 541 - 550 2
–
Feature
Bandpass 21 low pass 7 Notch 1
Center frequency MHz
375 - 450 4 460.8 - 500 4 505 - 530 9 540 - 550 4
–
IL on center frequency dB
0.5 - 1 10 1.5 - 2 8 3 - 4 3
–
Filter type
LC 25 Cavity&waveguide 2 stripline 1 MMIC 1
F High：549 - 553 MHz× Clear all
matches 29 models Default Newest
LF058 Filter

Filter LF058

PassbandDC~550MHz, 600-630MHz≥20dB, 630-2030MHz≥35dB, SMD, Replace SXLP-550A+
In Stock View Details →
ZLPF5-L0-550-3066 Filter

Filter ZLPF5-L0-550-3066

PassbandDC~550MHz, Rejection700-2000MHz≥35dB, SMD
In Stock View Details →
WLD003006K Filter

Filter WLD003006K

Passband350~550MHz, 270MHz≥20dBc, 650MHz≥20dBc, Microstrip pad, MMIC
In Stock View Details →
LF057 Filter

Filter LF057

PassbandDC~550MHz, 800-1050MHz≥20dB, 1050-2000MHz≥35dB, SMD, Replace SXLP-550+
In Stock View Details →
ZBF13-L525-50-1522 Filter

Filter ZBF13-L525-50-1522

Passband500~550MHz, DC-450MHz≥40dB, 600-1500MHz≥40dB, SMD
In Stock View Details →
ZBF13-L525-50-1523 Filter

Filter ZBF13-L525-50-1523

Passband500~550MHz, DC-450MHz≥40dB, 600-1500MHz≥40dB, SMA
In Stock View Details →
ZLPF2-L0-550-1657 Filter

Filter ZLPF2-L0-550-1657

PassbandDC~550MHz, 625-750MHz≥40dBc, 750-1000MHz≥50dBc, Pin
In Stock View Details →
ZBF3-L525-50-2791 Filter

Filter ZBF3-L525-50-2791

Passband500~550MHz, DC-450MHz≥40dB, 580-1500MHz≥30dB, Pin
In Stock View Details →
ZLPF5-L0-550-596 Filter

Filter ZLPF5-L0-550-596

PassbandDC~550MHz, 650-1500MHz≥50dBc, Pin
View Details →
ZLPF5-L0-550-3835 Filter

Filter ZLPF5-L0-550-3835

PassbandDC~550MHz, 600-1500MHz≥50dBc, SMA
View Details →
ZLPF5-L0-550-1382 Filter

Filter ZLPF5-L0-550-1382

PassbandDC~550MHz, 650-1500MHz≥45dBc, SMA-K
View Details →
ZBSF5-L450-550-1957 Filter

Filter ZBSF5-L450-550-1957

Stopband F450~550MHz, ≥20dB, Passband410~428MHz, 620~626MHz, Pin
View Details →
ZBF6-C545-8-SMA Filter

Filter ZBF6-C545-8-SMA

Passband541~549MHz, DC-531MHz≥40dB, 559-1000MHz≥40dB, SMA
View Details →
ZBF6-C500-100-2880 Filter

Filter ZBF6-C500-100-2880

Passband500, , 300MHz≥40dB, 700MHz≥40dB, SMA
View Details →
ZBF5-L505-90-555 Filter

Filter ZBF5-L505-90-555

Passband460~550MHz, DC-325MHz≥40dBc, 685-800MHz≥40dBc, Pin
View Details →

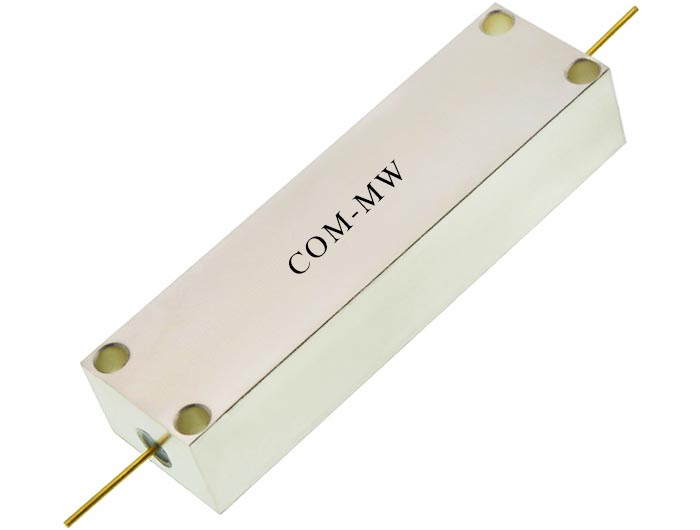

ZBF5-L500-100-1956 Filter

Filter ZBF5-L500-100-1956

Passband450~550MHz, DC-300MHz≥40dBc, 750-1600MHz≥40dBc, Pin
View Details →
ZBF3-L540-30.24-836 Filter

Filter ZBF3-L540-30.24-836

Passband527~553MHz, DC-494MHz≥40dB, 586-1500MHz≥40dB, SMA
View Details →
ZBF3-L530-40-1561 Filter

Filter ZBF3-L530-40-1561

Passband510~550MHz, DC-460MHz≥45dBc, 600-1500MHz≥45dBc, Pin
View Details →

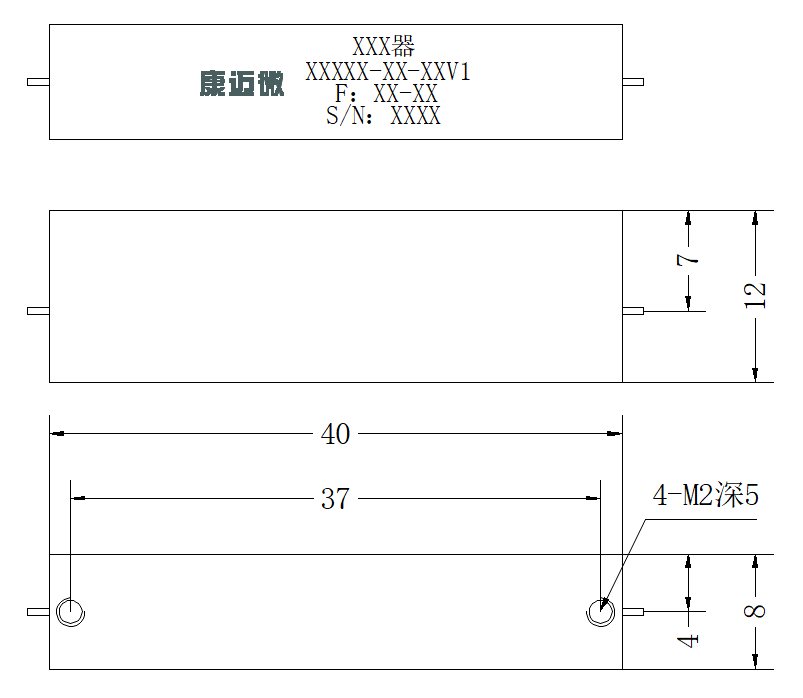

ZBF3-L450-200-563 Filter

Filter ZBF3-L450-200-563

Passband350~550MHz, DC-200MHz≥40dB, 650-1000MHz≥40dB, Pin
View Details →
ZBF15-ML525-50-2893 Filter

Filter ZBF15-ML525-50-2893

Passband500~550MHz, DC-200MHz≥50dBc, 200-395MHz≥50dBc, 395-440MHz≥15dBc, 600MHz≥12dBc, 790-900MHz≥50dBc, 2nd and 3rd harmonic50dBc, SMA
View Details →
ZBF15-L540-22-771 Filter

Filter ZBF15-L540-22-771

Passband529~551MHz, DC-400MHz≥65dB, 430-490MHz≥30dB, Pin
View Details →
ZBF15-L525-50-404 Filter

Filter ZBF15-L525-50-404

Passband500~550MHz, DC-440MHz≥45dBc, 780-2500MHz≥45dBc, SMD
View Details →

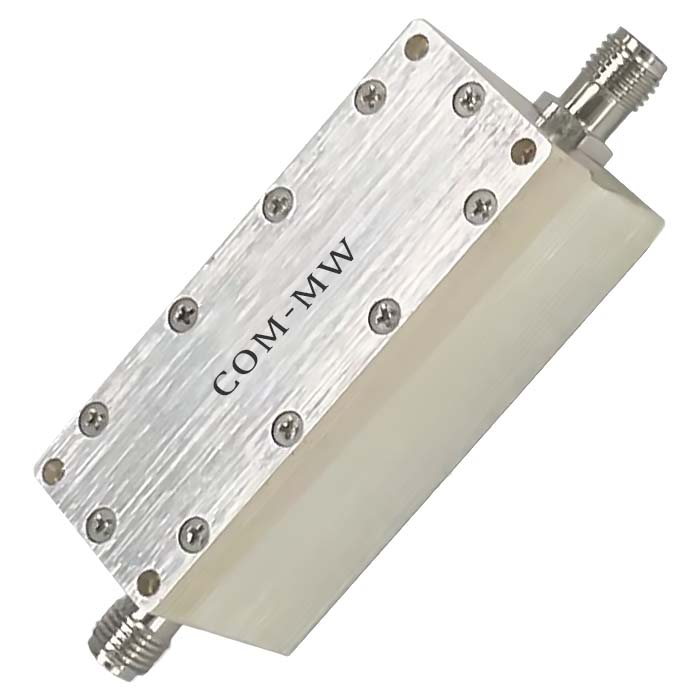

ZBF15-L525-50-2876 Filter

Filter ZBF15-L525-50-2876

Passband500~550MHz, DC-200MHz≥40dB, 200-440MHz≥18dB, 600MHz≥12dB, 2nd and 3rd harmonic50dBc, SMA
View Details →

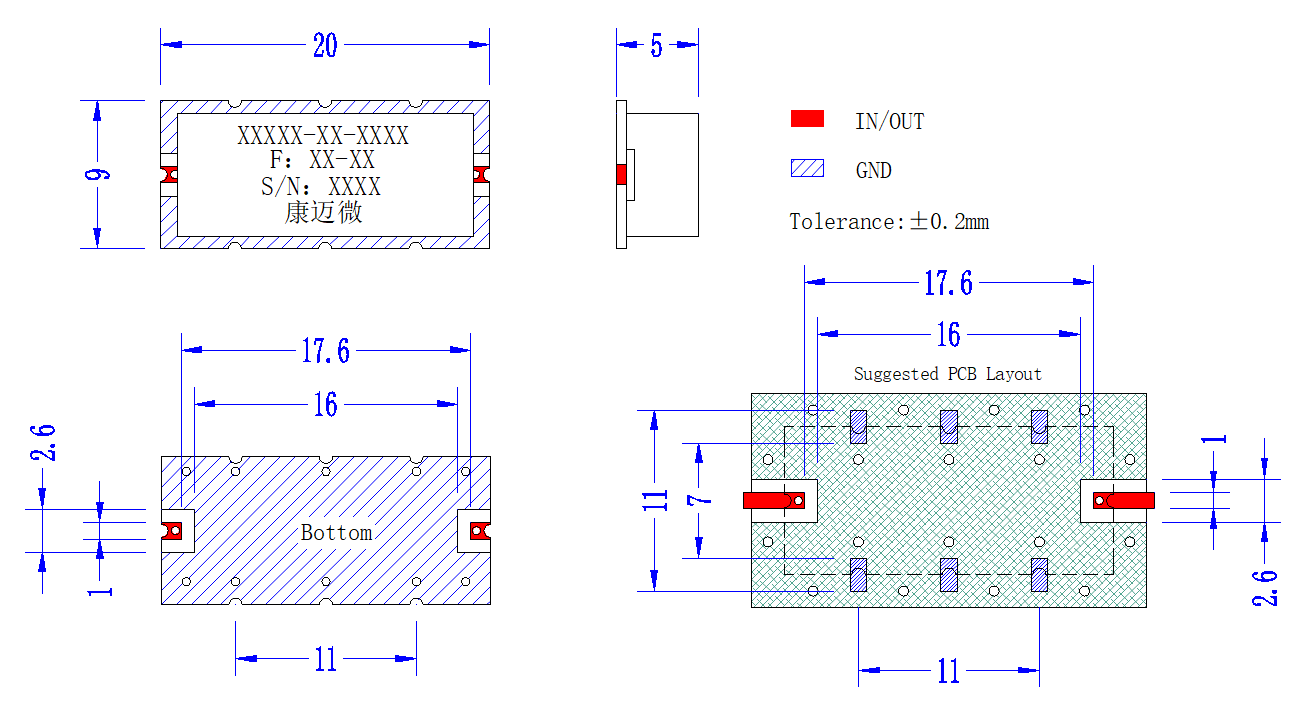

ZBF15-L460.8-180-339 Filter

Filter ZBF15-L460.8-180-339

Passband370.8~550.8, 0.8, DC-27550dB, 646-150050dB, Pin, rectangle coefficient≤1.8@BW60/BW3
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
