F High：499.5 - 536 MHz× Clear all
matches 166 models Default Newest
LF010 Filter

Filter LF010

PassbandDC~500MHz, 585-4500MHz≥20dB, 515MHz≥dB, Substitutes LPF-B500+
In Stock View Details →
ZLPF5-L0-512-3225 Filter

Filter ZLPF5-L0-512-3225

PassbandDC~512MHz, Rejection630-1800MHz≥30dB, SMD
In Stock View Details →
ZBF15-L450-140-129 Filter

Filter ZBF15-L450-140-129

Passband380-520MHz, DC-310MHz≥40dBc, 590-2000MHz≥40dBc, SMD
In Stock View Details →
ZBF13-L362.5-275-1517 Filter

Filter ZBF13-L362.5-275-1517

Passband225~512MHz, DC-190MHz≥40dBc, 580-2100MHz≥40dBc, SMD
In Stock View Details →
ZBF13-L368.5-287-1518 Filter

Filter ZBF13-L368.5-287-1518

Passband225~512MHz, DC-190MHz≥40dB, 600-1500MHz≥40dB, SMA
In Stock View Details →
ZHPF2-L105-500-3239 Filter

Filter ZHPF2-L105-500-3239

Passband105~500MHz, DC-88MHz≥40dB, dB, SMA
In Stock View Details →
ZBF15-L350-300-1097 Filter

Filter ZBF15-L350-300-1097

Passband200~500MHz, DC-160MHz≥45dB, 600-1500MHz≥45dB, SMD
In Stock View Details →
3F0048 Filter

Filter 3F0048

PassbandDC~500MHz, Passband IL, 710-6000MHz≥40dB, 6000-10000MHz≥30dB, SMD
In Stock View Details →
ZLPF3-L0-500-767 Filter

Filter ZLPF3-L0-500-767

PassbandDC~500MHz, 600-6000MHz≥50dB, SMA
In Stock View Details →
LF082 Filter

Filter LF082

PassbandDC~520MHz, 750-920MHz≥65dB, 920-2000MHz≥65dB, SMA
In Stock View Details →
ZLPF14-L0-512-252 Filter

Filter ZLPF14-L0-512-252

PassbandDC512MHz, 580-800MHz≥20dBc, 0.8-2GHz≥25dBc, SMD
In Stock View Details →
ZHPF20-L10-500-219 Filter

Filter ZHPF20-L10-500-219

Passband10~500MHz, DC-8.5MHz≥40dB, dB, SMA
In Stock View Details →
ZLPF5-L0-500-3454 Filter

Filter ZLPF5-L0-500-3454

PassbandDC~500MHz, 590-1400MHz≥48dB, SMD
In Stock View Details →
ZLPF15-L30-520-549 Filter

Filter ZLPF15-L30-520-549

Passband1~520MHz, 620-3000MHz≥35dBc, dB, SMD
In Stock View Details →
ZBF15-L350-300-657 Filter

Filter ZBF15-L350-300-657

Passband200~500MHz, DC-160MHz≥45dBc, 600-2000MHz≥40dBc, SMA-K
In Stock View Details →

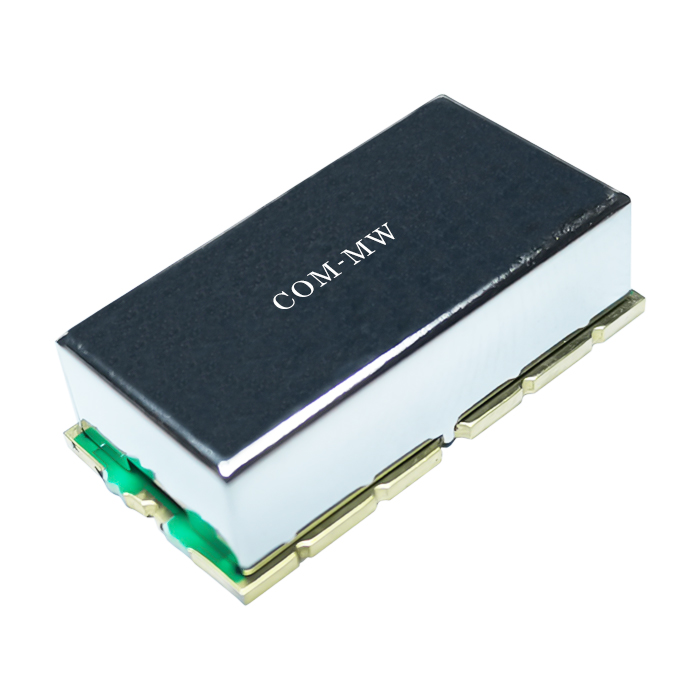

BF011 Filter

Filter BF011

Passband495~510MHz, 440MHz≥20dB, 565MHz≥20dB, Replace BPF-B503+
In Stock View Details →
ZLPF15-L0-500-462 Filter

Filter ZLPF15-L0-500-462

PassbandDC~500MHz, 600-1000MHz≥40dBc, dB, SMA
In Stock View Details →
ZC21-F225-500 Filter

Filter ZC21-F225-500

Passband225~512MHz, 150-170MHz≥20dB, DC-150MHz≥42dB, SMA
In Stock View Details →
ZBF15-L506-24-1456 Filter

Filter ZBF15-L506-24-1456

Passband494~518MHz, DC-468MHz≥30dBc, 544-2000MHz≥30dBc, SMD
In Stock View Details →

Component ZS15-L100-520-822

100~520MHz, 108~174MHz, 225~400MHz, ~MHz, ~MHz, SMD
In Stock View Details →
ZCB15-2L20-6000-499 Diplexer

Diplexer ZCB15-2L20-6000-499

Passband F120~500MHz, Passband F20.5~8GHz, SMD
In Stock View Details →
ZBSF14-L465-505-617 Filter

Filter ZBSF14-L465-505-617

Stopband F465~505MHz, ≥25dB, PassbandDC~400MHz, 570~2500MHz, SMA
In Stock View Details →

Filter ZBF15-L300-400-2785

Passband100~500MHz, DC-70MHz≥50dB, 900-3000MHz≥50dB, SMA
In Stock View Details →

Component ZS2-20-515-2043

30~45MHz, 45~70MHz, 70~115MHz, 115~190MHz, 190~310MHz, Microstrip pad
View Details →
