RF Filter

Total 17 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
5310 3 5320 3 5321 2 5323 1 5330 8
–
Connector
SMA 10 N 2 Microstrip needle 5
Power Handling
1 - 5 4 10 - 15 3 20 - 50 7 100 - 150 3
–
Maximum loss of side frequency dB
1.2 - 1.8 2 2 - 3 10 3.2 - 3.5 4 5.5 1
–
Rejection dB
40 - 45 5 50 - 65 8 70 - 80 4
–
F Low MHz
2980 - 4700 2 4980 - 4990 2 5170 - 5190 7 5250 - 5278 3 5280 - 5317 3
–
Feature
Bandpass 9 Notch 8
Center frequency MHz
4150 - 5015 2 5150 - 5250 4 5300.5 - 5318 4
–
IL on center frequency dB
1 4 2 4 4 1
–
Filter type
LC 1 Cavity&waveguide 16
F High：5310 - 5330 MHz× Clear all
matches 17 models Default Newest
ZBF4-C5.15-0.32G-1122 Filter

Filter ZBF4-C5.15-0.32G-1122

Passband4.99~5.31GHz, DC-4.8GHz≥50dB, 5.4-13GHz≥50dB, SMA-KDetachable
In Stock View Details →
ZBSF6-C5250-5330-5801 Filter

Filter ZBSF6-C5250-5330-5801

Stopband F5250~5330MHz, ≥50dB, PassbandDC~5230MHz, 5350~8000MHz, SMA
View Details →
ZBSF6-C5250-5330-5554 Filter

Filter ZBSF6-C5250-5330-5554

Stopband F5250~5330MHz, ≥50dB, PassbandDC~5220MHz, 5360~8000MHz, SMA
View Details →
ZBSF6-C5170-5330-544 Filter

Filter ZBSF6-C5170-5330-544

Stopband F5170~5330MHz, ≥40dB, PassbandDC~5150MHz, 5350~7000MHz, SMA
View Details →
ZBF6-C5150-340-SMA Filter

Filter ZBF6-C5150-340-SMA

Passband4980~5320MHz, DC-4900MHz≥70dB, 5400-10000MHz≥70dB, SMA
View Details →

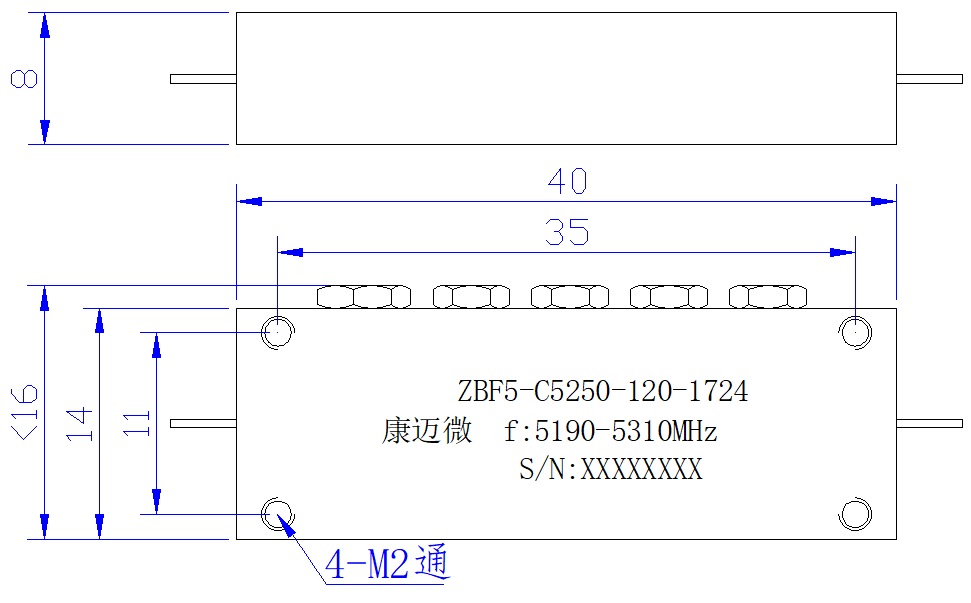

ZBF5-C5250-120-1724 Filter

Filter ZBF5-C5250-120-1724

Passband5190~5310MHz, -0.5dB BW120~170MHz, DC-3100MHz≥40dBc, 6400-7400MHz≥40dBc, Pin
View Details →

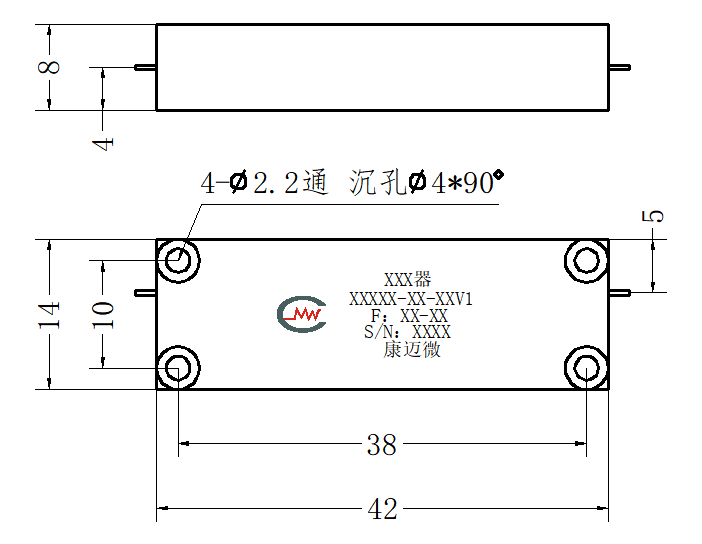

ZBF3-L4150-2340-2656 Filter

Filter ZBF3-L4150-2340-2656

Passband2980~5320MHz, DC-1800MHz≥60dB, 6200-10000MHz≥50dB, Pin
View Details →
ZBF16-C5318.75-3-2091 Filter

Filter ZBF16-C5318.75-3-2091

Passband5317.255320.25MHz, 5318.75±255MHz≥70dBc, 5318.75±57.5MHz≥45dBc, SMA
View Details →
ZBF13-C5300.5-45-707 Filter

Filter ZBF13-C5300.5-45-707

Passband5278~5323MHz, DC-5.18GHz≥45dB, 5.18-5.23GHz≥35dB, Pin
View Details →
ZBF13-C5300.5-41-469 Filter

Filter ZBF13-C5300.5-41-469

Passband5280~5321MHz, DC-5.18GHz≥45dB, 5.18-5.23GHz≥35dB, Pin
View Details →
ZBF13-C5300.5-41-468 Filter

Filter ZBF13-C5300.5-41-468

Passband5280~5321MHz, DC-3.5GHz≥50dB, 4-5.23GHz≥35dB, Pin
View Details →
ZBF13-C5.02-0.63G-374 Filter

Filter ZBF13-C5.02-0.63G-374

Passband4700~5330MHz, DC-4.3GHz≥65dBc, 5.6-8.4GHz≥65dBc, SMA
View Details →
K6-5170-5330-20S5050-003 Filter

Filter K6-5170-5330-20S5050-003

Stopband F5170~5330MHz, ≥50dB, PassbandDC~5150MHz, 5350~7000MHz, SMA
View Details →
K6-5170-5330-20N50150-004 Filter

Filter K6-5170-5330-20N50150-004

Stopband F5170~5330MHz, ≥50dB, PassbandDC~5150MHz, 5350~7000MHz, N
View Details →
K6-5170-5330-15S4050-001 Filter

Filter K6-5170-5330-15S4050-001

Stopband F5170~5330MHz, ≥40dB, PassbandDC~5155MHz, 5345~6500MHz, SMA
View Details →
K6-5170-5330-15N40150-002 Filter

Filter K6-5170-5330-15N40150-002

Stopband F5170~5330MHz, ≥40dB, PassbandDC~5155MHz, 5345~6500MHz, N
View Details →
DCBSF-C5250-120-D5326 Filter

Filter DCBSF-C5250-120-D5326

Stopband F5190~5310MHz, ≥50dB, PassbandDC~5150MHz, 5350~8000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
