Filters
Filters 1
F High MHz
4 3 4.7 2 5 9 5.025 1 5.25 1
–
Connector
SMD 9 SMA 7
Power Handling
0.5 - 1 8 2 - 3 6 5 - 10 2
–
Ways 路
2 1
–
Maximum loss of side frequency dB
1 - 2 10 2.5 - 3 3 4 - 5 3
–
Rejection dB
25 - 40 7 45 - 50 6 60 - 75 3
–
F Low MHz
0 - 0.3 7 1 - 2 2 2.5 - 2.8 2 3.5 - 4.75 2 4.975 - 5 3
–
Feature
Bandpass 8 low pass 6 Notch 1
Center frequency MHz
3 2 3.25 1 4.25 1 5 4
–
IL on center frequency dB
1 3 2 2 3 2 4 1
–
Filter type
LC 15
F High：4 - 5.25 MHz× Clear all
matches 16 models Default Newest
LF032 Filter

Filter LF032

PassbandDC~5MHz, 8-11MHz≥20dB, 11-600MHz≥40dB, SMD, Industrial grade, Replace SXLP-5+
In Stock View Details →
LF031 Filter

Filter LF031

PassbandDC~4.7MHz, 6.6MHz≥20dB, 7.4-1200MHz≥40dB, SMD, Industrial grade, Replace SXLP-4.7+
In Stock View Details →
LF063 Filter

Filter LF063

PassbandDC~5MHz, 8-10MHz≥25dB, 10-200MHz≥60dB, SMA
In Stock View Details →
ZBF2-L5-0.5-3166 Filter

Filter ZBF2-L5-0.5-3166

Passband4.75~5.25MHz, DC-3MHz≥60dBc, 9.5-10.5MHz≥95dBc, SMA
In Stock View Details →
ZLPF3-L0-5-3659 Filter

Filter ZLPF3-L0-5-3659

PassbandDC~5MHz, 6-10MHz≥50dB, 12-100MHz≥40dB, SMD
View Details →
ZLPF3-L0-4.7-397 Filter

Filter ZLPF3-L0-4.7-397

PassbandDC~4.7MHz, 5.8-300MHz≥50dB, SMD
View Details →
ZLPF15-L0.3-5-420 Filter

Filter ZLPF15-L0.3-5-420

Passband0.3~5MHz, 10-40MHz≥25dBc, dB, SMD
View Details →
ZLPF13-L0-5-2204 Filter

Filter ZLPF13-L0-5-2204

PassbandDC~5MHz, 10-100MHz≥50dBc, SMA
View Details →
ZBSF6-L2.8-4-4896 Filter

Filter ZBSF6-L2.8-4-4896

Stopband F2.8~4MHz, ≥40dB, PassbandDC~1.5MHz, 5.6~100MHz, SMA
View Details →
ZBF6-L5-2-4466 Filter

Filter ZBF6-L5-2-4466

Center Frequency5MHz, DC-1.5MHz≥75dBc, 8.5-30MHz≥75dBc, SMA
View Details →
ZBF6-L5-0-3538 Filter

Filter ZBF6-L5-0-3538

Passband5~5MHz, DC-3MHz≥50dB, 8-50MHz≥50dB, SMA
View Details →

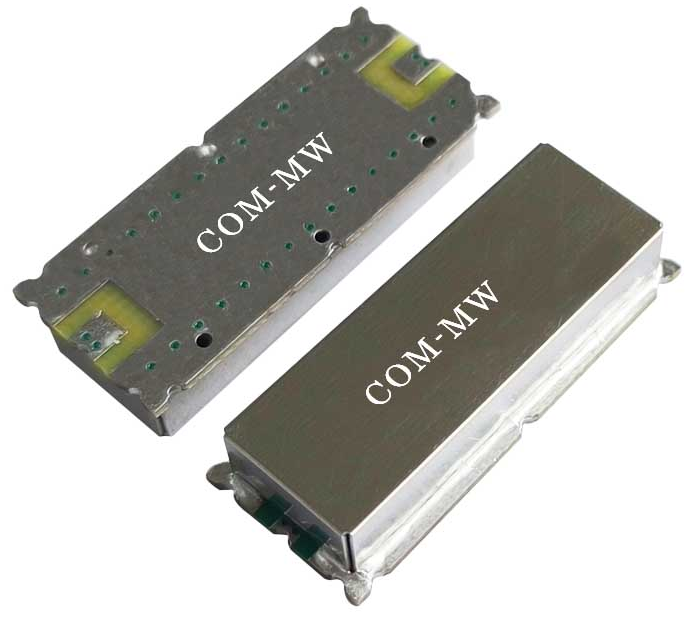

ZBF3-L4.25-1.5-4475 Filter

Filter ZBF3-L4.25-1.5-4475

Passband3.5~5MHz, DC-2.5MHz≥40dB, 7-30MHz≥50dB, SMD
View Details →
ZBF3-L3.25-1.5-4474 Filter

Filter ZBF3-L3.25-1.5-4474

Passband2.5~4MHz, DC-2MHz≥35dB, 5-30MHz≥45dB, SMD
View Details →
ZBF3-L3-2-3967 Filter

Filter ZBF3-L3-2-3967

Passband2~4MHz, DC-1.3MHz≥30dBc, 5.5-50MHz≥30dBc, 50-200MHz≥40dBc, SMD
View Details →
ZBF15-L5-0.05-1823 Filter

Filter ZBF15-L5-0.05-1823

Passband4.975~5.025MHz, DC-3.25MHz≥75dB, 6.75-10MHz≥75dB, SMA
View Details →
ZBF15-L3-4-783 Filter

Filter ZBF15-L3-4-783

Passband1~5MHz, ≥40dBcrectangle coefficient 2, dB, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
