RF Filter

Total 24 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
416 2 417 2 420 9 423.5 1 425 10
–
Connector
SMD 1 SMA 11 N 5 Microstrip needle 7
Power Handling
1 - 2 10 3 - 5 2 10 - 20 8 50 - 200 3 300 1
–
Maximum loss of side frequency dB
0.3 - 0.8 2 1 - 2 7 2.5 - 3 11 3.5 - 3.8 2 4 2
–
Rejection dB
40 - 45 11 50 - 60 11 65 - 70 2
–
F Low MHz
220 - 300 3 320 - 330 4 333 - 370 3 380 - 403 5 410 - 420 9
–
Feature
Bandpass 12 low pass 2 Highpass 1 Notch 9
Center frequency MHz
320 - 370 2 375 - 395 5 400 - 408 4 415 1
–
IL on center frequency dB
0.5 2 1 5 2 1 3 4
–
Filter type
LC 17 Cavity&waveguide 7
F High：416 - 425 MHz× Clear all
matches 24 models Default Newest
BF054 Filter

Filter BF054

Passband330~420MHz, DC-170MHz≥50dB, 580-1300MHz≥50dB, SMD, Replace SXBP-375+
In Stock View Details →
ZLPF2-L300-425-2012 Filter

Filter ZLPF2-L300-425-2012

Passband300~425MHz, 0.6-1.7GHz≥dBc, dB, N
View Details →
ZLPF2-L240-420-2101 Filter

Filter ZLPF2-L240-420-2101

Passband240~420MHz, 480-2100MHz≥40dB, dB, Pin
View Details →
ZHPF13-L325-425-2727 Filter

Filter ZHPF13-L325-425-2727

Passband325~425MHz, 0.65-2GHz≥60dBc, Pin
View Details →
ZBSF6-L403-423.5-6079 Filter

Filter ZBSF6-L403-423.5-6079

Stopband F403~423.5MHz, ≥65dB, PassbandDC~373MHz, 453~1000MHz, SMA
View Details →
ZBSF6-C412-417-2587 Filter

Filter ZBSF6-C412-417-2587

Stopband F412~417MHz, ≥40dB, PassbandDC~402MHz, 427~1500MHz, SMA
View Details →
ZBF5-L370-100-3218 Filter

Filter ZBF5-L370-100-3218

Passband320~420MHz, DC-270MHz≥45dB, 470-1000MHz≥45dB, SMA-K
View Details →

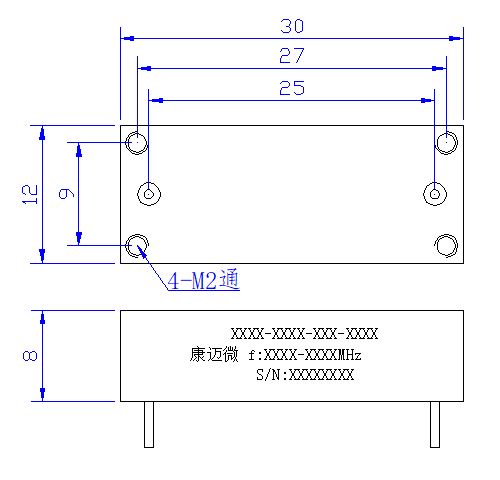

ZBF5-L320-200-918 Filter

Filter ZBF5-L320-200-918

Passband220~420MHz, DC-160MHz≥40dBc, 520-1000MHz≥40dBc, Pin
View Details →
ZBF4-C408-16-1099 Filter

Filter ZBF4-C408-16-1099

Passband400~416MHz, DC-300MHz≥50dB, 300-350MHz≥40dB, 350-380MHz≥30dB, 380-390MHz≥5dB, 426-436MHz≥5dB, 436-466MHz≥40dB, 466-703MHz≥50dB, 703-1000MHz≥75dB, N
View Details →
ZBF3-L400-40-779 Filter

Filter ZBF3-L400-40-779

Passband380~420MHz, DC-300MHz≥60dB, 300-350MHz≥50dB, Pin
View Details →
ZBF3-L400-40-2044 Filter

Filter ZBF3-L400-40-2044

Passband380~420MHz, DC-320MHz≥45dBc, 480-2000MHz≥45dBc, SMA
View Details →
ZBF3-L375-84-1428 Filter

Filter ZBF3-L375-84-1428

Passband333~417MHz, DC-250MHz≥60dB, 500-1000MHz≥50dB, Pin
View Details →
ZBF3-L375-82-2949 Filter

Filter ZBF3-L375-82-2949

View Details →

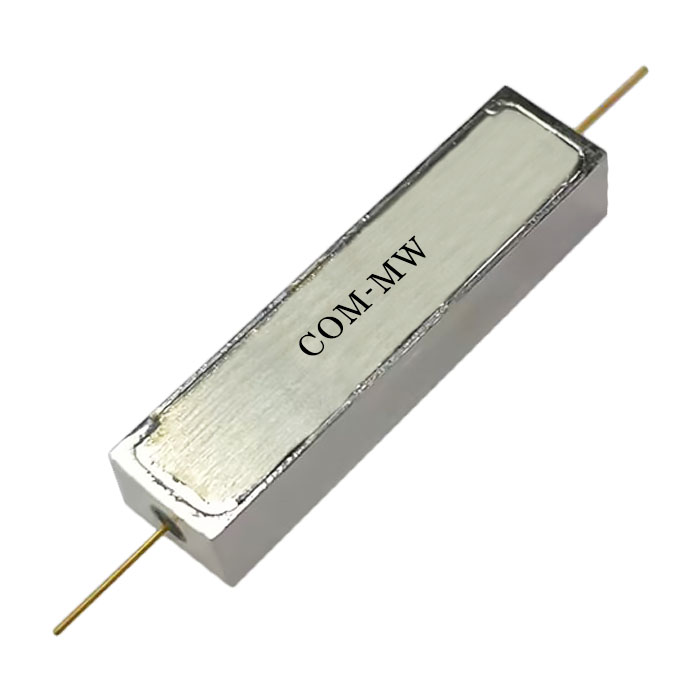

ZBF3-L375-100-1032 Filter

Filter ZBF3-L375-100-1032

Passband325~425MHz, DC-275MHz≥40dB, 475-1500MHz≥40dB, Pin
View Details →

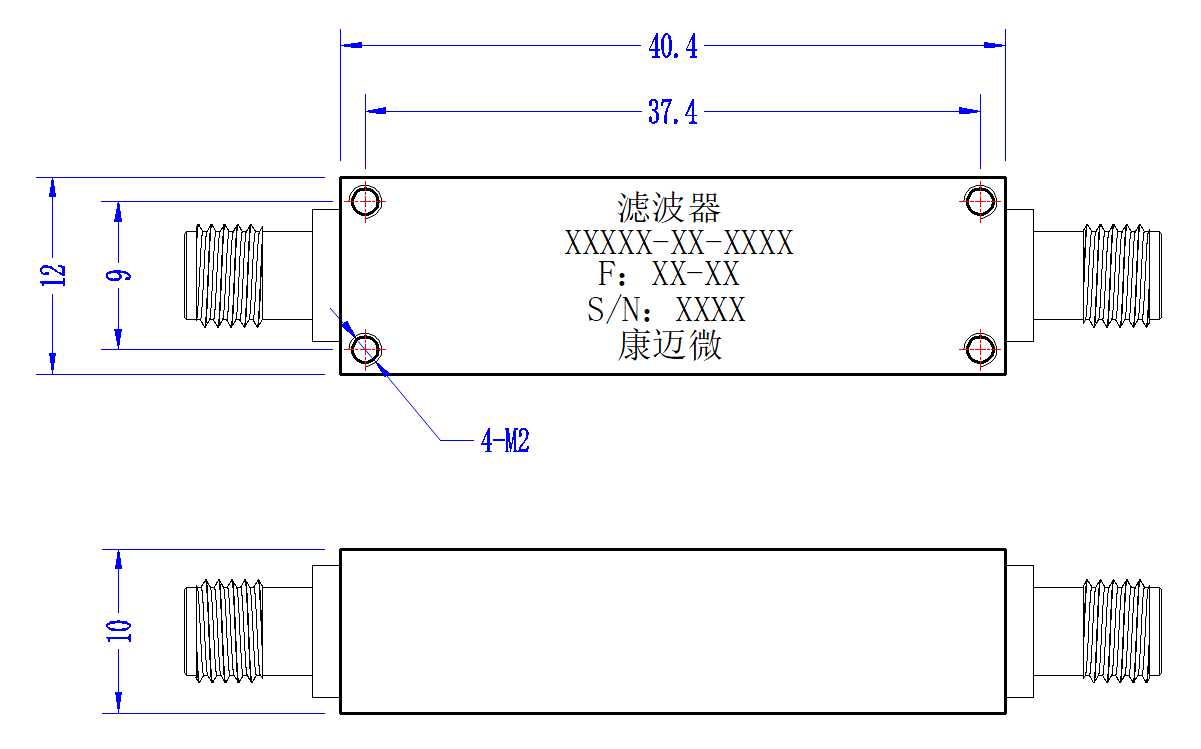

ZBF15-L415-10-413 Filter

Filter ZBF15-L415-10-413

Passband410~420MHz, FC±40MHz≥40dB, dB, SMA
View Details →
ZBF15-L395-50-1807 Filter

Filter ZBF15-L395-50-1807

Passband370~420MHz, DC-330MHz≥60dB, 465-1000MHz≥70dBc, SMA
View Details →
ZBF15-L0.4-0.04-1331 Filter

Filter ZBF15-L0.4-0.04-1331

Passband380~420KHz, DC-260KHz≥40dB, 0.6-100MHz≥40dB, SMA
View Details →

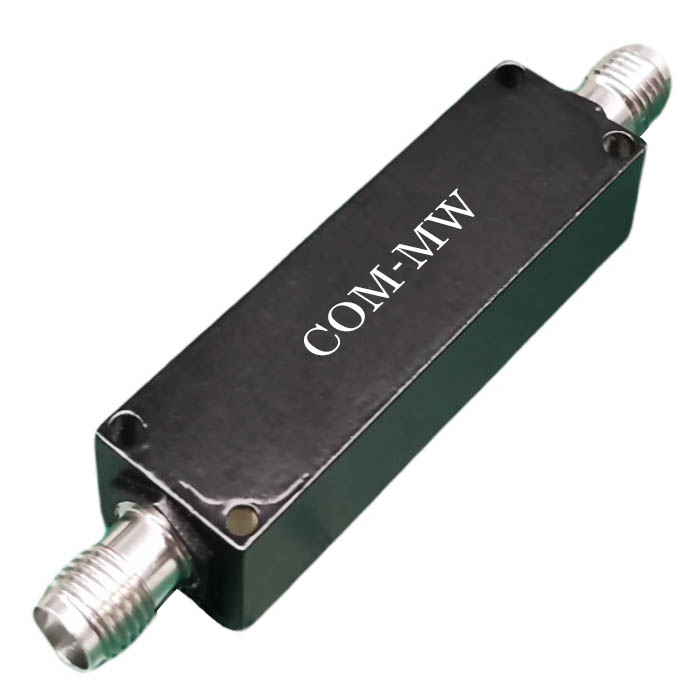

K6-420-425-30S6010-007 Filter

Filter K6-420-425-30S6010-007

Stopband F420~425MHz, ≥60dB, PassbandDC~390MHz, 455~1000MHz, SMA
View Details →
K6-420-425-30S5010-005 Filter

Filter K6-420-425-30S5010-005

Stopband F420~425MHz, ≥50dB, PassbandDC~390MHz, 455~1000MHz, SMA
View Details →

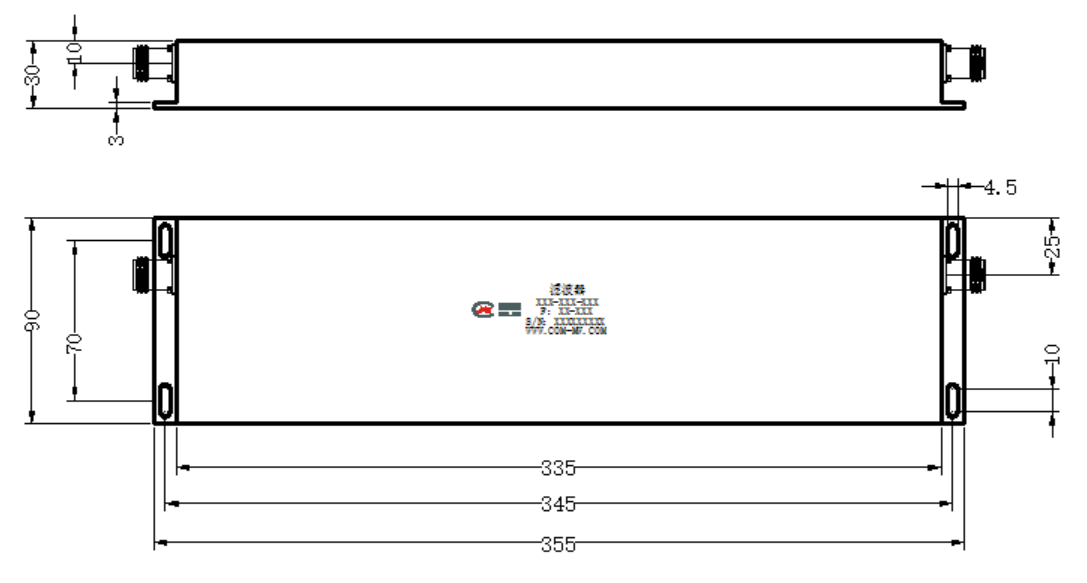

K6-420-425-30N60200-009 Filter

Filter K6-420-425-30N60200-009

Stopband F420~425MHz, ≥60dB, PassbandDC~390MHz, 455~1000MHz, N
View Details →
K6-420-425-2.5S4010-001 Filter

Filter K6-420-425-2.5S4010-001

Stopband F420~425MHz, ≥40dB, PassbandDC~417.5MHz, 427.5~1000MHz, SMA
View Details →

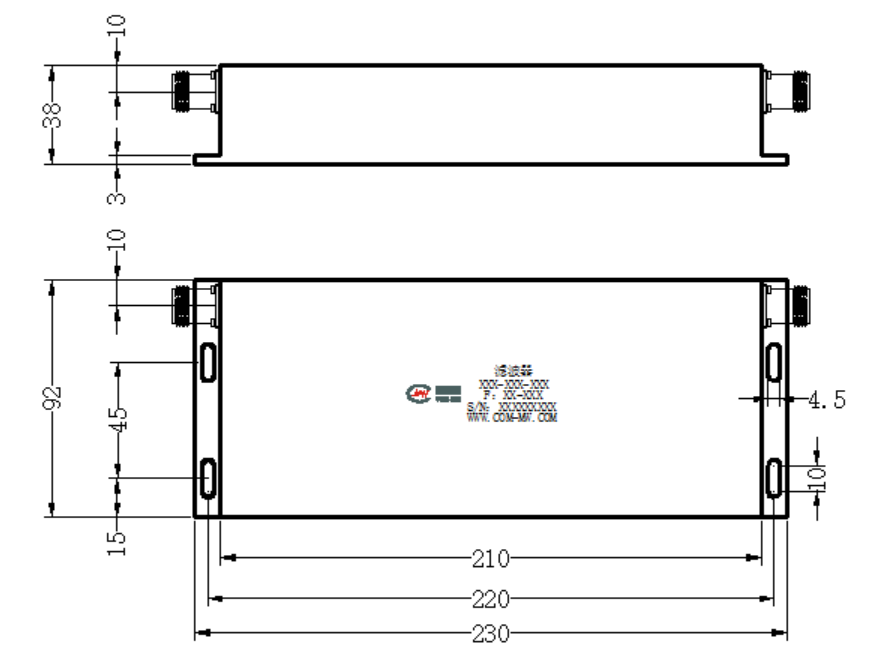

K6-420-425-2.5N4010-002 Filter

Filter K6-420-425-2.5N4010-002

Stopband F~425MHz, ≥40dB, PassbandDC~417.5MHz, 427.5~1000MHz, N
View Details →

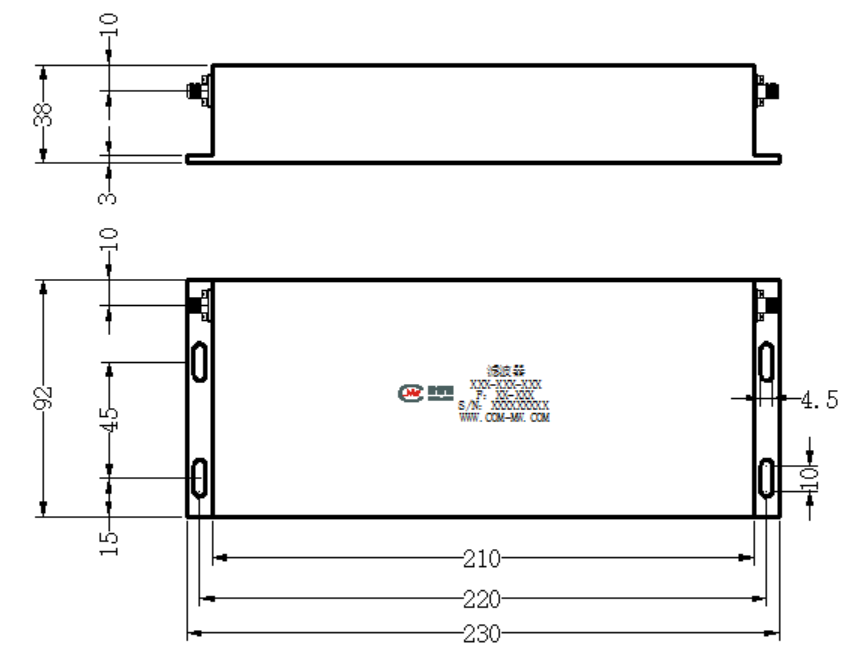

K6-420-425-10S5010-003 Filter

Filter K6-420-425-10S5010-003

Stopband F420~425MHz, ≥50dB, PassbandDC~410MHz, 435~1000MHz, SMA
View Details →

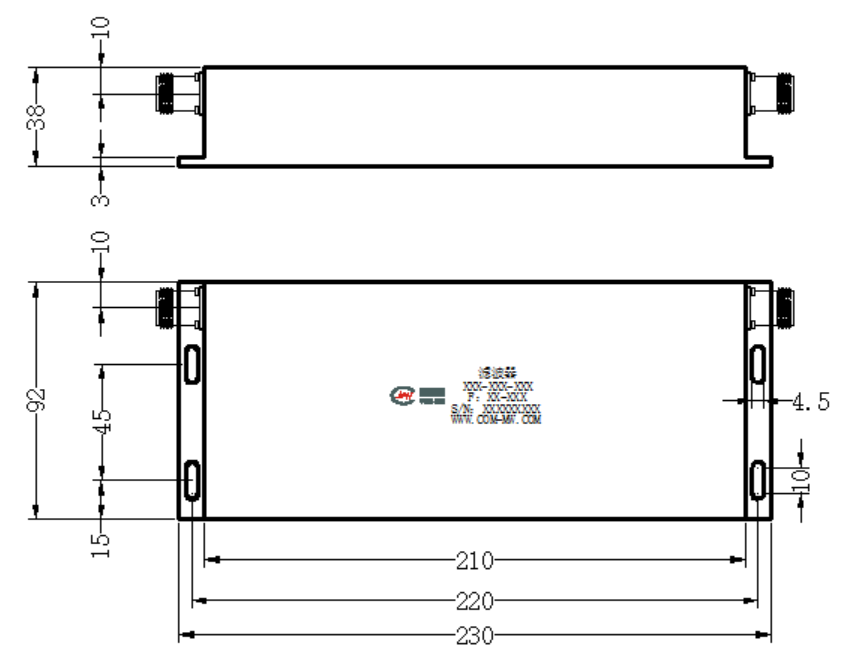

K6-420-425-10N5010-004 Filter

Filter K6-420-425-10N5010-004

Stopband F420~425MHz, ≥50dB, PassbandDC~410MHz, 435~1000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
