Filters
Filters 1
F High MHz
405 8 406 3 406.7 1 407.5 1 409 2
–
Connector
SMD 3 SMA 5 N 2 Microstrip needle 5
Power Handling
0.1 1 1 4 2 6 10 2 100 2
–
Maximum loss of side frequency dB
0.8 - 1.1 2 1.5 - 2 6 3 - 3.5 4 4 - 5 2
–
Rejection dB
30 - 40 6 45 - 50 5 60 - 65 4
–
F Low MHz
95 - 195 3 217.5 - 305 3 345 - 379 6 389 - 400 3
–
Feature
Bandpass 14
Center frequency MHz
250 - 300 3 312.5 - 355 3 375 - 394 6 402.5 - 403 2
–
IL on center frequency dB
0.4 - 0.5 2 1 - 2 9 2.5 - 3 2 4 1
–
Insertion loss dB
1 1
–
Filter type
LC 12 Cavity&waveguide 2
F High：405 - 409 MHz× Clear all
matches 15 models Default Newest
ZBF15-L375-60-1092 Filter

Filter ZBF15-L375-60-1092

Passband345~405MHz, DC-315MHz≥40dBc, 435-1500MHz≥35dBc, SMA
In Stock View Details →
ZBF15-L375-60-1091 Filter

Filter ZBF15-L375-60-1091

Passband345~405MHz, DC-315MHz≥40dB, 445-1500MHz≥35dBc, SMD
In Stock View Details →
ZCB-BC389-450-1019 Diplexer

Diplexer ZCB-BC389-450-1019

Passband F1389~409MHz, Passband F2430~450MHz, SMA
View Details →
ZBF6-C402.5-5-3774 Filter

Filter ZBF6-C402.5-5-3774

Passband400~405MHz, DC~395MHz≥80dB, 410~1000MHz≥80dB, N
View Details →
ZBF5-L394-30-1985 Filter

Filter ZBF5-L394-30-1985

Center Frequency394MHz, DC-294MHz≥70dB, 494-1000MHz≥70dB, SMA
View Details →
ZBF5-L375-60-711 Filter

Filter ZBF5-L375-60-711

Passband345~405MHz, DC-315MHz≥60dB, 435-800MHz≥60dB, Pin
View Details →
ZBF5-L250-310-677 Filter

Filter ZBF5-L250-310-677

Passband95~405MHz, 500-1000MHz≥40dBc, Pin
View Details →

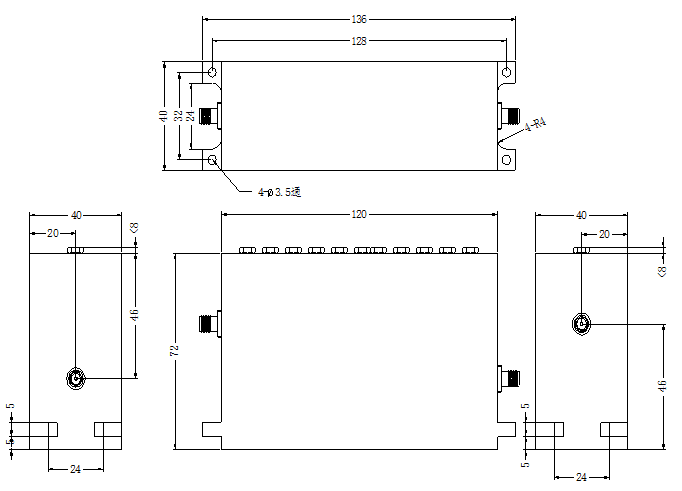

ZBF4-C403-6-687 Filter

Filter ZBF4-C403-6-687

Passband400~406MHz, DC-383MHz≥45dB, 423-800MHz≥45dB, SMA
View Details →
ZBF3-L375-60-2574 Filter

Filter ZBF3-L375-60-2574

Passband345~405, DC-315MHz≥50dB, 435-1500MHz≥50dB, SMD
View Details →
ZBF3-L294.2-225-1676 Filter

Filter ZBF3-L294.2-225-1676

Passband181.7~406.7MHz, DC-125.5MHz≥40dB, 463-1500MHz≥40dB, SMD
View Details →

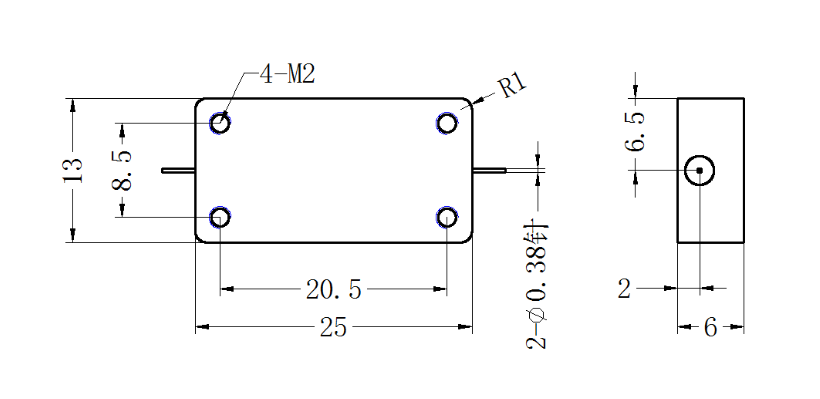

ZBF2-L312.5-190-2202 Filter

Filter ZBF2-L312.5-190-2202

Passband217.5~407.5MHz, DC-140MHz≥50dBc, 500-2325MHz≥50dBc, Pin
View Details →

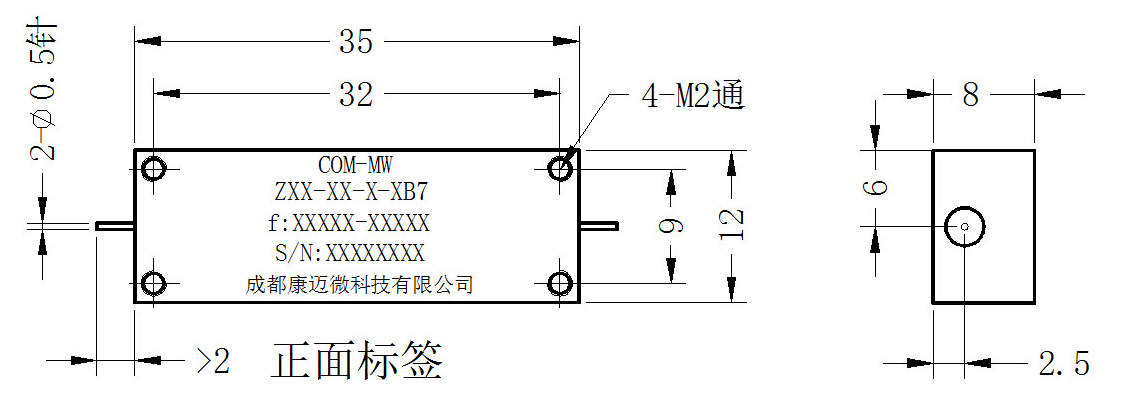

ZBF2-L300-200-1949 Filter

Filter ZBF2-L300-200-1949

Passband195~405MHz, DC-110MHz≥50dBc, 540-3000MHz≥50dBc, Pin
View Details →
ZBF13-L377-58-1954 Filter

Filter ZBF13-L377-58-1954

Passband348~406MHz, DC-265MHz≥60dBc, 486-1000MHz≥60dBc, SMA
View Details →
ZBF13-L350-112-226 Filter

Filter ZBF13-L350-112-226

Passband294~406MHz, 126MHz≥65dBc, 238MHz≥45dBc, Pin
View Details →

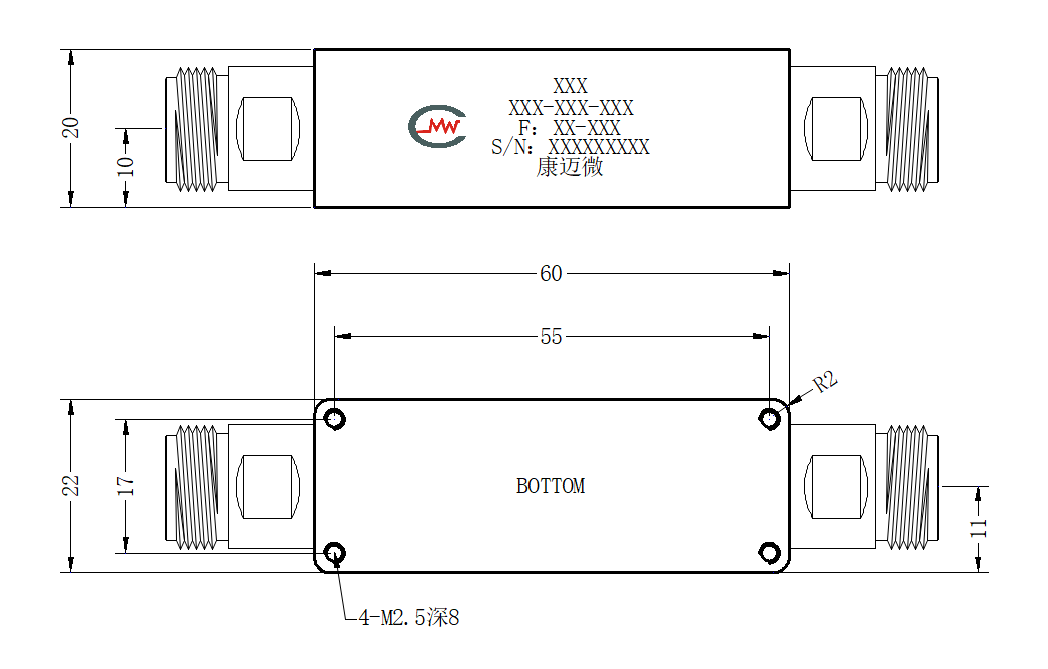

XPF-L355M100M-N Filter

Filter XPF-L355M100M-N

Passband305~405MHz, DC-230MHz≥30dB, 0.52-1.0GHz≥30dB, N
View Details →
