Filters
Filters 1
F High MHz
2810 3 2831 1 2837 1 2840 1 2850 11
–
Connector
SMD 3 SMA 6 Microstrip pad 2 Microstrip needle 6
Power Handling
0.32 - 0.5 3 1 - 2 9 5 - 10 4 15 1
–
Maximum loss of side frequency dB
2 - 2.3 4 2.5 - 3 9 4 - 4.5 2
–
Rejection dB
28 - 30 3 35 - 40 7 50 - 60 7
–
F Low MHz
0 - 1700 6 1950 - 2550 5 2650 - 2790 4 2797 - 2831 2
–
Feature
Bandpass 14 Notch 1
Center frequency MHz
2250 - 2275 4 2400 - 2650 4 2700 - 2750 2 2800 - 2817 3 2831 1
–
IL on center frequency dB
1 3 1.5 2 2 6 3 3
–
Insertion loss dB
1.5 1 2 1
–
Filter type
LC 9 Cavity&waveguide 3 MMIC 2 Dielectric 1
F High：2810 - 2850 MHz× Clear all
matches 17 models Default Newest
WLD026028K Filter

Filter WLD026028K

Passband2550~2850MHz, 2250MHz≥28dBc, 3200MHz≥28dBc, Microstrip pad, MMIC
In Stock View Details →
WLD020028K Filter

Filter WLD020028K

Passband1950~2850MHz, 1220MHz≥35dBc, 3400MHz≥35dBc, Microstrip pad, MMIC
In Stock View Details →
ZBF3-D2800-20-3886 Filter

Filter ZBF3-D2800-20-3886

Passband2790~2810MHz, DC-2700MHz≥50dBc, 2900-3600MHz≥50dB, SMD
In Stock View Details →
CE0006 Frequency-splitting filter

Frequency-splitting filter CE0006

Working frequency LDC-2.85GHz, Working frequency H3.15-18.5GHz
In Stock View Details →
ZCB4-M3-18G-1567 Diplexer

Diplexer ZCB4-M3-18G-1567

Passband F1DC~2.85GHz, Passband F23.15~18GHz, SMA
In Stock View Details →
ZBSF15-L2790-2810-1038 Filter

Filter ZBSF15-L2790-2810-1038

Stopband F2790~2810MHz, ≥50dBc, Passband20~2380MHz, 3330~8000MHz, SMA
View Details →
ZBF4-C2750-200-445 Filter

Filter ZBF4-C2750-200-445

Passband2650~2850MHz, DC-2550MHz≥40dB, 2950-6000MHz≥40dB, SMA
View Details →
ZBF3-L2400-900-4504 Filter

Filter ZBF3-L2400-900-4504

Passband1950~2850MHz, DC-1790MHz≥40dB, 3110MHz≥20dB, Pin
View Details →
ZBF3-L2400-900-4207 Filter

Filter ZBF3-L2400-900-4207

Passband1950~2850MHz, DC-1630MHz≥40dBc, 3170-4000MHz≥40dBc, SMD
View Details →

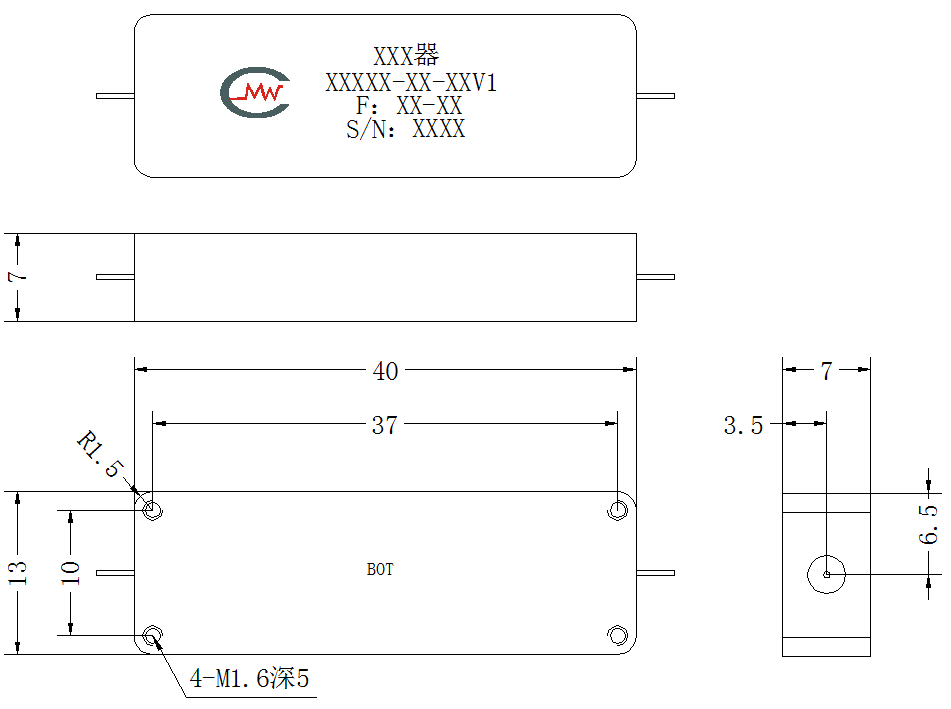

ZBF3-L2250-1200-2407 Filter

Filter ZBF3-L2250-1200-2407

Passband1.65~2.85GHz, DC-1.3GHz≥30dBc, 3.2-5GHz≥30dBc, Pin
View Details →
ZBF3-L2250-1200-2005 Filter

Filter ZBF3-L2250-1200-2005

Passband1650~2850MHz, DC-1425MHz≥50dB, 3100-5000MHz≥50dB, Pin
View Details →

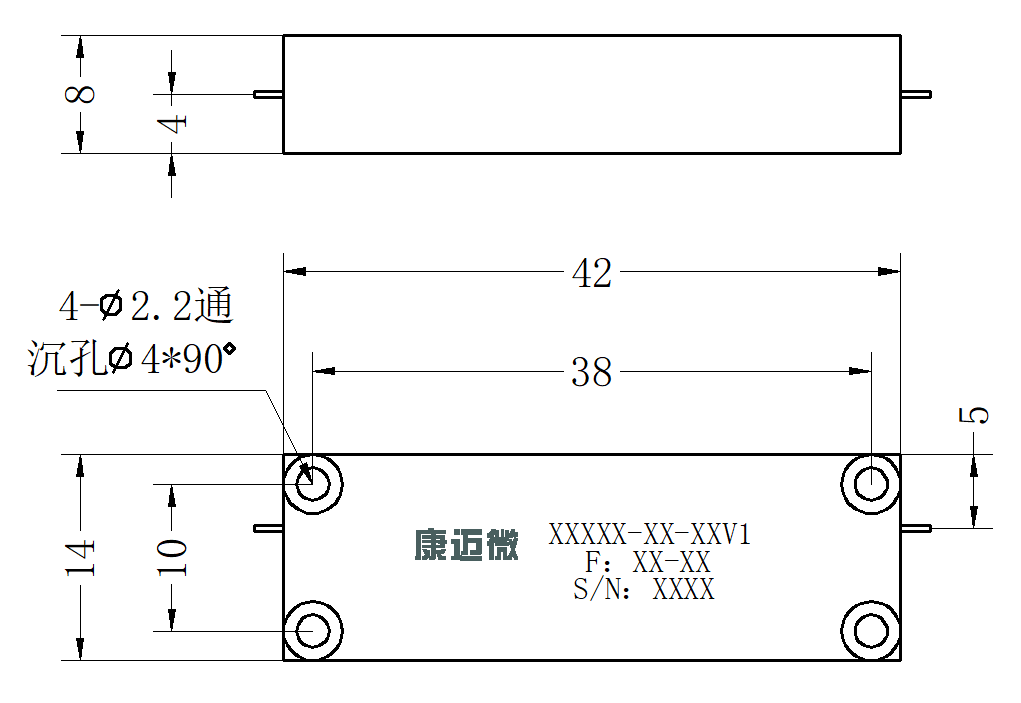

ZBF3-L2250-1200-1921 Filter

Filter ZBF3-L2250-1200-1921

Passband1650~2850MHz, DC-1350MHz≥30dB, 3150-5000MHz≥30dB, Pin
View Details →
ZBF3-C2800-80-1607 Filter

Filter ZBF3-C2800-80-1607

Passband2760~2840MHz, 2680MHz≥40dB, 2920MHz≥40dB, SMA
View Details →
ZBF25-C2831-0-363 Filter

Filter ZBF25-C2831-0-363

Point frequency2831MHz, DC-2807MHz≥40dB, 2855-6000MHz≥40dB, SMA
View Details →
ZBF15-L2275-1150-215 Filter

Filter ZBF15-L2275-1150-215

Passband1700~2850MHz, DC-1400MHz≥40dB, 3150-3400MHz≥40dB, 3400MHz≥50dB, GHz≥dB, Pin
View Details →
ZBF13-L2650-320-2562 Filter

Filter ZBF13-L2650-320-2562

Passband2490~2810MHz, DC-2.25GHz≥50dBc, 3GHz≥25dBc, SMD
View Details →
ZBF-BL2817-40-1289 Filter

Filter ZBF-BL2817-40-1289

Passband2797~2837MHz, DC-2200MHz≥60dB, 3400-8000MHz≥60dB, 2500MHz≥20dB, 3100MHz≥20dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
