Filters
Filters 1
F High MHz
186 2 186.6 1 187 1 187.5 1 190 11
–
Connector
SMD 7 SMA 6 Microstrip needle 3
Power Handling
0.5 - 1 7 2 - 4 5 5 - 15 4
–
Maximum loss of side frequency dB
0.8 - 1 4 2 - 2.5 6 3 - 3.5 5 8 1
–
Rejection dB
20 - 30 2 35 - 40 7 45 - 50 3 55 - 60 4
–
F Low MHz
0 - 110 6 115 - 146 4 150 - 163 4 170 - 180 2
–
Feature
Bandpass 12 low pass 4
Center frequency MHz
140 - 150 4 153.6 - 166 2 170 - 175 4 178 - 185 2
–
IL on center frequency dB
1 4 1.5 2 2 5 5 1
–
Filter type
LC 16
F High：186 - 190 MHz× Clear all
matches 16 models Default Newest
LF053 Filter

Filter LF053

PassbandDC~190MHz, 290-390MHz≥20dB, 390-1000MHz≥40dB, SMD, Replace SXLP-190+
In Stock View Details →
BF048 Filter

Filter BF048

Passband170~186MHz, 150MHz≥20dB, 210MHz≥20dB, SMD, Replace SXBP-178+
In Stock View Details →
LF078 Filter

Filter LF078

PassbandDC~190MHz, 290-390MHz≥47dB, 390-800MHz≥75dB, SMA
In Stock View Details →
ZLPF2-L115-190-2165 Filter

Filter ZLPF2-L115-190-2165

Passband115~190MHz, 250-1500MHz≥45dBc, dB, SMD
View Details →
ZLPF14-L115-190-624 Filter

Filter ZLPF14-L115-190-624

Passband115~190MHz, 230-1300MHz≥40dBc, dB, Microstrip pad,
View Details →
ZBF5-L185-10-1553 Filter

Filter ZBF5-L185-10-1553

Passband180~190MHz, DC-100MHz≥55dBc, 270-500MHz≥55dBc, Pin
View Details →
ZBF5-L175-25-3374 Filter

Filter ZBF5-L175-25-3374

Passband162.5~187.5MHz, DC-137.5MHz≥40dB, 212.5-500MHz≥40dB, SMD
View Details →
ZBF5-L175-24-606 Filter

Filter ZBF5-L175-24-606

Passband163~187MHz, DC-150MHz≥35dB, 200-800MHz≥35dB, Pin
View Details →
ZBF5-L166-20-510 Filter

Filter ZBF5-L166-20-510

Center Frequency166MHz, -3dB BW40MHz, 126-146MHz≥50dBc, 186-206MHz≥50dBc, SMA
View Details →
ZBF5-L153.6-66-2950 Filter

Filter ZBF5-L153.6-66-2950

Passband120.6~186.6MHz, Pin
View Details →
ZBF5-L140-100-1873 Filter

Filter ZBF5-L140-100-1873

Passband90~190MHz, DC-60MHz≥30dB, 220-1000MHz≥30dB, SMD
View Details →
ZBF3-L140-100-1949 Filter

Filter ZBF3-L140-100-1949

Passband90~190MHz, DC-30MHz≥35dB, 250MHz≥35dB, SMA
View Details →
ZBF13-L170-40-3667 Filter

Filter ZBF13-L170-40-3667

Passband150~190MHz, DC-130MHz≥40dB, 210-400MHz≥40dB, SMA
View Details →

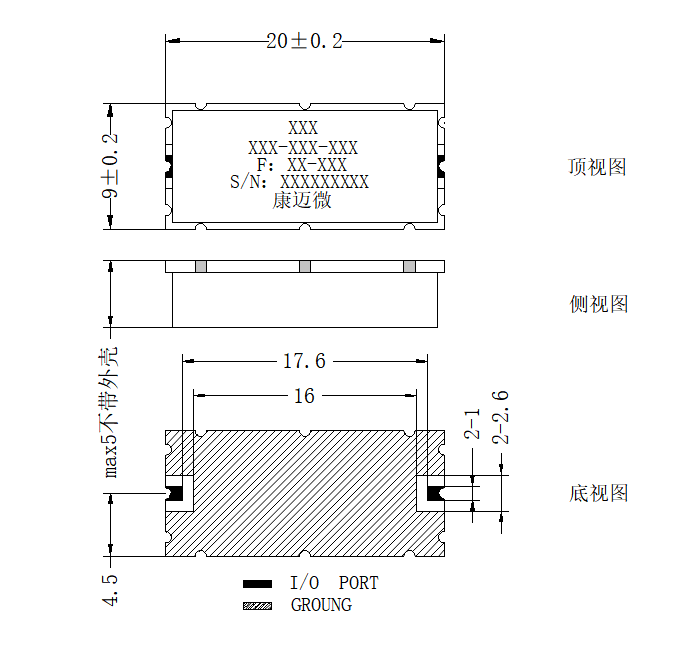

ZBF13-L150-80-727 Filter

Filter ZBF13-L150-80-727

Passband110~190MHz, DC-90MHz≥35dBc, 210-500MHz≥35dBc, SMD
View Details →

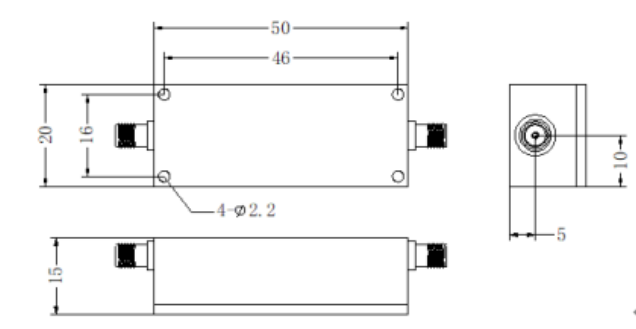

JX-LCF1-110M190M-60SF LC filter

LC filter JX-LCF1-110M190M-60SF

Passband110~190MHz, DC-90MHz≥60dBc, 210-500MHz≥60dBc,
View Details →
JBF-170X40-L1 Filter

Filter JBF-170X40-L1

Passband150~190MHz, DC-110MHz≥50dB, 230-500MHz≥50dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
