F High：180 - 180 MHz× Clear all
matches 50 models Default Newest
ZBF13-L150-60-1514 Filter

Filter ZBF13-L150-60-1514

Passband120~180MHz, DC-90MHz≥55dBc, 220-1500MHz≥55dBc, SMD
In Stock View Details →
ZLPF5-L0-180-3384 Filter

Filter ZLPF5-L0-180-3384

PassbandDC~180MHz, Rejection240-1000MHz≥30dB, SMD
In Stock View Details →
WLD000001-LK Filter

Filter WLD000001-LK

Passband0~180MHz, 400MHz≥20dBc, Microstrip pad, MMIC
In Stock View Details →
BF014 Filter

Filter BF014

Passband95~180MHz, DC-48MHz≥35dB, 58MHz≥20dB, 260MHz≥20dB, 310-2000MHz≥35dB, Substitutes RBP-130+
In Stock View Details →
BF090 Filter

Filter BF090

Passband100~180MHz, DC-80MHz≥40dB, 200-500MHz≥40dB, SMD
In Stock View Details →
ZBF14-L140-80-158 Filter

Filter ZBF14-L140-80-158

Passband100~180MHz, DC-85MHz≥40dB, 200-500MHz≥40dB, SMA
In Stock View Details →
ZHPF20-L3-180-220 Filter

Filter ZHPF20-L3-180-220

Passband3~180MHz, DC-2.4MHz≥40dB, SMA-MF
In Stock View Details →
ZBF5-L140-80-3461 Filter

Filter ZBF5-L140-80-3461

Passband100~180MHz, DC-60MHz≥33dB, SMD
In Stock View Details →
ZBF13-L160-40-1515 Filter

Filter ZBF13-L160-40-1515

Passband140~180MHz, DC-110MHz≥40dB, 220-1500MHz≥40dB, SMA
In Stock View Details →
ZLPF5-L0-180-3271 Filter

Filter ZLPF5-L0-180-3271

PassbandDC~180MHz, 230-1000MHz≥70dB, N
View Details →
ZLPF5-L0-180-1872 Filter

Filter ZLPF5-L0-180-1872

PassbandDC~180MHz, 220-1000MHz≥40dBc, SMA
View Details →
ZLPF2-L100-800-2099 Filter

Filter ZLPF2-L100-800-2099

Passband100~180MHz, 200-900MHz≥40dB, dB, Pin
View Details →
ZCB15-2L130-300-1681 Diplexer

Diplexer ZCB15-2L130-300-1681

Passband F1130~180MHz, Passband F2280~300MHz, SMA
View Details →
ZBF9-S140-80-2982 Filter

Filter ZBF9-S140-80-2982

Center Frequency140MHz, -3dB BW80MHz, -40dB BW96MHz, SMD
View Details →
ZBF6-L155-50-5865 Filter

Filter ZBF6-L155-50-5865

Passband130~180MHz, DC-90MHz≥60dBc, 250-360MHz≥60dBc, Pin
View Details →
ZBF6-C160-40-2203 Filter

Filter ZBF6-C160-40-2203

Passband140~180MHz, DC-132MHz≥25dB, 192-300MHz≥25dB, SMA
View Details →
ZBF5-L140-80-738 Filter

Filter ZBF5-L140-80-738

Passband100~180MHz, DC-70MHz≥40dBc, 220-500MHz≥40dBc, Pin
View Details →

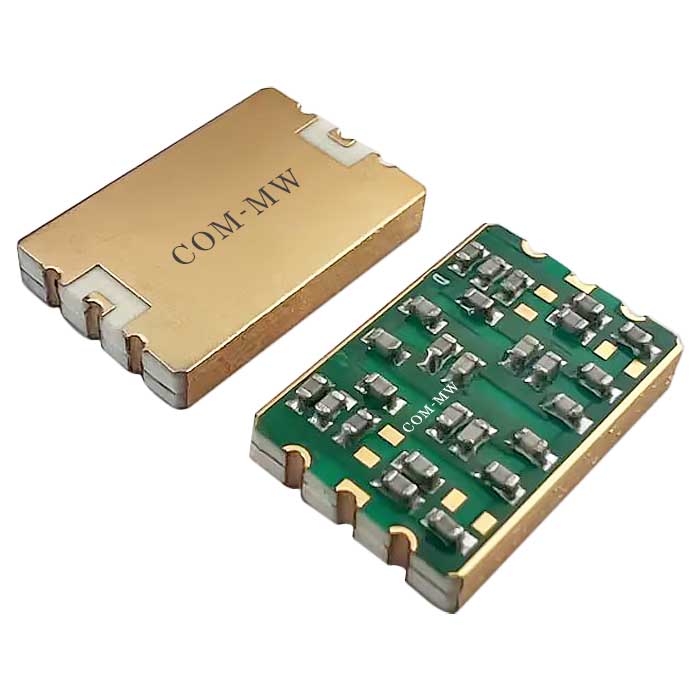

ZBF5-L140-80-2822 Filter

Filter ZBF5-L140-80-2822

Passband100~180MHz, SMD
View Details →
ZBF5-L140-80-2509 Filter

Filter ZBF5-L140-80-2509

Passband100~180MHz, SMA
View Details →
ZBF5-L140-80-1189 Filter

Filter ZBF5-L140-80-1189

Passband100~180MHz, DC-60MHz≥45dBc, 220-700MHz≥45dBc, Pin
View Details →
ZBF5-L105-150-3363 Filter

Filter ZBF5-L105-150-3363

Passband30~180MHz, DC-20MHz≥30dBc, 190-500MHz≥30dBc, Pin
View Details →
ZBF3-L160-40-2427 Filter

Filter ZBF3-L160-40-2427

Passband140~180, 235-1000MHz≥30dB, DC-70MHz≥30dB, SMA
View Details →
ZBF3-L160-40-1148 Filter

Filter ZBF3-L160-40-1148

Passband140~180MHz, DC-60MHz≥60dBc, 260-500MHz≥60dBc, SMA
View Details →
ZBF3-L150-60-2379 Filter

Filter ZBF3-L150-60-2379

Passband120~180MHz, DC-95MHz≥45dBc, 205-1000MHz≥45dBc, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
