Filters
Filters 1
F High MHz
1755 11 1757.5 5 1760 3 1765 2 1770 7
–
Connector
SMD 1 SMA 15 N 4 Microstrip pad 1 Microstrip needle 6
Power Handling
0.1 - 1 8 2 - 10 2 15 - 20 4 50 - 100 11 150 3
–
Maximum loss of side frequency dB
1 2 2 4 2.5 10 3 9 4 1
–
Rejection dB
40 - 45 4 50 - 55 12 60 - 65 10 70 - 80 2
–
F Low MHz
930 - 1495 4 1665 - 1700 5 1710 - 1737.5 17 1740 - 1745 2
–
Feature
Bandpass 10 Notch 16
Center frequency MHz
1350 - 1625 4 1717 - 1720 4 1750 - 1755 2
–
IL on center frequency dB
0.5 1 1 4 2 4 3 1
–
Insertion loss dB
1 1 2 1
–
Filter type
LC 7 Cavity&waveguide 18 FBAR 1
F High：1755 - 1770 MHz× Clear all
matches 28 models Default Newest
WLMF1750B000AK Filter

Filter WLMF1750B000AK

Passband1750MHz, 1.7GHz≥4045dB, 1.8GHz≥4045dB, Microstrip pad, FBAR
In Stock View Details →
K6-1710-1755-15S60100-003 Filter

Filter K6-1710-1755-15S60100-003

Stopband F1710~1755MHz, ≥60dB, PassbandDC~1695MHz, 1770~6000MHz, SMA
In Stock View Details →
ZCB4-C1710-2155-252 Diplexer

Diplexer ZCB4-C1710-2155-252

Passband L1710~1755MHz, Passband H2110~2155MHz, SMA
View Details →
ZCB4-C1.7-2.565G-1409 Diplexer

Diplexer ZCB4-C1.7-2.565G-1409

Passband F11700~1760MHz, Passband F22505~2565MHz, SMA
View Details →
ZBSF6-C1737.5-1757.5-4031 Filter

Filter ZBSF6-C1737.5-1757.5-4031

Stopband F1737.5~1757.5MHz, ≥55dB, PassbandDC~1717.5MHz, 1777.5~4200MHz, SMA
View Details →
ZBSF6-C1735-1765-4675 Filter

Filter ZBSF6-C1735-1765-4675

Stopband F1735~1765MHz, ≥50dB, PassbandDC~1725MHz, 1775~4500MHz, SMA
View Details →
ZBSF6-C1710-1770-879 Filter

Filter ZBSF6-C1710-1770-879

Stopband F1710~1770MHz, ≥40dB, PassbandDC~1700MHz, 1780~4000MHz, SMA
View Details →
ZBSF6-C1710-1755-961 Filter

Filter ZBSF6-C1710-1755-961

Stopband F1710~1755MHz, ≥60dB, PassbandDC~1702MHz, 1763~6000MHz, SMA
View Details →

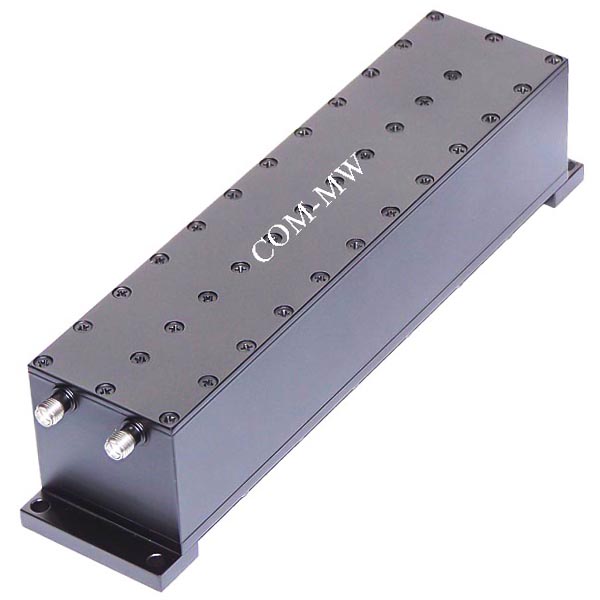

ZBSF6-C1710-1755-876 Filter

Filter ZBSF6-C1710-1755-876

Stopband F1710~1755MHz, ≥40dB, PassbandDC~1700MHz, 1765~4000MHz, SMA
View Details →
ZBSF6-C1710-1755-5460 Filter

Filter ZBSF6-C1710-1755-5460

Stopband F1710~1755MHz, ≥70dB, PassbandDC~1700MHz, 1765~6000MHz, N
View Details →
ZBSF6-C1710-1755-3487 Filter

Filter ZBSF6-C1710-1755-3487

Stopband F1710~1755MHz, ≥50dB, PassbandDC~1700MHz, 1765~5000MHz, SMA
View Details →
ZBF5-L1717.5-105-1057 Filter

Filter ZBF5-L1717.5-105-1057

Passband1665~1770MHz, DC-1410MHz≥60dBc, 1875-2500MHz≥60dBc, Pin
View Details →
ZBF5-L1350-840-2568 Filter

Filter ZBF5-L1350-840-2568

Passband930~1770MHz, DC-740MHz≥50dB, 1960-3000MHz≥60dB, SMA-K
View Details →
ZBF5-L1350-820-993 Filter

Filter ZBF5-L1350-820-993

Passband940~1760MHz, 1860-2250MHz≥20dBc, 2250-3000MHz≥60dBc, Pin
View Details →
ZBF5-L1350-820-1306 Filter

Filter ZBF5-L1350-820-1306

Passband930~1770MHz, DC-740MHz≥50dB, 1960-3000MHz≥60dB, Pin
View Details →

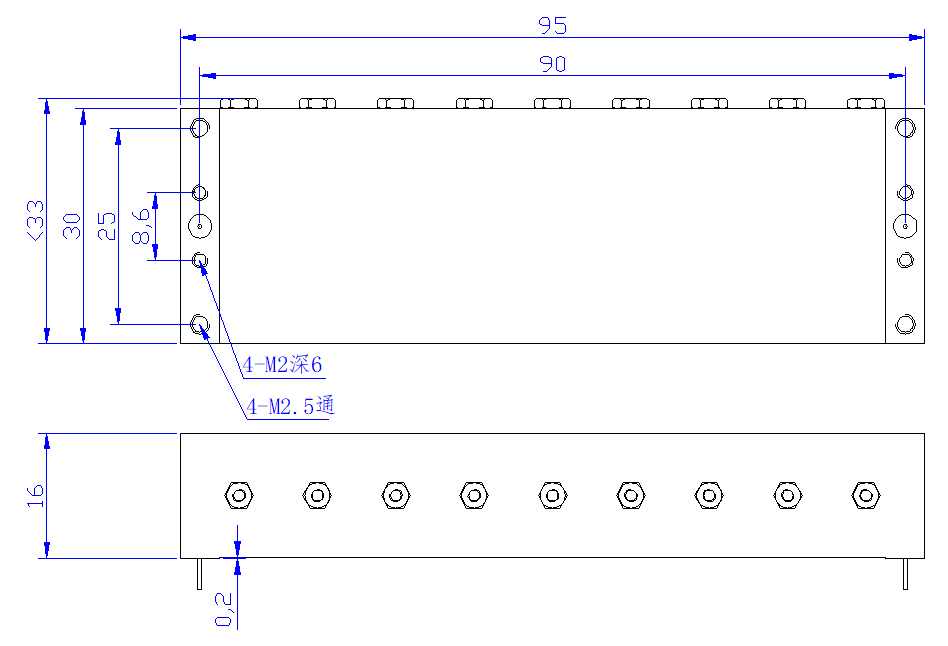

ZBF5-C1720-100-665 Filter

Filter ZBF5-C1720-100-665

Passband1670~1770MHz, DC-1620MHz≥65dB, 1820-2000MHz≥65dB, Pin
View Details →
ZBF4-C1755-20-1176 Filter

Filter ZBF4-C1755-20-1176

Passband1745~1765MHz, 1705MHz≥40dB, 1805MHz≥40dB, SMA
View Details →
ZBF3-L1720-100-2820 Filter

Filter ZBF3-L1720-100-2820

Passband1670~1770MHz, DC-1200MHz≥55dBc, 1400-1520MHz≥55dBc, Pin
View Details →
ZBF2-L1625-260-1661 Filter

Filter ZBF2-L1625-260-1661

Passband1495~1755MHz, DC-1235MHz≥50dBc, 2015-5000MHz≥50dBc, Pin
View Details →
XPF-L1720M100M-T Filter

Filter XPF-L1720M100M-T

Passband1670~1770MHz, DC-1.2GHz≥55dBc, 1.4-1.52GHz≥55dBc, SMD
View Details →
K6-1737.5-1757.5-8S5050-001 Filter

Filter K6-1737.5-1757.5-8S5050-001

Stopband F1737.5~1757.5MHz, ≥50dB, PassbandDC~1729.5MHz, 1765.5~4500MHz, SMA
View Details →
K6-1737.5-1757.5-8N5050-002 Filter

Filter K6-1737.5-1757.5-8N5050-002

Stopband F1737.5~1757.5MHz, ≥50dB, PassbandDC~1729.5MHz, 1765.5~4500MHz, N
View Details →
K6-1737.5-1757.5-15S60100-003 Filter

Filter K6-1737.5-1757.5-15S60100-003

View Details →
K6-1737.5-1757.5-15N60150-004 Filter

Filter K6-1737.5-1757.5-15N60150-004

Stopband F1737.5~1757.5MHz, ≥60dB, PassbandDC~1722.5MHz, 1772.5~6000MHz, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
