RF Filter

Total 21 models
Categories
Categories RF Filter
RF Filter16043
RF Filter15371 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
1616 1 1617.5 1 1620 11 1624 3 1625 5
–
Connector
SMD 3 SMA 11 N 3 Microstrip needle 3
Power Handling
1 - 2 8 5 - 10 4 20 - 40 4 50 - 100 4 500 1
–
Maximum loss of side frequency dB
0.6 - 1 4 1.5 - 2 6 2.5 - 3.4 8 5.5 - 8 2
–
Rejection dB
15 - 40 8 50 - 55 3 60 - 70 6 80 - 100 4
–
F Low MHz
775 - 1170 4 1228 - 1369 3 1525 - 1553 9 1575 - 1612.5 5
–
Feature
Bandpass 15 Notch 5
Center frequency MHz
1200 - 1357.5 2 1360 - 1395 2 1494.5 - 1575 3 1585 - 1600 7 1616 1
–
IL on center frequency dB
0.4 - 0.5 4 1 - 2 8 3 - 4 2 6 1
–
Insertion loss dB
0.5 1
–
Filter type
LC 11 Cavity&waveguide 9
F High：1616 - 1625 MHz× Clear all
matches 21 models Default Newest
ZBF15-L1357.5-515-1294 Filter

Filter ZBF15-L1357.5-515-1294

Passband1100~1620MHz, DC-900MHz≥40dBc, 1800-6000MHz≥40dB, SMD
In Stock View Details →
ZBF16-C1585-70-360 Filter

Filter ZBF16-C1585-70-360

Passband1550~1620MHz, DC~1280MHz≥70dB, 1280~1400MHz≥60dB, 2000~6000MHz≥60dB, SMA
In Stock View Details →
ZBF15-L1585-70-1072 Filter

Filter ZBF15-L1585-70-1072

Passband1550~1620MHz, DC-1430MHz≥40dB, 1750-5000MHz≥40dB, SMA
In Stock View Details →
ZCB4-C1268-2491-668 Diplexer

Diplexer ZCB4-C1268-2491-668

Passband F11264~1625MHz, Passband F22483~2500MHz, SMA
View Details →
ZBSF6-L1612.5-1617.5-2945 Filter

Filter ZBSF6-L1612.5-1617.5-2945

Stopband F1612.5~1617.5MHz, ≥40dB, PassbandDC~1587MHz, 1642~3000MHz, SMA
View Details →
ZBSF6-C1608-1624-5117 Filter

Filter ZBSF6-C1608-1624-5117

Stopband F1608~1624MHz, ≥60dB, PassbandDC~1600MHz, 1632~6000MHz, SMA
View Details →
ZBSF6-C1553-1616-2564 Filter

Filter ZBSF6-C1553-1616-2564

Stopband F1553~1616MHz, ≥70dB, PassbandDC~1523MHz, 1646~2500MHz, L29
View Details →

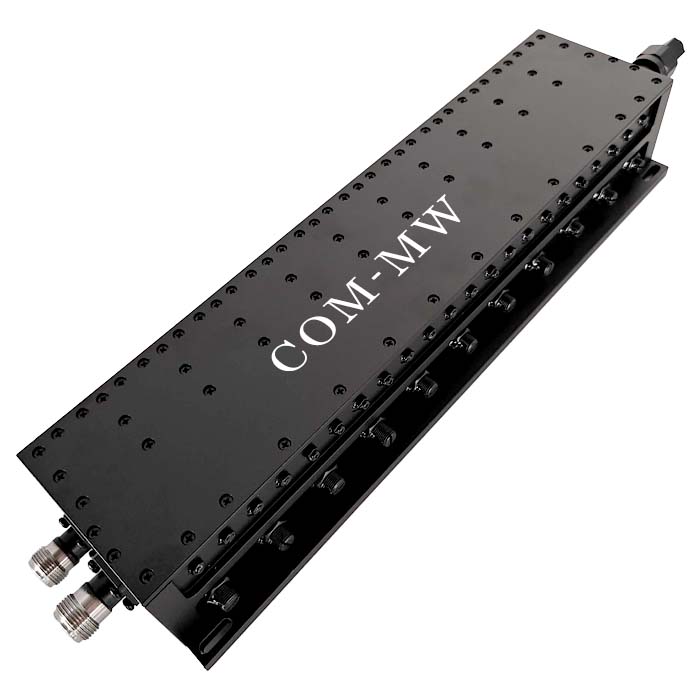

ZBSF6-C1228-1625-5725 Filter

Filter ZBSF6-C1228-1625-5725

Stopband F1228~1308MHz, Stopband F1535~1625MHz, ≥50dB, PassbandDC~1200MHz, 1340~1480MHz, 1690~4000MHz, N
View Details →
ZBF6-C1585-70-SMA Filter

Filter ZBF6-C1585-70-SMA

Passband1550~1620MHz, DC-1425MHz≥100dB, 1675-3000MHz≥100dB, N
View Details →
ZBF6-C1575-50-SMA Filter

Filter ZBF6-C1575-50-SMA

Passband1550~1620MHz, DC-1425MHz≥100dB, 1675-3000MHz≥100dB, N
View Details →
ZBF5-L1585-70-2798 Filter

Filter ZBF5-L1585-70-2798

Passband1550~1620MHz, DC-1350MHz≥40dB, 1820-3000MHz≥40dB, SMA-K
View Details →
ZBF5-L1395-450-3341 Filter

Filter ZBF5-L1395-450-3341

Passband1170~1620MHz, DC-500MHz≥40dB, 2000-3000MHz≥40dB, SMA
View Details →
ZBF25-C1585-70-493 Filter

Filter ZBF25-C1585-70-493

Passband1550~1620MHz, DC-1430MHz≥40dB, 1740-3100MHz≥40dB, SMA
View Details →
ZBF15-L1600-50-1293 Filter

Filter ZBF15-L1600-50-1293

Passband1575~1625MHz, DC-1400MHz≥80dB, 1800-2000MHz≥80dB, Pin
View Details →
ZBF15-L1585-70-1624 Filter

Filter ZBF15-L1585-70-1624

Passband1550~1620MHz, DC-1430MHz≥40dB, 1750-5000MHz≥40dB, SMA, SMA
View Details →
ZBF15-L1360-520-1006 Filter

Filter ZBF15-L1360-520-1006

Passband1100~1620MHz, 50-900MHz≥40dBc, 1800-6000MHz≥40dBc, SMD
View Details →
ZBF15-L1200-850-2772 Filter

Filter ZBF15-L1200-850-2772

Passband775~1625MHz, DC-650MHz≥50dBc, 1.95-4GHz≥50dBc, Pin
View Details →
ZBF13-L1575-100-142 Filter

Filter ZBF13-L1575-100-142

Passband1525~1625MHz, DC-1100MHz≥55dB, 136-530MHz≥65dB, Pin
View Details →
ZBF13-L1494.5-251-794 Filter

Filter ZBF13-L1494.5-251-794

Passband1369~1620MHz, 1319MHz≥15dB, 1670MHz≥15dB, SMD
View Details →

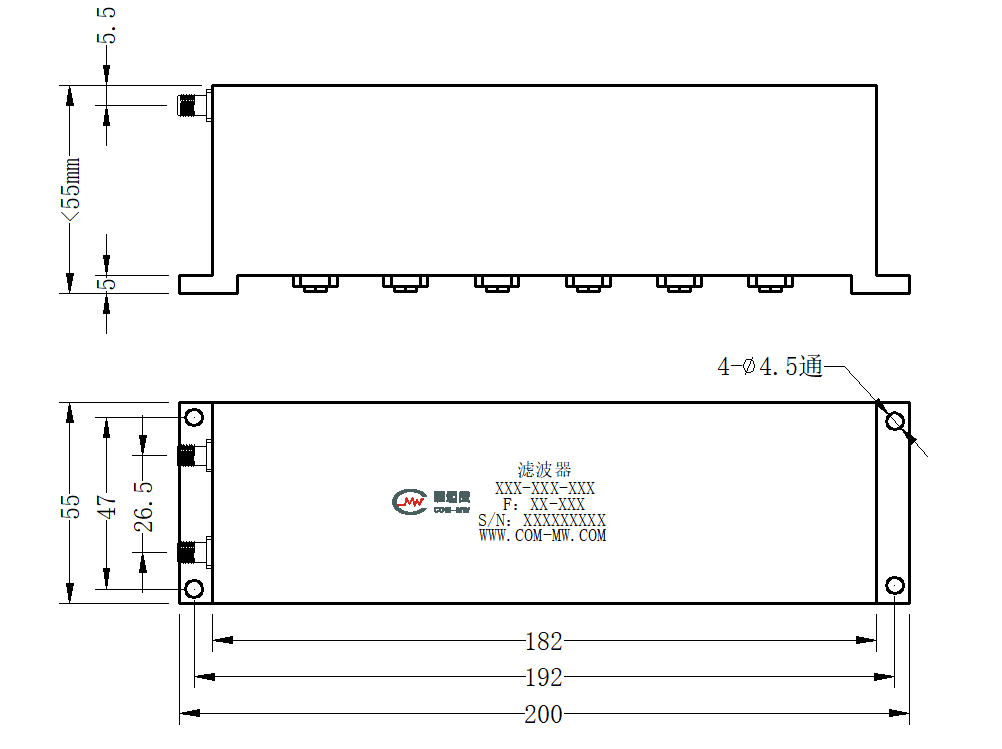

OQZBSF6-C1608-1624-4538 Notch filter

Notch filter OQZBSF6-C1608-1624-4538

Stopband F1608~1624MHz, ≥60dB, PassbandDC~1588MHz, 1644~4000MHz, SMA
View Details →
HBTE-BPF-1608-1624-S Band pass filter

Band pass filter HBTE-BPF-1608-1624-S

Passband1608~1624MHz, DC-1588MHz≥60dB, 1644-5000MHz≥60dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
