Filters
Filters 1
F High MHz
1577 6 1580.4 1 1581 1 1583 1 1585 6
–
Connector
SMD 1 SMA 11 N 1 Microstrip needle 1
Power Handling
1 - 2 3 5 - 10 4 20 - 50 8
–
Maximum loss of side frequency dB
1 - 1.5 5 1.9 - 2 3 3 - 4 5 6 1
–
Rejection dB
30 - 40 7 45 - 50 5 60 - 80 3
–
F Low MHz
1205 - 1217 2 1452 - 1556 2 1558 - 1559 3 1565 - 1570.4 5 1573 - 1574 3
–
Feature
Bandpass 11 Notch 3
Center frequency MHz
1495 - 1566 2 1568 - 1572 2 1575 - 1575.4 5 1575.5 - 1580 2
–
IL on center frequency dB
0.5 3 1 4 2 1 3 2 4 1
–
Insertion loss dB
1 1
–
Filter type
LC 4 Cavity&waveguide 9 Dielectric 1
F High：1577 - 1585 MHz× Clear all
matches 15 models Default Newest
ZCB13-C1575.42-1227.6-356 Diplexer

Diplexer ZCB13-C1575.42-1227.6-356

Passband F11574~1577MHz, Passband F21217~1238MHz, SMA
View Details →
ZBSF6-L1558-1581-5995 Filter

Filter ZBSF6-L1558-1581-5995

Stopband F1558~1581MHz, ≥45dB, PassbandDC~1508MHz, 1631~3400MHz, SMA
View Details →

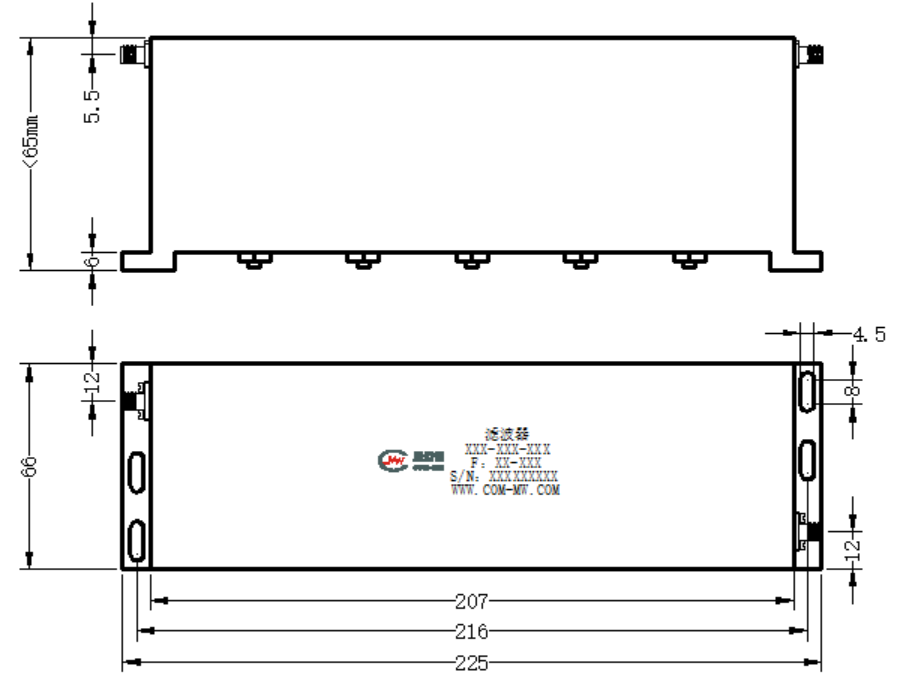

ZBSF6-C1205-1577-3197 Filter

Filter ZBSF6-C1205-1577-3197

Stopband F1205~1229MHz, Stopband F1559~1577MHz, ≥40dB, PassbandDC~1185MHz, Passband1249~1541MHz, Passband1595~3000MHz, SMA
View Details →

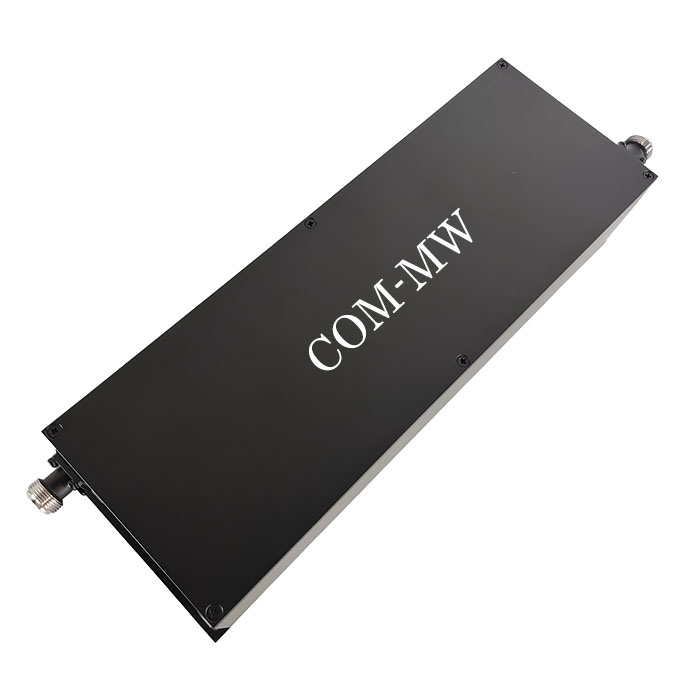

ZBSF3-C1227-1575-1728 Filter

Filter ZBSF3-C1227-1575-1728

Stopband F1217.6~1237.6MHz, Stopband F1371~1391MHz, Stopband F1565~1585MHz, ≥50dB, PassbandDC~1207.6MHz, 1247.6~1361MHz, 1401~1555MHz, 1595~3000MHz, N
View Details →
ZBF9-D1575-4-2988 Filter

Filter ZBF9-D1575-4-2988

Passband1573~1577MHz, DC-1545MHz≥40dB, 1605MHz≥40dB, Microstrip pad
View Details →
ZBF7-C1568-18-875 Filter

Filter ZBF7-C1568-18-875

Passband1559~1577MHz, DC-1468MHz≥30dB, 1668-3000MHz≥30dB, N
View Details →
ZBF6-C1575.42-20-3973 Filter

Filter ZBF6-C1575.42-20-3973

Passband1565.42~1585.42MHz, DC~1555.42MHz≥50dB, 1595.42~3000MHz≥50dB, SMA
View Details →
ZBF6-C1572-26-5953 Filter

Filter ZBF6-C1572-26-5953

Passband1559~1585MHz, DC-1520MHz≥40dBc, 1610-2500MHz≥40dBc, SMA
View Details →
ZBF5-C1566.5-21-1605 Filter

Filter ZBF5-C1566.5-21-1605

Passband1556~1577MHz, DC-1000MHz≥50dBc, 1610-1700MHz≥40dBc, SMA
View Details →
ZBF5-C1.58-0.02G-3809 Filter

Filter ZBF5-C1.58-0.02G-3809

Passband1565~1585MHz, DC-1200MHz≥35dB, 1700-3000MHz≥45dB, SMA
View Details →
ZBF4-C1575.5-3-1199 Filter

Filter ZBF4-C1575.5-3-1199

Passband1574~1577MHz, 1515.5MHz≥40dB, 1635.5MHz≥40dB, SMA
View Details →
ZBF3-L1575.4-10-2395 Filter

Filter ZBF3-L1575.4-10-2395

Passband1570.4~1580.4MHz, DC-1495MHz≥60dBc, 1670-3000MHz≥60dBc, SMA
View Details →
ZBF14-L1495-86-700 Filter

Filter ZBF14-L1495-86-700

View Details →
ZBF13-L1575.42-20.46-2972 Filter

Filter ZBF13-L1575.42-20.46-2972

Passband1565.19~1585.65MHz, DC-1415MHz≥40dB, 1735-5000MHz≥40dB, SMA
View Details →
ZBF13-C1575-20-3730 Filter

Filter ZBF13-C1575-20-3730

Passband1565~1585MHz, DC-1460MHz≥50dB, 1680-4800MHz≥50dB, SMA
View Details →
