F High：1437.5 - 1445 MHz× Clear all
matches 24 models Default Newest
ZLPF2-LDC-1.4G-F2 Filter

Filter ZLPF2-LDC-1.4G-F2

PassbandDC~1440MHz, 1.8-5.5GHz≥40dB, dB, SMA
View Details →
ZBSF6-C1360-1460-6141 Filter

Filter ZBSF6-C1360-1460-6141

Stopband F1380~1440MHz, 1390-1430MHz100dB, 1380-1390&1430-1440MHz60dB, PassbandDC~1340MHz, 1480~4000MHz, N
View Details →
ZBF9-D1430-20-3024 Filter

Filter ZBF9-D1430-20-3024

Passband1420~1440MHz, DC-1390MHz≥30dB, 1470-2200MHz≥30dB, SMD
View Details →
ZBF9-D1395-90-3047 Filter

Filter ZBF9-D1395-90-3047

Passband1350~1440MHz, DC-1300MHz≥45dB, 1490MHz≥45dB, SMD
View Details →
ZBF6-C1435-5-2507 Filter

Filter ZBF6-C1435-5-2507

Passband1432.5~1437.5MHz, DC-1425MHz≥30dB, 1445-3000MHz≥30dB, SMA
View Details →
ZBF5-L1410-60-2031 Filter

Filter ZBF5-L1410-60-2031

Passband1380~1440MHz, DC-1200MHz≥70dBc, 1280-1290MHz≥60dBc, Pin
View Details →
ZBF3-L1435-10-3421 Filter

Filter ZBF3-L1435-10-3421

Passband1430~1440MHz, DC-870MHz≥45dBc, 2000-3000MHz≥45dBc, SMD
View Details →
ZBF3-L1382-110-4245 Filter

Filter ZBF3-L1382-110-4245

Passband1335~1445MHz, DC-1200MHz≥60dB, 1850-3000MHz≥60dB, Pin
View Details →
ZBF3-L1140-600-4352 Filter

Filter ZBF3-L1140-600-4352

Passband840~1440MHz, DC-771MHz≥20dB, 1577-3000MHz≥20dB, SMD
View Details →
ZBF3-C1437-14-4334 Filter

Filter ZBF3-C1437-14-4334

Passband1430~1444MHz, DC-1330MHz≥40dB, 1540-2000MHz≥40dB, SMA
View Details →
ZBF20-L1.38-0.12G-133 Filter

Filter ZBF20-L1.38-0.12G-133

Passband1.3125~1.4375GHz, DC-900MHz≥50dBc, 1.86-6.0GHz≥50dBc, SMA
View Details →
ZBF2-D1432-24-2888 Filter

Filter ZBF2-D1432-24-2888

Passband1400~1444MHz, 1174-1229MHz≥30dB, 1559-2000MHz≥30dB, Microstrip pad,
View Details →
ZBF2-C1430-20-2427 Filter

Filter ZBF2-C1430-20-2427

Passband1420~1440MHz, DC-1.4GHz≥40dB, 1.46-3GHz≥40dB,
View Details →
ZBF16-C1441-6-714 Filter

Filter ZBF16-C1441-6-714

Passband1438~1444MHz, 1428~1433MHz≥20dBc, 1449~1454MHz≥20dBc, SMA, SMA
View Details →
ZBF16-C1437-14-2148 Filter

Filter ZBF16-C1437-14-2148

Passband1430~1444MHz, DC~1400MHz≥70dBc, 1474~3500MHz≥70dBc, SMA
View Details →
ZBF16-C1437-14-2147 Filter

Filter ZBF16-C1437-14-2147

Passband1430~1444MHz, DC~1400MHz≥70dBc, 1474~3500MHz≥70dBc, SMA
View Details →
ZBF16-C1437-14-2121 Filter

Filter ZBF16-C1437-14-2121

Passband1430~1444MHz, 2120-2888MHz≥70dBc, 3180-4332MHz≥70dBc, SMA
View Details →
ZBF16-C1436-16-351 Filter

Filter ZBF16-C1436-16-351

Passband1428~1444MHz, DC~1398MHz≥60dBc, 1474~2500MHz≥60dBc, GHz≥dB, GHz≥dB, SMA
View Details →

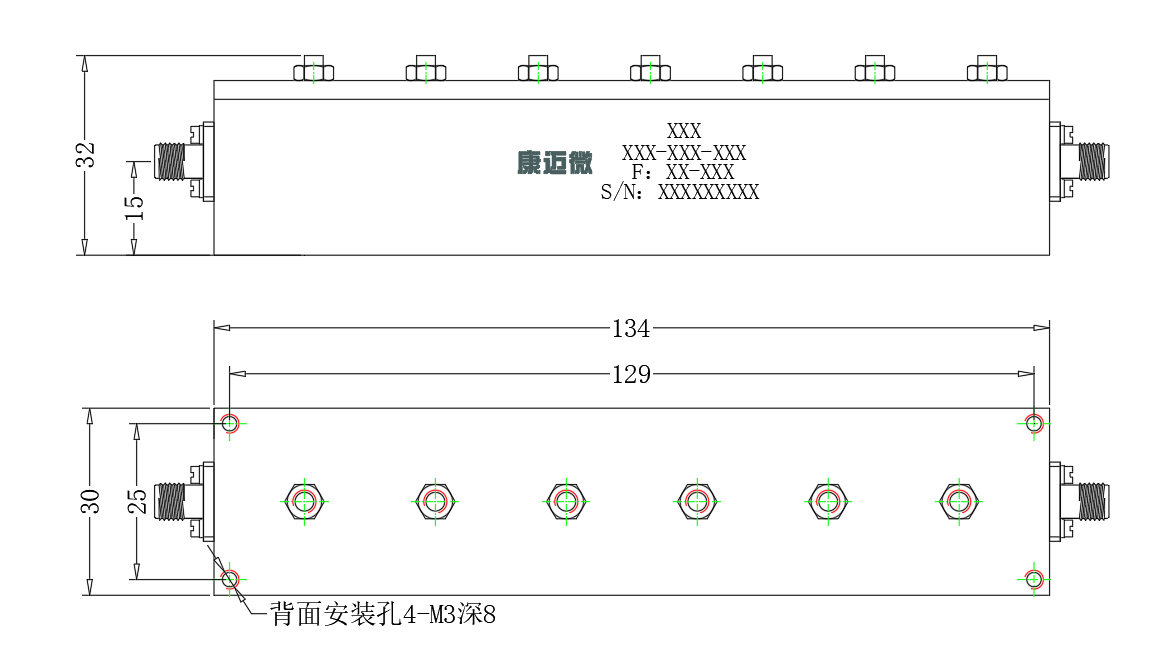

ZBF16-C1252-384-412 Filter

Filter ZBF16-C1252-384-412

Passband1060~1444MHz, 2120~2888MHz≥70dBc, 3180~4332MHz≥70dBc, SMA
View Details →

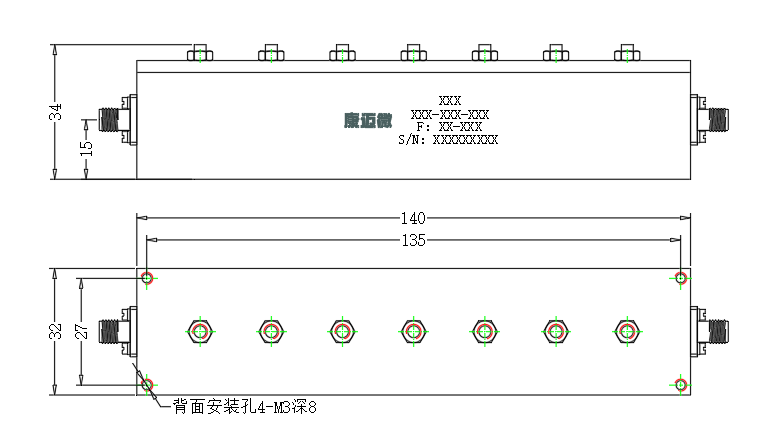

ZBF16-C1252-384-411 Filter

Filter ZBF16-C1252-384-411

Passband1060~1444MHz, 2120~2888MHz≥70dBc, 3180~4332MHz≥70dBc, SMA
View Details →
ZBF14-D1436-16-657 Filter

Filter ZBF14-D1436-16-657

Passband1428~1444MHz, DC-1391MHz≥40dB, 1481-2000MHz≥40dB, MCX
View Details →
ZBF13-L1435-5-2853 Filter

Filter ZBF13-L1435-5-2853

Passband1432.5~1437.5MHz, DC-1.3GHz≥40dBc, 1.56-4GHz≥40dBc, SMA
View Details →
ZBF13-L1329.5-207-2029 Filter

Filter ZBF13-L1329.5-207-2029

Passband1226~1441MHz, DC-1.07GHz≥60dBc, 1.62-3GHz≥60dBc, SMA
View Details →
ZBF13-C1437-14-2921 Filter

Filter ZBF13-C1437-14-2921

Passband1430~1444MHz, DC-1405MHz≥50dBc, 1469-3000MHz≥50dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
