F High：11010 - 11100 MHz× Clear all
matches 14 models Default Newest
CA0090 SMD Filter

SMD Filter CA0090

Bandwidth8.7-11.1GHz, Rejection40@DC-6.8GHz, 40@13.4-24.0GHz
In Stock View Details →
STBP111-0R1-N207 Thin film filter

Thin film filter STBP111-0R1-N207

Bandwidth11.0-11.1GHz, Rejection40@DC-10.3GHz, 40@11.7-26.0GHz
In Stock View Details →
WLMX109111K Filter

Filter WLMX109111K

Passband10900~11100MHz, 10.2&11.8GHz≥30dB, 10.15&11.9GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
STBP110-0R1-N161 Thin film filter

Thin film filter STBP110-0R1-N161

Bandwidth11.0-11.1GHz, Rejection40@DC-10.2GHz, 40@11.8-28.0GHz
In Stock View Details →
CC0090 Filter

Filter CC0090

Bandwidth8.7-11.1GHz, Rejection40@DC-6.8GHz, 40@13.3-24.0GHz
In Stock View Details →
ZBF6-C10460-1220-4114 Filter

Filter ZBF6-C10460-1220-4114

Passband9850~11070MHz, DC~5000MHz≥40dB, 16200~22200MHz≥40dB, SMA
View Details →
ZBF5-C10000-2100-683 Filter

Filter ZBF5-C10000-2100-683

Passband8950~11050MHz, DC-5.8GHz≥40dBc, 12.5-20GHz≥50dBc, SMA
View Details →
ZBF3-C11-0G-4096 Filter

Filter ZBF3-C11-0G-4096

Passband10990~11010MHz, DC-10500MHz≥75dBc, 11500-18000MHz≥75dBc, Pin
View Details →
ZBF3-C10.5-1.1G-4379 Filter

Filter ZBF3-C10.5-1.1G-4379

Passband9950~11050MHz, 8500-9500MHz≥45dBc, 11500-20000MHz≥45dBc, Pin
View Details →

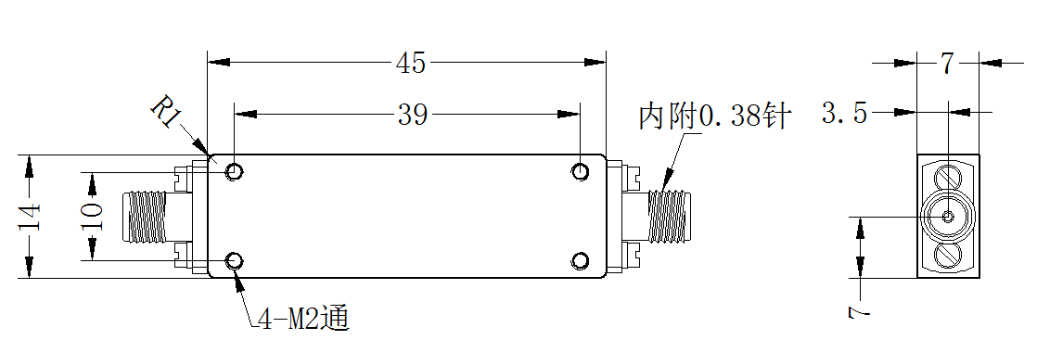

ZBF2-C9.5-3.2G-1934 Filter

Filter ZBF2-C9.5-3.2G-1934

Passband7.9~11.1GHz, DC-6.5GHz≥50dBc, 12-18GHz≥50dBc, SMA
View Details →

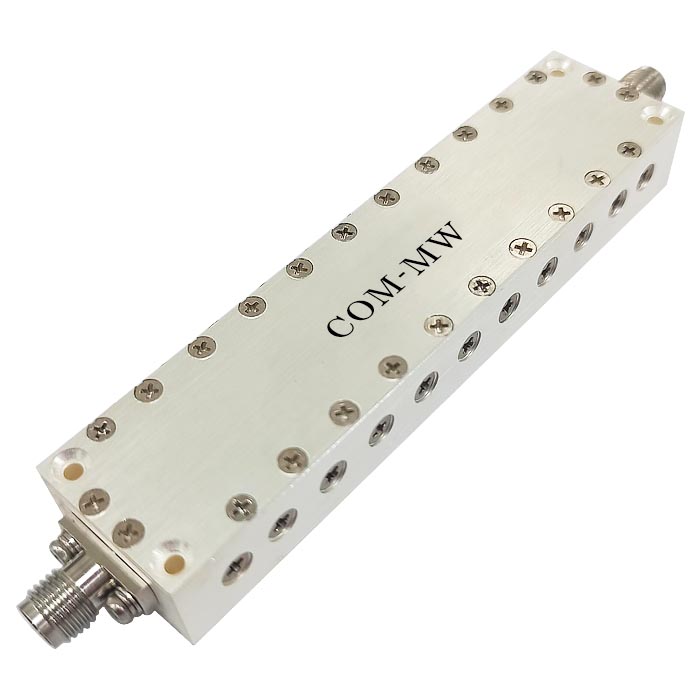

ZBF2-C10.2-1.65G-1083 Filter

Filter ZBF2-C10.2-1.65G-1083

Passband9375~11025MHz, f0±1GHz≥23dB, f0±1.4GHz≥60dB, SMA
View Details →
ZBF13-C10-2.1G-479 Filter

Filter ZBF13-C10-2.1G-479

Passband8.95~11.05GHz, DC-8.5GHz≥65dBc, 11.5-20GHz≥65dBc, SMA
View Details →

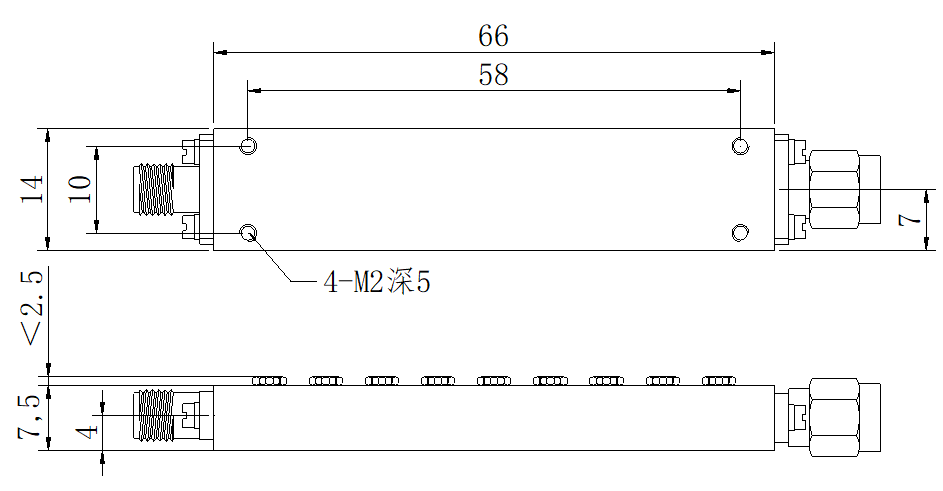

ZBF-11.0-0.1G-444 Filter

Filter ZBF-11.0-0.1G-444

Passband10.95~11.05GHz, DC-10.5GHz≥55dBc, 11.5-20GHz≥55dBc, SMA
View Details →

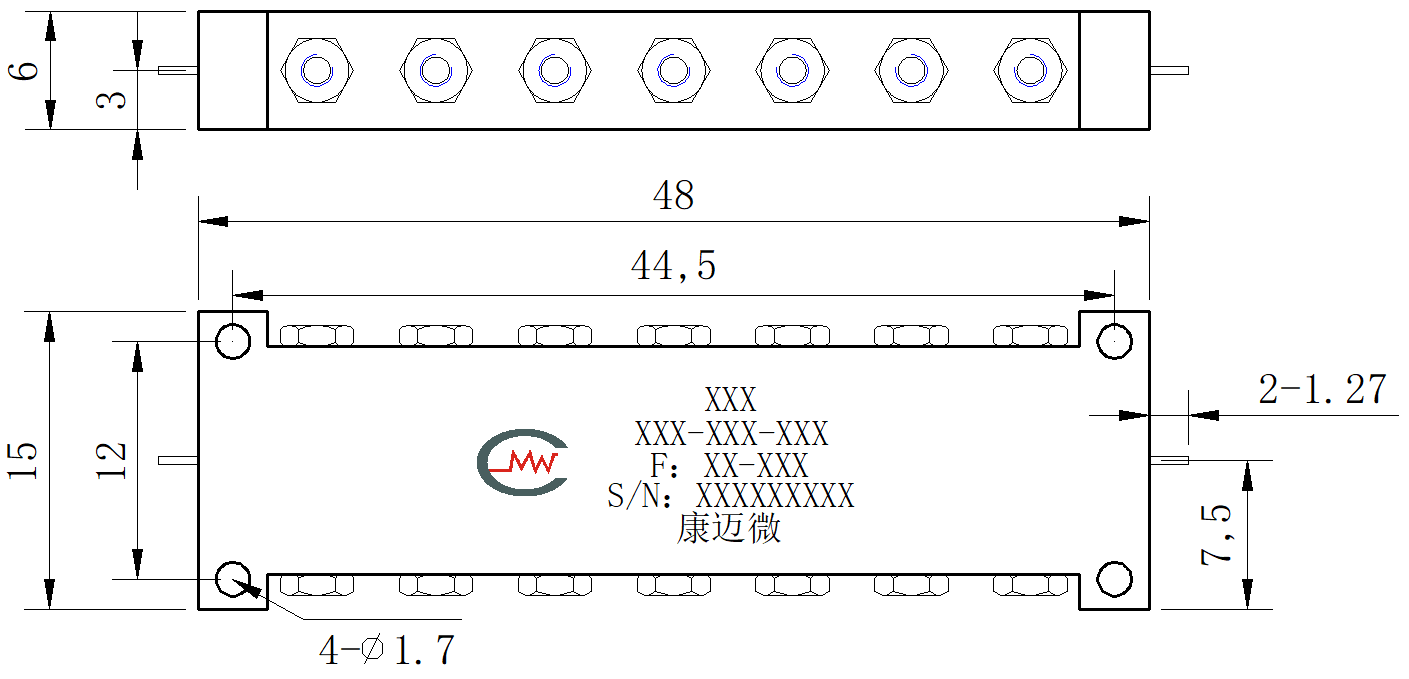

HBF-C10250B1600-MF1410 Filter

Filter HBF-C10250B1600-MF1410

Passband9450~11050MHz, DC-8800MHz≥75dB, 11700-20000MHz≥75dB, Pin 0.38mm
View Details →
