Center frequency：8490 - 8525 MHz× Clear all
matches 37 models Default Newest
CA0229 SMD Filter

SMD Filter CA0229

Bandwidth6.0-11.0GHz, Rejection40@DC-1.2GHz, 40@16.0-19.0GHz
In Stock View Details →
CA0016 SMD Filter

SMD Filter CA0016

BandwidthDC-17.0GHz, Rejection35@20.5-33.0GHz, 15@33.0-38.0GHz
In Stock View Details →
STBP8R5-1R2-K570 Thin film filter

Thin film filter STBP8R5-1R2-K570

Bandwidth7.9-9.1GHz, Rejection40@DC-6.9GHz, 40@10.6-18.0GHz
In Stock View Details →
STBP8R5-3R0-M667 Thin film filter

Thin film filter STBP8R5-3R0-M667

Bandwidth7.0-10.0GHz, Rejection40@DC-5.6GHz, 40@11.4-20.0GHz
In Stock View Details →
WLMX080090K Filter

Filter WLMX080090K

Passband8000~9000MHz, 7.3&9.95GHz≥30dB, 7.2&10.1GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
ZBF4-C8.5-1G-1125 Filter

Filter ZBF4-C8.5-1G-1125

Passband8~9GHz, DC-7.4GHz≥40dB, 9.5-21GHz≥50dB, SMA-KDetachable
In Stock View Details →
ZBF14-C8.5-5G-381 Filter

Filter ZBF14-C8.5-5G-381

Passband6~11GHz, DC-5GHz≥50dB, 12-20GHz≥50dB, SMA-K
In Stock View Details →
ZBF5-C8.5-7G-3608 Filter

Filter ZBF5-C8.5-7G-3608

Passband5~12GHz, DC-3.5GHz≥65dB, 3.5-4GHz≥50dB, SMA
In Stock View Details →
SM0001 MEMS Filter

MEMS Filter SM0001

Bandwidth8.2-8.8GHz, Rejection40@DC-7.4GHz, 45@9.8-23.0GHz,
In Stock View Details →
ZBF1-M8.49-7.04G-328 Filter

Filter ZBF1-M8.49-7.04G-328

Passband4.98~12.02GHz, 4GHz≥20dB, 15-30GHz≥30dB, SMA
In Stock View Details →
ZBF6-C8500-85-4443 Filter

Filter ZBF6-C8500-85-4443

Passband8457.5~8542.5MHz, DC-8190MHz≥50dB, 8830-23627.5MHz≥50dB, SMA
View Details →
ZBF5-C8.5-3G-2736 Filter

Filter ZBF5-C8.5-3G-2736

Passband7~10GHz, DC-6.3GHz≥60dBc, 12-20GHz≥40dBc, Pin
View Details →
ZBF5-C8.5-3G-2256 Filter

Filter ZBF5-C8.5-3G-2256

Passband7~10GHz, DC-5.6GHz≥70dBc, 11-16GHz≥70dBc, Pin
View Details →

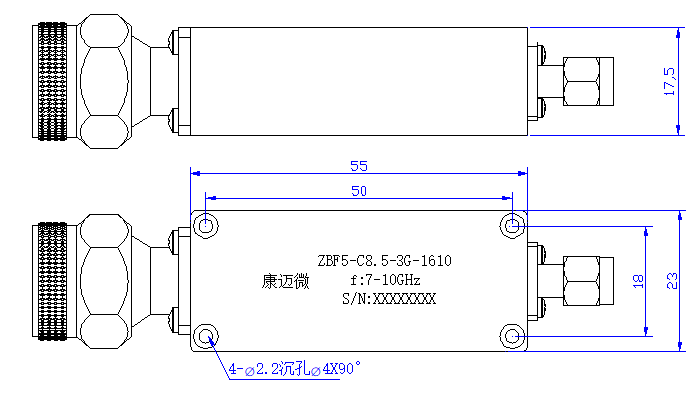

ZBF5-C8.5-3G-1610 Filter

Filter ZBF5-C8.5-3G-1610

Passband7~10GHz, DC-6.3GHz≥40dB, 11-12GHz≥40dB,
View Details →

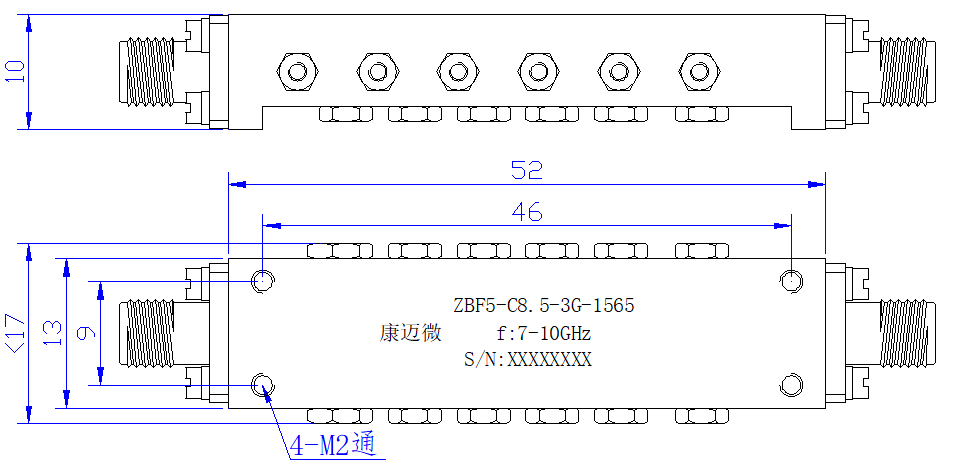

ZBF5-C8.5-3G-1565 Filter

Filter ZBF5-C8.5-3G-1565

Passband7~10GHz, DC-6GHz≥70dBc, 11-16GHz≥70dBc, SMA
View Details →

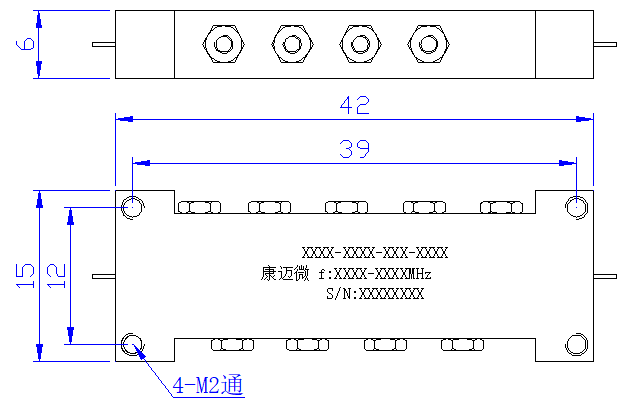

ZBF5-C8.5-1G-3410 Filter

Filter ZBF5-C8.5-1G-3410

Passband8~9GHz, DC-6.35GHz≥70dBc, 6.35-7.5GHz≥60dBc, Pin
View Details →

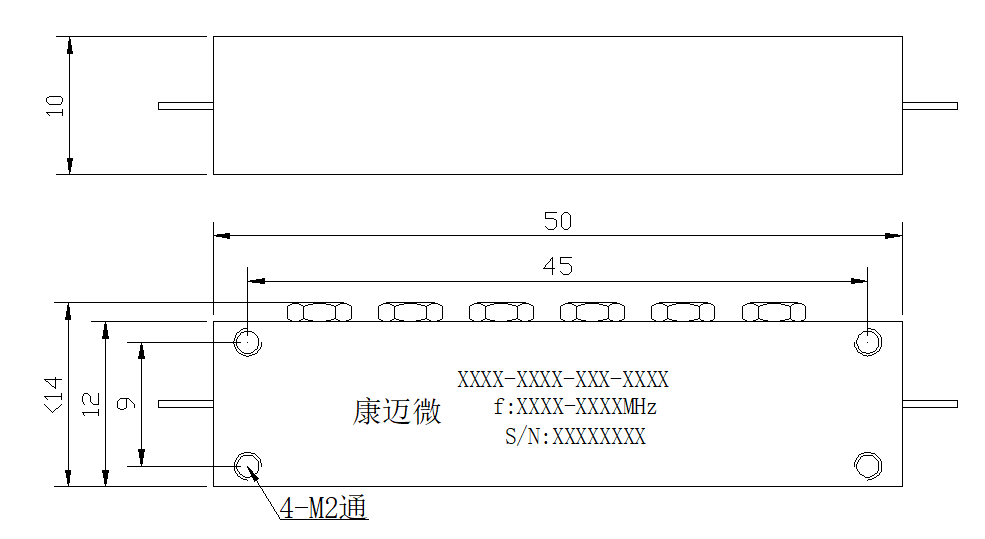

ZBF5-C8.5-1G-2380 Filter

Filter ZBF5-C8.5-1G-2380

Passband8~9GHz, DC-6.2GHz≥70dB, 5.2-6.5GHz≥40dB, Pin
View Details →
ZBF5-C8.5-1G-1469 Filter

Filter ZBF5-C8.5-1G-1469

Passband8~9GHz, DC-5.5GHz≥60dB, 6-7.5GHz≥40dB, SMA
View Details →

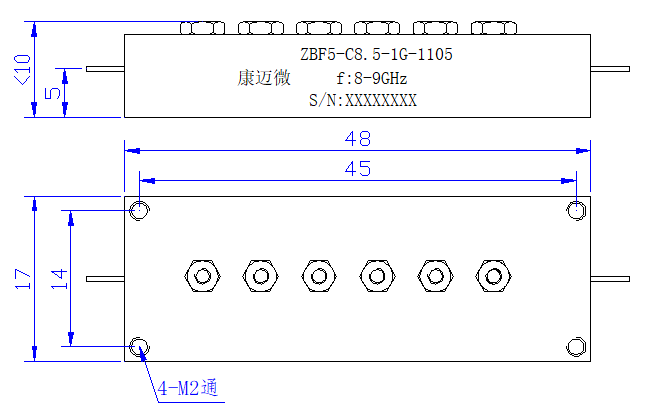

ZBF5-C8.5-1G-1105 Filter

Filter ZBF5-C8.5-1G-1105

Passband8~9GHz, DC-7.78GHz≥55dBc, 9.5-15GHz≥50dBc, Pin
View Details →
ZBF3-C8525-1000-4339 Filter

Filter ZBF3-C8525-1000-4339

Passband8025~9025MHz, DC-6850MHz≥55dBc, 11200-16000MHz≥65dBc, Pin
View Details →
ZBF3-C8.5-1G-3545 Filter

Filter ZBF3-C8.5-1G-3545

Passband8000~9000MHz, DC-6800MHz≥65dB, 10350-18000MHz≥65dB, Pin
View Details →
ZBF3-C8.5-1.1G-4381 Filter

Filter ZBF3-C8.5-1.1G-4381

Passband7950~9050MHz, 6500-7500MHz≥45dBc, 9500-16000MHz≥45dBc, Pin
View Details →
ZBF3-C8.5-0G-4094 Filter

Filter ZBF3-C8.5-0G-4094

Passband8490~8510MHz, DC-8000MHz≥75dBc, 9000-16000MHz≥75dBc, Pin
View Details →
ZBF2-C8.5-1G-1992 Filter

Filter ZBF2-C8.5-1G-1992

Passband8~9GHz, DC-6.2GHz≥50dBc, 9.8-10GHz≥20dBc, Pin
View Details →
