Filters
Filters 1
F High MHz
7600 - 7615 4 7636 - 7750 4 8000 - 8500 3 8600 - 9000 4 10250 - 10460 2
–
Connector
SMD 3 SMA 6 Microstrip pad 1 Microstrip needle 7
Power Handling
2 1 5 10 10 6
–
Maximum loss of side frequency dB
1 - 1.5 2 2 - 2.5 5 2.7 - 3 7 4 - 4.5 2 6 1
–
Rejection dB
40 - 50 10 58 - 60 4 70 - 75 2 95 1
–
F Low MHz
4560 - 6100 3 6400 - 7150 4 7200 - 7460 4 7558 - 7595 4 7600 2
–
Feature
Bandpass 17
Center frequency MHz
7550 1 7585 1 7597 1 7600 14
–
IL on center frequency dB
0.5 - 1 6 1.5 - 1.7 2 2 - 3 7 3.5 - 4 2
–
Filter type
Cavity&waveguide 10 stripline 5 Coaxial 1 Thin film 1
Center frequency：7550 - 7600 MHz× Clear all
matches 17 models Default Newest
CA0286 SMD Filter

SMD Filter CA0286

Bandwidth6.4-8.8GHz, Rejection40@DC-5.0GHz, 40@10.2-15.5GHz
In Stock View Details →
CA0250 SMD Filter

SMD Filter CA0250

Bandwidth6.6-8.5GHz, Rejection40@DC-5.5GHz, 30@9.6-18.0GHz
In Stock View Details →
CA0238-2412 SMD Filter

SMD Filter CA0238-2412

Bandwidth7.45-7.75GHz, Rejection40@DC-6.7GHz, 35@8.8-15.0GHz
In Stock View Details →
STBP7R6-2R9-M557 Thin film filter

Thin film filter STBP7R6-2R9-M557

Bandwidth6.1-9.0GHz, Rejection40@DC-4.7GHz, 40@11.0-17.0GHz
In Stock View Details →
ZBF1-M7.6-5.3G-562 Filter

Filter ZBF1-M7.6-5.3G-562

Passband4.95~10.25GHz, DC-3.8GHz≥58dB, 11.3-15GHz≥58dB, Pin
In Stock View Details →
CC0238 Filter

Filter CC0238

Bandwidth7.45-7.75GHz, Rejection40@DC-6.7GHz, 35@8.8-15.0GHz
In Stock View Details →
ZBF4-M7.6-6.08G-1520 Filter

Filter ZBF4-M7.6-6.08G-1520

Passband4.56~10.46GHz, DC-3.5GHz≥58dB, 11.75-15GHz≥58dB, Pin
In Stock View Details →
ZBF13-C7585-250-1016 Filter

Filter ZBF13-C7585-250-1016

Passband7.46~7.71GHz, F0±300MHz≥30dB, F0±550MHz≥75dBc, Pin
In Stock View Details →

Component ZS13-C7.6-9G-2729

Passband7.6~9GHz, DC-7.3GHz≥30dB, 9.5-20GHz≥40dB, SMA, SMA
View Details →
ZBF6-C7.6-0.8G-4804 Filter

Filter ZBF6-C7.6-0.8G-4804

Passband7.2~8GHz, DC-6.4GHz≥60dB, 8.2GHz≥30dB, SMA
View Details →

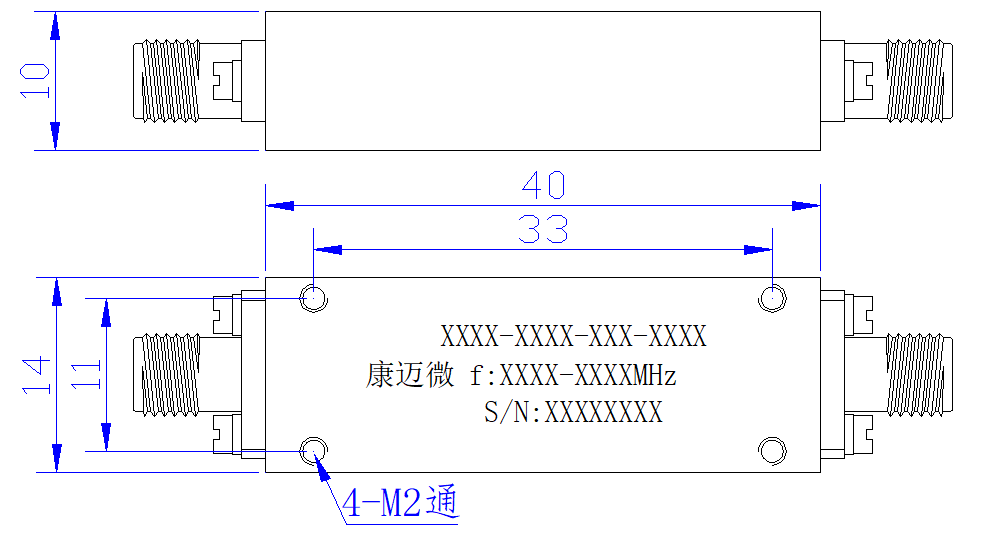

ZBF5-C7600-30-2652 Filter

Filter ZBF5-C7600-30-2652

Passband7585~7615MHz, -3dB BW100MHz, 7250MHz≥50dBc, 7950MHz≥50dBc, SMA
View Details →
ZBF5-C7600-10-2659 Filter

Filter ZBF5-C7600-10-2659

Passband7595~7605MHz, 1dB BW10~200MHz, DC-7GHz≥70dBc, 8.6GHz≥70dBc, SMA
View Details →

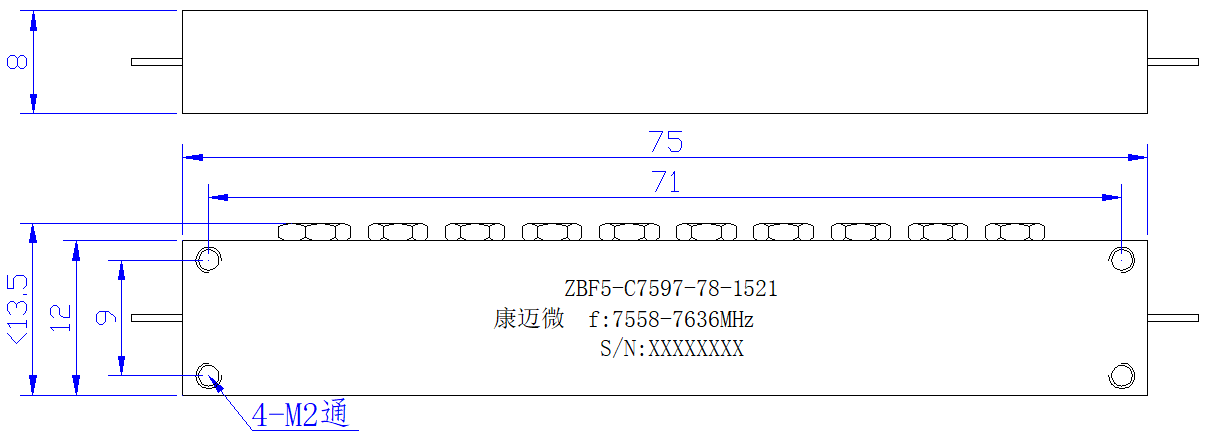

ZBF5-C7597-78-1521 Filter

Filter ZBF5-C7597-78-1521

Passband7558~7636MHz, DC-7460MHz≥95dB, 7670-7740MHz≥30dB, Pin
View Details →

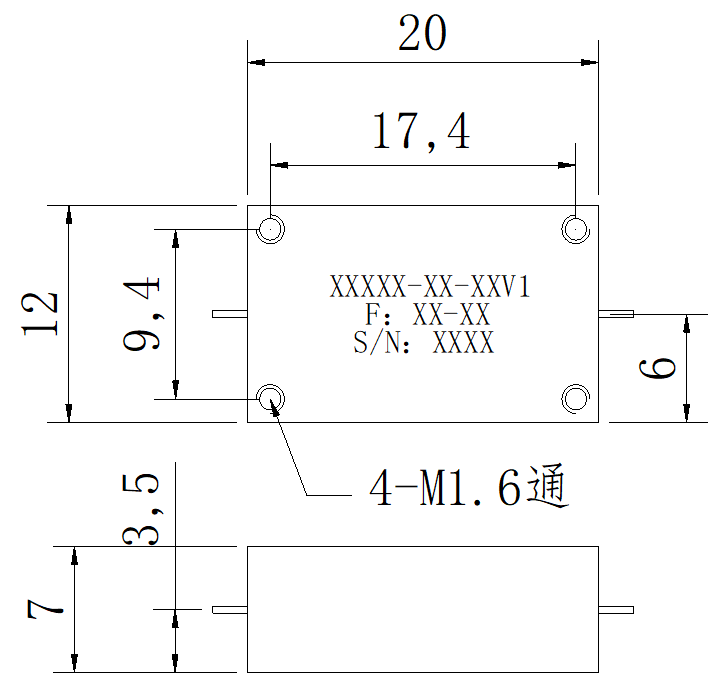

ZBF4-C7.6-0G-376 Filter

Filter ZBF4-C7.6-0G-376

Passband7600~7600MHz, DC-3800MHz≥40dB, 14000-16000MHz≥40dB, Pin
View Details →
ZBF3-C7600-900-3777 Filter

Filter ZBF3-C7600-900-3777

Passband7150~8050MHz, DC-6000MHz≥50dB, 8200-9000MHz≥20dB, Pin
View Details →
ZBF13-C7600-30-3679 Filter

Filter ZBF13-C7600-30-3679

Passband7585~7615MHz, DC-7.25GHz≥50dBc, 7.95-15GHz≥50dBc, SMA
View Details →
ZBF13-C7.6-2G-024 Filter

Filter ZBF13-C7.6-2G-024

Passband6.6~8.6GHz, 5600MHz≥60dBc, 9600MHz≥60dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
