Center frequency：7250 - 7250 MHz× Clear all
matches 15 models Default Newest
CA0283 SMD Filter

SMD Filter CA0283

Bandwidth6.0-8.5GHz, Rejection20@9.0GHz, 55@10.0-14.0GHz
In Stock View Details →
ZBF1-M7.25-5G-191 Filter

Filter ZBF1-M7.25-5G-191

Passband4.75~9.75GHz, DC-4GHz≥50dB, 11.75-15GHz≥60dB, SMA
In Stock View Details →
ZBF8-C7250-60-2810 Filter

Filter ZBF8-C7250-60-2810

Passband7220~7280MHz, DC-6950MMHz≥65dBc, 7400-18000MHz≥65, SMA
In Stock View Details →
ZBF13-C7.25-1.5G-3111 Filter

Filter ZBF13-C7.25-1.5G-3111

Passband6.5~8GHz, DC-6.1GHz≥80dBc, 6.3GHz≥55dBc, SMA
In Stock View Details →
ZBF13-C7.25-0.8G-656 Filter

Filter ZBF13-C7.25-0.8G-656

Passband6.85~7.65GHz, DC-6.25GHz≥50dBc, 8.25-10GHz≥50dBc, Pin
In Stock View Details →
ZBF1-M7.25-3.5G-214 Filter

Filter ZBF1-M7.25-3.5G-214

Passband5.5~9GHz, DC-4.5GHz≥40dB, 11GHz≥40dB, Microstrip pad
In Stock View Details →
ZBF8-C7250-60-2801 Filter

Filter ZBF8-C7250-60-2801

Passband7220~7280MHz, 7400-7550MHz≥75dBc
View Details →
ZBF5-C7250-2500-755 Filter

Filter ZBF5-C7250-2500-755

Passband6000~8500MHz, DC-5000MHz≥60dB, 9000-12000MHz≥60dB, SMA
View Details →
ZBF4-C7.25-0.7G-1822 Filter

Filter ZBF4-C7.25-0.7G-1822

Passband6900~7600MHz, DC-4000MHz≥50dB, 10000-16000MHz≥50dB, Pin
View Details →
ZBF13-C7250-500-3292 Filter

Filter ZBF13-C7250-500-3292

Passband7000~7500MHz, DC-6.0GHz≥70dB, 8.5-17GHz≥70dB, SMA
View Details →
ZBF13-C7250-400-663 Filter

Filter ZBF13-C7250-400-663

Passband7050~7450MHz, DC-6.7GHz≥80dBc, 6.7-6.9GHz≥40dBc, Pin
View Details →
ZBF13-C7250-100-246 Filter

Filter ZBF13-C7250-100-246

Passband7200~7300MHz, DC-6.5GHz≥70dB, 7.1MHz≥40dB, SMA
View Details →
ZBF13-C7.25-2.5G-428 Filter

Filter ZBF13-C7.25-2.5G-428

Passband6~8.5GHz, DC-3.4GHz≥35dBc, 12-17GHz≥35dBc, Pin
View Details →

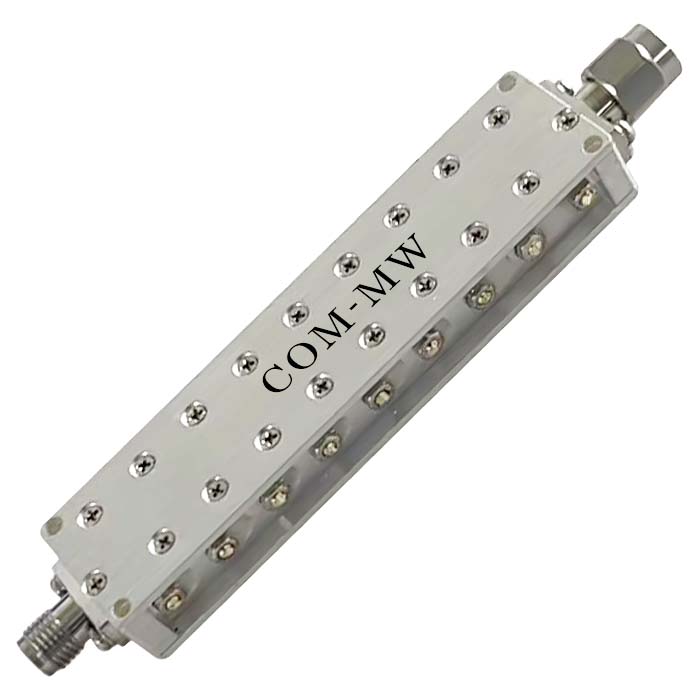

ZBF13-C7.25-1.5G-3489 Filter

Filter ZBF13-C7.25-1.5G-3489

Passband6.5~8GHz, DC-6.1GHz≥75dBc, 6.3GHz≥45dBc, SMA
View Details →
ZBF13-C7.25-0.3G-645 Filter

Filter ZBF13-C7.25-0.3G-645

Passband7.1~7.4GHz, DC-6.7GHz≥70dBc, 6.7-6.9GHz≥40dBc, SMA
View Details →
