RF Filter

Total 28 models
Categories
Categories RF Filter
RF Filter16043
RF Filter15371 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
698 - 702.5 4 704 - 720 6 723 - 795 4 800 - 1000 14
–
Connector
SMD 8 SMA 12 N 2 Microstrip needle 6
Power Handling
0.5 - 1 12 2 - 5 10 10 - 32 4 35 - 251.19 2
–
Maximum loss of side frequency dB
0.4 - 1.2 4 1.5 - 2.5 13 3 - 4 8 7 - 11 3
–
Rejection dB
20 - 27 2 30 - 35 7 40 - 45 12 50 - 55 5 60 - 70 2
–
F Low MHz
400 - 600 14 605 - 670 4 680 - 695 6 697 - 699 4
–
Feature
Bandpass 28
Center frequency MHz
692 1 693 2 700 24 701 1
–
IL on center frequency dB
0.3 - 0.5 3 1 - 2 20 3 - 4 3 5 - 10 2
–
Filter type
LC 23 Cavity&waveguide 5
Center frequency：692 - 701 MHz× Clear all
matches 28 models Default Newest
BF060 Filter

Filter BF060

Passband663~723MHz, DC-420MHz≥40dB, 420-565MHz≥27dB, SMD, Replace SXBP-693+
In Stock View Details →
ZBF15-L700-400-1340 Filter

Filter ZBF15-L700-400-1340

Passband500~900MHz, DC-370MHz≥40dBc, 1000-3000MHz≥40dBc, SMD
In Stock View Details →
ZBF5-L720-0-1303 Filter

Filter ZBF5-L720-0-1303

Center Frequency700MHz, 1dB BW10MHz, 650-670MHz≥40dB, 770-790MHz≥40dB, SMA-K
In Stock View Details →
ZBF5-L700-600-2703 Filter

Filter ZBF5-L700-600-2703

Passband400~1000MHz, DC-200MHz≥40dBc, 1300-3000MHz≥50dBc, Pin
View Details →
ZBF5-L700-400-2644 Filter

Filter ZBF5-L700-400-2644

Passband500~900MHz, DC-200MHz≥30dB, 1.1-4GHz≥30dB, Pin
View Details →
ZBF5-L700-400-2579 Filter

Filter ZBF5-L700-400-2579

Passband500~900MHz, DC-200MHz≥30dB, 1100-4000MHz≥30dB, Pin
View Details →
ZBF5-L700-400-1851 Filter

Filter ZBF5-L700-400-1851

Passband500~900MHz, DC-0.4GHz≥35dB, 1-2GHz≥35dB, SMA-K
View Details →
ZBF5-L700-40-3842 Filter

Filter ZBF5-L700-40-3842

Passband680~720MHz, DC-640MHz≥40dB, 760-2000MHz≥40dB, SMA
View Details →
ZBF5-L700-200-2702 Filter

Filter ZBF5-L700-200-2702

Passband600~800MHz, DC-450MHz≥50dBc, 950-3000MHz≥50dBc, Pin
View Details →
ZBF3-L700-80-1918 Filter

Filter ZBF3-L700-80-1918

Passband660~740MHz, DC-575MHz≥45dB, 825-3000MHz≥45dB, SMD
View Details →

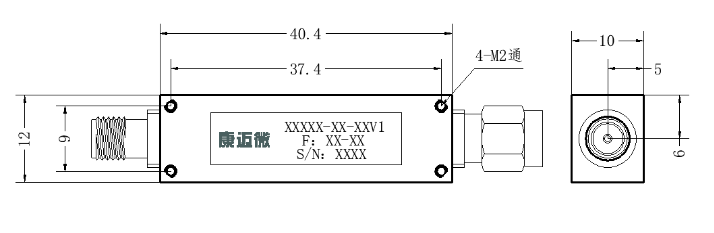

ZBF3-L700-5-3239 Filter

Filter ZBF3-L700-5-3239

Passband697.5~702.5MHz, DC-660MHz≥45dB, 740-2000MHz≥45dB, SMA
View Details →
ZBF3-L700-400-4387 Filter

Filter ZBF3-L700-400-4387

Passband500~900MHz, DC-200MHz≥50dB, 1500-2500MHz≥50dB, SMD
View Details →
ZBF3-L700-40-2043 Filter

Filter ZBF3-L700-40-2043

Passband680~720MHz, DC-620MHz≥45dBc, 780-2000MHz≥45dBc, SMA
View Details →
ZBF3-L700-200-S2010 Filter

Filter ZBF3-L700-200-S2010

Passband600~800MHz, DC-400MHz≥35dB, 900-1200MHz≥35dB, SMD
View Details →
ZBF3-L700-20-2795 Filter

Filter ZBF3-L700-20-2795

Passband690~710MHz, DC-650MHz≥45dB, 750-2000MHz≥45dB, SMA
View Details →
ZBF3-L700-10-3238 Filter

Filter ZBF3-L700-10-3238

Passband695~705MHz, DC-655MHz≥45dB, 745-2000MHz≥45dB, SMA
View Details →

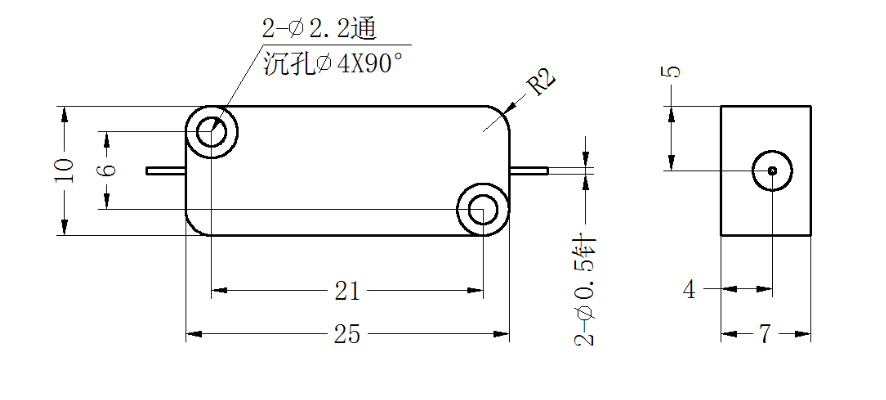

ZBF2-L700-200-2192 Filter

Filter ZBF2-L700-200-2192

Passband600~800MHz, DC-400MHz≥25dBc, 1.2-2GHz≥40dBc, Pin
View Details →
ZBF15-L692.5-300-1299 Filter

Filter ZBF15-L692.5-300-1299

Passband542.5~842.5MHz, DC-510MHz≥30dB, 910-3000MHz≥35dB, SMD
View Details →
ZBF13-L700-200-3500 Filter

Filter ZBF13-L700-200-3500

Passband600~800MHz, DC-500MHz≥45dBc, 900-3500MHz≥45dBc, SMD
View Details →
ZBF13-L700-200-3492 Filter

Filter ZBF13-L700-200-3492

Passband600~800MHz, DC-460MHz≥50dB, 1000-2000MHz≥50dB, SMA
View Details →
ZBF13-L700-190-1386 Filter

Filter ZBF13-L700-190-1386

Passband605~795MHz, DC-520MHz≥55dBc, 520-540MHz≥20dBc, SMD
View Details →
ZBF13-C700-5-1726 Filter

Filter ZBF13-C700-5-1726

Passband697.5~702.5MHz, DC-690MHz≥30dB, 710-3000MHz≥30dB, SMA
View Details →
ZBF13-C700-200-3512 Filter

Filter ZBF13-C700-200-3512

Passband600~800MHz, DC-400MHz≥40dB, 950-1600MHz≥40dB, N
View Details →
ZBF13-C700-2-1728 Filter

Filter ZBF13-C700-2-1728

Passband699~701MHz, DC-695MHz≥30dB, 705-3000MHz≥30dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
