Center frequency：6200 - 6250 MHz× Clear all
matches 18 models Default Newest
CA0069 SMD Filter

SMD Filter CA0069

Bandwidth6.1-6.3, Rejection35@DC-5.3GHz, 35@7.1-16.0GHz
In Stock View Details →
STBP6R2-0R7-M582 Thin film filter

Thin film filter STBP6R2-0R7-M582

Bandwidth5.8-6.5GHz, Rejection40@DC-5.0GHz, 30@7.3-13.0GHz
In Stock View Details →
STBP6R2-2R4-K252 Thin film filter

Thin film filter STBP6R2-2R4-K252

Bandwidth5.0-7.4GHz, Rejection40@DC-3.5GHz, 40@9.1-14.0GHz
In Stock View Details →
CC0069 Filter

Filter CC0069

Bandwidth6.0-6.4GHz, Rejection35@DC-5.3GHz, 35@7.2-15.0GHz
In Stock View Details →

Filter ZBF8-W6.2-1G-2069

Passband5.7~6.7GHz, 3.5-4.9GHz≥65dBc, Waveguide,
View Details →
ZBF5-C6250-550-1804 Filter

Filter ZBF5-C6250-550-1804

Passband5975~6525MHz, DC-5GHz≥50dBc, 5-5.5GHz≥40dBc, Pin
View Details →
ZBF5-C6250-1100-124 Filter

Filter ZBF5-C6250-1100-124

Passband5700~6800MHz, DC-430080dB, 8200-1500080dB, SMA
View Details →
ZBF5-C6250-0-1336 Filter

Filter ZBF5-C6250-0-1336

Center Frequency6250MHz, DC-12.5GHz≥60dB, 18.75-20GHz≥80dB, SMA
View Details →
ZBF4-C6230-300-346 Filter

Filter ZBF4-C6230-300-346

Passband6080~6380MHz, 5640-5930MHz≥40dB, 6530-6820MHz≥40dB, SMA
View Details →
ZBF4-C6.25-0.8G-861 Filter

Filter ZBF4-C6.25-0.8G-861

Passband5.85~6.65GHz, DC-4.9GHz≥75dB, 7.5-13GHz≥75dB, SMA
View Details →
ZBF4-C6.24-0.12G-555 Filter

Filter ZBF4-C6.24-0.12G-555

Passband6.18~6.3GHz, DC-5.92GHz≥85dB, 6.56-10GHz≥85dB, SMA
View Details →

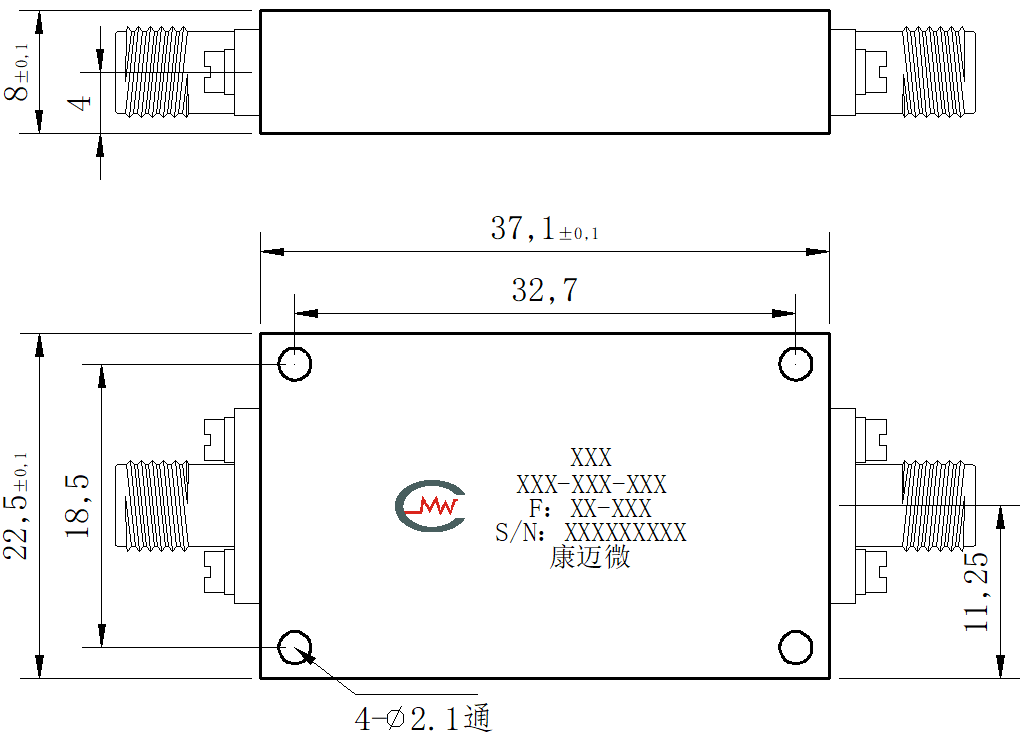

ZBF4-C6.23-1G-1438 Filter

Filter ZBF4-C6.23-1G-1438

Passband5.725~6.725GHz, 5.225GHz≥20dB, 7.225GHz≥20dB, SMA
View Details →

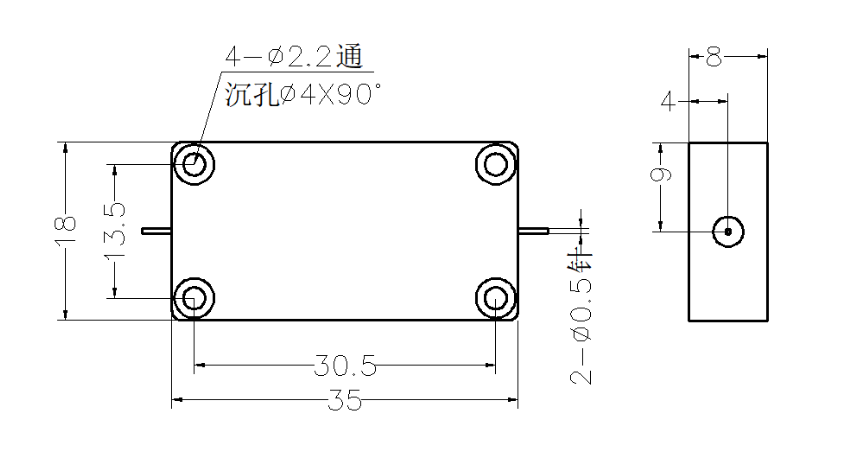

ZBF2-M6200-5900-2273 Filter

Filter ZBF2-M6200-5900-2273

Passband3.25~9.15GHz, 10.8-20GHz≥50dBc, dB, Pin
View Details →
ZBF2-C6.25-1.7-2088 Filter

Filter ZBF2-C6.25-1.7-2088

Passband5400~7100MHz, DC-4.8GHz≥60dBc, 7.6-15GHz≥60dBc, Pin
View Details →
ZBF15-C6200-610-201 Filter

Filter ZBF15-C6200-610-201

Passband5895~6505MHz, DC-5450MHz≥65dBc, 6600MHz≥18dBc, 6650-7000MHz≥30dBc, 7-13GHz≥80dBc, Pin
View Details →
ZBF13-C6250-600-2251 Filter

Filter ZBF13-C6250-600-2251

Passband6550~7150MHz, DC-6.15GHz≥60dBc, 8.05-15GHz≥70dBc, Pin
View Details →
ZBF13-C6230-1540-2834 Filter

Filter ZBF13-C6230-1540-2834

Passband5.46~7GHz, DC-4GHz≥60dBc, 8.5-10.5GHz≥80dBc, Pin
View Details →
ZBF13-C6200-185-1422 Filter

Filter ZBF13-C6200-185-1422

Passband6107.5~6292.5MHz, DC-6.01GHz≥40dB, 6.39-13GHz≥40dB, Pin
View Details →
