Filters
Filters 1
F High MHz
5699.4 - 5750 4 5800 - 6000 8 6010 - 6300 3 6500 - 6600 2
–
Connector
SMD 4 SMA 7 Microstrip pad 3 Microstrip needle 3
Power Handling
1 - 2 3 3.16 - 5 6 10 - 20 7 100 1
–
Maximum loss of side frequency dB
1 - 2 7 2.5 - 3.3 4 3.4 - 4.5 4 5.2 - 5.5 2
–
Rejection dB
35 - 40 7 45 - 50 6 60 - 80 3 90 1
–
F Low MHz
4800 - 5100 3 5200 - 5400 4 5500 - 5650 7 5696.4 - 5700 3
–
Feature
Bandpass 17
Center frequency MHz
5697.9 1 5700 16
–
IL on center frequency dB
0.5 - 1.5 8 2 - 2.4 4 3 - 4 3 4.5 - 5.2 2
–
Filter type
LC 1 Cavity&waveguide 7 stripline 4 Coaxial 2 Thin film 2 MEMS 1
Center frequency：5697.9 - 5700 MHz× Clear all
matches 17 models Default Newest
CA0067 SMD Filter

SMD Filter CA0067

Bandwidth5.5-5.9GHz, Rejection35@DC-4.8GHz, 35@6.8-16.0GHz
In Stock View Details →
STBP5R7-1R6-K977 Thin film filter

Thin film filter STBP5R7-1R6-K977

Bandwidth4.9-6.5GHz, Rejection40@DC-4.2GHz, 40@7.0-13.5GHz
In Stock View Details →
STBP5R7-1R8-K509 Thin film filter

Thin film filter STBP5R7-1R8-K509

Bandwidth4.8-6.6GHz, Rejection40@DC-3.7GHz, 40@8.2-13.0GHz
In Stock View Details →
WLMX054060K Filter

Filter WLMX054060K

Passband5400~6000MHz, 4.85&6.6GHz≥30dB, 4.7&6.8GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
CC0067 Filter

Filter CC0067

Bandwidth5.5-5.9GHz, Rejection35@DC-4.9GHz, 35@6.8-14.4GHz
In Stock View Details →
CC0054 Filter

Filter CC0054

Center Frequency5.7GHz, Rejection32@DC-5.3GHz, Rejection35@6.2-15.0GHz
In Stock View Details →
ZBF5-C5700-200-2081 Filter

Filter ZBF5-C5700-200-2081

Passband5600~5800MHz, DC-5GHz≥45dBc, 6.2-11GHz≥45dBc, Pin
View Details →
ZBF4-C5.7-0.2G-1470 Filter

Filter ZBF4-C5.7-0.2G-1470

Passband5.6~5.8GHz, DC-5.4GHz≥40dB, 6-13GHz≥50dB, SMA-KDetachable
View Details →

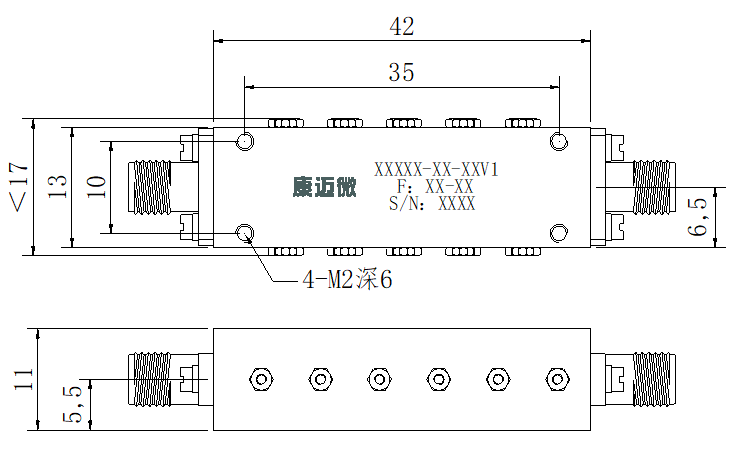

ZBF4-C5.7-0.1G-297 Filter

Filter ZBF4-C5.7-0.1G-297

Passband5650~5750MHz, DC-4600MHz≥80dBc, 6800-10000MHz≥80dBc, SMA
View Details →

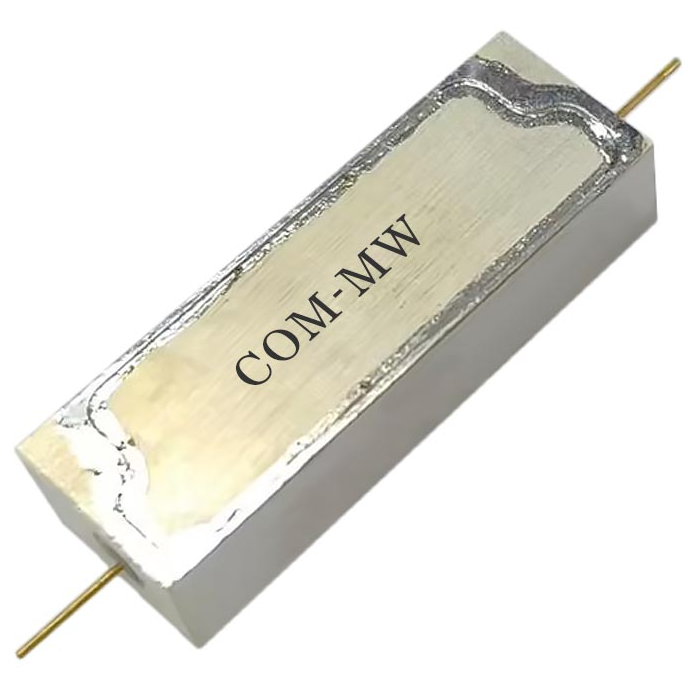

ZBF3-L5700-600-3382 Filter

Filter ZBF3-L5700-600-3382

Passband5400~6000MHz, DC-4500MHz≥45dB, 6900-8500MHz≥45dB, Pin
View Details →

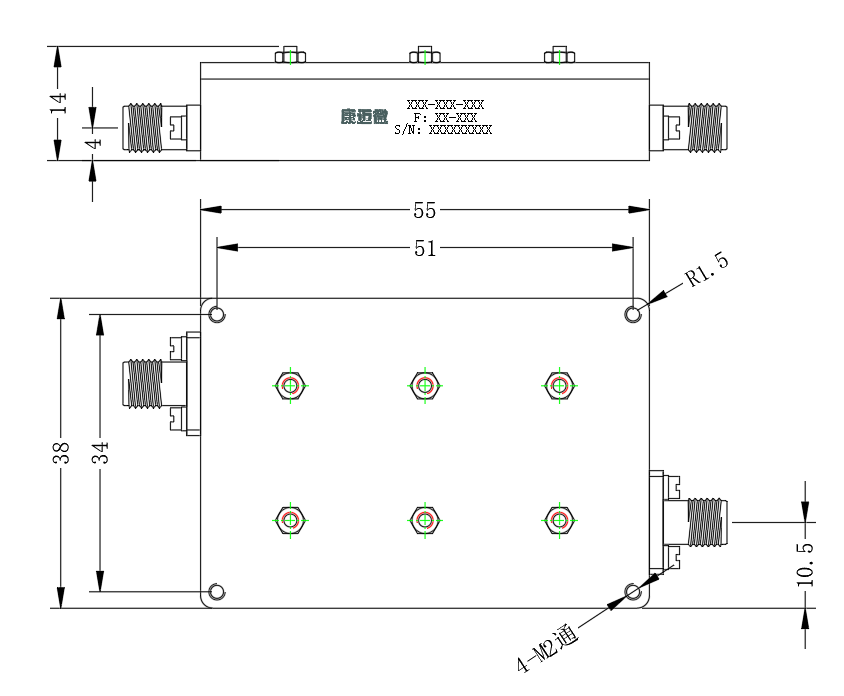

ZBF16-C5697.9-3-2090 Filter

Filter ZBF16-C5697.9-3-2090

Passband5696.4~5699.4MHz, 5697.9±255MHz≥90dBc, DC~5152MHz≥70dBc, SMA
View Details →
ZBF13-C5700-200-3393 Filter

Filter ZBF13-C5700-200-3393

Passband5600~5800MHz, DC-5.3GHz≥60dB, 5.4GHz≥40dB, SMA
View Details →
ZBF13-C5700-200-3392 Filter

Filter ZBF13-C5700-200-3392

Passband5600~5800MHz, DC-5.3GHz≥60dB, 5.4GHz≥40dB, SMA
View Details →
ZBF13-C5.7-1G-920 Filter

Filter ZBF13-C5.7-1G-920

Passband5.2~6.2GHz, DC-4.9GHz≥15dBc, 7.2GHz≥40dBc, Pin
View Details →

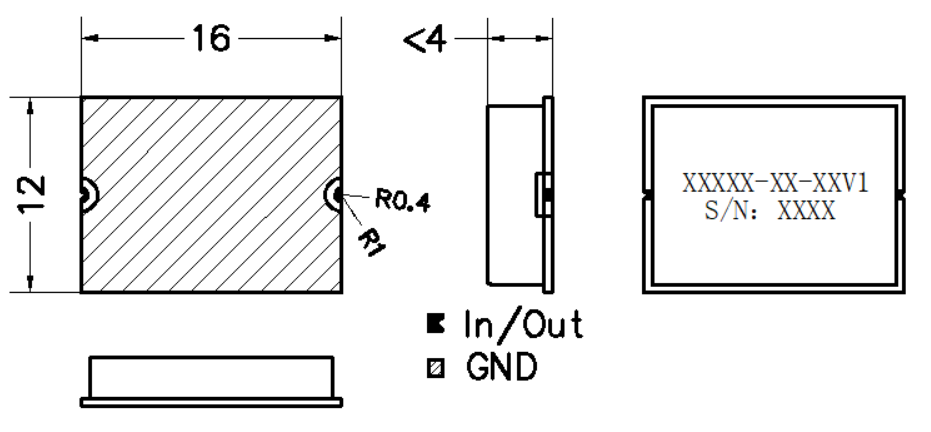

ZBF1-M5.7-0.62G-437 Filter

Filter ZBF1-M5.7-0.62G-437

Passband5.39~6.01GHz, 4.81GHz≥40dB, 6.59GHz≥40dB, SMD
View Details →
CA0251 SMD Filter

SMD Filter CA0251

Bandwidth5.1-6.3GHz, Rejection40@DC-4.2GHz, 30@7.05-14.5GHz
View Details →
CA0054 SMD Filter

SMD Filter CA0054

Center Frequency5.7GHz, Rejection30@DC-5.3GHz, 35@6.2-15.0GHz
View Details →
