RF Filter

Total 60 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
5500 - 5560 7 5600 - 5770 12 5800 - 5900 12 6000 - 6250 25 6500 - 11000 4
–
Connector
SMD 1 SMA 30 N 1 Microstrip pad 4 Microstrip needle 23 SMP 1
Power Handling
0.32 - 2 8 5 - 15 39 20 - 50 11 100 - 150 2
–
Maximum loss of side frequency dB
0.5 - 0.8 8 1 - 1.5 12 1.7 - 2.5 24 3 - 3.5 11 4 5
–
Rejection dB
25 - 35 8 40 - 50 15 55 - 65 20 70 - 80 16 90 1
–
F Low MHz
3000 - 4900 7 4950 - 5150 30 5170 - 5250 8 5300 - 5450 11 5460 - 11000 4
–
Feature
Bandpass 60
Center frequency MHz
5475 4 5480 1 5490 1 5500 54
–
IL on center frequency dB
0.3 - 0.4 5 0.5 - 1 36 1.2 - 1.5 2 2 - 2.3 11 2.4 - 3 5
–
Filter type
Cavity&waveguide 54 stripline 2 Thin film 3 MMIC 1
Center frequency：5475 - 5500 MHz× Clear all
matches 60 models Default Newest
CA0079 SMD Filter

SMD Filter CA0079

Bandwidth5.0-5.9GHz, Rejection40@DC-3.7GHz, 35@7.4-14.0GHz
In Stock View Details →
STBP5R5-1R0-K602 Thin film filter

Thin film filter STBP5R5-1R0-K602

Bandwidth5.0-6.0GHz, Rejection40@DC-4.1GHz, 40@7.1-13.0GHz
In Stock View Details →
WLD051058K Filter

Filter WLD051058K

Passband5150~5850MHz, 4400MHz≥40dBc, 6600MHz≥35dBc, Microstrip pad, MMIC
In Stock View Details →
STBP5R5-1R0-K819 Thin film filter

Thin film filter STBP5R5-1R0-K819

Bandwidth5.0-6.0GHz, Rejection45@DC-4.2GHz, 40@6.9-13.0GHz
In Stock View Details →
STBP5R5-0R9-M645 Thin film filter

Thin film filter STBP5R5-0R9-M645

Bandwidth5.0-5.9GHz, Rejection40@DC-4.2GHz, 35@6.8-12.0GHz
In Stock View Details →
ZBF16-C5.5-1G-336 Filter

Filter ZBF16-C5.5-1G-336

Passband5~6GHz, DC~4.5GHz≥44dBc, 6.5~16GHz≥48dBc, SMA-KDetachable
In Stock View Details →
ZBF6-C5500-700-4295 Filter

Filter ZBF6-C5500-700-4295

Passband5150~5850MHz, DC-4500MHz≥60dB, 6500-16000MHz≥60dB, SMA
In Stock View Details →
ZBF25-C5475-50-893 Filter

Filter ZBF25-C5475-50-893

Passband5450~5500MHz, DC-5440MHz≥30dB, 5510-10000MHz≥30dB, SMA
In Stock View Details →
ZBF25-C5475-50-839 Filter

Filter ZBF25-C5475-50-839

Passband5450~5500MHz, DC-5440MHz≥20dB, 5510-10000MHz≥20dB, SMA
In Stock View Details →
ZBF25-C5475-50-597 Filter

Filter ZBF25-C5475-50-597

Passband5450~5500MHz, DC-5440MHz≥30dB, 5510-10000MHz≥30dB, SMA
In Stock View Details →
ZBF-BC5500-40-1614 Filter

Filter ZBF-BC5500-40-1614

Passband5480~5520MHz, 5500±80MHz≥40dB, 5500±180MHz≥70dB, SMA
In Stock View Details →
ZBF6-C5500-1000-3590 Filter

Filter ZBF6-C5500-1000-3590

Passband5000~6000MHz, DC-4800MHz≥50dB, 6200-8500MHz≥50dB, SMA
View Details →
ZBF6-C5500-1000-1869 Filter

Filter ZBF6-C5500-1000-1869

Passband5000~6000MHz, 10000-12000MHz≥60dB, DC-2000MHz≥40dB, SMA
View Details →
ZBF5-C5500-80-1570 Filter

Filter ZBF5-C5500-80-1570

Passband5460~5540MHz, DC-5300MHz≥80dBc, 5700-5900MHz≥80dBc, SMA
View Details →
ZBF5-C5500-660-682 Filter

Filter ZBF5-C5500-660-682

Passband5170~5830MHz, DC-3400MHz≥40dBc, 9000-12000MHz≥40dBc, SMA
View Details →
ZBF5-C5500-600-1568 Filter

Filter ZBF5-C5500-600-1568

Passband5200~5800MHz, DC-5000MHz≥80dBc, 7500-15000MHz≥80dBc, SMA
View Details →

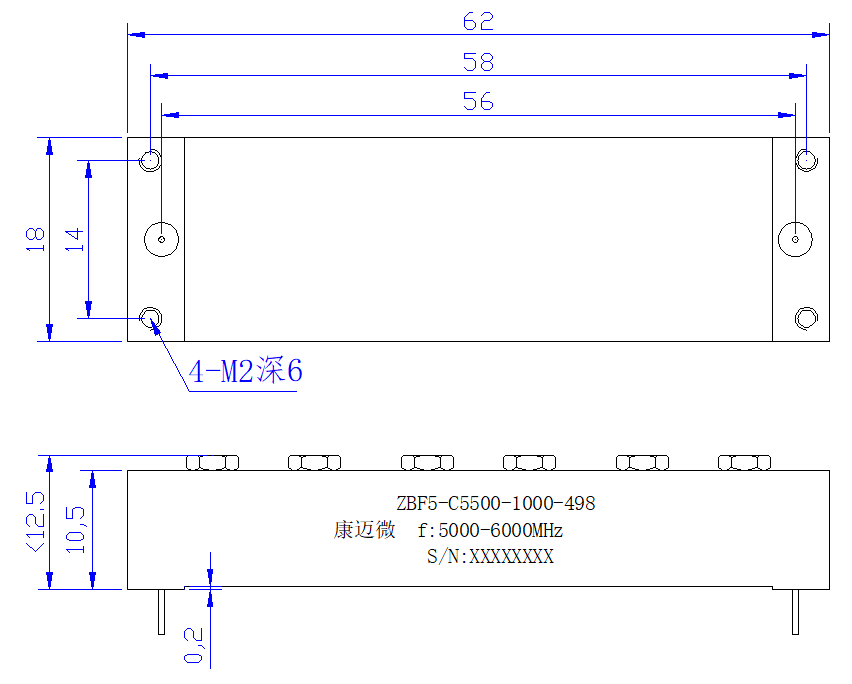

ZBF5-C5500-1000-498 Filter

Filter ZBF5-C5500-1000-498

Passband5000~6000MHz, 6100-8000MHz≥40dBc, Pin
View Details →

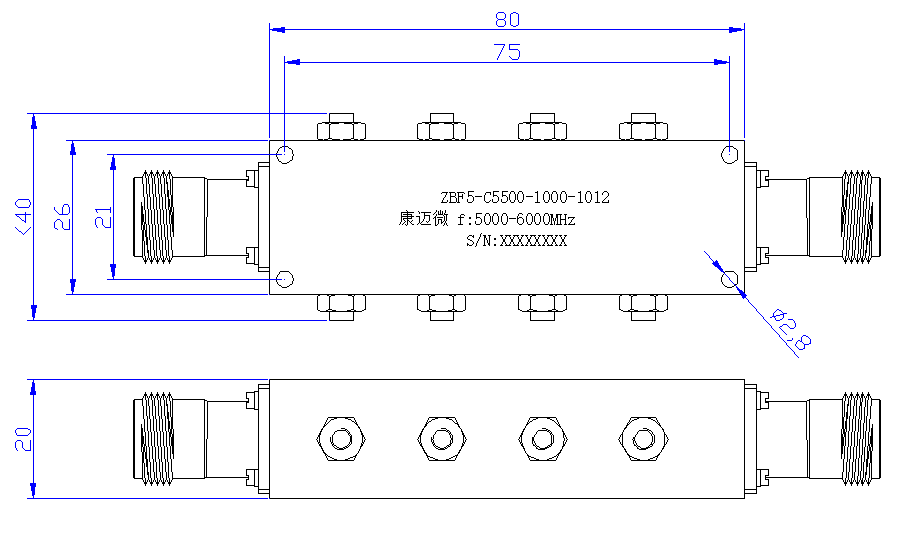

ZBF5-C5500-1000-1012 Filter

Filter ZBF5-C5500-1000-1012

Passband5000~6000MHz, 10-12GHz≥60dB, N
View Details →
ZBF5-C5475-1050-2361 Filter

Filter ZBF5-C5475-1050-2361

Passband4950~6000MHz, DC-4.5GHz≥45dBc, 6.1-12GHz≥45dBc, SMA
View Details →

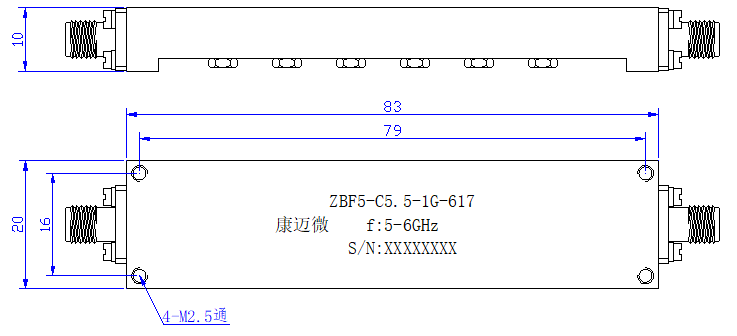

ZBF5-C5.5-1G-617 Filter

Filter ZBF5-C5.5-1G-617

Passband5~6GHz, DC-4.9GHz≥40dBc, 6.1-10GHz≥40dBc, SMA
View Details →
ZBF5-C5.5-1.2G-3893 Filter

Filter ZBF5-C5.5-1.2G-3893

Passband4.9~6.1GHz, 10-11GHz≥80dBc, 11-16GHz≥70dBc, SMA
View Details →
ZBF5-C5.5-0.4G-3894 Filter

Filter ZBF5-C5.5-0.4G-3894

Passband5.3~5.7GHz, 9-16GHz≥70dBc, SMA
View Details →

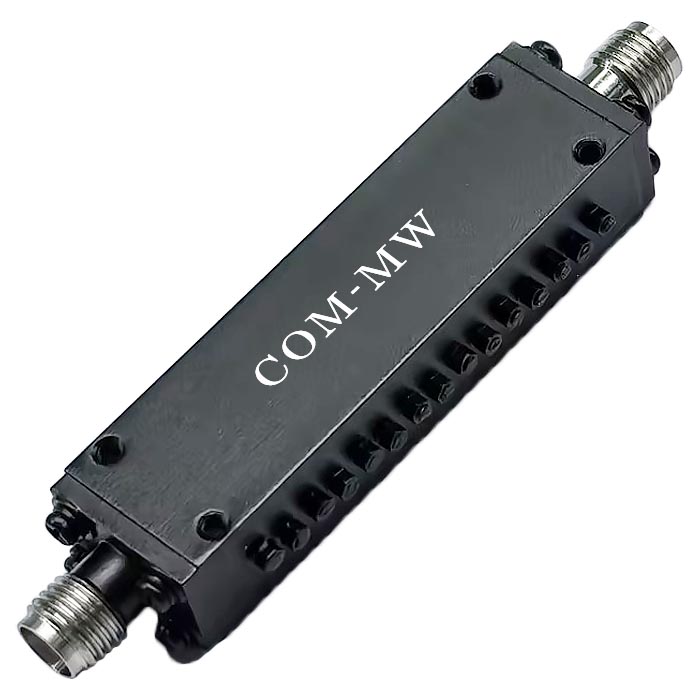

ZBF5-C5.49-1.06G-3871 Filter

Filter ZBF5-C5.49-1.06G-3871

Passband4.96~6.02GHz, DC-4.6GHz≥27dB, 6.2-6.3GHz≥23dB, SMA
View Details →

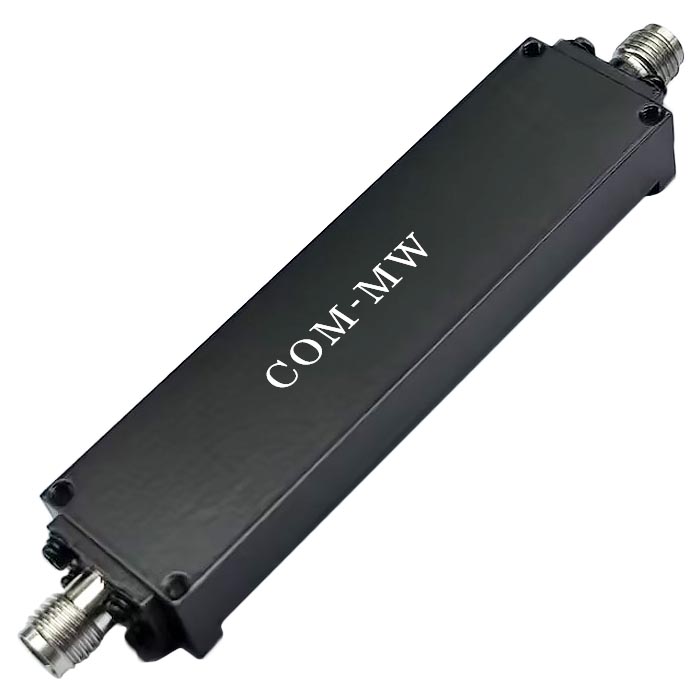

ZBF5-C5.48-1.04G-3870 Filter

Filter ZBF5-C5.48-1.04G-3870

Passband4.96~6GHz, 6.1(点频)GHz≥60dB, 6.2-14GHz≥60dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
