RF Filter

Total 18 models
Categories
Categories RF Filter
RF Filter16048
RF Filter15376 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
5400 - 5410 3 5455 - 5650 3 5700 - 5900 6 5950 - 6050 4 6400 - 8000 2
–
Connector
SMA 8 Microstrip pad 2 Microstrip needle 8
Power Handling
1 3 2 3 5 3 10 6 20 3
–
Maximum loss of side frequency dB
0.6 - 1.5 5 2 - 2.5 7 3 - 6 6
–
Rejection dB
25 - 30 3 40 - 50 8 55 - 60 4 65 - 70 3
–
F Low MHz
4300 - 4800 4 4850 - 5100 6 5150 - 5345 4 5390 - 5400 4
–
Feature
Bandpass 17 Notch 1
Center frequency MHz
5399 1 5400 17
–
IL on center frequency dB
0.3 1 1 10 2 5 6 1
–
Filter type
LC 1 Cavity&waveguide 14 stripline 1 Thin film 2
Center frequency：5399 - 5400 MHz× Clear all
matches 18 models Default Newest
ZBF16-C5.4-1.2G-335 Filter

Filter ZBF16-C5.4-1.2G-335

Passband4.8~6GHz, DC~4GHz≥50dBc, 6.8~14GHz≥60dBc, SMA-KDetachable
In Stock View Details →
STBP5R4-2R1-M631 Thin film filter

Thin film filter STBP5R4-2R1-M631

Bandwidth4.3-6.4GHz, Rejection40@DC-3.4GHz, 35@7.6-13.0GHz
In Stock View Details →
STBP5R4-0R0-K274 Thin film filter

Thin film filter STBP5R4-0R0-K274

Center Frequency5.4GHz, Rejection35@DC-4.9GHz, 40@6.0-13.0GHz
In Stock View Details →
ZHPF2-C5.4-8G-01 Filter

Filter ZHPF2-C5.4-8G-01

Passband5.4~8GHz, DC-5GHz≥50dB, 8.4GHz≥40dB, SMA
View Details →
ZBSF6-C5150-5850-329 Filter

Filter ZBSF6-C5150-5850-329

Stopband F5150~5850MHz, ≥50dB, PassbandDC~4900MHz, 6100~18000MHz, SMA
View Details →
ZBF6-C5399-15-6165 Filter

Filter ZBF6-C5399-15-6165

Passband5391.5~5406.5MHz, DC-5369.5MHz≥25dB, 5428.5-10000MHz≥25dB, SMA
View Details →
ZBF5-C5400-1200-2962 Filter

Filter ZBF5-C5400-1200-2962

Passband4800~6000MHz, DC-4GHz≥40dB, 6.6-10GHz≥40dB, SMA
View Details →
ZBF5-C5400-1100-504 Filter

Filter ZBF5-C5400-1100-504

Passband4850~5950MHz, DC-3900MHz≥70dBc, 6900-16000MHz≥70dBc, SMA
View Details →
ZBF5-C5400-1000-2356 Filter

Filter ZBF5-C5400-1000-2356

Passband4900~5900MHz, 6000-9000MHz≥40dBc, SMA
View Details →
ZBF5-C5400-1000-2103 Filter

Filter ZBF5-C5400-1000-2103

Passband4900~5900MHz, 6000MHz≥30dBc, Pin
View Details →
ZBF5-C5.4-1G-3712 Filter

Filter ZBF5-C5.4-1G-3712

Passband4.9~5.9GHz, DC-4.6GHz≥40dB, 6.2-12GHz≥40dB, SMA
View Details →
ZBF3-L5400-1300-1017 Filter

Filter ZBF3-L5400-1300-1017

Passband4750~6050MHz, DC-4400MHz≥30dB, 6600-11000MHz≥30dB, Pin
View Details →
ZBF3-C5400-500-2450 Filter

Filter ZBF3-C5400-500-2450

Passband5150~5650MHz, DC-4200MHz≥50dBc, 4800MHz≥40dBc, Pin
View Details →

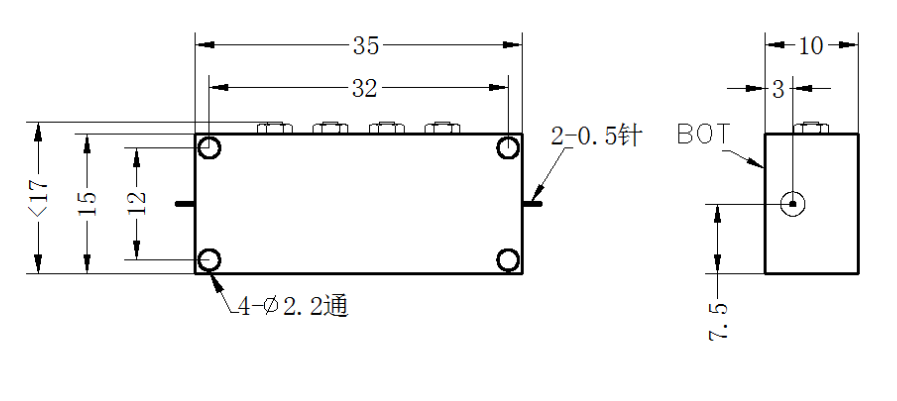

ZBF2-C5400-20-1617 Filter

Filter ZBF2-C5400-20-1617

Passband5390~5410MHz, F0±345MHz≥60dBc, dB, Pin
View Details →

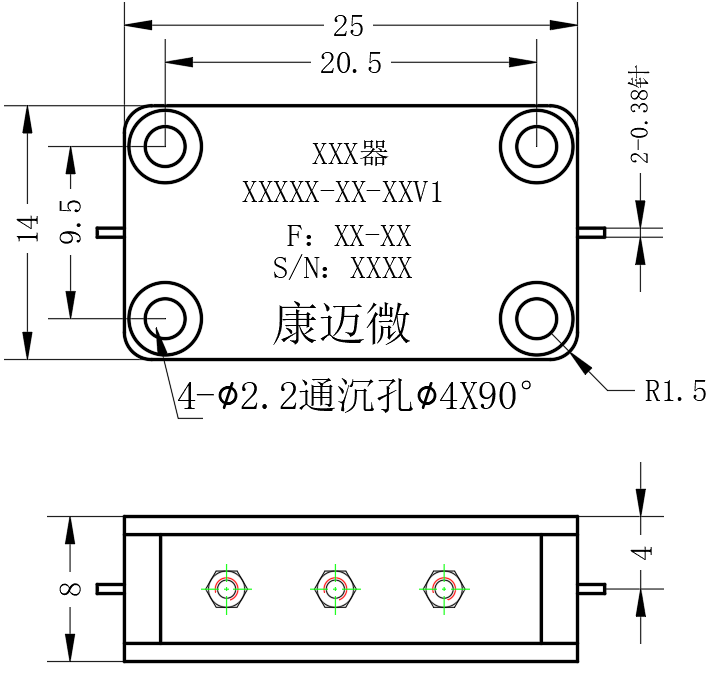

ZBF15-C5400-600-1258 Filter

Filter ZBF15-C5400-600-1258

Passband5100~5700MHz, DC-2.7GHz≥65dBc, 7.8GHz≥65dBc, Pin
View Details →
ZBF13-C5400-240-1613 Filter

Filter ZBF13-C5400-240-1613

Passband5280~5520MHz, DC-4.34GHz≥70dBc, 5.7-8GHz≥50dBc, Pin
View Details →
ZBF13-C5400-110-2116 Filter

Filter ZBF13-C5400-110-2116

Passband5345~5455MHz, DC-5.15GHz≥65dBc, 5.65-11GHz≥65dBc, Pin
View Details →
ZBF13-C5-0.2G-686 Filter

Filter ZBF13-C5-0.2G-686

Passband4.9~5.9GHz, DC-4.5GHz≥50dBc, 6.3-12GHz≥50dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
