Center frequency：4420 - 4450 MHz× Clear all
matches 18 models Default Newest
SM0040 MEMS Filter

MEMS Filter SM0040

Bandwidth4.25-4.65GHz, Rejection40@DC-3.8GHz, 40@5.1-12.5GHz,
In Stock View Details →
CA0227-2425 SMD Filter

SMD Filter CA0227-2425

Bandwidth4.2-4.7GHz, Rejection40@DC-3.6GHz, 40@5.3-13.0GHz
In Stock View Details →
CA0226-2410 SMD Filter

SMD Filter CA0226-2410

Bandwidth4.4-4.5GHz, Rejection34@DC-4.0GHz, 34@5.0-12.5GHz
In Stock View Details →
CA0112 SMD Filter

SMD Filter CA0112

Bandwidth3.6-5.3GHz, Rejection40@DC-2.2GHz, 40@7.0-13.0GHz
In Stock View Details →
CA0077 SMD Filter

SMD Filter CA0077

Bandwidth4.0-4.9GHz, Rejection40@DC-3.1GHz, 35@6.4-11.0GHz
In Stock View Details →

Thin film filter STBP4R5-0R1-M635

Bandwidth4.4-4.5GHz, Rejection35@DC-3.9GHz, 40@5.0-11.5GHz
In Stock View Details →
WLD027062K Filter

Filter WLD027062K

Passband2700~6200MHz, 2200MHz≥23dBc, 7200MHz≥28dBc, Microstrip pad, MMIC
In Stock View Details →
SM0009 MEMS Filter

MEMS Filter SM0009

Bandwidth4.25-4.65GHz, Rejection40@DC-3.75GHz, 40@5.15-12.0GHz,
In Stock View Details →
CC0077 Filter

Filter CC0077

Bandwidth4.0-4.9GHz, Rejection40@DC-3.1GHz, 35@6.3-11.2GHz
In Stock View Details →
ZBSF6-C4390-4510-336 Filter

Filter ZBSF6-C4390-4510-336

Stopband F4390~4510MHz, ≥50dB, PassbandDC~4370MHz, 4530~6000MHz, SMA
In Stock View Details →
ZBF8-C4440-80-2869 Filter

Filter ZBF8-C4440-80-2869

Passband4400~4480MHz, DC-4080MHz≥65dBc, 4800-13000MHz≥65dBc, SMA
In Stock View Details →

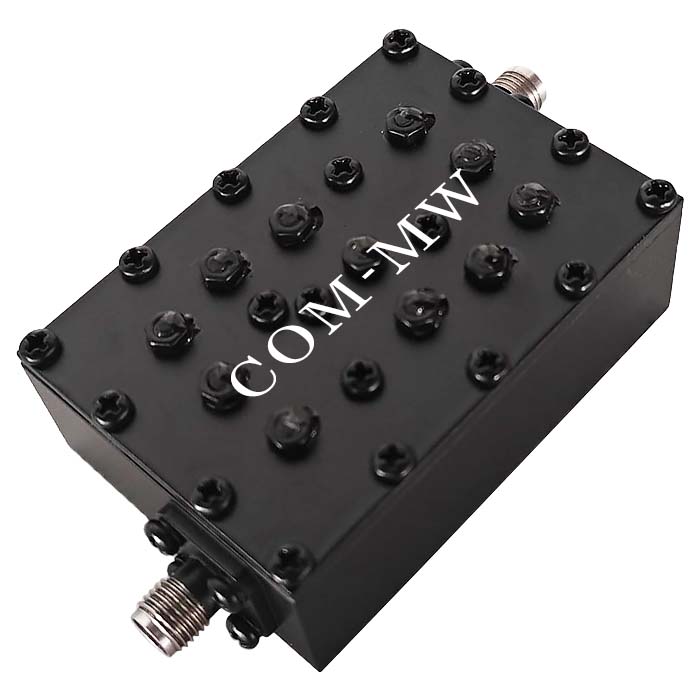

ZBF6-C4450-100-5768 Filter

Filter ZBF6-C4450-100-5768

Passband4400~4500MHz, DC-4350MHz≥40dB, 4550-10000MHz≥40dB, SMA
View Details →
ZBF4-C4.44-0.24G-676 Filter

Filter ZBF4-C4.44-0.24G-676

Passband4320~4560MHz, DC-4080MHz≥35dBc, 5040-8000MHz≥85dBc, Pin
View Details →
ZBF3-L4425-850-1016 Filter

Filter ZBF3-L4425-850-1016

Passband4000~4850MHz, DC-3600MHz≥30dB, 5400-10000MHz≥30dB, Pin
View Details →
ZBF3-C4425-50-2347 Filter

Filter ZBF3-C4425-50-2347

Passband4400~4450MHz, DC-4100MHz≥50dB, 4700-10000MHz≥50dB, Pin
View Details →
ZBF13-C4450-100-2640 Filter

Filter ZBF13-C4450-100-2640

Passband4400~4500MHz, DC-4.3GHz≥70dBc, 4.6-10GHz≥70dBc, Pin
View Details →
ZBF13-C4420-100-1814 Filter

Filter ZBF13-C4420-100-1814

Passband4370~4470MHz, DC-4.17GHz≥65dBc, 4.2GHz≥75dBc, Pin
View Details →
ZBF13-C4.44-0.2G-250 Filter

Filter ZBF13-C4.44-0.2G-250

Passband4340~4540MHz, DC-4.0GHz≥60dBc, 4.14GHz≥45dBc, Pin
View Details →
