Filters
Filters 1
F High MHz
36 - 39.6 5 39.8 - 40.92 8 41 - 45 8 46 - 72 9 85 - 44500 4
–
Connector
SMD 20 SMA 9 N 1 2.92 1 Microstrip needle 2 SMP 1
Power Handling
0.5 3 1 16 2 11 5 4
–
Maximum loss of side frequency dB
0.7 - 1.3 6 1.5 - 3 16 3.3 - 6 6 7 - 8.5 6
–
Rejection dB
12 - 25 10 26 - 40 9 45 - 52 4 55 - 70 10 100 1
–
F Low MHz
1.5 - 24 7 25 - 35.2 13 35.5 - 39 5 39.4 - 41.5 6 35000 - 40000 3
–
Feature
Bandpass 34
Center frequency MHz
30.69 - 33.6 4 33.7 - 36.6 8 37.5 - 40.5 14 41 - 42 4 42.5 - 43.25 4
–
IL on center frequency dB
0.5 - 1 18 2 - 2.3 5 3 - 5 7 6 - 7 3 8 1
–
Filter type
LC 31 Cavity&waveguide 3
Center frequency：30.69 - 43.25 MHz× Clear all
matches 34 models Default Newest
BF033 Filter

Filter BF033

Passband30~40MHz, DC-19MHz≥30dB, 65-1350MHz≥30dB, SMD, Replace SXBP-35N+
In Stock View Details →
BF034 Filter

Filter BF034

Passband24~46MHz, 16MHz≥20dB, 73MHz≥20dB, SMD, Replace SXBP-35W+
In Stock View Details →
ZBF3-L43.25-83.5-3374 Filter

Filter ZBF3-L43.25-83.5-3374

Passband1.5~85MHz, DC-1.1MHz≥20dB, 100-500MHz≥15dB, SMD
In Stock View Details →
ZBF15-L42.5-2-1702 Filter

Filter ZBF15-L42.5-2-1702

Passband41.5~43.5MHz, DC-17.43MHz≥25dBc, 57.43-85.57MHz≥25dBc, SMD
In Stock View Details →
ZBF6-L40-20-3752 Filter

Filter ZBF6-L40-20-3752

Passband30~50MHz, DC-15MHz≥40dB, 65-300MHz≥40dB, SMA
View Details →
ZBF5-L40-20-1844 Filter

Filter ZBF5-L40-20-1844

Passband30~50MHz, DC-25MHz≥50dB, 60-200MHz≥50dB, SMA-K
View Details →
ZBF5-L31.5-17-1843 Filter

Filter ZBF5-L31.5-17-1843

Passband23~40MHz, DC-18MHz≥50dB, 46-200MHz≥50dB, SMA-K
View Details →
ZBF3-L42-2-3080 Filter

Filter ZBF3-L42-2-3080

Passband41~43MHz, DC-36.75MHz≥25dB, 48-100MHz≥25dB, SMD
View Details →
ZBF3-L41.5-33-2981 Filter

Filter ZBF3-L41.5-33-2981

Passband25~58MHz, DC-13MHz≥60dB, 75-100MHz≥60dB, SMD
View Details →
ZBF3-L40-64-2977 Filter

Filter ZBF3-L40-64-2977

Passband8~72MHz, DC-4MHz≥60dB, 95-120MHz≥60dB, SMD
View Details →
ZBF3-L40-1.2-2976 Filter

Filter ZBF3-L40-1.2-2976

Passband39.4~40.6MHz, DC-35MHz≥60dB, 45-400MHz≥60dB, SMD
View Details →
ZBF3-L40-1-2053 Filter

Filter ZBF3-L40-1-2053

Passband39.5~40.5MHz, DC-35MHz≥40dB, 45-50040dB, SMA
View Details →
ZBF3-L39-1.6-3290 Filter

Filter ZBF3-L39-1.6-3290

Passband38.2~39.8MHz, DC-36.8MHz≥25dB, 45-100MHz≥25dB, SMD
View Details →
ZBF3-L36-2-3079 Filter

Filter ZBF3-L36-2-3079

Passband35~37MHz, DC-30MHz≥25dB, 41-100MHz≥25dB, SMD
View Details →
ZBF3-L36-1.6-3289 Filter

Filter ZBF3-L36-1.6-3289

Passband35.2~36.8MHz, DC-30MHz≥25dB, 38.2-100MHz≥25dB, SMD
View Details →
ZBF3-L36-1-1742 Filter

Filter ZBF3-L36-1-1742

Passband35.5~36.5MHz, DC-26MHz≥30dB, 46-500MHz≥30dB, SMD
View Details →
ZBF3-L36-0-3530 Filter

Filter ZBF3-L36-0-3530

Passband36MHz, 30MHz≥90dB, 45MHz≥90dB, SMA
View Details →
ZBF3-L30.69-20.46-693 Filter

Filter ZBF3-L30.69-20.46-693

Passband20.46~40.92MHz, DC-10.6925dB, 50.69-500MHz≥25dB, SMA
View Details →
ZBF3-C41.25-2.5G-3683 Filter

Filter ZBF3-C41.25-2.5G-3683

Passband40~42.5GHz, DC-3.45GHz≥50dB, 44.4-46.9GHz≥60dB, Pin
View Details →

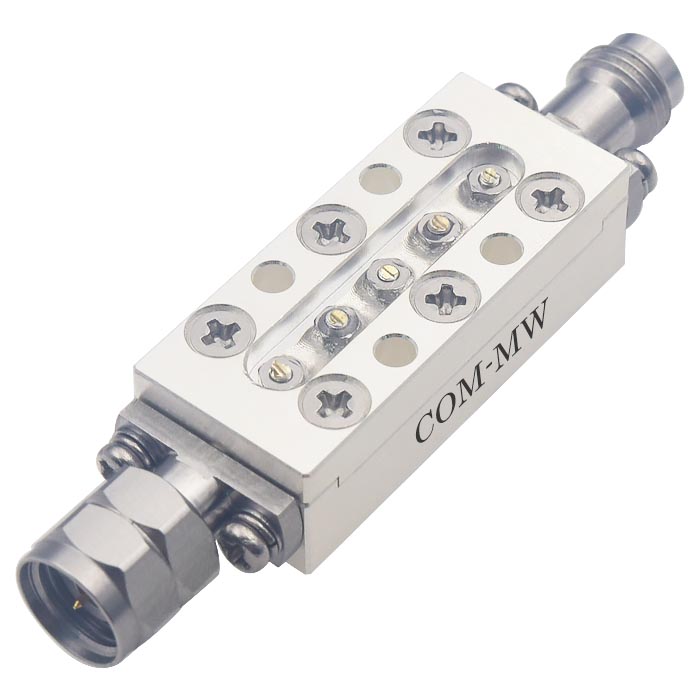

ZBF3-C36.6-3G-2516 Filter

Filter ZBF3-C36.6-3G-2516

Passband35~38.2GHz, DC-28.575GHz≥70dBc, 47.625-50GHz≥70dBc, 2.92
View Details →

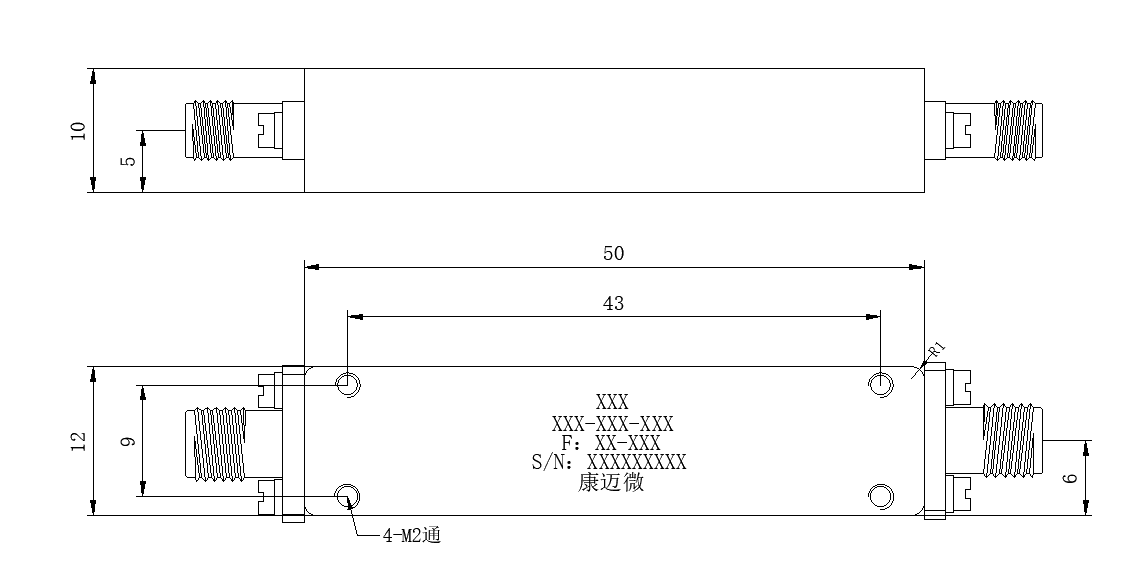

ZBF20-L40-0-323 Filter

Filter ZBF20-L40-0-323

Passband39~41MHz, DC-30MHz≥45dBc, 50-1000MHz≥45dBc, SMA
View Details →
ZBF2-C41-7G-2668 Filter

Filter ZBF2-C41-7G-2668

Passband37.5~44.5GHz, DC-34.5GHz≥60dB, 47.5-50GHz≥60dB,
View Details →
ZBF15-L40.5-21-612 Filter

Filter ZBF15-L40.5-21-612

Passband30~51MHz, DC-21MHz≥50dBc, 60-120MHz≥54dBc, Pin
View Details →
ZBF15-L40-6-577 Filter

Filter ZBF15-L40-6-577

Passband37~43MHz, DC-20MHz≥40dB, 60MHz≥40dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
