Center frequency：35500 - 35750 MHz× Clear all
matches 17 models Default Newest
STBP355-4R6-M596 Thin film filter

Thin film filter STBP355-4R6-M596

Bandwidth33.2-37.8GHz, Rejection40@DC-31.2GHz, 40@40.4-47.0GHz
In Stock View Details →
STBP356-5R2-K455 Thin film filter

Thin film filter STBP356-5R2-K455

Bandwidth33.0-38.2GHz, Rejection35@DC-30.7GHz, 40@41.5-56.0GHz
In Stock View Details →
ZBF5-C35.5-5G-1192 Filter

Filter ZBF5-C35.5-5G-1192

Passband33~38GHz, DC-31GHz≥70dBc, 40-43.5GHz≥70dBc, 2.92
In Stock View Details →
ZBF8-C35.75-0.5G-2371 Filter

Filter ZBF8-C35.75-0.5G-2371

Passband35.5~36GHz, DC-34.75GHz≥80dBc, 36.75-40GHz≥80dBc, 2.92
View Details →
ZBF8-C35.5-17G-3374 Filter

Filter ZBF8-C35.5-17G-3374

Passband27~44GHz, DC-24GHz≥55dB, 47-59GHz≥35dB, 2.92
View Details →

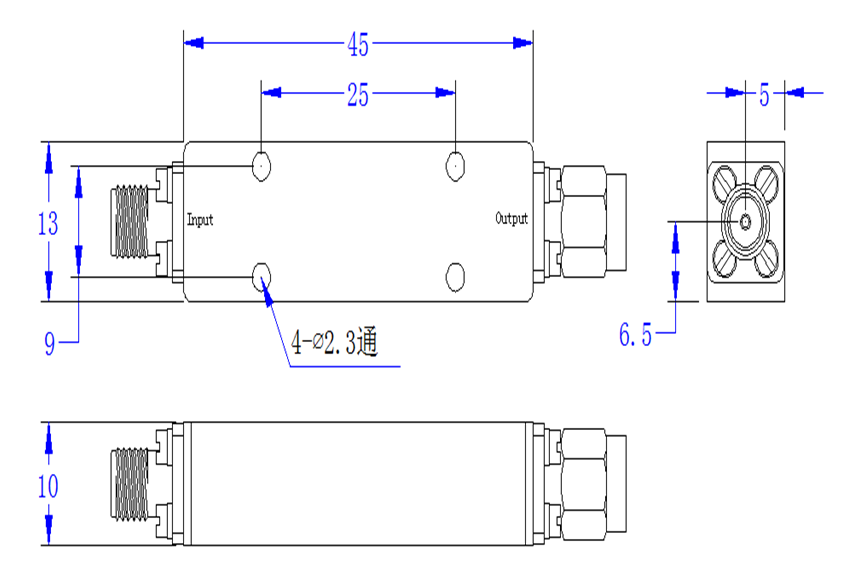

ZBF6-C35.5-3G-3456 Filter

Filter ZBF6-C35.5-3G-3456

Passband34~37GHz, 10~25GHz≥40dBc, 38~50GHz≥40dBc, 2.92
View Details →
ZBF6-C35.5-3G-1332 Filter

Filter ZBF6-C35.5-3G-1332

Passband34~37GHz, 10-25GHz≥40dB, 38-50GHz≥40dB, 2.4
View Details →
ZBF6-C35.5-3G-1055 Filter

Filter ZBF6-C35.5-3G-1055

Passband34~37GHz, DC-32GHz≥50dB, 2.92
View Details →

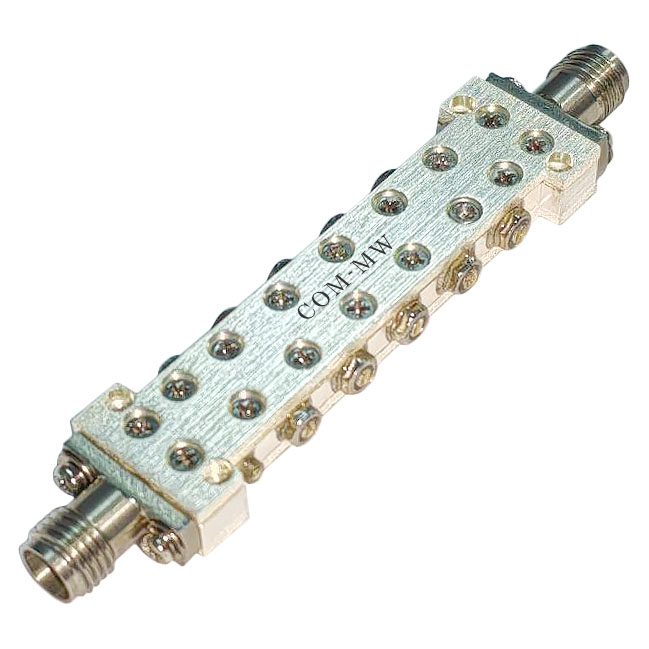

ZBF5-C35.5-5.4G-2696 Filter

Filter ZBF5-C35.5-5.4G-2696

Passband32.8~38.2GHz, DC-26.5GHz≥70dBc, 26.5-30GHz≥60dBc, 2.92
View Details →

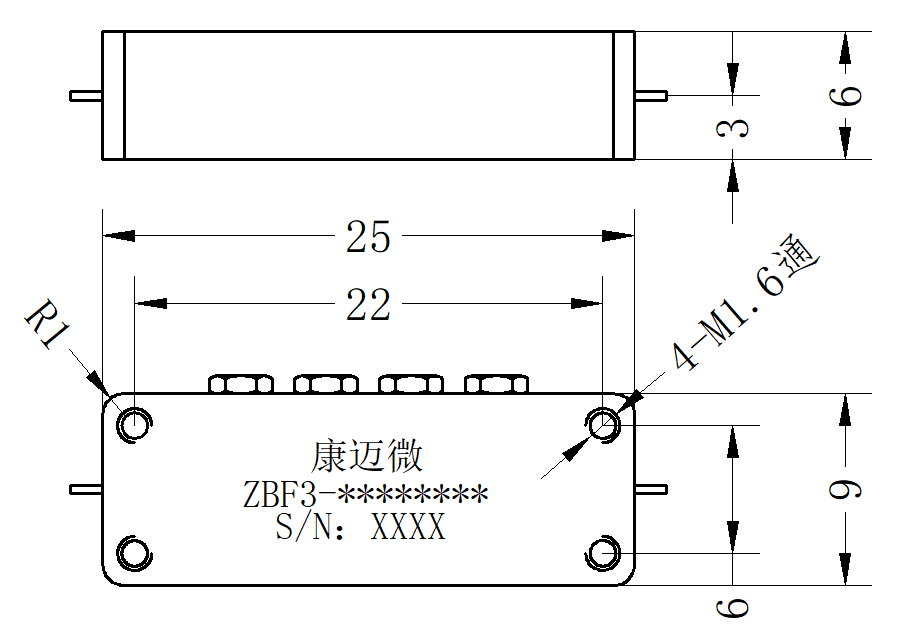

ZBF3-C35.7-0.3G-3277 Filter

Filter ZBF3-C35.7-0.3G-3277

Passband35550~35850MHz, DC-30700MHz≥55dBc, 30700-33300MHz≥65dBc, Pin
View Details →
ZBF25-W35.5-0.2G-3380 Filter

Filter ZBF25-W35.5-0.2G-3380

Passband35.4~35.6GHz, DC-35GHz≥60dBc, 36-40GHz≥55dBc, Waveguide
View Details →
ZBF25-C35.5-1G-339 Filter

Filter ZBF25-C35.5-1G-339

Passband35~36GHz, DC-34GHz≥50dB, 37-40GHz≥50dB, 2.92
View Details →

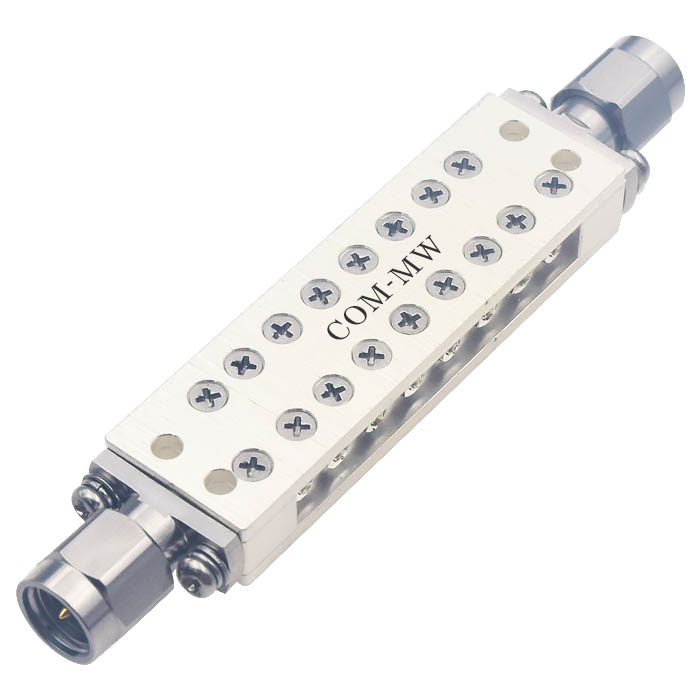

ZBF13-C35.75-3.5G-2936 Filter

Filter ZBF13-C35.75-3.5G-2936

Passband34~37.5GHz, 25-29GHz≥50dB, 2.92
View Details →

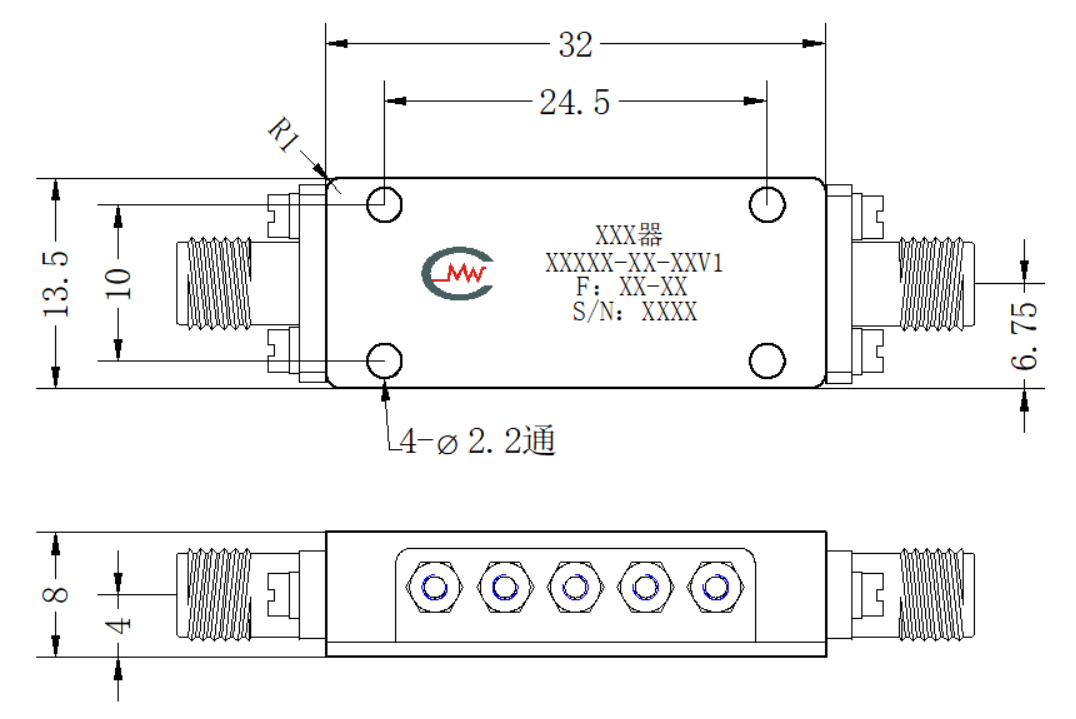

ZBF13-C35.75-3.5G-1778 Filter

Filter ZBF13-C35.75-3.5G-1778

Passband34~37.5GHz, 25-29GHz≥50dB, 2.92
View Details →

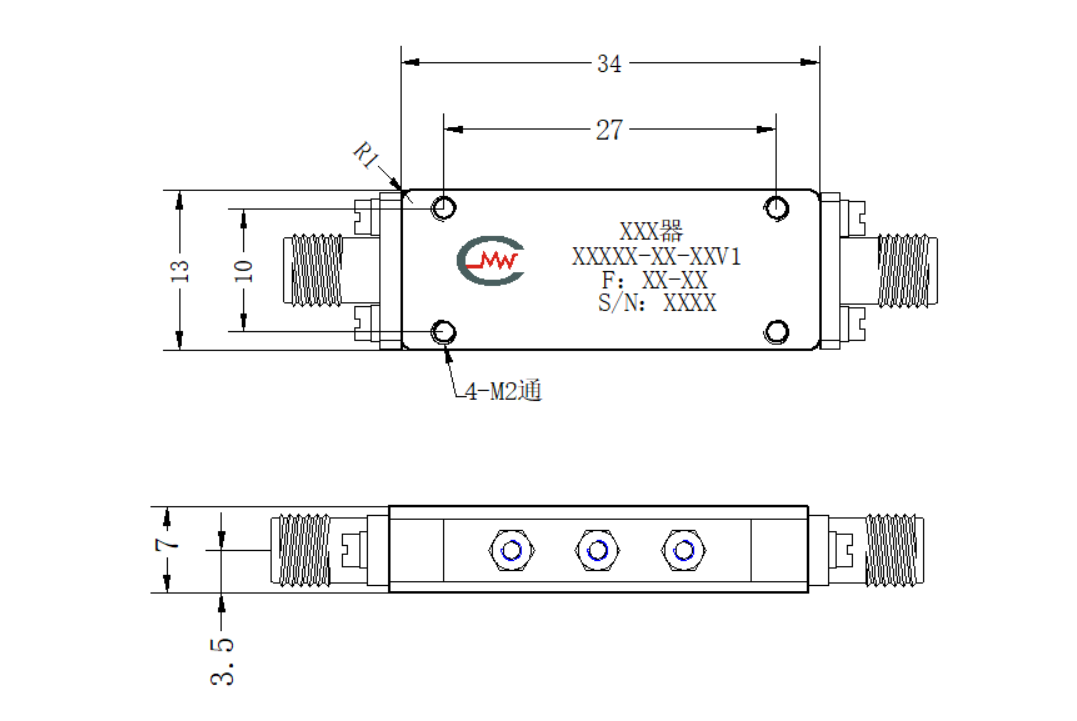

ZBF13-C35.75-1G-1210 Filter

Filter ZBF13-C35.75-1G-1210

Passband35.25~36.25GHz, 35.75±1.5GHz≥40dB, 35.75±3GHz≥70dB, 2.92
View Details →

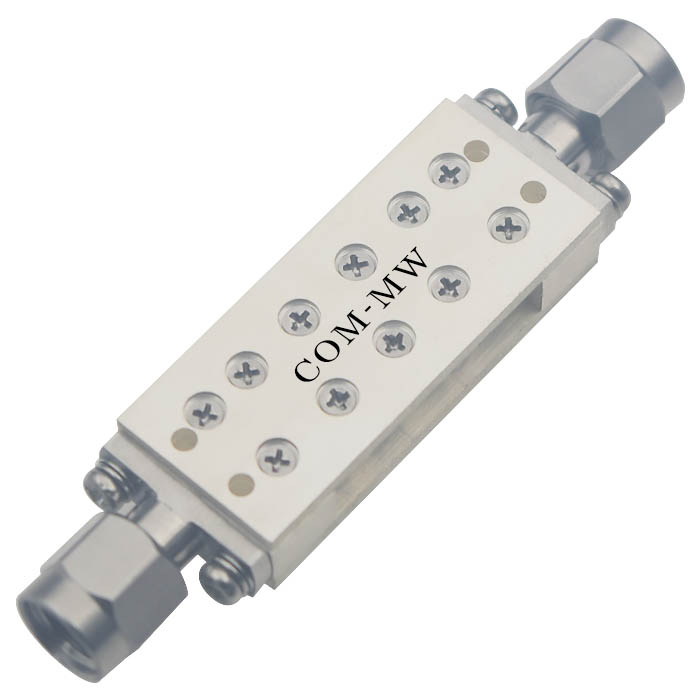

ZBF13-C35.75-0.6G-1612 Filter

Filter ZBF13-C35.75-0.6G-1612

Passband35.45~36.05GHz, DC-22.25GHz≥70dBc, 2.92
View Details →

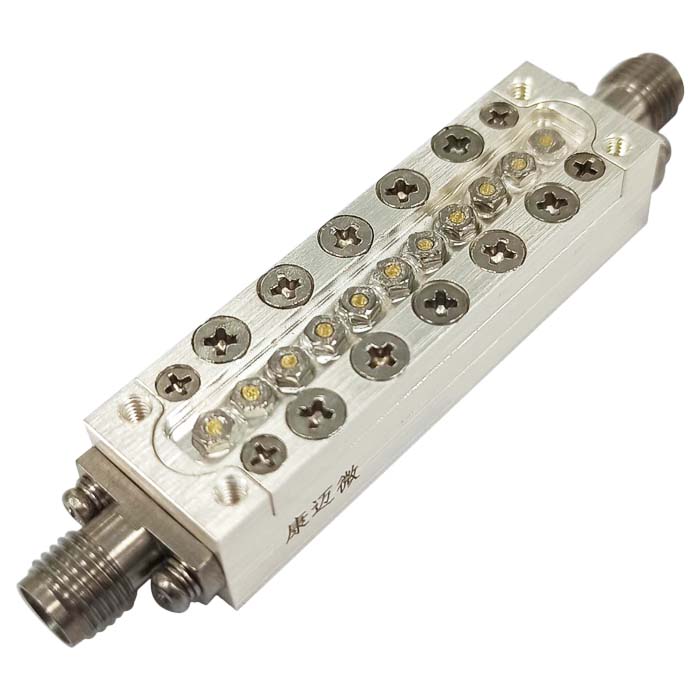

ZBF13-C35.5-0.5G-3530 Filter

Filter ZBF13-C35.5-0.5G-3530

Passband35.25~35.75GHz, DC-33.75GHz≥80dBc, 36.75-40GHz≥70dBc, 2.92
View Details →
