RF Filter

Total 22 models
Categories
Categories RF Filter
RF Filter16048
RF Filter15376 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
35000 - 35200 3 35250 - 35800 3 36000 - 37000 8 38000 - 40000 7 45000 1
–
Connector
SMA 2 2.92 8 Microstrip pad 1 Microstrip needle 7 Waveguide 3 SMP 1
Power Handling
1 - 2 5 5 - 10 15 30 - 50 2
–
Maximum loss of side frequency dB
1.2 - 1.5 5 2 - 2.5 9 3 - 3.2 7 4 1
–
Rejection dB
25 - 35 3 40 - 45 7 50 - 60 8 65 - 69.999 3 70 1
–
F Low MHz
25000 - 31500 4 32000 - 33800 9 34000 - 34450 5 34750 - 34960 3 35000 1
–
Feature
Bandpass 22
Center frequency MHz
35000 22
–
IL on center frequency dB
1 14 2 6 2.2 1 3 1
–
Filter type
Cavity&waveguide 21 Thin film 1
Center frequency：35000 - 35000 MHz× Clear all
matches 22 models Default Newest
STBP350-1R6-K379 Thin film filter

Thin film filter STBP350-1R6-K379

Bandwidth34.2-35.8GHz, Rejection40@DC-32.2GHz, 40@38.0-44.0GHz
In Stock View Details →
ZBF25-W35-2G-707 Filter

Filter ZBF25-W35-2G-707

Passband34~36GHz, 27-31GHz≥40dBc, 39-43GHz≥40dBc, Waveguide
In Stock View Details →
ZBF13-C35-4G-2737 Filter

Filter ZBF13-C35-4G-2737

Passband33~37GHz, DC-31GHz≥60dB, 39-43.5GHz≥60dB, 2.92
In Stock View Details →
ZBF8-C35000-2000-2509 Filter

Filter ZBF8-C35000-2000-2509

Passband34000~36000mhz, dc-33000mhz≥45db, 37000-55000mhz≥45db, 2.92
In Stock View Details →
ZBF8-C35000-10000-2507 Filter

Filter ZBF8-C35000-10000-2507

Passband30000~40000MHz, DC-28500MHz≥50dB, 42000-50000MHz≥40dB, 2.92-K
In Stock View Details →
ZBF13-C35-0G-941 Filter

Filter ZBF13-C35-0G-941

Passband35GHz, DC-30GHz≥60dBc, 50GHz≥40dBc, Pin
In Stock View Details →

波导滤波器 ZWBP1-350-0R5-60

Passband34750~35250MHz, DC-34.5GHz≥55dB, 35.5GHz≥65dB, Waveguide
View Details →
ZBF8-C35-0.08G-3395 Filter

Filter ZBF8-C35-0.08G-3395

Passband34.96~35.04GHz, DC-34.8GHz≥25dB, 35.2-40GHz≥25dB, Waveguide
View Details →
ZBF6-C35-20G-4946 Filter

Filter ZBF6-C35-20G-4946

Passband25~45GHz, DC-22GHz≥40dB, 48-66GHz≥40dB, 2.4
View Details →
ZBF5-C35-6G-611 Filter

Filter ZBF5-C35-6G-611

Passband32~38GHz, 25-31GHz≥45dB, 39-40GHz≥45dB, 2.92
View Details →
ZBF5-C35-6G-1691 Filter

Filter ZBF5-C35-6G-1691

Passband32~38GHz, DC-30GHz≥70dB, 40-43.5GHz≥70dB, 2.92
View Details →
ZBF5-C35-0.4G-2996 Filter

Filter ZBF5-C35-0.4G-2996

Passband34.8~35.2GHz, DC-34.06GHz≥60dBc, 35.5-36.35GHz≥40dBc, 2.92
View Details →
ZBF4-C35000-4000-071 Filter

Filter ZBF4-C35000-4000-071

Passband33~37GHz, DC-28GHz≥65dBc, 42-50GHz≥55dBc, 2.92
View Details →
ZBF4-C35-4G-029 Filter

Filter ZBF4-C35-4G-029

Passband33~37GHz, DC-31GHz≥40dB, 39-45GHz≥40dB, Pin
View Details →
ZBF4-C35-1.1G-987 Filter

Filter ZBF4-C35-1.1G-987

Passband34.45~35.55GHz, 33.125GHz≥50dB, 36.875GHz≥50dB,
View Details →
ZBF3-C35-6G-3807 Filter

Filter ZBF3-C35-6G-3807

Passband32~38GHz, DC-31GHz≥45dB, 39-50GHz≥45dB, Pin
View Details →
ZBF3-C35-2.4G-4456 Filter

Filter ZBF3-C35-2.4G-4456

Passband33800~36200MHz, DC-33200MHz≥50dB, 37200-50000MHz≥60dB, Pin
View Details →

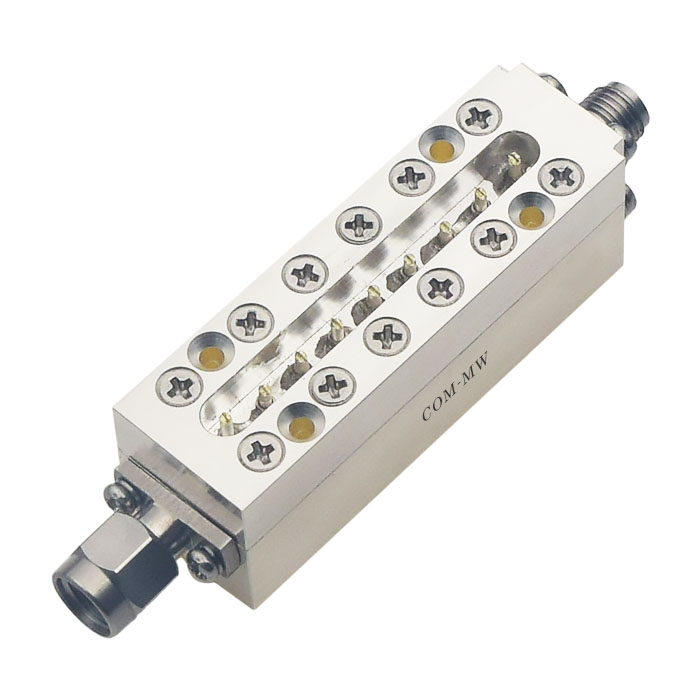

ZBF25-C35000-2000-759 Filter

Filter ZBF25-C35000-2000-759

Passband34000~36000MHz, DC-33000MHz≥45dB, 37000-55000MHz≥45dB, 2.92
View Details →
ZBF25-C35-6G-344 Filter

Filter ZBF25-C35-6G-344

Passband32~38GHz, DC-30GHz≥35dB, 40-45GHz≥35dB, 2.92
View Details →
ZBF2-C35-7G-2667 Filter

Filter ZBF2-C35-7G-2667

Passband31.5~38.5GHz, DC-28.5GHz≥60dB, 41.5-45GHz≥60dB,
View Details →
ZBF2-C35-4G-2147 Filter

Filter ZBF2-C35-4G-2147

Passband33~37GHz, 7.3-8.3GHz≥70dBc, 25.2-29.2GHz≥70dBc, Pin
View Details →

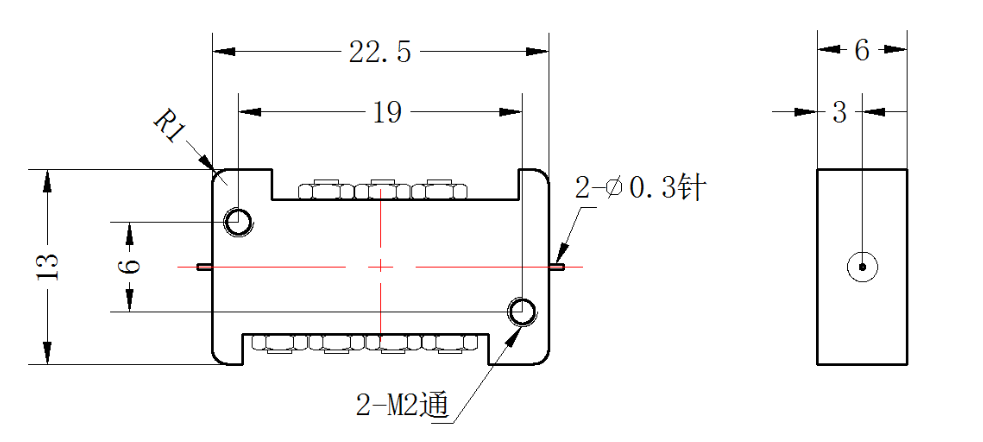

ZBF2-C35-10G-1769 Filter

Filter ZBF2-C35-10G-1769

Passband30~40GHz, DC-20GHz≥25dBc, 45GHz≥25dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
