Filters
Filters 1
F High MHz
27000 - 30060 4 30200 - 30600 6 30700 - 31300 13 31500 - 34000 5 35200 - 38500 2
–
Connector
SMA 3 2.92 13 Microstrip pad 6 Microstrip needle 5 Waveguide 2
Power Handling
1 1 2 7 5 11 10 9 50 2
–
Maximum loss of side frequency dB
0.6 - 1 3 1.5 - 2 12 2.5 - 3 10 3.5 - 4 3 5 - 6 2
–
Rejection dB
35 - 38 3 40 - 50 10 60 - 80 15 85 - 90 2
–
F Low MHz
21500 - 27000 5 27500 - 28900 6 29000 - 29500 13 29600 - 29990 5 30000 1
–
Feature
Bandpass 30
Center frequency MHz
29850 1 29900 2 30000 26 30050 1
–
IL on center frequency dB
0.3 - 0.4 2 0.5 - 1 15 1.5 - 2 8 2.5 - 3 3 4 - 5 2
–
Filter type
Cavity&waveguide 23 Thin film 7
Center frequency：29850 - 30050 MHz× Clear all
matches 30 models Default Newest
STBP300-1R4-K756 Thin film filter

Thin film filter STBP300-1R4-K756

Bandwidth29.3-30.7GHz, Rejection37@DC-28.0GHz, 25@32.2-39.0GHz
In Stock View Details →
STBP300-2R6-M388 Thin film filter

Thin film filter STBP300-2R6-M388

Bandwidth28.7-31.3GHz, Rejection40@DC-26.8GHz, 40@33.2-43.0GHz
In Stock View Details →
STBP300-2R0-K531 Thin film filter

Thin film filter STBP300-2R0-K531

Bandwidth29.0-31.0GHz, Rejection40@DC-27.0GHz, 40@33.0-39.0GHz
In Stock View Details →
STBP299-107-K539 Thin film filter

Thin film filter STBP299-107-K539

Bandwidth24.5-35.2GHz, Rejection40@DC-18.5GHz, 40@42.5-56.0GHz
In Stock View Details →

Thin film filter STBP300-5R0-N567

Bandwidth27.5-32.5GHz, Rejection60@DC-24.8GHz, 50@35.6-42.0GHz
In Stock View Details →
STBP299-0R6-K651 Thin film filter

Thin film filter STBP299-0R6-K651

Bandwidth29.6-30.2GHz, Rejection40@DC-28.1GHz, 40@31.6-38.0GHz
In Stock View Details →
ZBF8-C30-0.02G-2649 Filter

Filter ZBF8-C30-0.02G-2649

Passband29.99~30.01GHz, DC-29.88GHz≥50dB, 30.12-40GHz≥50dB, 2.92-K
In Stock View Details →
ZBF25-C30-3G-292 Filter

Filter ZBF25-C30-3G-292

Passband28.5~31.5GHz, DC-27GHz≥60dBc, 32-40GHz≥30dBc, 2.92
In Stock View Details →
ZBF13-C30-2G-2519 Filter

Filter ZBF13-C30-2G-2519

Passband29~31GHz, 28.3&31.7GHz≥45dBc, 28GHz≥80dBc, 2.92
In Stock View Details →
ZBF5-C30-1.2G-866 Filter

Filter ZBF5-C30-1.2G-866

Passband29.4~30.6GHz, DC-28.7GHz≥50dBc, 30.5-31.3GHz≥30dBc, Pin
In Stock View Details →
ZBF13-C30-14G-482 Filter

Filter ZBF13-C30-14G-482

Passband23~37GHz, DC-18GHz≥70dBc, 18-21GHz≥35dBc, 2.92
In Stock View Details →
ZBF8-W30-2G-2731 Filter

Filter ZBF8-W30-2G-2731

Passband29~31GHz, DC-27GHz≥60dB, 33GHz≥60dB, Waveguide
View Details →
ZBF8-W30-2G-2345 Filter

Filter ZBF8-W30-2G-2345

Passband29~31GHz, DC-27GHz≥60dB, 33GHz≥60dB, Waveguide
View Details →
ZBF8-C30.05-1.9G-3164 Filter

Filter ZBF8-C30.05-1.9G-3164

Passband29.1~31GHz, DC-27GHz≥90dB, 2.92
View Details →
ZBF8-C30-0.4G-2534 Filter

Filter ZBF8-C30-0.4G-2534

Passband29.8~30.2GHz, DC-29.5GHz≥40dBc, 30.5-40GHz≥40dBc, 2.92
View Details →
ZBF8-1C30-0.5G-1872 Filter

Filter ZBF8-1C30-0.5G-1872

Passband29750~30250MHz, DC-29000MHz≥55dB, 31000-31500MHz≥55dB, 2.92
View Details →
ZBF6-C29.9-2.2G-6063 Filter

Filter ZBF6-C29.9-2.2G-6063

Passband28.8~31GHz, DC-28.2GHz≥80dB, 32-48GHz≥70dBc, 2.92
View Details →
ZBF5-C30-6G-188 Filter

Filter ZBF5-C30-6G-188

Passband27~33GHz, DC-16.5GHz≥40dB, 40.5-49.5GHz≥40dB, 2.92
View Details →

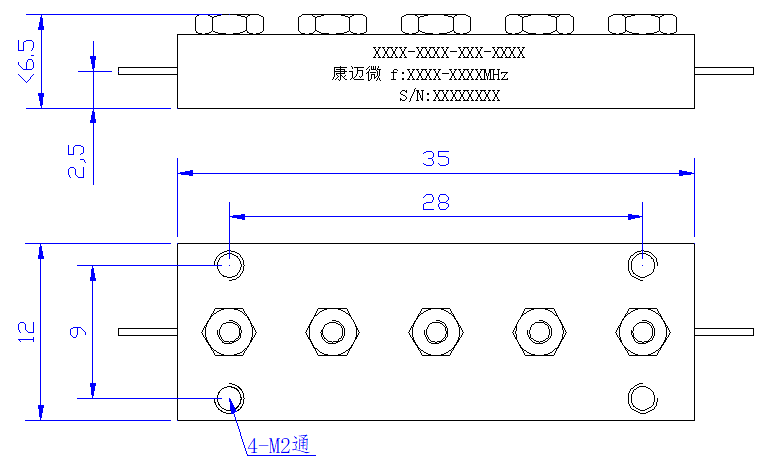

ZBF5-C30-3G-2815 Filter

Filter ZBF5-C30-3G-2815

Passband28.5~31.5GHz, DC-26.95GHz≥60dBc, 33.5-37GHz≥40dBc, Pin
View Details →

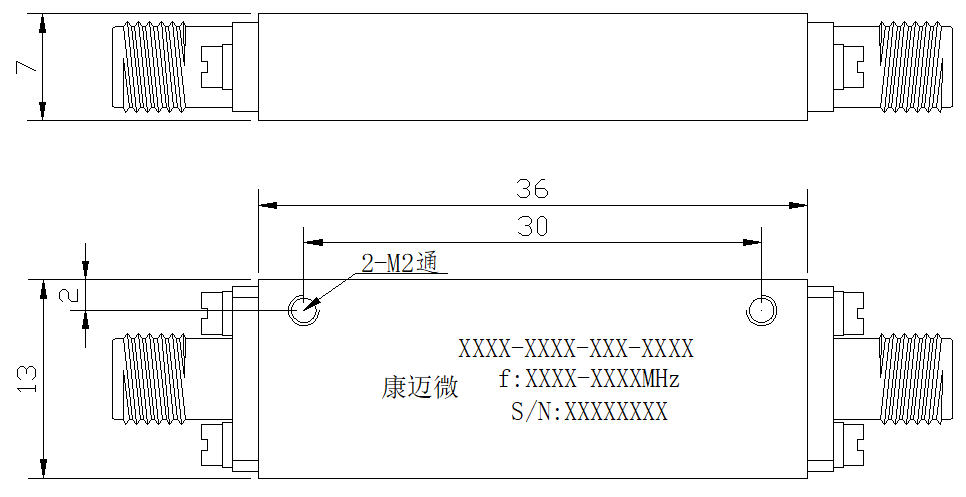

ZBF5-C30-17G-2111 Filter

Filter ZBF5-C30-17G-2111

Passband21.5~38.5GHz, DC-19GHz≥40dB, 42-50GHz≥45dB, 2.92
View Details →

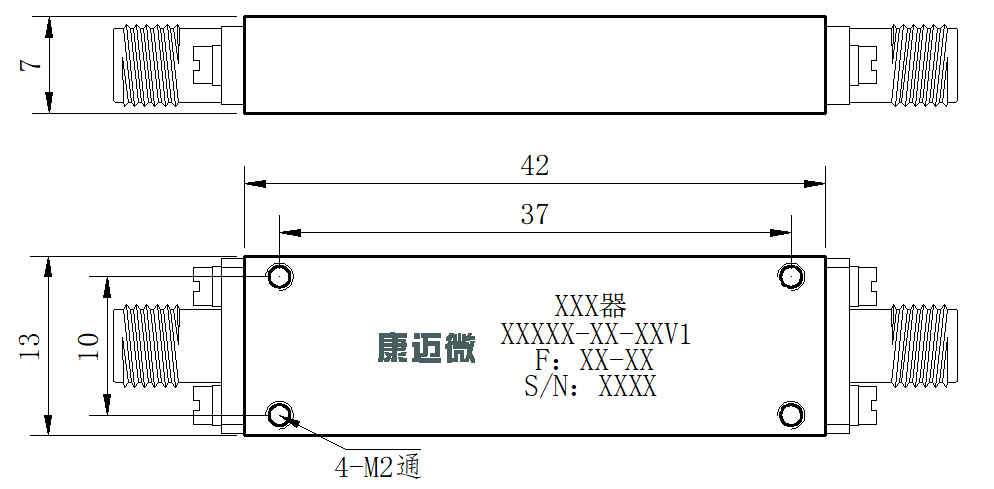

ZBF4-C30-2G-1222 Filter

Filter ZBF4-C30-2G-1222

Passband29~31GHz, DC-27GHz≥60dB, 27-28GHz≥30dB, 2.92
View Details →

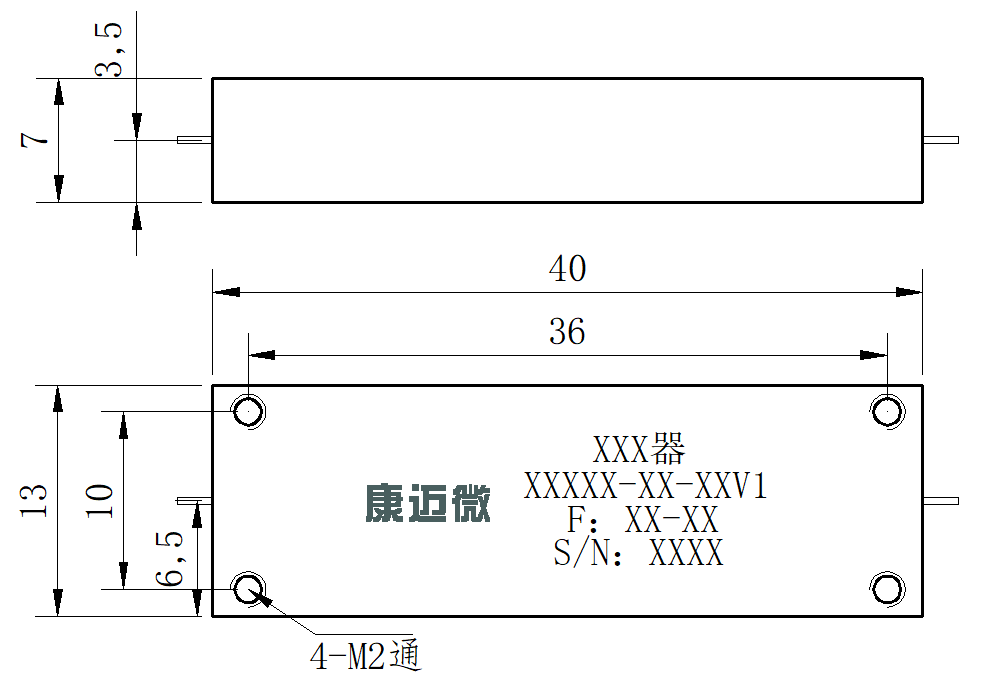

ZBF4-C30-2G-1220 Filter

Filter ZBF4-C30-2G-1220

Passband29~31GHz, DC-27.2GHz≥60dB, 32.6GHz≥50dB,
View Details →

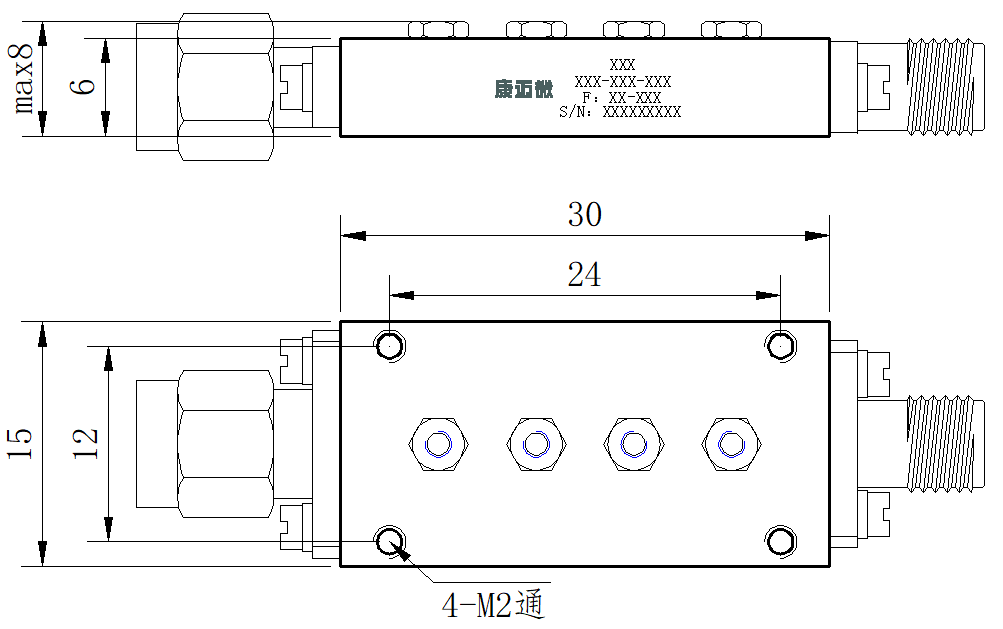

ZBF4-C30-0.12G-1296 Filter

Filter ZBF4-C30-0.12G-1296

Passband29.94~30.06GHz, 31.36GHz≥60dB, 33GHz≥60dB, 2.92
View Details →

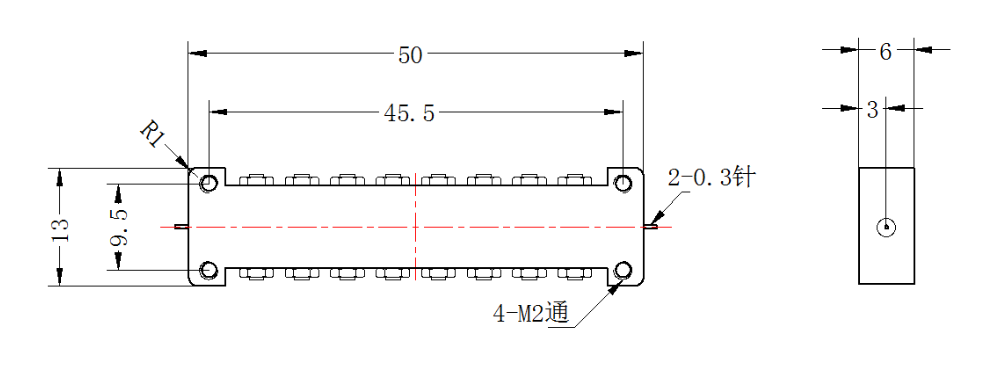

ZBF2-C30-8G-1943 Filter

Filter ZBF2-C30-8G-1943

Passband26~34GHz, DC-25GHz≥35dBc, 35-43.5GHz≥35dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
