Filters
Filters 1
F High MHz
29250 - 29600 3 30000 - 30400 6 31500 - 32000 3 33000 - 33900 2
–
Connector
2.92 4 Microstrip pad 5 Microstrip needle 3 Waveguide 1 SMP 1
Power Handling
2 4 3.16 1 5 3 10 5 50 1
–
Maximum loss of side frequency dB
0.7 - 1 2 1.4 - 1.5 2 2 - 3 7 3.5 - 4 2 6 1
–
Rejection dB
30 - 40 7 50 - 60 5 75 - 85 2
–
F Low MHz
23500 - 25400 3 25900 - 27100 3 27400 - 28000 6 28200 - 28250 2
–
Feature
Bandpass 14
Center frequency MHz
28700 3 28750 8 28800 1 28900 2
–
IL on center frequency dB
0.4 - 0.5 2 1 - 2 10 3 - 3.3 2
–
Filter type
Cavity&waveguide 9 Thin film 4 MEMS 1
Center frequency：28700 - 28900 MHz× Clear all
matches 14 models Default Newest
STBP287-6R6-M627 Thin film filter

Thin film filter STBP287-6R6-M627

Bandwidth25.4-32.0GHz, Rejection40@DC-22.0GHz, 40@35.0-54.0GHz
In Stock View Details →
WLMX275300K Filter

Filter WLMX275300K

Passband27500~30000MHz, 25.65&31.5GHz≥30dB, 25.45&31.65GHz≥40dB, Microstrip pad, MEMS
In Stock View Details →
STBP288-8R4-M363 Thin film filter

Thin film filter STBP288-8R4-M363

Bandwidth24.6-33.0GHz, Rejection40@DC-20.2GHz, 40@37.0-50.0GHz
In Stock View Details →
STBP287-104-N224 Thin film filter

Thin film filter STBP287-104-N224

Bandwidth23.5-33.9GHz, Rejection40@DC-20.2GHz, 40@37.8-50.0GHz
In Stock View Details →
STBP289-1R4-M287 Thin film filter

Thin film filter STBP289-1R4-M287

Bandwidth28.2-29.6GHz, Rejection40@DC-25.8GHz, 40@31.8-51.0GHz
In Stock View Details →
ZBF8-W28.9-5.8G-2696 Filter

Filter ZBF8-W28.9-5.8G-2696

View Details →
ZBF8-C28.75-1G-3134 Filter

Filter ZBF8-C28.75-1G-3134

Passband28.25~29.25GHz, DC-27.3GHz≥105dB, 27.3-27.75GHz≥50dB, 2.92
View Details →

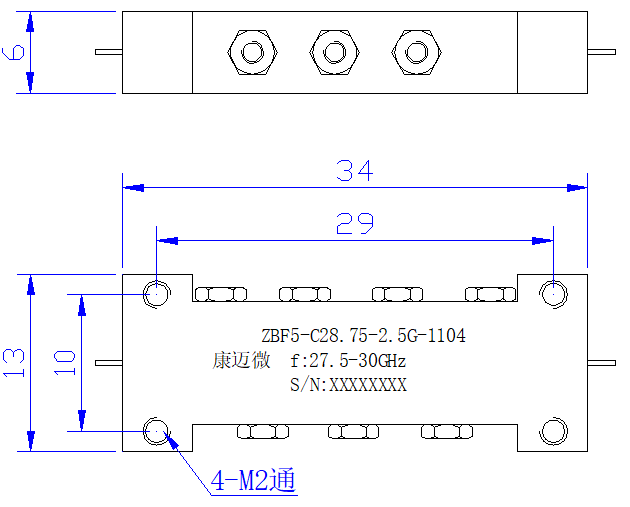

ZBF5-C28.75-2.5G-1104 Filter

Filter ZBF5-C28.75-2.5G-1104

Passband27.5~30GHz, DC-23.5GHz≥60dBc, 33-40GHz≥50dBc, Pin
View Details →

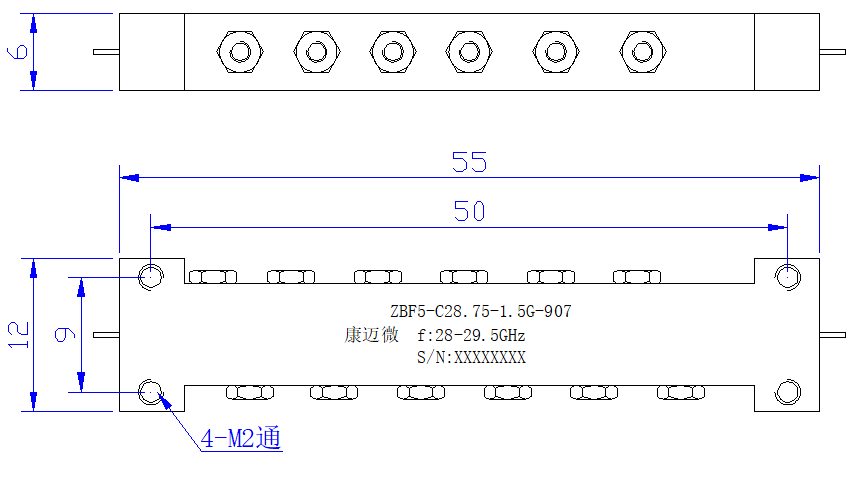

ZBF5-C28.75-1.5G-907 Filter

Filter ZBF5-C28.75-1.5G-907

Passband28~29.5GHz, DC-27.34GHz≥60dBc, 30.5-40GHz≥40dBc, Pin
View Details →

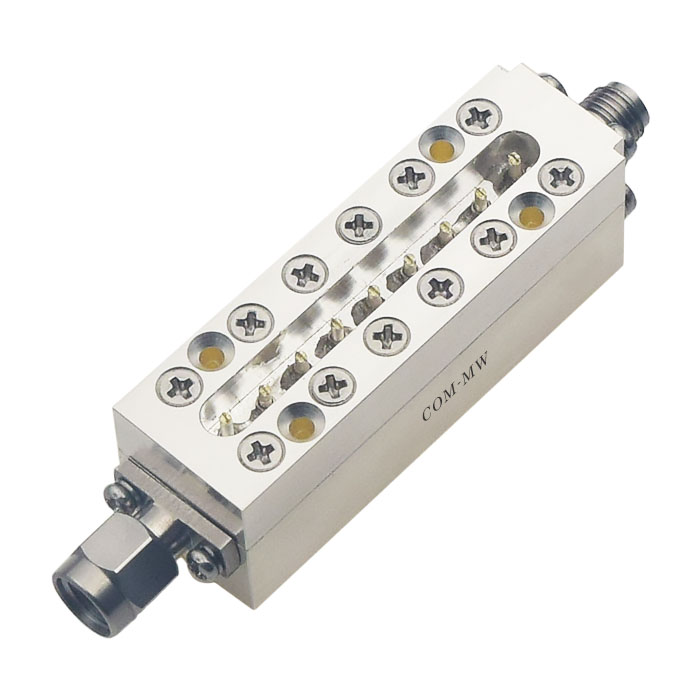

ZBF4-C28.75-2.5G-871 Filter

Filter ZBF4-C28.75-2.5G-871

Passband27.5~30GHz, DC-25GHz≥60dB, 32-40GHz≥60dB, 2.92
View Details →
ZBF3-C28.75-2.5G-815 Filter

Filter ZBF3-C28.75-2.5G-815

Passband27.5~30GHz, 26.5GHz≥60dB, 31GHz≥60dB, 2.92
View Details →

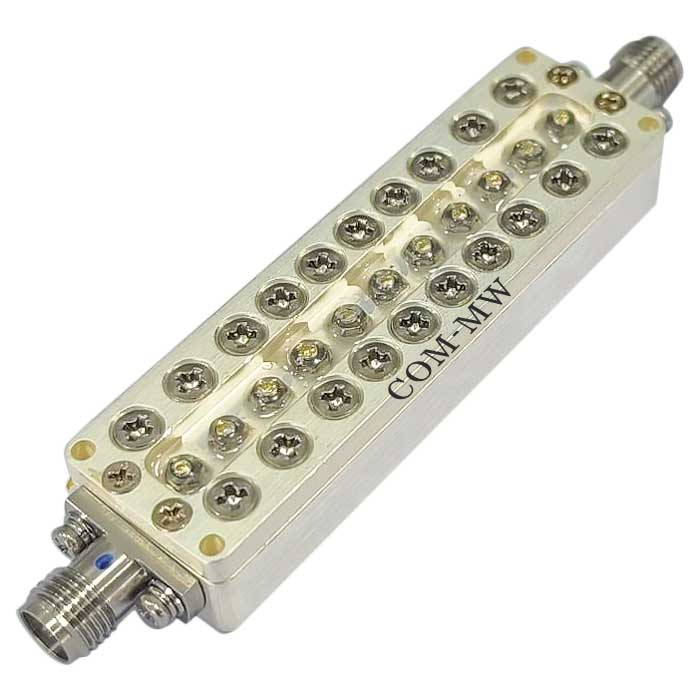

ZBF25-C28.75-3.3G-503 Filter

Filter ZBF25-C28.75-3.3G-503

Passband27.1~30.4GHz, DC-26.5GHz≥85dBc, 34.5-37.8GHz≥85dBc, 2.92
View Details →
ZBF13-C28.75-2.7G-1376 Filter

Filter ZBF13-C28.75-2.7G-1376

Passband27.4~30.1GHz, 26GHz≥40dBc, DC-23.6GHz≥50dBc, SMP
View Details →
ZBF13-C28.7-5.6G-192 Filter

Filter ZBF13-C28.7-5.6G-192

Passband25.9~31.5GHz, DC-24.5GHz≥30dBc, 32.5-43.5GHz≥30dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
