RF Filter

Total 19 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
2605 - 2610 2 2620 - 2655 3 2675 - 2690 11 2700 - 2725 3
–
Connector
SMA 12 N 6 Microstrip needle 1
Power Handling
1 - 2 3 10 - 20 4 30 - 50 9 100 3
–
Maximum loss of side frequency dB
1 - 1.2 3 1.5 - 1.8 3 2 - 3 12 4 1
–
Rejection dB
30 - 40 6 50 - 55 3 60 - 70 6 80 - 90 4
–
F Low MHz
2465 - 2496 6 2500 - 2515 9 2570 - 2580 3 2585 1
–
Feature
Bandpass 17 Notch 2
Center frequency MHz
2585 1 2593 3 2595 13 2598 2
–
IL on center frequency dB
0.5 1 0.6 2 1 10 2 3 3 1
–
Filter type
LC 2 Cavity&waveguide 16 Coaxial 1
Center frequency：2585 - 2598 MHz× Clear all
matches 19 models Default Newest
ZBF6-C2595-190-5189 Filter

Filter ZBF6-C2595-190-5189

Passband2500~2690MHz, DC-2400MHz≥40dB, 2790-500MHz≥40dB, SMA
In Stock View Details →
ZBSF6-C2585-2605-1171 Filter

Filter ZBSF6-C2585-2605-1171

Stopband F2585~2605MHz, ≥40dB, PassbandDC~2575MHz, 2615~4000MHz, SMA
View Details →
ZBSF6-C2570-2620-1988 Filter

Filter ZBSF6-C2570-2620-1988

Stopband F2570~2620MHz, ≥60dB, PassbandDC~2550MHz, 2640~6000MHz, SMA
View Details →
ZBF6-C2598-204-1636 Filter

Filter ZBF6-C2598-204-1636

Passband2496~2700MHz, DC-2452MHz≥80dB, 2752-8100MHz≥80dB, N
View Details →
ZBF6-C2595-50-3570 Filter

Filter ZBF6-C2595-50-3570

Passband~2620MHz, DC-2560MHz≥55dB, 2630-7000MHz≥55dB, N
View Details →

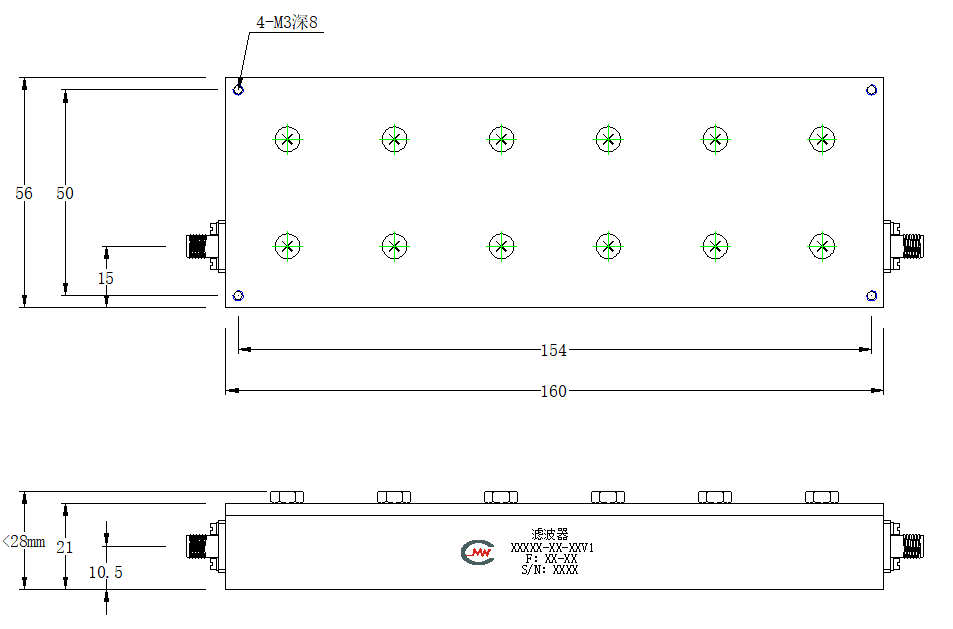

ZBF6-C2595-190-5146 Filter

Filter ZBF6-C2595-190-5146

Passband2500~2690MHz, DC-2450MHz≥70dB, 2740-6000MHz≥70dB, SMA
View Details →
ZBF6-C2595-160-6048 Filter

Filter ZBF6-C2595-160-6048

Passband2515~2675MHz, DC-2495MHz≥50dB, 2695-4500MHz≥50dB, SMA
View Details →
ZBF6-C2595-160-017 Filter

Filter ZBF6-C2595-160-017

Passband2515~2675MHz, DC-2505MHz≥50dB, 2685-6000MHz≥50dB, SMA
View Details →
ZBF6-C2593-194-652 Filter

Filter ZBF6-C2593-194-652

Passband2496~2700MHz, DC-2452MHz≥80dB, 2752-8100MHz≥80dB, SMA
View Details →
ZBF6-C2593-194-5198 Filter

Filter ZBF6-C2593-194-5198

Passband2496~2690MHz, DC-2400MHz≥40dB, 2780-5000MHz≥40dB, SMA
View Details →
ZBF6-C2593-194-1650 Filter

Filter ZBF6-C2593-194-1650

Passband2496~2690MHz, DC-2366MHz≥90dB, 2820-4000MHz≥90dB, N
View Details →
ZBF5-L2595-160-3345 Filter

Filter ZBF5-L2595-160-3345

Passband2515~2675MHz, DC-2045MHz≥40dB, 3145-3500MHz≥40dB, SMA
View Details →
ZBF4-C2595-30-960 Filter

Filter ZBF4-C2595-30-960

Passband2580~2610MHz, 2566MHz≥60dBc, 2624MHz≥60dBc, SMA
View Details →
ZBF4-C2593-194-585 Filter

Filter ZBF4-C2593-194-585

Passband2496~2690MHz, DC-2471MHz≥80dB, 2715-4000MHz≥80dB, SMA
View Details →
ZBF3-L2585-140-1854 Filter

Filter ZBF3-L2585-140-1854

Passband2515~2655MHz, DC-2264MHz≥30dB, 2920-5310MHz≥30dB, Pin
View Details →
ZBF3-C2595-160-1867 Filter

Filter ZBF3-C2595-160-1867

Passband2515~2675MHz, DC-2500MHz≥60dB, 2690-3000MHz≥60dB, N
View Details →
ZBF16-C2595-160-612 Filter

Filter ZBF16-C2595-160-612

Passband2515~2675MHz, DC~2500MHz≥60dBc, 2690~3000MHz≥60dBc, N
View Details →
ZBF-C2595-260-A538 Filter

Filter ZBF-C2595-260-A538

Passband2465~2725MHz, DC-2315MHz≥70dB, 2875-8175MHz≥70dB, SMA
View Details →

Filter DCBPF-5G-160

Passband2515~2675MHz, DC-2270MHz≥30dB, 2970-3600MHz≥30dB, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
