RF Filter

Total 38 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
2450 - 2470 3 2482 - 2485 6 2495 - 2550 19 2570 - 2700 7 2750 - 2900 3
–
Connector
SMD 4 SMA 17 N 4 Microstrip pad 1 Microstrip needle 12
Power Handling
0.1 - 1 8 2 - 5 12 10 - 20 12 30 - 50 2 100 4
–
Maximum loss of side frequency dB
0.4 - 0.9 4 1 - 1.5 12 2 - 3 16 3.5 - 4.5 5 5 1
–
Rejection dB
22 - 35 5 39.999 - 45 15 50 - 65 15 70 - 80 3
–
F Low MHz
2000 - 2200 7 2300 - 2350 5 2400 - 2412 22 2418 - 2441 3 2450 1
–
Feature
Bandpass 38
Center frequency MHz
2442.5 3 2448 3 2450 31 2452 1
–
IL on center frequency dB
0.2 - 0.3 3 0.5 - 0.6 6 1 - 2 24 2.5 - 3 3 3.5 - 4 2
–
Filter type
LC 13 Cavity&waveguide 20 stripline 3 Dielectric 1 FBAR 1
Center frequency：2442.5 - 2452 MHz× Clear all
matches 38 models Default Newest
WLMF2450B000AK Filter

Filter WLMF2450B000AK

Passband2450MHz, 2.35GHz≥4045dB, 2.55GHz≥4045dB, Microstrip pad, FBAR
In Stock View Details →
ZBF16-C2.45-0.1G-326 Filter

Filter ZBF16-C2.45-0.1G-326

Passband2.4~2.5GHz, DC~2.3GHz≥40dBc, 2.6~5GHz≥40dBc, SMA-KDetachable
In Stock View Details →
ZBF6-C2450-100-2851 Filter

Filter ZBF6-C2450-100-2851

Passband2400~2500MHz, DC-2300MHz≥45dB, 2600-8000MHz≥45dB, SMA
In Stock View Details →
ZBF5-L2450-200-3474 Filter

Filter ZBF5-L2450-200-3474

Passband2350~2550MHz, DC-2100MHz≥40dB, SMD
In Stock View Details →
ZHZK-C09-SMA/A1 Filter

Filter ZHZK-C09-SMA/A1

Passband2441~2463MHz, 2430~2435MHz≥10dBc, 2469~2474MHz≥10dBc, SMA
View Details →
ZBF9-D2450-40-3330 Filter

Filter ZBF9-D2450-40-3330

Passband2430~2470MHz, DC-2300MHz≥45dB, 2590-3500MHz≥45dB, SMD
View Details →
ZBF6-C2450-600-075 Filter

Filter ZBF6-C2450-600-075

Passband2150~2750MHz, DC-1900MHz≥22dB, 3000-6000MHz≥22dB, N
View Details →
ZBF6-C2450-100-5294 Filter

Filter ZBF6-C2450-100-5294

Passband2400~2500MHz, DC-2340MHz≥60dB, 2560-4500MHz≥60dB, SMA
View Details →
ZBF6-C2450-100-2843 Filter

Filter ZBF6-C2450-100-2843

Passband2400~2500MHz, DC-2370MHz≥60dB, 2540-4500MHz≥60dB, SMA
View Details →
ZBF6-C2448-72-6178 Filter

Filter ZBF6-C2448-72-6178

Passband2412~2484MHz, DC-2392MHz≥60dB, 2504-8000MHz≥60dB, SMA
View Details →
ZBF6-C2442.5-85-794 Filter

Filter ZBF6-C2442.5-85-794

Passband2400~2485MHz, DC-2360MHz≥60dB, 2530-4000MHz≥60dB, N
View Details →
ZBF5-L2450-500-1801 Filter

Filter ZBF5-L2450-500-1801

Passband2200~2700MHz, DC-1700MHz≥40dBc, 3200-6000MHz≥40dBc, Pin
View Details →
ZBF5-L2450-300-1026 Filter

Filter ZBF5-L2450-300-1026

Passband2300~2600MHz, DC-1000MHz≥60dBc, 1000-1400MHz≥40dBc, Pin
View Details →
ZBF5-L2450-100-3344 Filter

Filter ZBF5-L2450-100-3344

Passband2400~2500MHz, DC-1950MHz≥40dB, 2950-3500MHz≥40dB, SMA
View Details →
ZBF5-L2450-100-2960 Filter

Filter ZBF5-L2450-100-2960

Passband2400~2500MHz, DC-2130MHz≥40dB, 2900-6000MHz≥40dB, SMA-K
View Details →
ZBF5-L2450-100-2805 Filter

Filter ZBF5-L2450-100-2805

Passband2400~2500MHz, DC-2200MHz≥30dBc, 2700-3000MHz≥30dBc, SMA
View Details →
ZBF5-L2450-100-1290 Filter

Filter ZBF5-L2450-100-1290

Passband2400~2500MHz, DC-1920MHz≥50dB, 3000-4500MHz≥50dB, Pin
View Details →

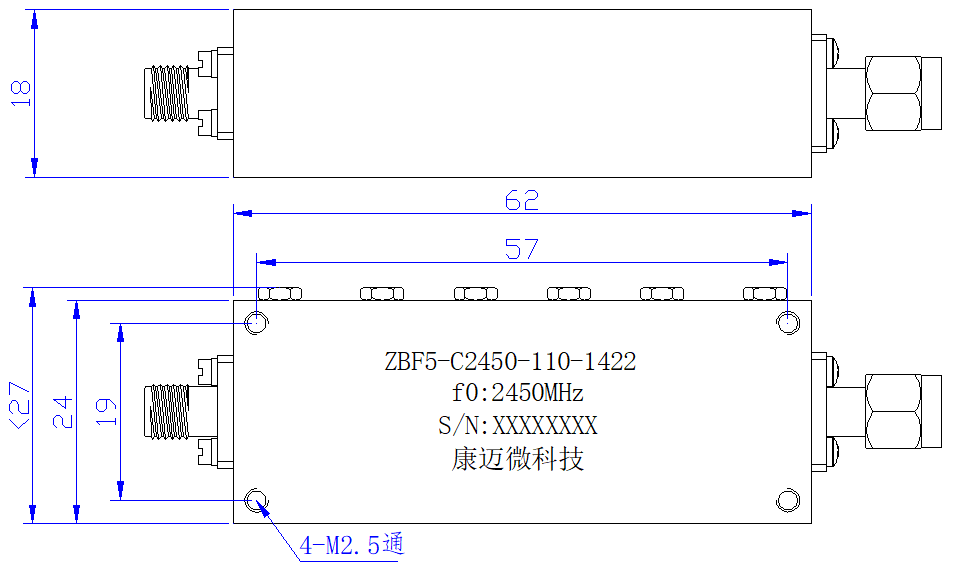

ZBF5-C2450-110-1422 Filter

Filter ZBF5-C2450-110-1422

Center Frequency2450MHz, -0.5dB BW110~130MHz, DC-2200MHz≥45dB, 2700-7000MHz≥45dB, SMA
View Details →

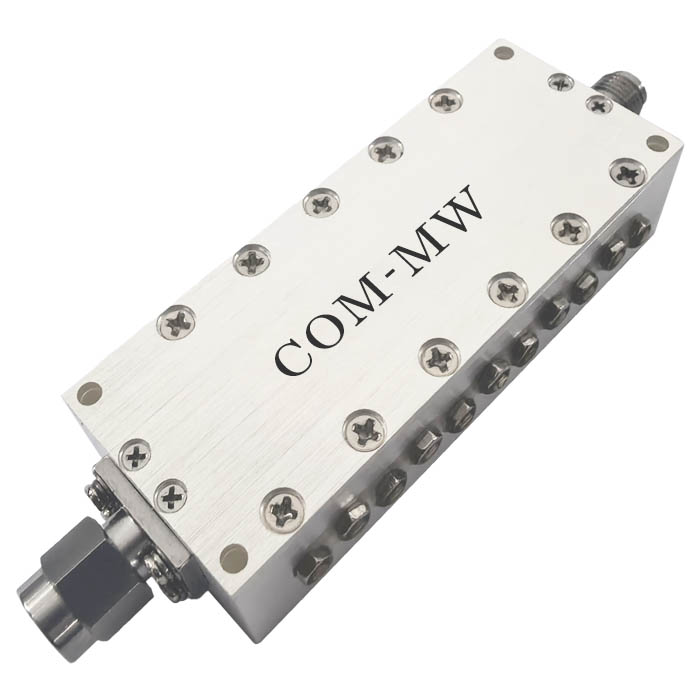

ZBF5-C2.45-0.1G-3811 Filter

Filter ZBF5-C2.45-0.1G-3811

Passband2400~2500MHz, DC-2200MHz≥45dB, 2650-4000MHz≥45dB, SMA
View Details →

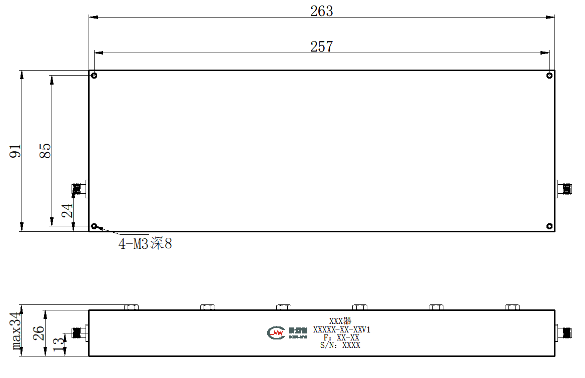

ZBF4-C2448-94-587 Filter

Filter ZBF4-C2448-94-587

Passband2401~2495MHz, DC-2386MHz≥80dB, 2510-4000MHz≥80dB, SMA
View Details →
ZBF3-L2450-100-1850 Filter

Filter ZBF3-L2450-100-1850

Passband2400~2500MHz, DC-2160MHz≥30dB, 2750-5000MHz≥30dB, Pin
View Details →

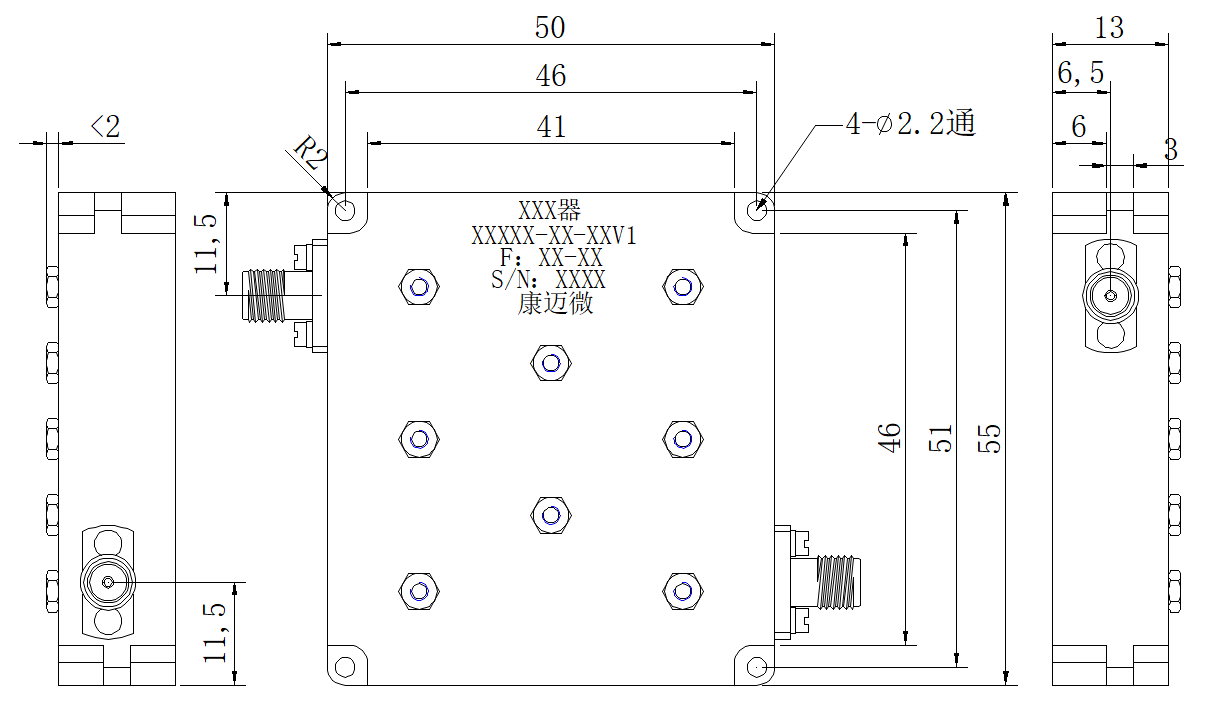

ZBF3-C2450-64-4105 Filter

Filter ZBF3-C2450-64-4105

Passband2418~2482MHz, DC-2322MHz≥60dB, 2578-4000MHz≥60dB, SMA
View Details →
ZBF3-C2450-500-2110 Filter

Filter ZBF3-C2450-500-2110

Passband2200~2700MHz, 2000MHz≥60dB, 2900MHz≥60dB, SMA
View Details →

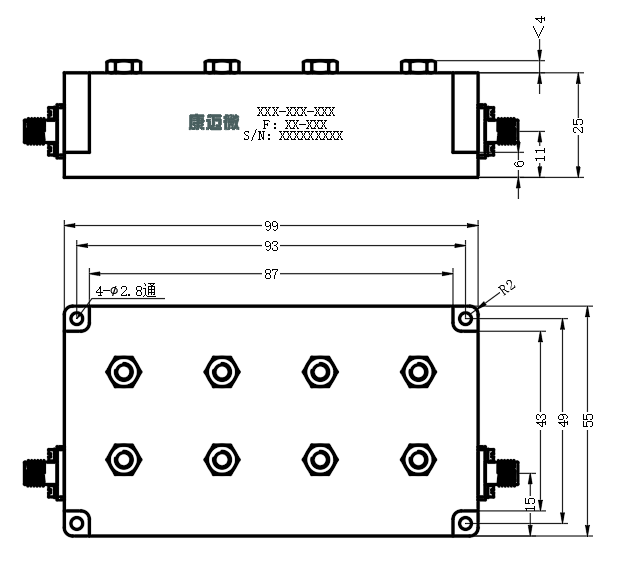

ZBF3-C2442.5-85-4335 Filter

Filter ZBF3-C2442.5-85-4335

Passband2400~2485MHz, DC-2350MHz≥40dB, 2550-3500MHz≥40dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
