RF Filter

Total 33 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
2349 - 2355 3 2364 - 2390 6 2400 - 2501 17 2550 - 2700 3 2710 - 3000 4
–
Connector
SMD 2 SMA 13 N 8 Microstrip pad 1 Microstrip needle 7
Power Handling
0.1 - 2 11 3 - 16 8 20 - 50 8 100 - 350 6
–
Maximum loss of side frequency dB
0.8 - 1 5 1.2 - 1.5 4 1.6 - 2 12 2.5 - 3 7 3.5 - 4 5
–
Rejection dB
30 - 40 9 45 - 55 11 60 - 65 9 70 - 90 4
–
F Low MHz
1700 - 1990 4 2000 - 2150 3 2200 - 2320 22 2330 - 2345 3 2350 1
–
Feature
Bandpass 30 Notch 3
Center frequency MHz
2345 6 2347 1 2350 25 2350.5 1
–
IL on center frequency dB
0.5 5 0.6 1 1 17 2 4 3 3
–
Filter type
LC 11 Cavity&waveguide 21 FBAR 1
Center frequency：2345 - 2350.5 MHz× Clear all
matches 33 models Default Newest
WLMF2350B000AK Filter

Filter WLMF2350B000AK

Passband2350MHz, 2.25GHz≥4045dB, 2.45GHz≥4045dB, Microstrip pad, FBAR
In Stock View Details →
ZBF13-L2350-300-2716 Filter

Filter ZBF13-L2350-300-2716

Passband2200~2500MHz, DC-2.05GHz≥45dB, 2.75-4GHz≥45dB, SMA
In Stock View Details →
ZBF13-C2350-100-3620 Filter

Filter ZBF13-C2350-100-3620

Passband2300~2400MHz, DC-2250MHz≥60dB, 2450-6000MHz≥60dB, SMA
In Stock View Details →
ZBF-BL2350-720-0533B2 Filter

Filter ZBF-BL2350-720-0533B2

Passband1990~2710MHz, DC-1GHz≥63dBc, 3.44-4.7GHz≥60dBc, Pin
In Stock View Details →
ZLPF25-C0-2350-930 Filter

Filter ZLPF25-C0-2350-930

Center Frequency2350MHz, DC-2330MHz≥50dB, 2370-4000MHz≥50dB, N
View Details →
ZBSF6-C2300-2400-415 Filter

Filter ZBSF6-C2300-2400-415

Stopband F2300~2400MHz, ≥50dB, PassbandDC~2285MHz, 2410~4000MHz, SMA
View Details →
ZBSF6-C2300-2400-3042 Filter

Filter ZBSF6-C2300-2400-3042

Stopband F2300~2400MHz, ≥40dB, PassbandDC~2290MHz, 2410~6000MHz, SMA
View Details →
ZBF6-C2350-1300-1053 Filter

Filter ZBF6-C2350-1300-1053

Passband1700~3000MHz, 5150-5850MHz≥50dB, DC-1000MHz≥50dB, N, -140dBc@2*43dBm
View Details →
ZBF6-C2350-100-624 Filter

Filter ZBF6-C2350-100-624

Passband2300~2400MHz, 1560-2240MHz≥60dB, DC-1560MHz≥114dB, SMA
View Details →
ZBF6-C2350-100-5197 Filter

Filter ZBF6-C2350-100-5197

Passband2300~2400MHz, DC-2250MHz≥40dB, 2450-4500MHz≥40dB, SMA
View Details →
ZBF6-C2350-100-3569 Filter

Filter ZBF6-C2350-100-3569

Passband2300~2400MHz, DC-2290MHz≥55dB, 2410-7000MHz≥55dB, N
View Details →
ZBF6-C2350-100-2887 Filter

Filter ZBF6-C2350-100-2887

Stopband F2300~2400MHz, Bandstop passbandDC-2260&2440-5000MHz, N
View Details →
ZBF6-C2350-100-1701 Filter

Filter ZBF6-C2350-100-1701

Passband2300~2400MHz, 1560-2240MHz≥60dB, DC-1560MHz≥114dB, SMA
View Details →
ZBF6-C2345-50-5158 Filter

Filter ZBF6-C2345-50-5158

Passband2320~2370MHz, DC-2290MHz≥70dB, 2400-4500MHz≥70dB, SMA
View Details →
ZBF5-L2350-300-3514 Filter

Filter ZBF5-L2350-300-3514

Passband2200~2500MHz, DC-1500MHz≥40dB, 3000-6000MHz≥40dB, SMA
View Details →
ZBF5-L2350-1300-1855 Filter

Filter ZBF5-L2350-1300-1855

Passband1700~3000MHz, DC-1.4GHz≥35dB, 3.4-5GHz≥35dB, SMA-K
View Details →

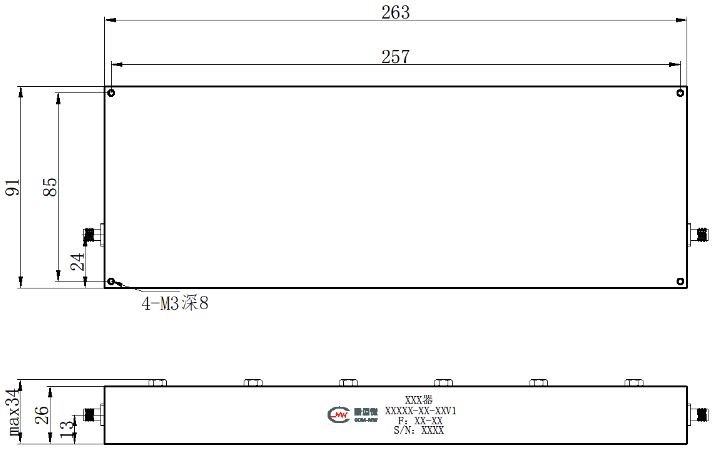

ZBF4-C2350-100-584 Filter

Filter ZBF4-C2350-100-584

Passband2300~2400MHz, DC-2285MHz≥80dB, 2415-4000MHz≥80dB, SMA
View Details →

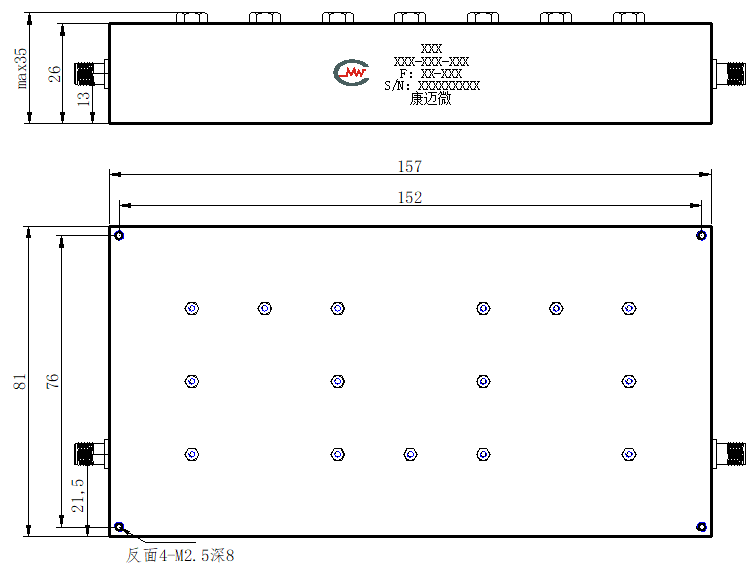

ZBF4-C2345-50-1185 Filter

Filter ZBF4-C2345-50-1185

Passband2320~2370MHz, 2280MHz≥40dB, 2410MHz≥40dB, SMA
View Details →
ZBF3-L2345-90-1853 Filter

Filter ZBF3-L2345-90-1853

Passband2300~2390MHz, DC-2070MHz≥30dB, 2629-4780MHz≥30dB, Pin
View Details →

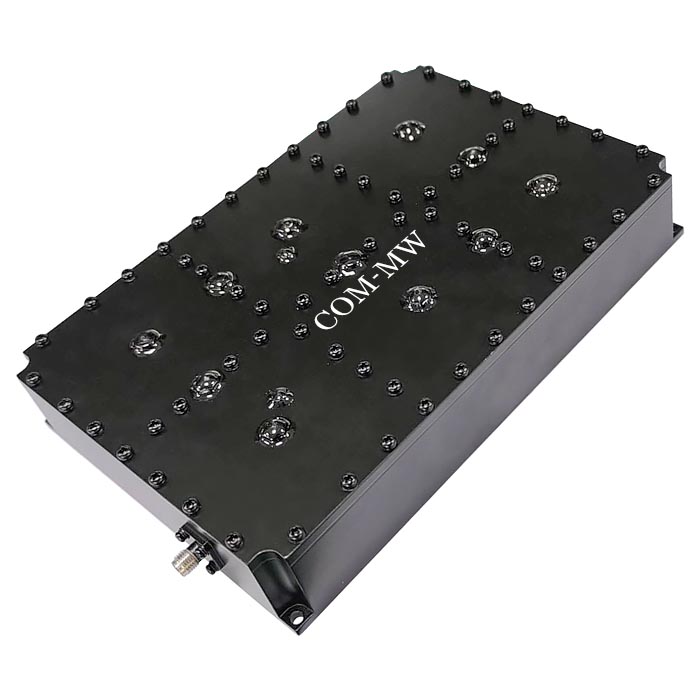

ZBF3-C2350-100-4313 Filter

Filter ZBF3-C2350-100-4313

Passband2300~2400MHz, DC-2280MHz≥60dB, 2420-6000MHz≥60dB, N
View Details →
ZBF20-L2350-300-234 Filter

Filter ZBF20-L2350-300-234

Passband2200~2500MHz, DC-2000MHz≥50dB, 2700-6000MHz≥50dB, SMD
View Details →

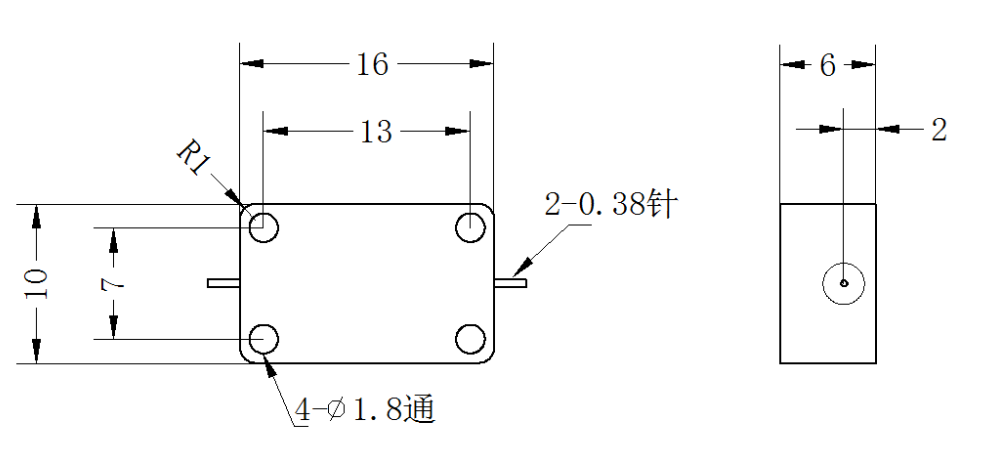

ZBF2-L2345-90-2064 Filter

Filter ZBF2-L2345-90-2064

Passband2300~2390MHz, DC-2050MHz≥50dBc, 2050-2170MHz≥45dBc, Pin
View Details →
ZBF2-C2350.5-301-2468 Filter

Filter ZBF2-C2350.5-301-2468

Passband2200~2501MHz, 1750~1851MHz≥dBc, dBc, SMA
View Details →

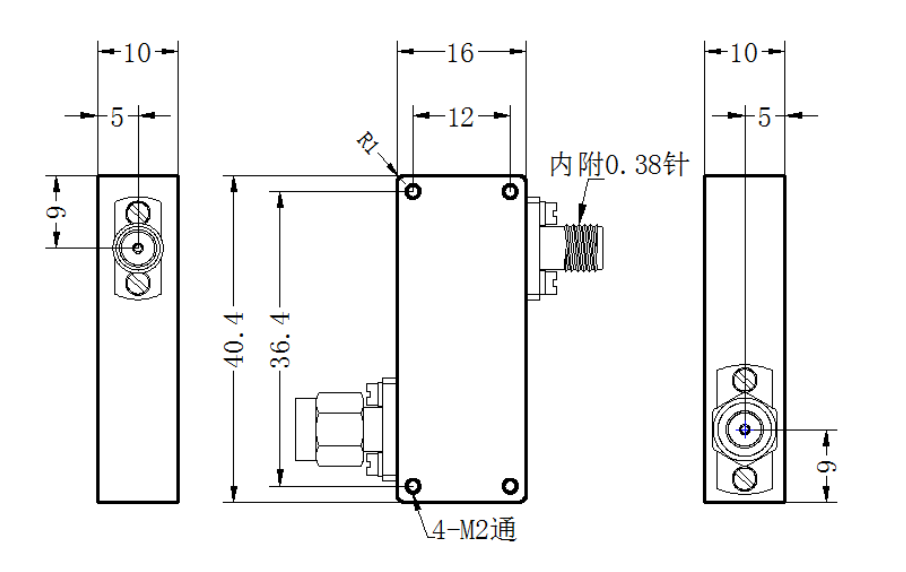

ZBF2-C2350-500-1641 Filter

Filter ZBF2-C2350-500-1641

Passband2100~2600MHz, 1700-1750MHz≥40dBc, 2950-3100MHz≥40dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
