Filters
Filters 1
F High MHz
2270 - 2275 3 2279 - 2280 3 2302 - 2307 6 2311 - 2320 3 2321 - 2336 2
–
Connector
SMD 2 SMA 7 N 3 Microstrip needle 5
Power Handling
1 2 2 4 5 1 10 8 25 2
–
Maximum loss of side frequency dB
1 - 1.5 6 2 - 2.5 8 3 - 5 2 5.5 1
–
Rejection dB
40 4 45 1 50 7 60 4 70 1
–
F Low MHz
2166 - 2186 3 2191 - 2200 8 2250 - 2265 4 2269 - 2270 2
–
Feature
Bandpass 17
Center frequency MHz
2251 10 2260 2 2270 4 2274 1
–
IL on center frequency dB
0.5 3 1 9 1.5 2 2 1 4 2
–
Filter type
LC 6 Cavity&waveguide 11
Center frequency：2251 - 2274 MHz× Clear all
matches 17 models Default Newest
ZBF16-C2270-10-490 Filter

Filter ZBF16-C2270-10-490

Passband2265~2275MHz, DC~2245MHz≥50dBc, 2295~5000MHz≥50dBc, N
In Stock View Details →

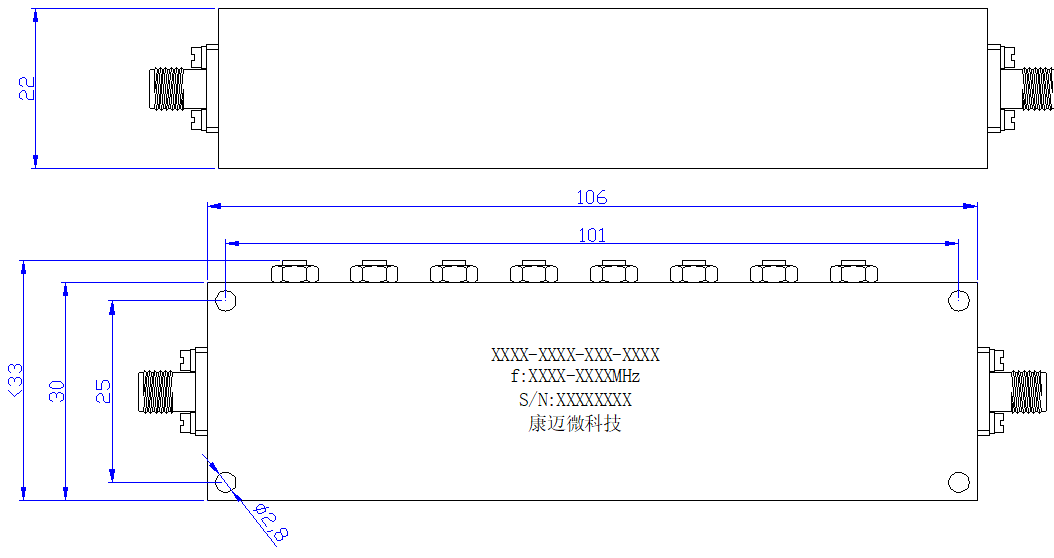

ZBF5-C2260-20-661 Filter

Filter ZBF5-C2260-20-661

Passband2250~2270MHz, 2160-2220MHz≥10dB, DC-2160MHz≥50dB, SMA
View Details →

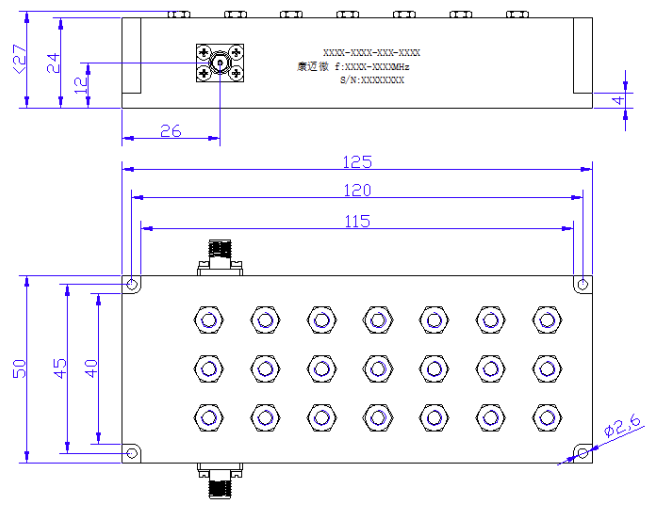

ZBF5-C2251-112-1551 Filter

Filter ZBF5-C2251-112-1551

Passband2195~2307MHz, DC-2140MHz≥60dBc, 2140-2170MHz≥40dBc, SMA
View Details →
ZBF3-C2251-102-3366 Filter

Filter ZBF3-C2251-102-3366

Passband2200~2302MHz, DC-2121MHz≥40dB, 2381-4000MHz≥40dB, SMA
View Details →

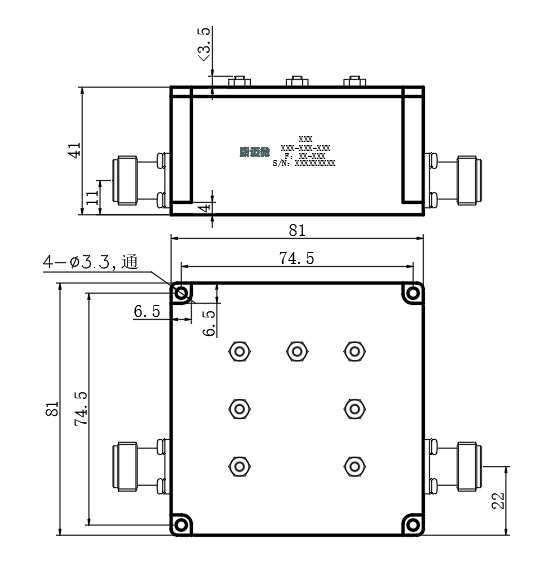

ZBF25-C2270-0-347 Filter

Filter ZBF25-C2270-0-347

Center Frequency2270MHz, DC-2250MHz≥50dB, 2290-4000MHz≥50dB, N
View Details →

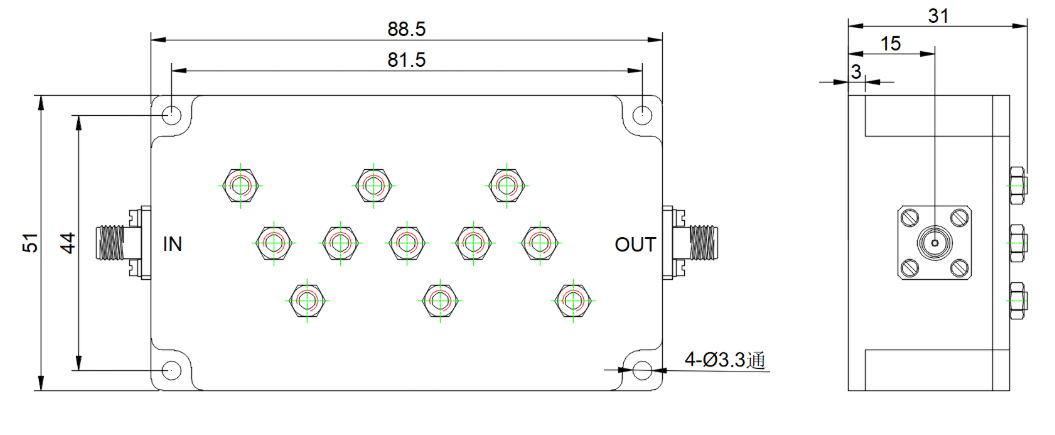

ZBF2-C2251-102-2366 Filter

Filter ZBF2-C2251-102-2366

Passband2200~2302MHz, DC-2120MHz≥40dB, 2.4-2.6GHz≥14dB, SMA
View Details →
ZBF16-L2251-170-051 Filter

Filter ZBF16-L2251-170-051

Passband2166-2336MHz, DC-1.7MHz≥50dBc, 4.4-5MHz≥50dBc, SMD
View Details →
ZBF16-L2251-130-050 Filter

Filter ZBF16-L2251-130-050

Passband2251MHz, DC-1.7MHz≥50dBc, 4.4-5MHz≥50dBc, SMD
View Details →
ZBF15-L2251-140-1734 Filter

Filter ZBF15-L2251-140-1734

Passband2181~2321MHz, DC-1710MHz≥60dBc, 2120MHz≥15dBc, SMA
View Details →
ZBF15-L2251-102-296 Filter

Filter ZBF15-L2251-102-296

Passband2200~2302MHz, DC-1200MHz≥60dBc, 2002MHz≥30dBc, Pin
View Details →
ZBF15-L2251-102-2855 Filter

Filter ZBF15-L2251-102-2855

Passband2200~2302MHz, DC-1720MHz≥70dBc, 1720-2025MHz≥25dBc, Pin
View Details →

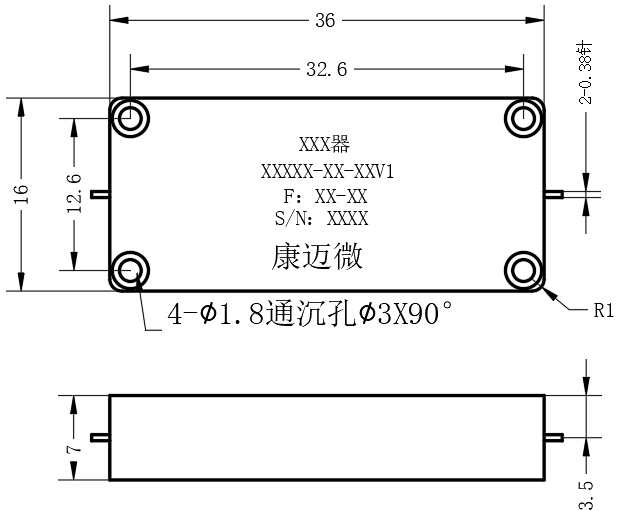

ZBF15-L2251-102-1376 Filter

Filter ZBF15-L2251-102-1376

Passband2200~2302MHz, DC-1760MHz≥60dBc, dBc, Pin
View Details →

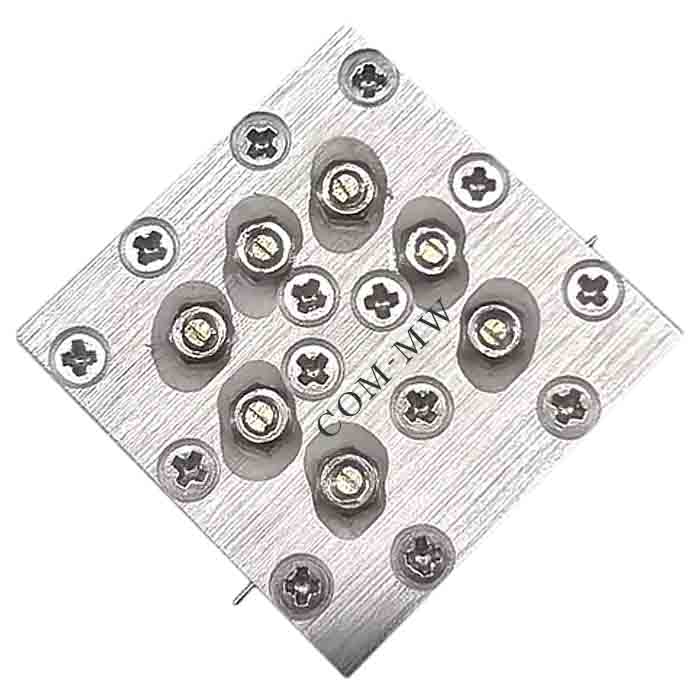

ZBF13-C2274-10-3767 Filter

Filter ZBF13-C2274-10-3767

Passband2269~2279MHz, DC-2204MHz≥45dBc, 2344-6000MHz≥45dBc, Pin
View Details →

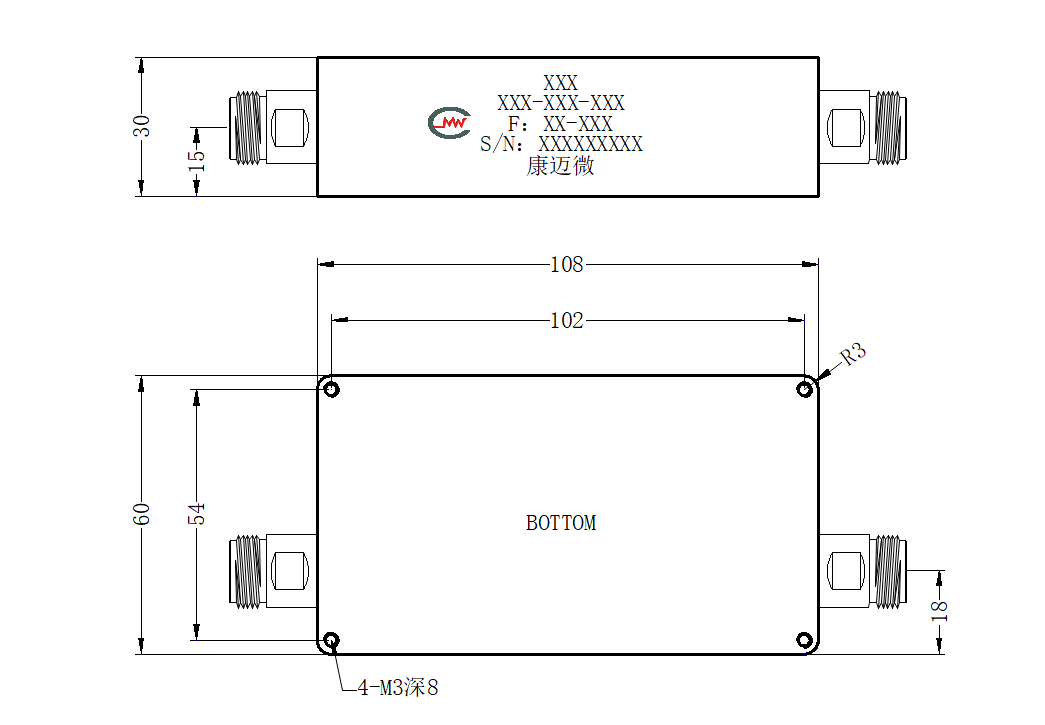

ZBF13-C2270-20-507 Filter

Filter ZBF13-C2270-20-507

Passband2260~2280MHz, DC-2.24GHz≥50dB, 2.3-4GHz≥50dB, N
View Details →

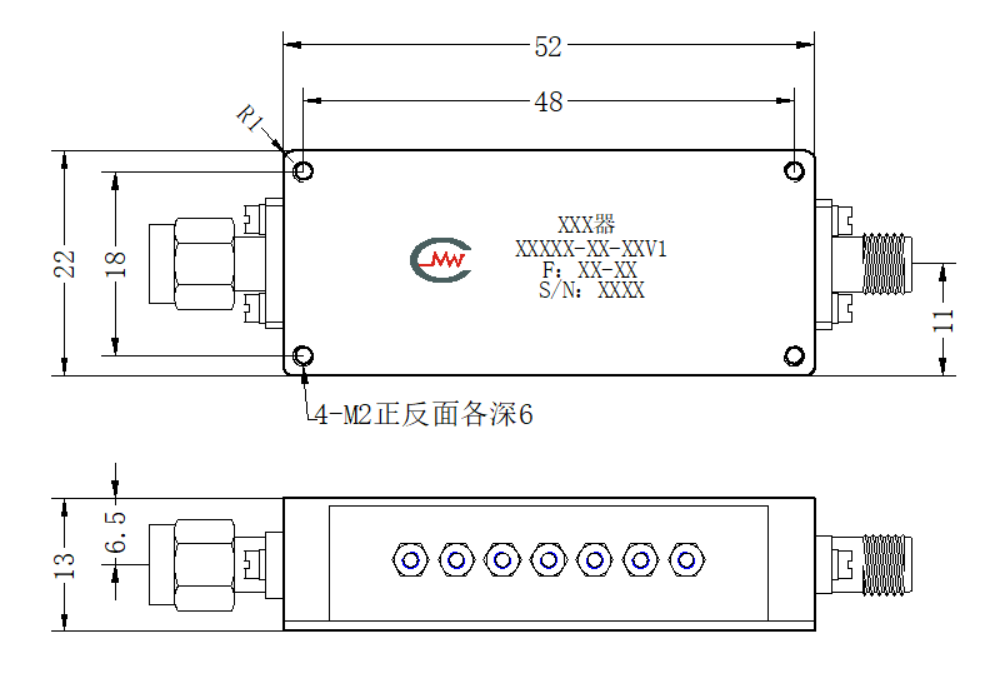

ZBF13-C2260-120-2616 Filter

Filter ZBF13-C2260-120-2616

Passband2.2~2.32GHz, DC-2.12GHz≥40dBc, 2.4-5GHz≥40dBc, SMA
View Details →
ZBF13-C2251-120-1801 Filter

Filter ZBF13-C2251-120-1801

Passband2191~2311MHz, DC-1.77GHz≥40dBc, 2018-2120MHz≥28dBc, Pin
View Details →

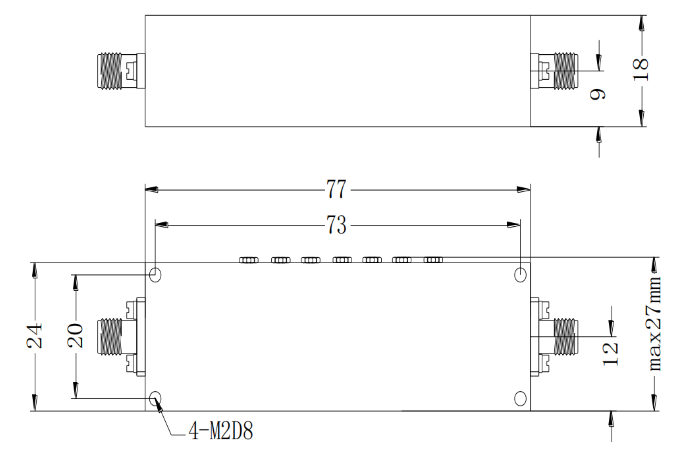

17-504-2260-2280 Filter

Filter 17-504-2260-2280

Passband2.26G~2.28GHz, DC-2.07GHz≥50dB, 2.47-4GHz≥50dB, SMA
View Details →
