RF Filter

Total 20 models
Categories
Categories RF Filter
RF Filter16048
RF Filter15376 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
2120 - 2125 14 2126 - 2130 3 2140 - 2145 2 2157.5 1
–
Connector
SMD 2 SMA 7 N 1 Microstrip needle 10
Power Handling
1 - 2 4 5 - 10 10 20 - 30 2 60 - 200 2 300 2
–
Maximum loss of side frequency dB
0.5 - 0.7 4 1 - 1.2 4 2 - 2.3 6 2.5 - 2.8 3 3 3
–
Rejection dB
45 - 50 4 60 - 65 9 70 - 75 2 80 - 90 5
–
F Low MHz
1987.5 - 2000 2 2005 - 2015 3 2019 - 2020 2 2025 13
–
Feature
Bandpass 20
Center frequency MHz
2072.5 20
–
IL on center frequency dB
0.3 - 0.4 3 0.5 - 0.6 5 1 - 2 12
–
Filter type
LC 9 Cavity&waveguide 11
Center frequency：2072.5 - 2072.5 MHz× Clear all
matches 20 models Default Newest
ZBF13-C2072.5-105-1797 Filter

Filter ZBF13-C2072.5-105-1797

Passband2020~2125MHz, DC-1.9GHz≥55dBc, 2.2-2.3GHz≥55dBc, SMA
In Stock View Details →
ZBF4-C2072.5-95-1260 Filter

Filter ZBF4-C2072.5-95-1260

Passband2025~2120MHz, 2200MHz≥80dB, dB, SMA
View Details →
ZBF4-C2072.5-95-1105 Filter

Filter ZBF4-C2072.5-95-1105

Passband2025~2120MHz, DC-1825MHz≥60dB, 2312-9000MHz≥60dB, SMA
View Details →
ZBF3-C2072.5-95-3956 Filter

Filter ZBF3-C2072.5-95-3956

Passband2025~2120MHz, DC-1850MHz≥65dB, 2200-6000MHz≥65dB, SMA
View Details →
ZBF2-L2072.5-135-1980 Filter

Filter ZBF2-L2072.5-135-1980

Passband2005~2140MHz, DC-1.8GHz≥50dBc, 3.195-5GHz≥50dBc, Pin
View Details →
ZBF15-L2072.5-95-682 Filter

Filter ZBF15-L2072.5-95-682

Passband2025~2120MHz, F0±500MHz≥75dBc, Pin
View Details →
ZBF15-L2072.5-95-1725 Filter

Filter ZBF15-L2072.5-95-1725

Passband2025~2120MHz, DC-1.6GHz≥60dBc, 1.6-1.72GHz≥40dBc, 2.25GHz≥30dBc, 2.5-3.2GHz≥60dB, Pin
View Details →
ZBF15-L2072.5-95-1710 Filter

Filter ZBF15-L2072.5-95-1710

Passband2025~2120MHz, DC-1.6GHz≥60dBc, 1.6-1.72GHz≥40dBc, 2.5-3.2GHz≥60dBc, dB, Pin
View Details →
ZBF15-L2072.5-95-1390 Filter

Filter ZBF15-L2072.5-95-1390

Passband2019~2126MHz, DC-1750MHz≥50dBc, 2250MHz≥18dBc, 2500MHz≥40dBc, Pin
View Details →
ZBF15-L2072.5-170-666 Filter

Filter ZBF15-L2072.5-170-666

View Details →
ZBF15-L2072.5-115-772 Filter

Filter ZBF15-L2072.5-115-772

Passband2015~2130MHz, DC-1600MHz≥60dB, 2500-5000MHz≥60dB, Pin
View Details →
ZBF15-L2072.5-115-1555 Filter

Filter ZBF15-L2072.5-115-1555

Passband2015~2130MHz, DC-1500MHz≥40dBc, 2700-3000MHz≥25dBc, Pin
View Details →
ZBF13-L2072.5-95-3973 Filter

Filter ZBF13-L2072.5-95-3973

Passband2025~2120MHz, DC-1822.5MHz≥40dB, 2322.5-4000MHz≥40dB, SMD
View Details →
ZBF13-C2072.5-95-979 Filter

Filter ZBF13-C2072.5-95-979

Passband2025~2120MHz, DC-1.8GHz≥40dBc, 2.2-2.3GHz≥40dBc, SMA
View Details →

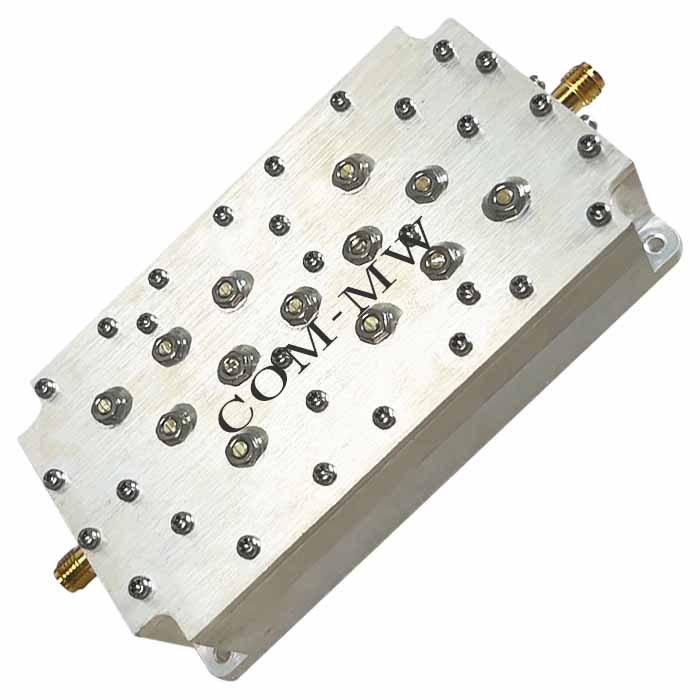

ZBF13-C2072.5-95-3103 Filter

Filter ZBF13-C2072.5-95-3103

Passband2025~2120MHz, 2.2-2.3GHz≥65dBc, 2nd harmonic60dBc, SMA
View Details →

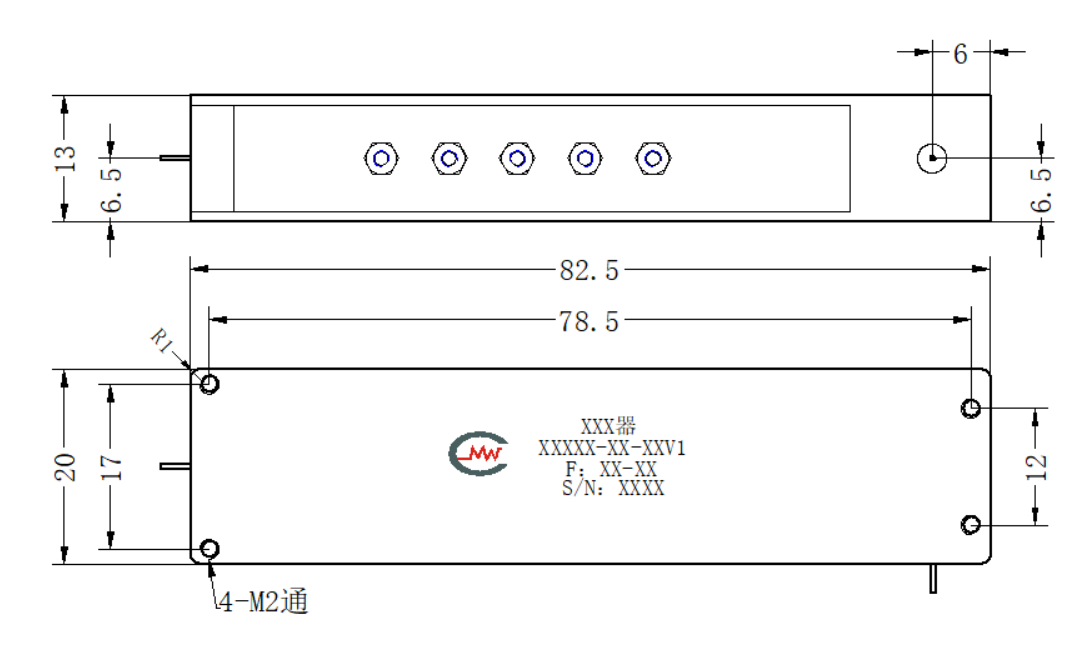

ZBF13-C2072.5-95-2238 Filter

Filter ZBF13-C2072.5-95-2238

Passband2025~2120MHz, DC-1.8GHz≥70dBc, 2.2-2.4GHz≥45dBc, Pin
View Details →

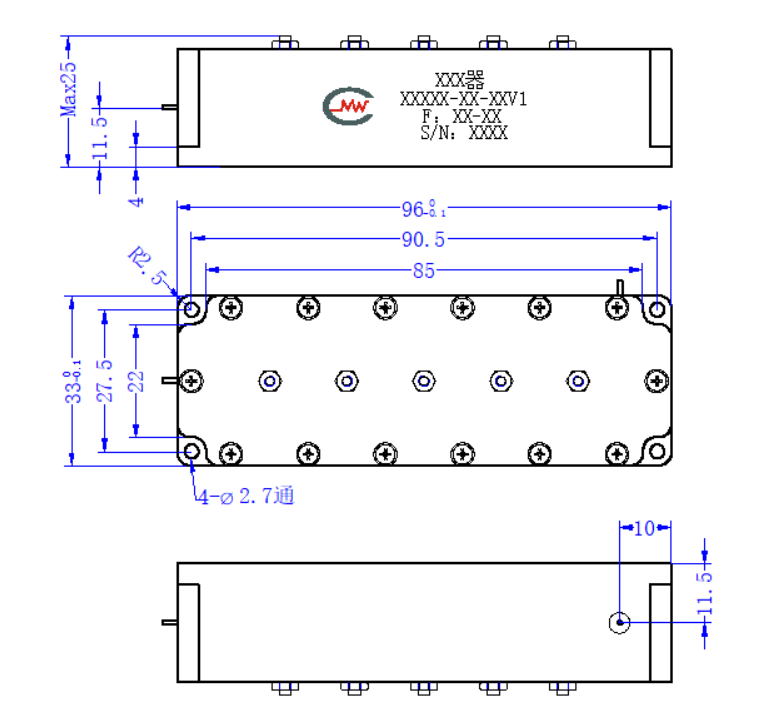

ZBF13-C2072.5-95-2237 Filter

Filter ZBF13-C2072.5-95-2237

Passband2025~2120MHz, DC-1.7GHz≥70dB, 2.2-2.4GHz≥32dB, Pin
View Details →

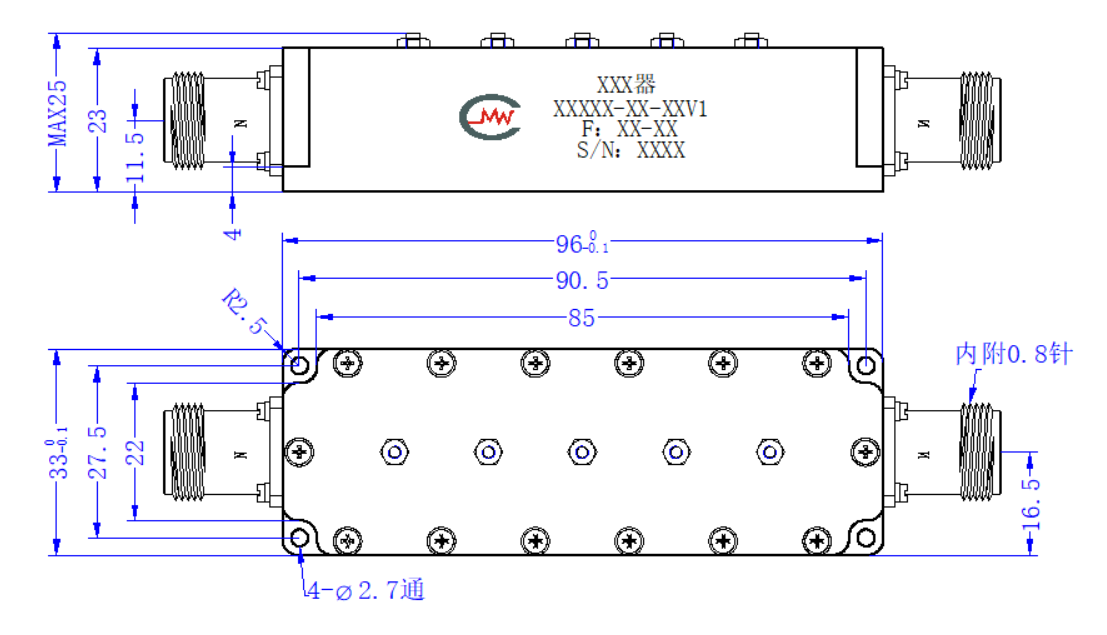

ZBF13-C2072.5-95-1695 Filter

Filter ZBF13-C2072.5-95-1695

Passband2025~2120MHz, DC-1.7GHz≥70dB, 2.2-2.3GHz≥32dB, N
View Details →
ZBF13-C2072.5-95-1694 Filter

Filter ZBF13-C2072.5-95-1694

Passband2025~2120MHz, DC-1.7GHz≥90dB, 2.2-2.3GHz≥44dB, Pin
View Details →
ZBF13-C2072.5-145-3130 Filter

Filter ZBF13-C2072.5-145-3130

Passband2000~2145MHz, DC-1.7GHz≥60dBc, 2.2-2.4GHz≥30dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
