Filters
Filters 1
F High MHz
2072 - 2095 6 2110 - 2125 26 2126 - 2137 6 2140 - 2154 4 2157.5 - 2180 3
–
Connector
Other 1 SMD 4 SMA 18 N 3 Microstrip needle 19
Power Handling
1 - 5 23 10 - 20 14 30 - 60 3 200 - 300 4 500 1
–
Maximum loss of side frequency dB
0.5 - 1 12 1.2 - 2 16 2.3 - 2.8 5 3 - 4 10 5 2
–
Rejection dB
35 - 40 4 45 - 50 11 60 - 65 16 70 - 75 6 80 - 90 8
–
F Low MHz
1960 - 1987.5 4 1994 - 2007 6 2015 - 2019 10 2020 - 2045 20 2050 - 2066 5
–
Feature
Bandpass 45
Center frequency MHz
2069 12 2070 10 2072 3 2072.5 20
–
IL on center frequency dB
0.3 - 0.4 6 0.5 - 0.6 7 1 - 1.5 20 2 - 4 12
–
Filter type
LC 20 Cavity&waveguide 25
Center frequency：2069 - 2072.5 MHz× Clear all
matches 45 models Default Newest
ZBF13-C2072.5-105-1797 Filter

Filter ZBF13-C2072.5-105-1797

Passband2020~2125MHz, DC-1.9GHz≥55dBc, 2.2-2.3GHz≥55dBc, SMA
In Stock View Details →
ZBF5-L2070-50-1752 Filter

Filter ZBF5-L2070-50-1752

Passband2045~2095MHz, -0.5dB BW50~150MHz, DC-1770MHz≥40dBc, 2370-4000MHz≥40dBc, Pin
View Details →
ZBF5-C2069-6-3114 Filter

Filter ZBF5-C2069-6-3114

Passband2066~2072MHz, 2062MHz≥5dBc, 2076MHz≥5dBc, SMA
View Details →
ZBF5-C2069-106-3116 Filter

Filter ZBF5-C2069-106-3116

Passband2016~2122MHz, 2006MHz≥5dBc, 2132MHz≥5dBc, SMA
View Details →
ZBF5-C2069-10-3311 Filter

Filter ZBF5-C2069-10-3311

Passband2064~2074MHz, 2049-2059MHz≥5dBc, 2079-2089MHz≥5dBc, SMA
View Details →

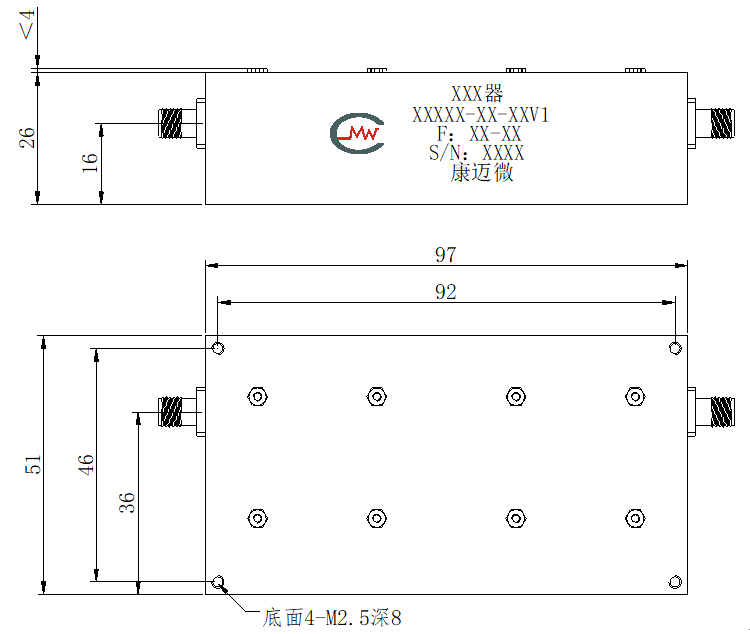

ZBF4-C2072.5-95-1260 Filter

Filter ZBF4-C2072.5-95-1260

Passband2025~2120MHz, 2200MHz≥80dB, dB, SMA
View Details →

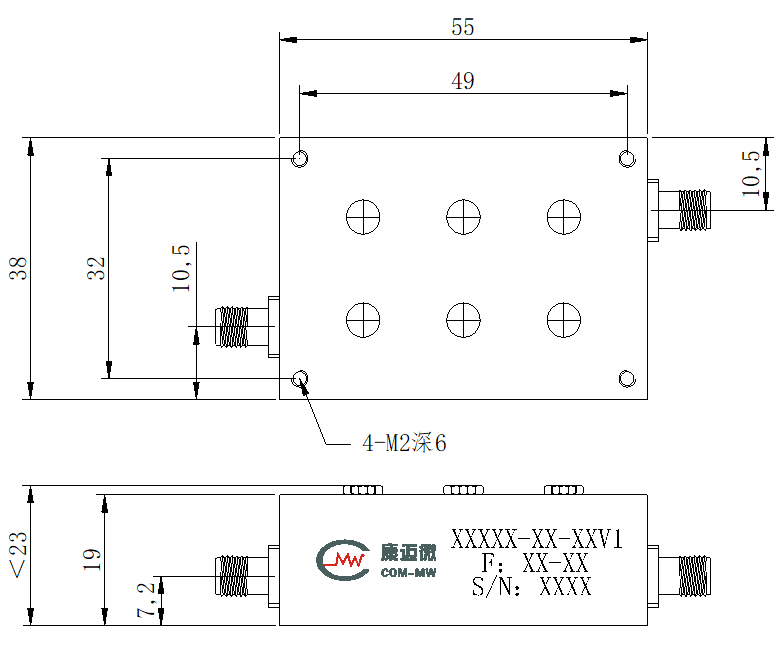

ZBF4-C2072.5-95-1105 Filter

Filter ZBF4-C2072.5-95-1105

Passband2025~2120MHz, DC-1825MHz≥60dB, 2312-9000MHz≥60dB, SMA
View Details →
ZBF4-C2.07-0.04G-878 Filter

Filter ZBF4-C2.07-0.04G-878

Passband2050~2090MHz, DC-1950MHz≥50dB, 2170-5000MHz≥50dB, SMA
View Details →

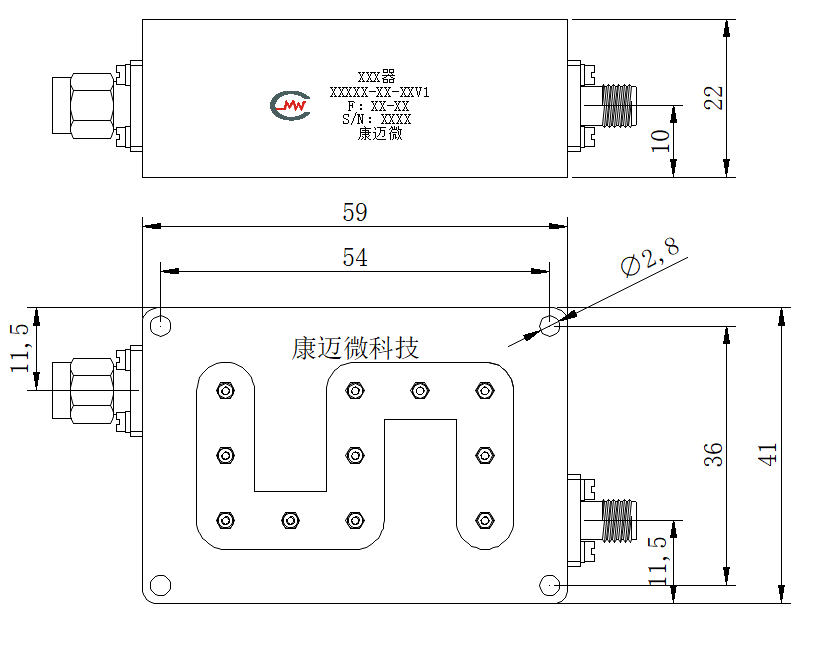

ZBF3-C2072.5-95-3956 Filter

Filter ZBF3-C2072.5-95-3956

Passband2025~2120MHz, DC-1850MHz≥65dB, 2200-6000MHz≥65dB, SMA
View Details →
ZBF3-C2069-102-3365 Filter

Filter ZBF3-C2069-102-3365

Passband2018~2120MHz, DC-2000MHz≥20dB, 2199-4000MHz≥40dB, SMA
View Details →
ZBF3-C2069-102-2126 Filter

Filter ZBF3-C2069-102-2126

Passband2018~2120MHz, DC-1769MHz≥75dB, 2369-6000MHz≥75dB, SMA
View Details →
ZBF20-D2070-100-314 Filter

Filter ZBF20-D2070-100-314

Passband2020~2120MHz, DC-1960MHz≥40dB, 2180-2500MHz≥40dB, MCX
View Details →

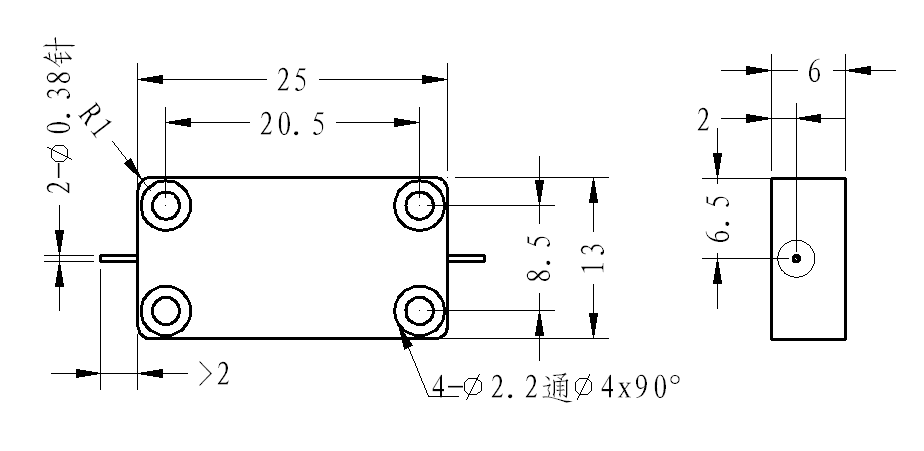

ZBF2-L2072.5-135-1980 Filter

Filter ZBF2-L2072.5-135-1980

Passband2005~2140MHz, DC-1.8GHz≥50dBc, 3.195-5GHz≥50dBc, Pin
View Details →

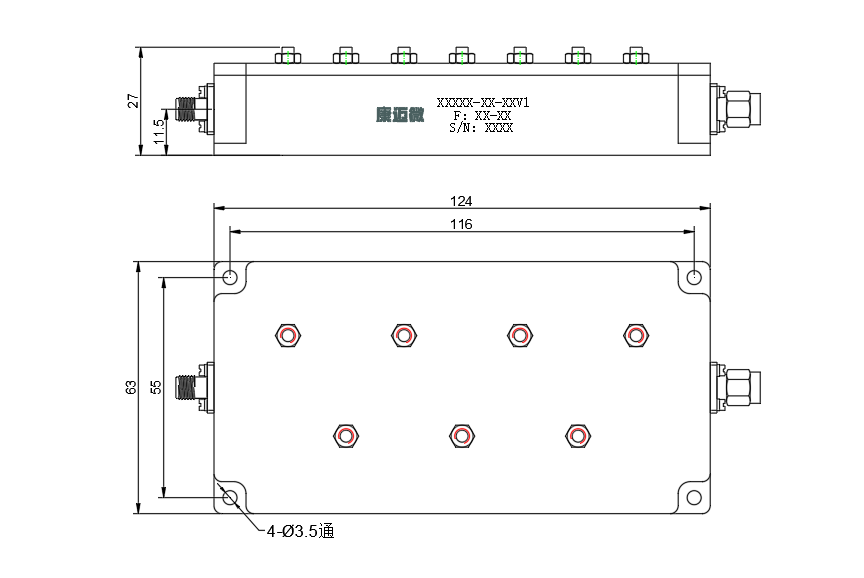

ZBF16-M2072.5-95-206 Filter

Filter ZBF16-M2072.5-95-206

Passband2025~2120MHz, DC~1950MHz≥60dB, 2200~4000MHz≥60dB, SMA
View Details →
ZBF16-L2069-170-048 Filter

Filter ZBF16-L2069-170-048

Passband1984~2154MHz, DC-1.7MHz≥50dBc, 2.5-3MHz≥50dBc, SMD
View Details →

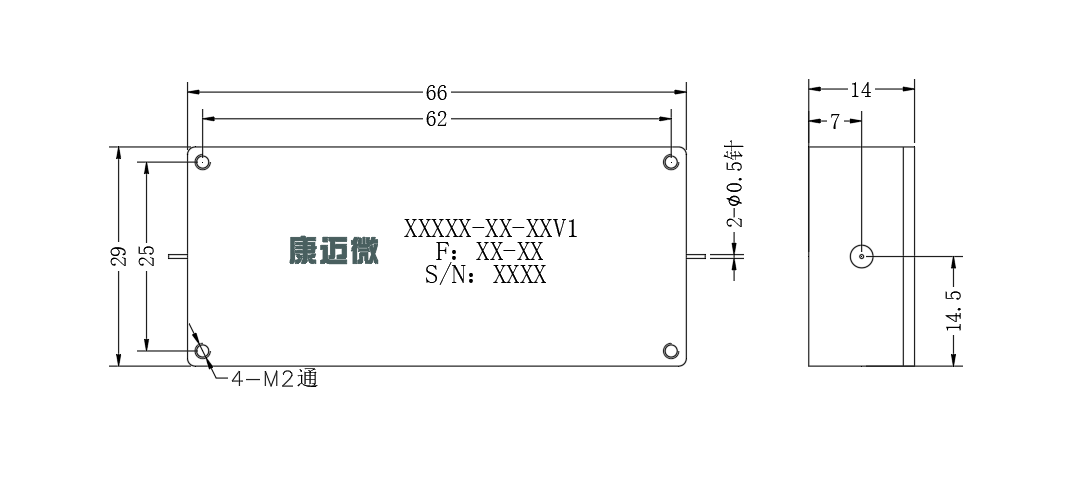

ZBF16-C2070-130-195 Filter

Filter ZBF16-C2070-130-195

Passband2005~2135MHz, 1400~1780MHz≥70dB, 1768~1772MHz≥90dB, Pin
View Details →
ZBF15-L2072.5-95-682 Filter

Filter ZBF15-L2072.5-95-682

Passband2025~2120MHz, F0±500MHz≥75dBc, Pin
View Details →
ZBF15-L2072.5-95-1725 Filter

Filter ZBF15-L2072.5-95-1725

Passband2025~2120MHz, DC-1.6GHz≥60dBc, 1.6-1.72GHz≥40dBc, 2.25GHz≥30dBc, 2.5-3.2GHz≥60dB, Pin
View Details →
ZBF15-L2072.5-95-1710 Filter

Filter ZBF15-L2072.5-95-1710

Passband2025~2120MHz, DC-1.6GHz≥60dBc, 1.6-1.72GHz≥40dBc, 2.5-3.2GHz≥60dBc, dB, Pin
View Details →
ZBF15-L2072.5-95-1390 Filter

Filter ZBF15-L2072.5-95-1390

Passband2019~2126MHz, DC-1750MHz≥50dBc, 2250MHz≥18dBc, 2500MHz≥40dBc, Pin
View Details →
ZBF15-L2072.5-170-666 Filter

Filter ZBF15-L2072.5-170-666

View Details →

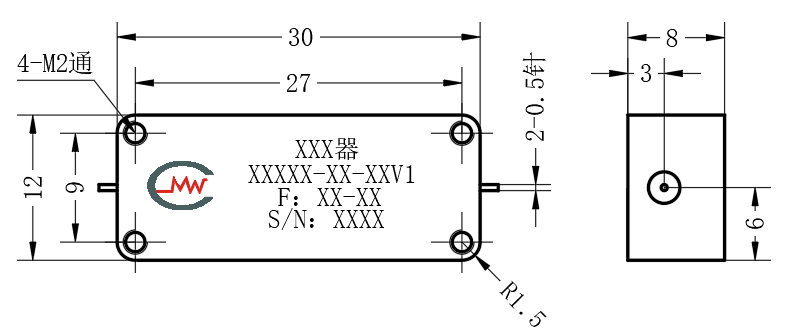

ZBF15-L2072.5-115-772 Filter

Filter ZBF15-L2072.5-115-772

Passband2015~2130MHz, DC-1600MHz≥60dB, 2500-5000MHz≥60dB, Pin
View Details →
ZBF15-L2072.5-115-1555 Filter

Filter ZBF15-L2072.5-115-1555

Passband2015~2130MHz, DC-1500MHz≥40dBc, 2700-3000MHz≥25dBc, Pin
View Details →

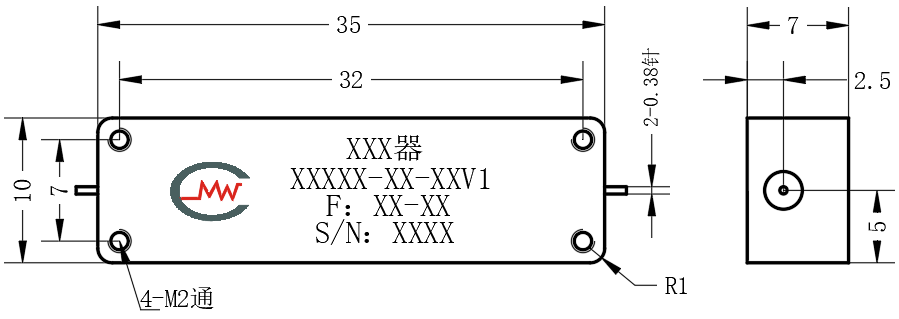

ZBF15-L2070-80-370 Filter

Filter ZBF15-L2070-80-370

Passband2030~2110MHz, 1930MHz≥20dB, DC-1600MHz≥50dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
