Center frequency：19700 - 19900 MHz× Clear all
matches 22 models Default Newest
STBP199-4R8-N250 Thin film filter

Thin film filter STBP199-4R8-N250

Bandwidth17.5-22.3GHz, Rejection40@DC-15.5GHz, 40@24.5-45.0GHz
In Stock View Details →
STBP199-3R7-M448 Thin film filter

Thin film filter STBP199-3R7-M448

Bandwidth18.0-21.7GHz, Rejection40@DC-15.7GHz, 40@24.8-45.0GHz
In Stock View Details →
STBP199-1R7-K805 Thin film filter

Thin film filter STBP199-1R7-K805

Bandwidth19.0-20.7GHz, Rejection40@DC-17.5GHz, 40@22.0-34.0GHz
In Stock View Details →
STBP199-1R4-K798 Thin film filter

Thin film filter STBP199-1R4-K798

Bandwidth19.2-20.6GHz, Rejection40@DC-17.9GHz, 40@22.0-30.0GHz
In Stock View Details →

Thin film filter STBP199-3R4-K746

Bandwidth18.2-21.6GHz, Rejection30@DC-16.8GHz, 40@23.6-45.0GHz
In Stock View Details →
WLMD167230K Filter

Filter WLMD167230K

Passband16700~23000MHz, 15.15&24.5GHz≥20dB, 14.8&25.05GHz≥30dB, Microstrip pad, MEMS
In Stock View Details →
STHP118-M064 Thin film filter

Thin film filter STHP118-M064

Bandwidth11.8-28.0GHz, Rejection28@DC-9.3GHz
In Stock View Details →
STBP198-2R9-M496 Thin film filter

Thin film filter STBP198-2R9-M496

Bandwidth18.3-21.2GHz, Rejection40@DC-16.6GHz, 40@22.7-40.0GHz
In Stock View Details →
ZBF8-C19.7-1G-3132 Filter

Filter ZBF8-C19.7-1G-3132

Passband19.2~20.2GHz, DC-17.5GHz≥100dB, 17.5-18.25GHz≥90dB, 18.25-18.7GHz≥45dB, 2.92
In Stock View Details →
ZBF8-1C19.8-0.5G-1867 Filter

Filter ZBF8-1C19.8-0.5G-1867

Passband19550~20050MHz, DC-18800MHz≥55dB, 20800-21300MHz≥55dB, 2.92-KRemovable
In Stock View Details →
ZBF25-C19.7-1.8G-178 Filter

Filter ZBF25-C19.7-1.8G-178

Passband18.8~20.6GHz, DC-16.9GHz≥80dBc, 16.9-17.85GHz≥70dBc, SMA
In Stock View Details →
ZBF13-C19.85-4.3G-316 Filter

Filter ZBF13-C19.85-4.3G-316

Passband17.7~22GHz, DC-13GHz≥35dB, 23.7-28GHz≥55dB, Pin
In Stock View Details →
ZBF5-C19.85-1.1G-3003 Filter

Filter ZBF5-C19.85-1.1G-3003

Passband19.3~20.4GHz, DC-18.3GHz≥60dBc, 18.35GHz≥50dBc, Pin
View Details →

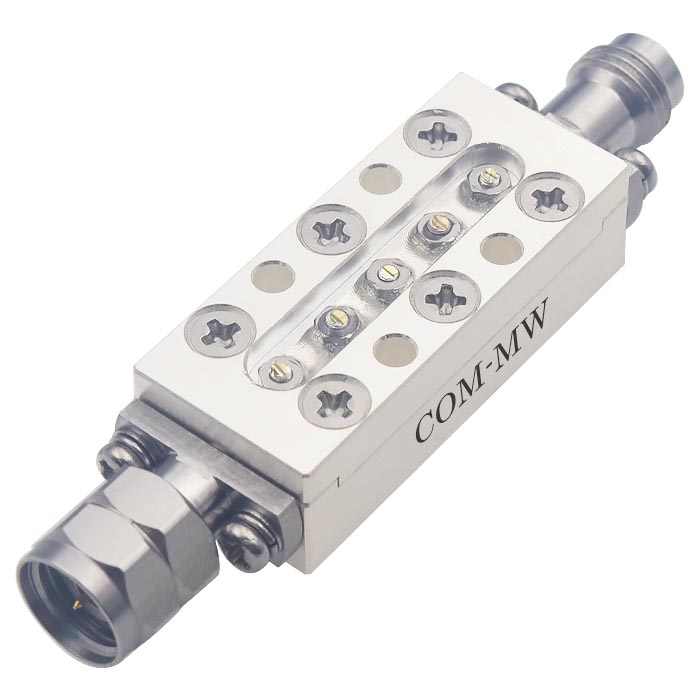

ZBF25-C19.9-0.04G-094 Filter

Filter ZBF25-C19.9-0.04G-094

Passband19.88~19.92GHz, DC-19.6GHz≥50dB, 20.2-28GHz≥50dB, SMA
View Details →
ZBF2-C19.9-2.6G-1993 Filter

Filter ZBF2-C19.9-2.6G-1993

Passband18.6~21.2GHz, DC-17.6GHz≥50dBc, 22.2-30GHz≥50dBc, Pin
View Details →

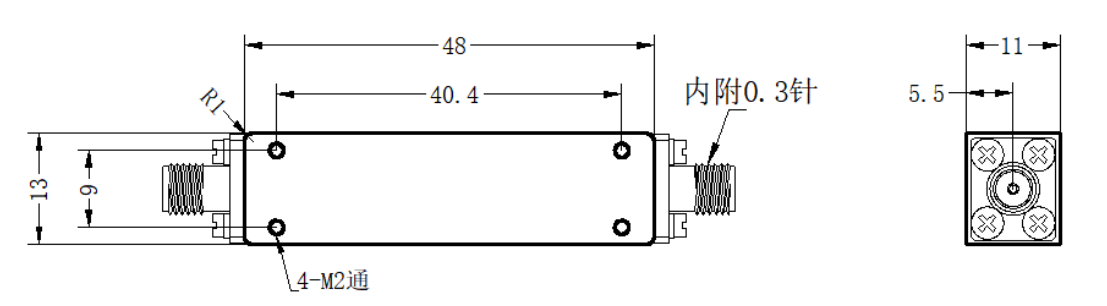

ZBF2-C19.7-3G-2398 Filter

Filter ZBF2-C19.7-3G-2398

Passband18.2~21.2GHz, 22.55-23.15GHz≥40dB, 29-31GHz≥40dB, Pin
View Details →

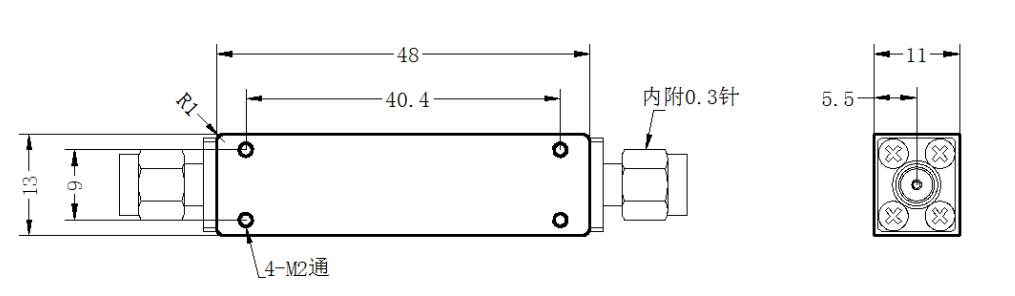

ZBF2-C19.7-3G-1679 Filter

Filter ZBF2-C19.7-3G-1679

Passband18.2~21.2GHz, 22.7-22.9GHz≥60dB, 29-31GHz≥60dB, 2.92
View Details →
ZBF13-C19.8-1.2G-3241 Filter

Filter ZBF13-C19.8-1.2G-3241

Passband19.2~20.4GHz, DC-18.25GHz≥60dBc, 21.5-35GHz≥60dBc, Pin
View Details →
ZBF13-C19.7-3G-2874 Filter

Filter ZBF13-C19.7-3G-2874

Passband18.2~21.2GHz, DC-16GHz≥70dBc, 16-17.2GHz≥50dBc, Pin
View Details →

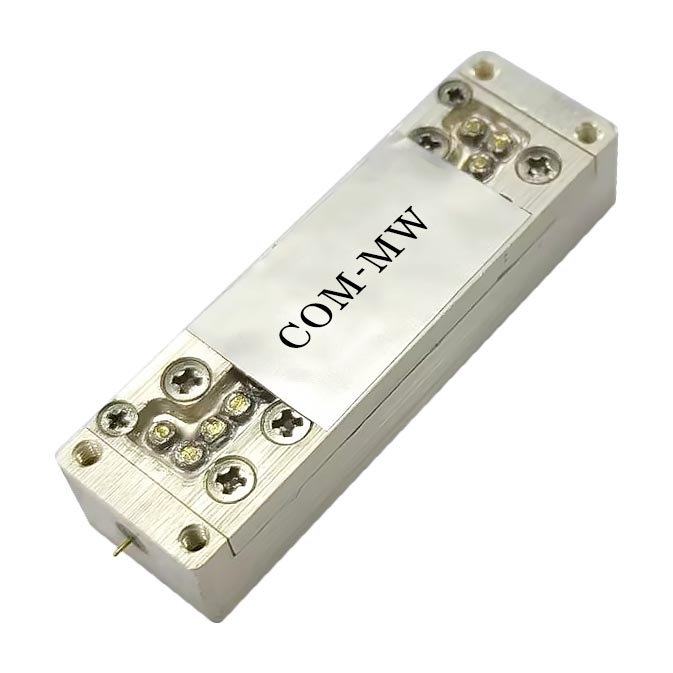

ZBF13-C19.7-3G-059 Filter

Filter ZBF13-C19.7-3G-059

Passband18.2~21.2GHz, DC-16GHz≥35dBc, 22.5-25GHz≥35dBc, Pin
View Details →
STBP199-3R4-G746 陶瓷滤波器

陶瓷滤波器 STBP199-3R4-G746

Bandwidth18.2-21.6GHz, Rejection30@DC-16.8GHz, 40@23.6-45.0GHz
View Details →
STBP199-1R4-G798 陶瓷滤波器

陶瓷滤波器 STBP199-1R4-G798

Bandwidth19.2-20.6GHz, Rejection40@DC-17.8GHz, 40@22.0-30.0GHz
View Details →
