Filters
Filters 1
F High MHz
190 - 216 3 220 - 225 6 230 - 235 4 235.32 - 340 2
–
Connector
SMD 7 Microstrip needle 8
Power Handling
1 8 2 5 5 2
–
Maximum loss of side frequency dB
1 - 1.5 3 1.7 - 2 5 2.5 - 3 7
–
Rejection dB
30 - 35 2 40 - 43 8 50 - 52 2 55 - 60 3
–
F Low MHz
30 - 127 3 130 - 135.32 4 138 - 144 6 150 - 180 2
–
Feature
Bandpass 15
Center frequency MHz
180 11 182.5 1 185 2 185.32 1
–
IL on center frequency dB
0.5 1 1 9 2 5
–
Filter type
LC 15
Center frequency：180 - 185.32 MHz× Clear all
matches 15 models Default Newest
ZBF13-L180-80-1516 Filter

Filter ZBF13-L180-80-1516

Passband140~220MHz, DC-108MHz≥40dB, 260-1000MHz≥40dB, SMD
In Stock View Details →
ZBF5-L185-10-1553 Filter

Filter ZBF5-L185-10-1553

Passband180~190MHz, DC-100MHz≥55dBc, 270-500MHz≥55dBc, Pin
View Details →
ZBF5-L180-80-2069 Filter

Filter ZBF5-L180-80-2069

Passband140~220MHz, DC-120MHz≥60dBc, 250-600MHz≥60dBc, Pin
View Details →
ZBF5-L180-70-1068 Filter

Filter ZBF5-L180-70-1068

Passband150~210MHz, DC-130MHz≥25dBc, 230-500MHz≥35dBc, SMD
View Details →
ZBF5-L180-100-3660 Filter

Filter ZBF5-L180-100-3660

Passband130~230MHz, DC-50MHz≥50dBc, 310-600MHz≥50dBc, Pin
View Details →
ZBF3-L180-84-1028 Filter

Filter ZBF3-L180-84-1028

Passband138~222MHz, DC-100MHz≥30dB, 276-444MHz≥40dB, Pin
View Details →
ZBF3-L180-106-1027 Filter

Filter ZBF3-L180-106-1027

Passband127~233MHz, DC-90MHz≥40dB, 254MHz≥20dB, Pin
View Details →
ZBF3-L180-100-3475 Filter

Filter ZBF3-L180-100-3475

Passband130~230MHz, DC-110MHz≥40dBc, 250-500MHz≥40dBc, SMD
View Details →

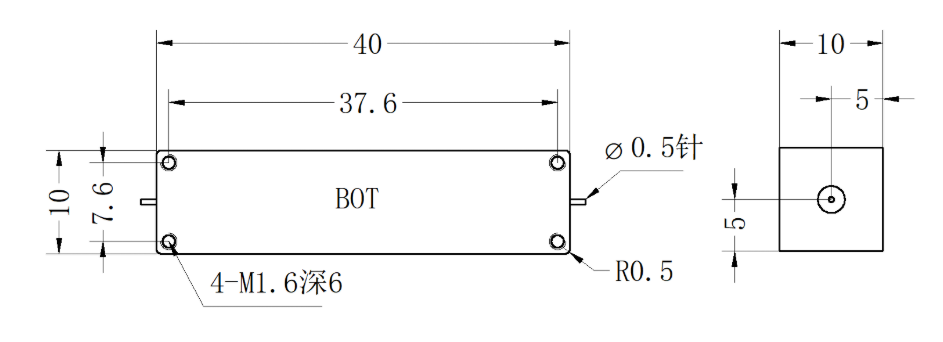

ZBF2-L180-80-1512 Filter

Filter ZBF2-L180-80-1512

Passband140~220MHz, DC-108MHz≥40dBc, 252-1500MHz≥40dBc, Pin
View Details →
ZBF15-L185.32-100-195 Filter

Filter ZBF15-L185.32-100-195

Passband135.32~235.32MHz, DC-106MHz≥40dBc, 260-4000MHz≥40dBc, SMD
View Details →
ZBF15-L182.5-85-615 Filter

Filter ZBF15-L182.5-85-615

Passband140~225MHz, DC-85MHz≥50dBc, 280-890MHz≥54dBc,
View Details →
ZBF15-L180-90-456 Filter

Filter ZBF15-L180-90-456

Passband135~225MHz, DC-105MHz≥30dB, 245-500MHz≥30dB, SMD
View Details →

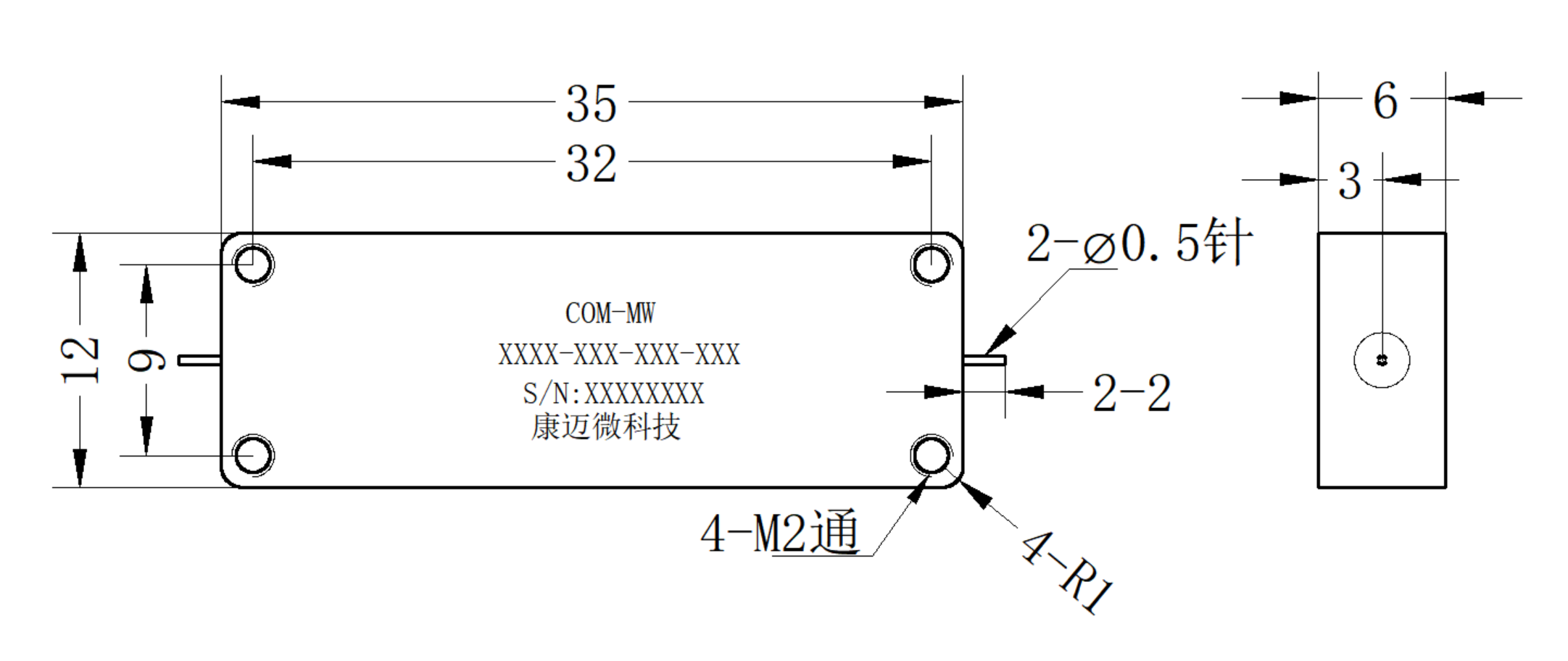

ZBF14-L180-110-697 Filter

Filter ZBF14-L180-110-697

View Details →
ZBF13-L185-310-3754 Filter

Filter ZBF13-L185-310-3754

Passband30~340MHz, DC-24MHz≥40dBc, 420-1000MHz≥40dBc, SMD
View Details →
ZBF13-L180-72-2209 Filter

Filter ZBF13-L180-72-2209

Passband144~216MHz, DC-110MHz≥60dBc, 260-1000MHz≥60dBc, SMD
View Details →
