Filters
Filters 1
F High MHz
1700 - 1720 6 1725 - 1745 5 1750 - 1850 7 1900 - 2100 8 2200 - 3400 2
–
Connector
Other 1 SMD 5 SMA 8 N 2 Microstrip pad 2 Microstrip needle 10
Power Handling
0.1 - 1 10 2 - 5 12 10 - 32 3 50 - 260 3
–
Maximum loss of side frequency dB
0.5 - 0.8 3 1 - 2 11 2.5 - 3 9 3.5 - 4 3 4.5 2
–
Rejection dB
35 - 40 7 42 - 49.999 2 50 - 55 7 60 - 65 10 70 - 100 2
–
F Low MHz
0 - 1400 8 1430 - 1600 7 1625 - 1675 6 1678 - 1695 6 1700 1
–
Feature
Bandpass 27 low pass 1
Center frequency MHz
1700 21 1702.5 1 1704 2 1705 4
–
IL on center frequency dB
0.3 - 0.4 2 0.5 - 1 12 2 - 2.5 8 3 - 3.5 3 4.5 1
–
Filter type
LC 18 Cavity&waveguide 6 stripline 1 MEMS 1 Dielectric 1 FBAR 1
Center frequency：1700 - 1705 MHz× Clear all
matches 28 models Default Newest
CA0277 SMD Filter

SMD Filter CA0277

BandwidthDC-3.4GHz, Rejection40@4.1GHz
In Stock View Details →
ZBF15-L1700-600-634 Filter

Filter ZBF15-L1700-600-634

Passband1400~2000MHz, DC-1120MHz≥40dBc, 2350-5000MHz≥40dBc, SMD
In Stock View Details →
WLMF1700B000AK Filter

Filter WLMF1700B000AK

Passband1700MHz, 1.6GHz≥4050dB, 1.8GHz≥4050dB, Microstrip pad, FBAR
In Stock View Details →
ZBF15-L1700-600-633 Filter

Filter ZBF15-L1700-600-633

Passband1400~2000MHz, DC-1120MHz≥40dBc, 2400-5000MHz≥40dBc, SMA
In Stock View Details →
ZBF2-C1700-20-2640 Filter

Filter ZBF2-C1700-20-2640

Passband1690~1710MHz, f0±100~±300MHzMHz≥42dBc, dB, Pin
In Stock View Details →
SM0007 MEMS Filter

MEMS Filter SM0007

Bandwidth1.4-2.0GHz, Rejection40@DC-1.0GHz, 55@2.7-5.5GHz,
In Stock View Details →
ZBF5-L1700-800-2066 Filter

Filter ZBF5-L1700-800-2066

Passband1300~2100MHz, 2600-4200MHz≥50dBc, Pin
View Details →
ZBF5-L1700-600-1295 Filter

Filter ZBF5-L1700-600-1295

Passband1400~2000MHz, DC-1120MHz≥50dBc, 2400-4000MHz≥50dBc, Pin
View Details →
ZBF5-L1700-100-1604 Filter

Filter ZBF5-L1700-100-1604

Passband1650~1750MHz, DC-1450MHz≥60dBc, 3000-3300MHz≥50dBc, Pin
View Details →
ZBF3-L1705-550-4503 Filter

Filter ZBF3-L1705-550-4503

Passband1430~1980MHz, DC-1290MHz≥40dB, 2110-4000MHz≥50dB, Pin
View Details →
ZBF3-L1705-160-2827 Filter

Filter ZBF3-L1705-160-2827

Passband1625~1785MHz, 1350-1518MHz≥35dBc, dB, SMD
View Details →
ZBF3-L1700-95.2-847 Filter

Filter ZBF3-L1700-95.2-847

Passband1655~1745MHz, DC-1435MHz≥40dB, 2010-3500MHz≥40dB, SMA
View Details →
ZBF3-L1700-300-2970 Filter

Filter ZBF3-L1700-300-2970

Passband1550~1850MHz, DC-800MHz≥60dBc, 800-1450MHz≥30dBc, Pin
View Details →

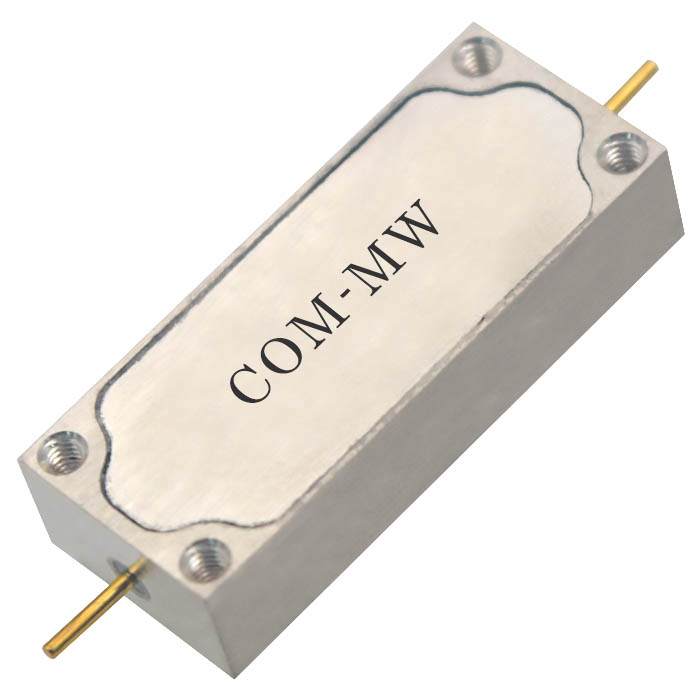

ZBF3-L1700-200-3880 Filter

Filter ZBF3-L1700-200-3880

Passband1600~1800MHz, DC-1400MHz≥45dBc, 2000-2200MHz≥45dBc, Pin
View Details →

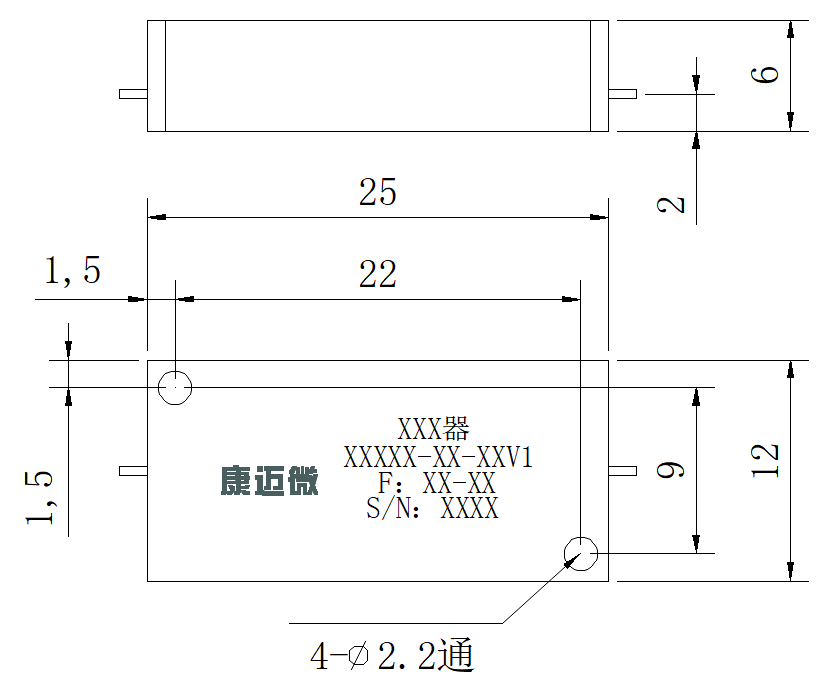

ZBF3-L1700-200-1351 Filter

Filter ZBF3-L1700-200-1351

Passband1600~1800MHz, 1300MHz≥20dB, 2100MHz≥20dB, Pin
View Details →

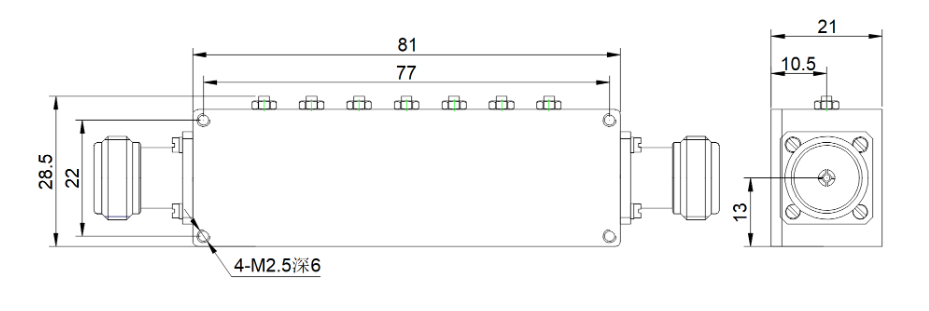

ZBF2-C1700-20-2358 Filter

Filter ZBF2-C1700-20-2358

Passband1690~1710MHz, DC-1450MHz≥50dB, 1800MHz≥25dB, N
View Details →

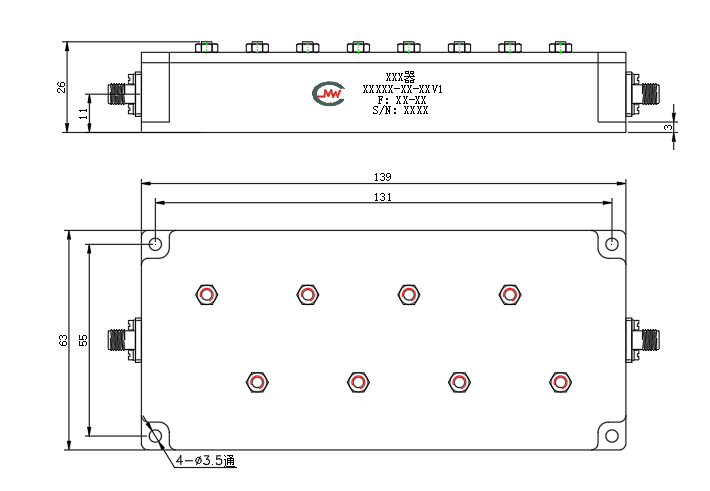

ZBF16-C1702.5-15-215 Filter

Filter ZBF16-C1702.5-15-215

Passband1695~1710MHz, DC~1686MHz≥60dBc, 1719~2800MHz≥60dBc, SMA
View Details →
ZBF16-C1700-800-435 Filter

Filter ZBF16-C1700-800-435

Passband1300~2100MHz, 2600~3500MHz≥100dB, 3500~6300MHz≥70dB, GHz≥dB, SMA
View Details →

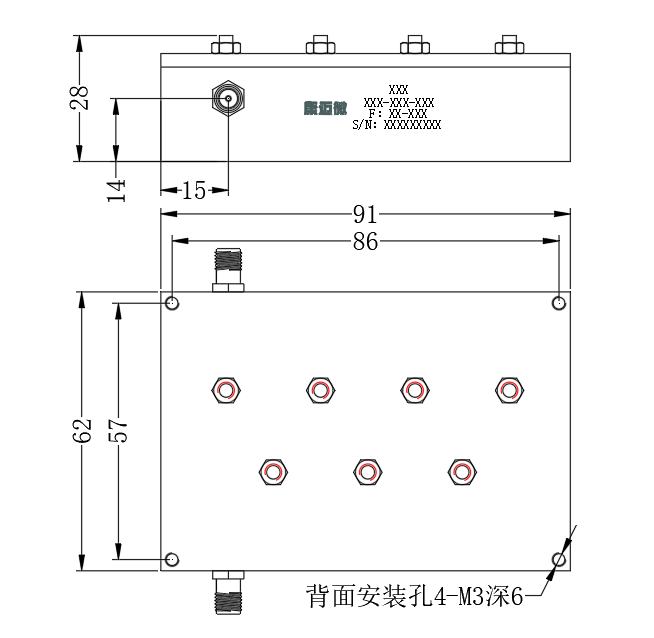

ZBF16-C1700-50-350 Filter

Filter ZBF16-C1700-50-350

Passband1675~1725MHz, DC~1645MHz≥60dBc, 1755~3000MHz≥60dBc, GHz≥dB, GHz≥dB, SMA
View Details →
ZBF15-L1705-30-1368 Filter

Filter ZBF15-L1705-30-1368

Passband1690~1720MHz, DC-1570MHz≥65dBc, 1840-3500MHz≥65dBc, SMD
View Details →

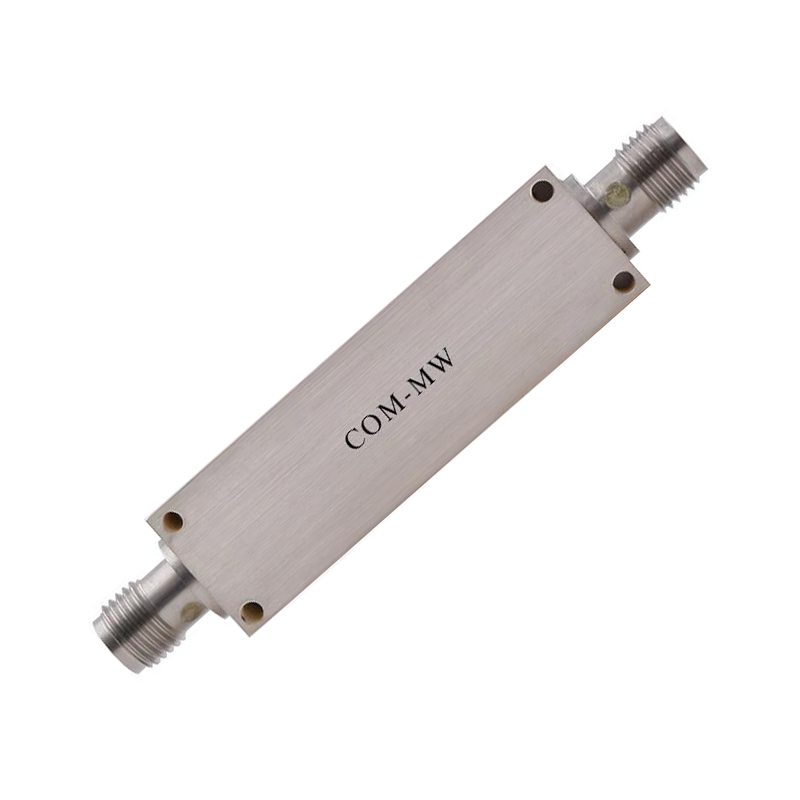

ZBF15-L1704-52-1367 Filter

Filter ZBF15-L1704-52-1367

Passband1678~1730MHz, DC-1GHz≥65dBc, 2.4-5GHz≥65dBc, SMA
View Details →
ZBF15-L1704-26-2738 Filter

Filter ZBF15-L1704-26-2738

Passband1691~1717MHz, DC-1500MHz≥50dB, 2000-3500MHz≥50dB, dB, dB, Pin
View Details →
ZBF14-D1700-50-659 Filter

Filter ZBF14-D1700-50-659

Passband1675~1725MHz, DC-1635MHz≥40dB, 1765-2000MHz≥40dB, MCX
View Details →

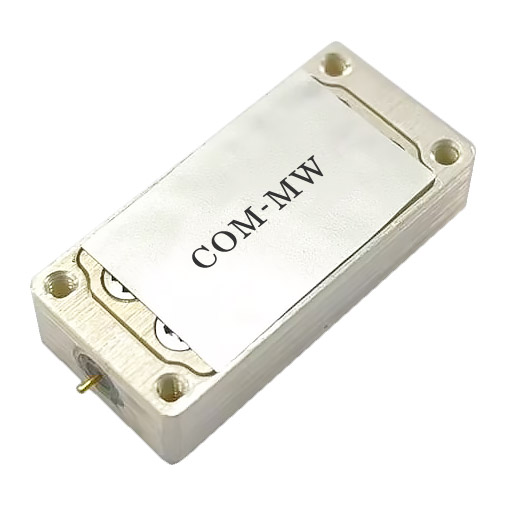

ZBF13-L1705-30-2439 Filter

Filter ZBF13-L1705-30-2439

Passband1675~1735MHz, DC-0.99GHz≥65dBc, Edge frequency offset 400MHz≥50dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
