RF Filter

Total 20 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
1575.42 - 1576.443 4 1577 - 1585 5 1587.42 - 1589.42 3 1595 - 1625 3 1650 - 1850 5
–
Connector
SMD 4 SMA 9 N 3 Microstrip needle 3
Power Handling
0.1 - 1 4 2 - 5 3 10 - 20 8 50 - 100 5
–
Maximum loss of side frequency dB
1 - 1.6 9 1.8 - 2.5 3 3 - 3.4 5 4 - 6 3
–
Rejection dB
25 - 30 3 40 - 50 10 55 - 60 4 70 - 80 2 100 1
–
F Low MHz
1300 - 1500 5 1525 - 1555 3 1561.42 - 1563.42 3 1565 - 1573 5 1574 - 1575.42 4
–
Feature
Bandpass 19 Notch 1
Center frequency MHz
1575 14 1575.4 2 1575.42 4
–
IL on center frequency dB
0.5 - 1 11 2 - 2.2 4 3 - 4 4
–
Filter type
LC 8 Cavity&waveguide 10 Dielectric 1 SAW 1
Center frequency：1575 - 1575.42 MHz× Clear all
matches 20 models Default Newest
ZBF9-S1575.42-25-1117 Filter

Filter ZBF9-S1575.42-25-1117

Passband1562~1588MHz, -35dB BW80MHz, SMD
In Stock View Details →
ZBSF6-C1574.42-1576.42-325 Notch filter

Notch filter ZBSF6-C1574.42-1576.42-325

Stopband F1574.42~1576.42MHz, ≥80dB, PassbandDC~1545.42MHz, 1605.42~2600MHz, N
View Details →
ZBF9-D1575-4-2988 Filter

Filter ZBF9-D1575-4-2988

Passband1573~1577MHz, DC-1545MHz≥40dB, 1605MHz≥40dB, Microstrip pad
View Details →
ZBF7-C1575.42-2-876 Filter

Filter ZBF7-C1575.42-2-876

Passband1575.42~1575.42MHz, DC-1465.42MHz≥30dB, 1675.42-3000MHz≥30dB, N
View Details →

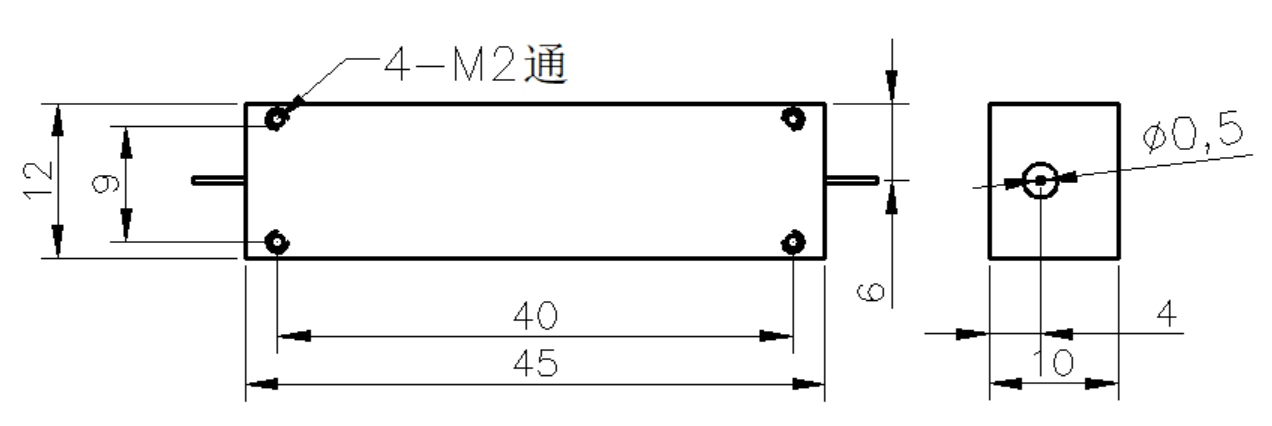

ZBF6-L1575-350-2312 Filter

Filter ZBF6-L1575-350-2312

Passband1400~1750MHz, DC-875MHz≥70dB, 2250-4000MHz≥70dB, 微带针 Ø0.5mm
View Details →

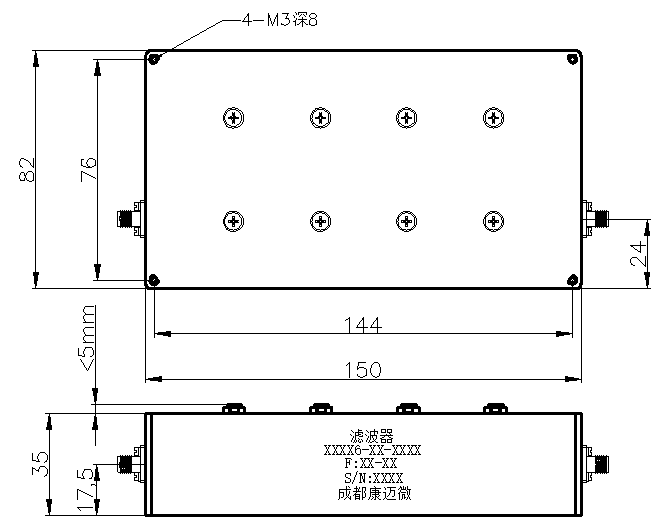

ZBF6-C1575.42-20-3973 Filter

Filter ZBF6-C1575.42-20-3973

Passband1565.42~1585.42MHz, DC~1555.42MHz≥50dB, 1595.42~3000MHz≥50dB, SMA
View Details →

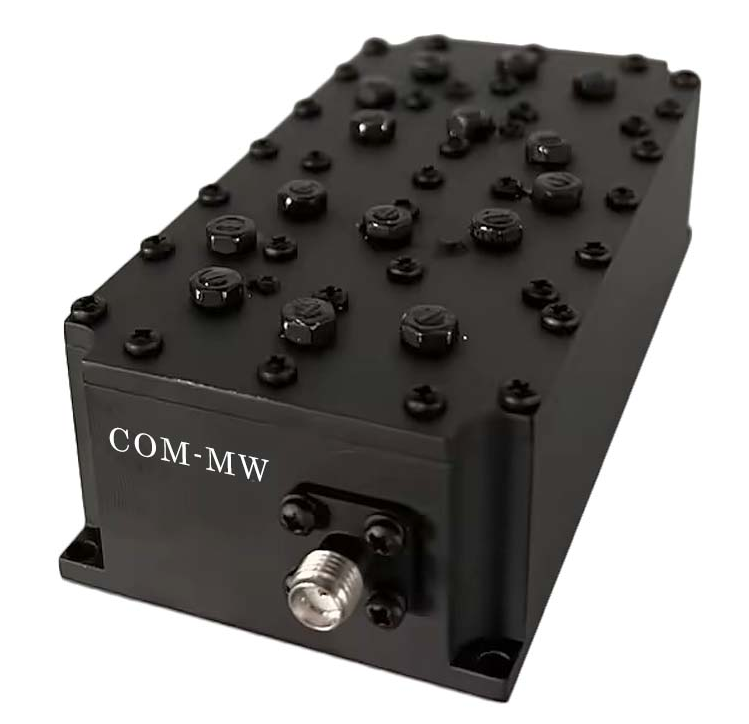

ZBF6-C1575.42-2.04-5309 Filter

Filter ZBF6-C1575.42-2.04-5309

Passband1574.397~1576.443MHz, DC-1565MHz≥50dB, 1585-4000MHz≥50dB, SMA
View Details →

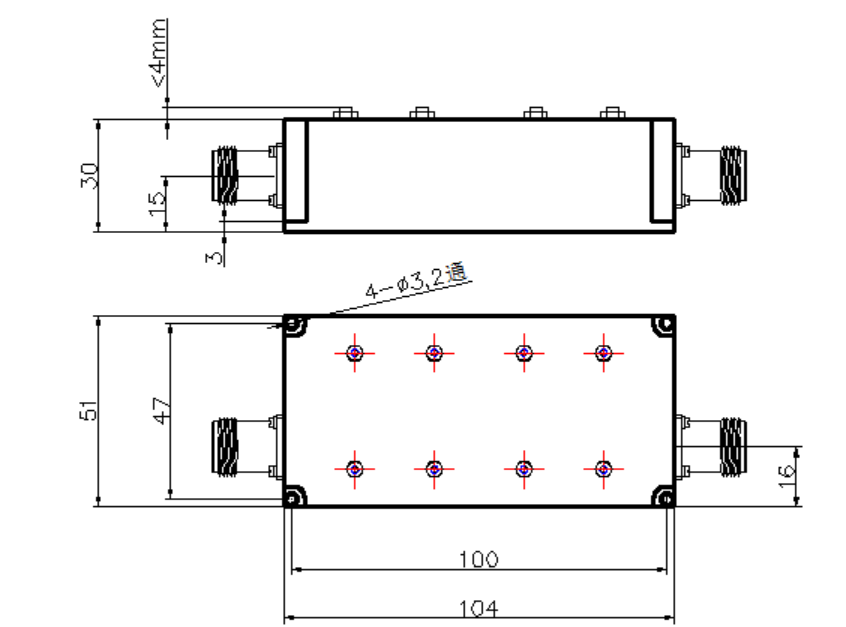

ZBF6-C1575.42-2.04-1601 Filter

Filter ZBF6-C1575.42-2.04-1601

Passband1574.397~1576.443MHz, DC-1565MHz≥50dB, 1585-4000MHz≥50dB, N
View Details →
ZBF6-C1575-50-SMA Filter

Filter ZBF6-C1575-50-SMA

Passband1550~1620MHz, DC-1425MHz≥100dB, 1675-3000MHz≥100dB, N
View Details →

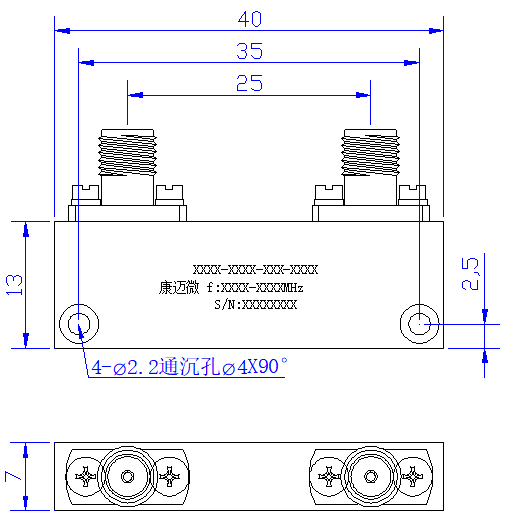

ZBF5-L1575-350-1863 Filter

Filter ZBF5-L1575-350-1863

Passband1400~1750MHz, DC-1000MHz≥40dBc, 2800-3500MHz≥40dBc, SMA
View Details →

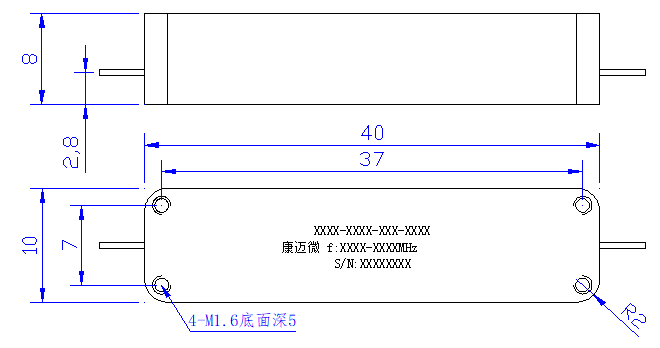

ZBF5-L1575-150-011 Filter

Filter ZBF5-L1575-150-011

Passband1500~1650MHz, DC-1250MHz≥55dBc, 1950-3000MHz≥55dBc, Pin
View Details →

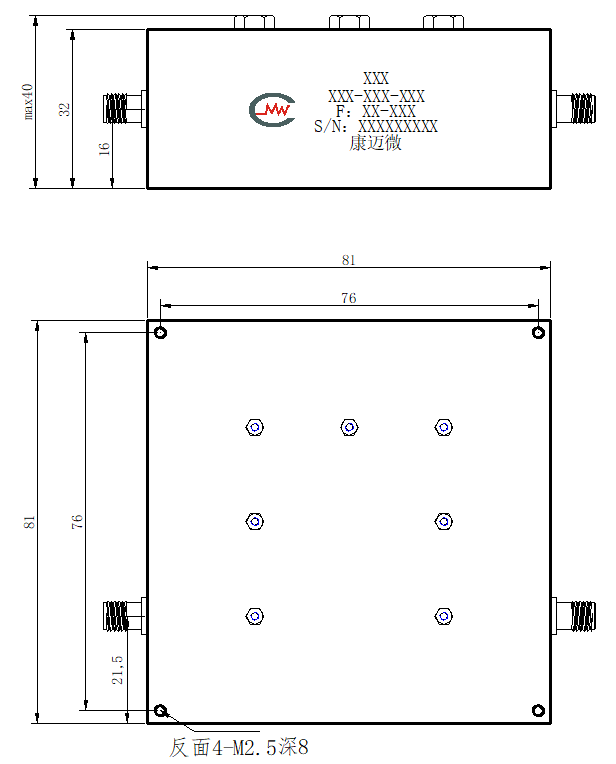

ZBF4-C1575.42-40-1363 Filter

Filter ZBF4-C1575.42-40-1363

Passband1555.42~1595.42MHz, DC-1443MHz≥40dB, 1707-2500MHz≥40dB, SMA
View Details →

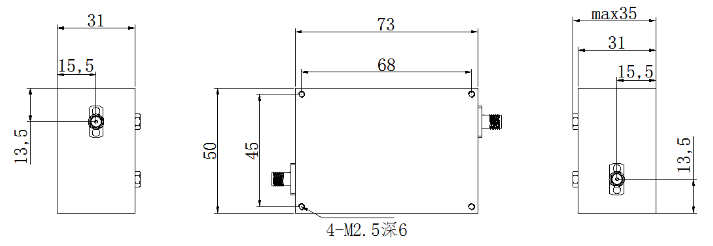

ZBF4-C1575.42-28-325 Filter

Filter ZBF4-C1575.42-28-325

Passband1561.42~1589.42MHz, DC-1525MHz≥50dB, 1625-2500MHz≥50dB, SMA
View Details →

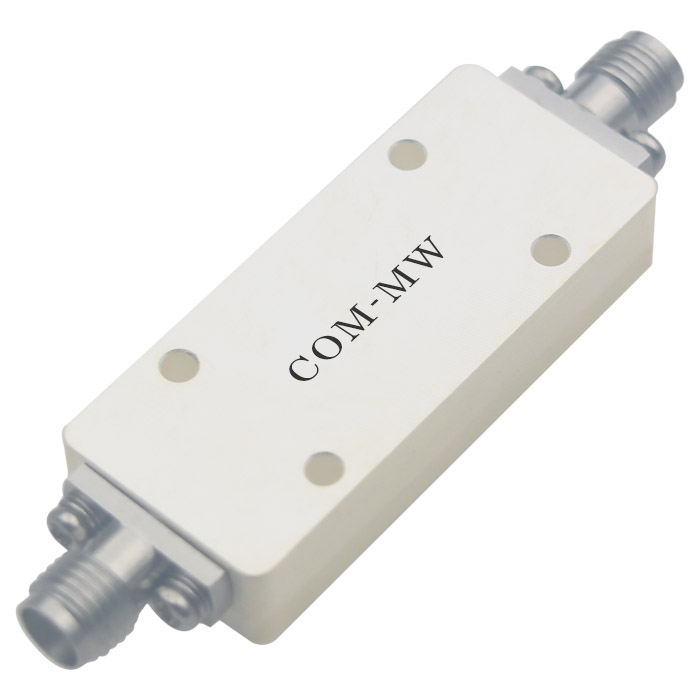

ZBF4-C1575.42-24-926 Filter

Filter ZBF4-C1575.42-24-926

Passband1563.42~1587.42MHz, DC-1525.42MHz≥50dB, 1625.42-3000MHz≥50dB, SMA
View Details →
ZBF3-L1575.4-10-2395 Filter

Filter ZBF3-L1575.4-10-2395

Passband1570.4~1580.4MHz, DC-1495MHz≥60dBc, 1670-3000MHz≥60dBc, SMA
View Details →

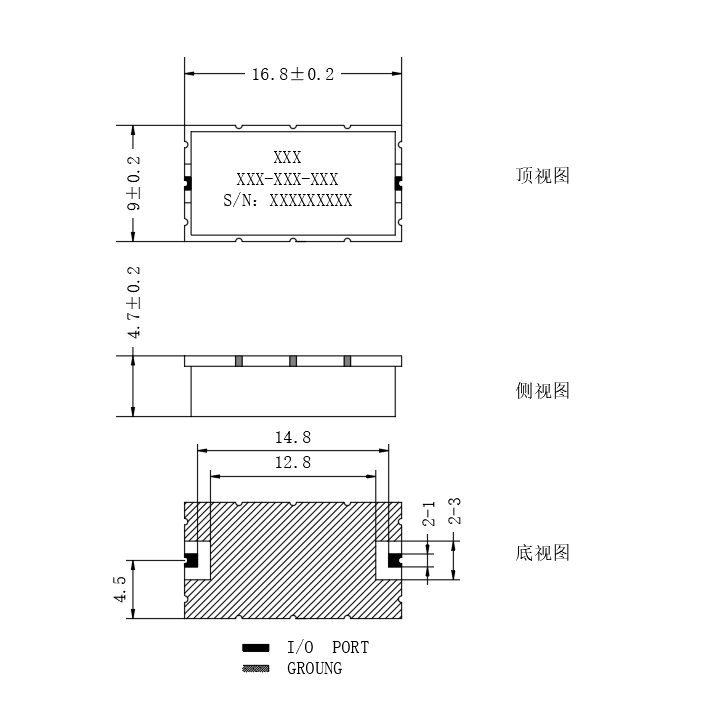

ZBF20-L1575-550-057 Filter

Filter ZBF20-L1575-550-057

Passband1300~1850MHz, DC-925MHz≥30dB, 2.7-4.0GHz≥30dB, Microstrip pad
View Details →

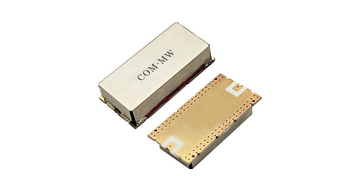

ZBF14-L1575-550-379 Filter

Filter ZBF14-L1575-550-379

Passband1300~1850MHz, DC-900MHz≥60dBc, 2100-4000MHz≥50dBc, SMD
View Details →
ZBF13-L1575.42-20.46-2972 Filter

Filter ZBF13-L1575.42-20.46-2972

Passband1565.19~1585.65MHz, DC-1415MHz≥40dB, 1735-5000MHz≥40dB, SMA
View Details →
ZBF13-L1575-100-142 Filter

Filter ZBF13-L1575-100-142

Passband1525~1625MHz, DC-1100MHz≥55dB, 136-530MHz≥65dB, Pin
View Details →

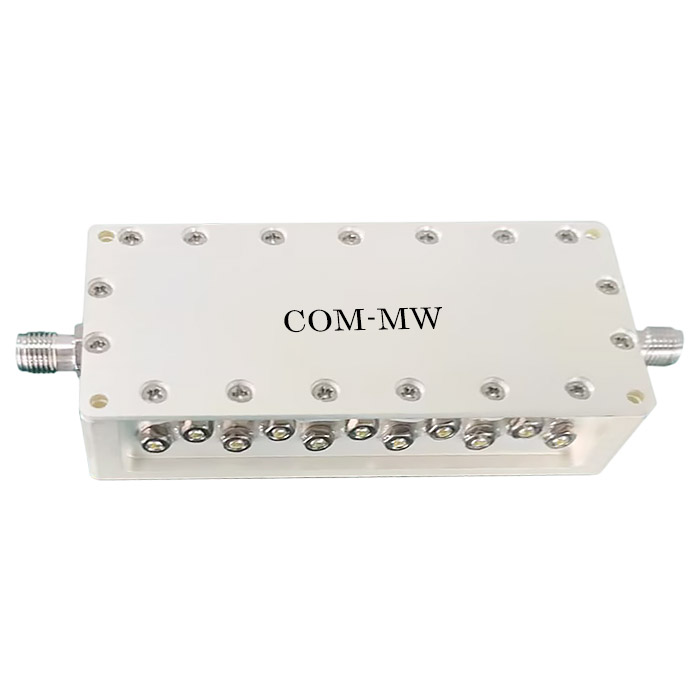

ZBF13-C1575-20-3730 Filter

Filter ZBF13-C1575-20-3730

Passband1565~1585MHz, DC-1460MHz≥50dB, 1680-4800MHz≥50dB, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
