Center frequency：15425 - 15550 MHz× Clear all
matches 31 models Default Newest
CA0347 SMD Filter

SMD Filter CA0347

Bandwidth14.6-16.3GHz, Rejection40@DC-13.0GHz, 40@17.8-24.0GHz
In Stock View Details →
STBP155-5R9-M512 Thin film filter

Thin film filter STBP155-5R9-M512

Bandwidth12.5-18.4GHz, Rejection35@DC-10.8GHz, 35@20.5-38.0GHz
In Stock View Details →
ZBF4-C15.5-1G-321 Filter

Filter ZBF4-C15.5-1G-321

Passband15~16GHz, DC-14.7GHz≥40dB, 16.3-34GHz≥40dB, SMA
In Stock View Details →
ZBF13-C15.5-2G-3639 Filter

Filter ZBF13-C15.5-2G-3639

Passband14.5~16.5GHz, DC-13.5GHz≥70dBc, 14GHz≥40dBc, SMA
In Stock View Details →
ZBF4-C15.55-0.7G-1075 Filter

Filter ZBF4-C15.55-0.7G-1075

Passband15.2~15.9GHz, DC-14.2GHz≥40dB, Pin
In Stock View Details →
SM0047 MEMS Filter

MEMS Filter SM0047

Bandwidth15.1-16.0GHz, Rejection40@DC-14.0GHz, 40@17.0-27.0GHz,
In Stock View Details →
CC0214 Filter

Filter CC0214

Bandwidth12.9-18.0GHz, Rejection40@DC-9.5GHz, 40@22.0-25.4GHz
In Stock View Details →
CC0206 Filter

Filter CC0206

Bandwidth14.6-16.4GHz, Rejection50@DC-11.8GHz, 40@18.8-23.5GHz
In Stock View Details →
CC0213 Filter

Filter CC0213

Bandwidth13.2-17.8GHz, Rejection40@DC-10.0GHz, 40@21.3-26.0GHz
In Stock View Details →

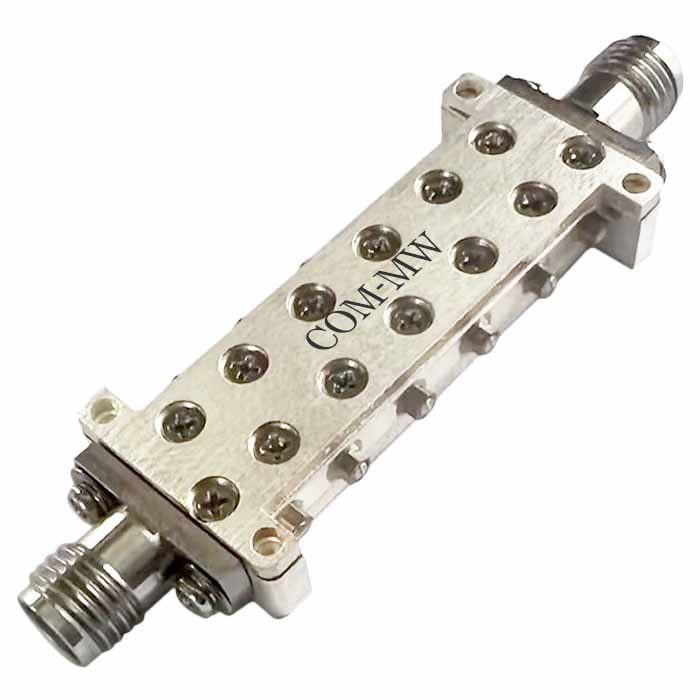

ZBF5-C15.5-7G-2071 Filter

Filter ZBF5-C15.5-7G-2071

Passband12~19GHz, DC-11GHz≥60dBc, SMA
View Details →
ZBF4-C15.5-7G-890 Filter

Filter ZBF4-C15.5-7G-890

Passband12~19GHz, DC-10GHz≥40dB, 21-2540dB, SMA
View Details →
ZBF4-C15.5-1G-896 Filter

Filter ZBF4-C15.5-1G-896

Passband15~16GHz, DC-12.7GHz≥80dBc, 16.8-20GHz≥30dB, Pin
View Details →

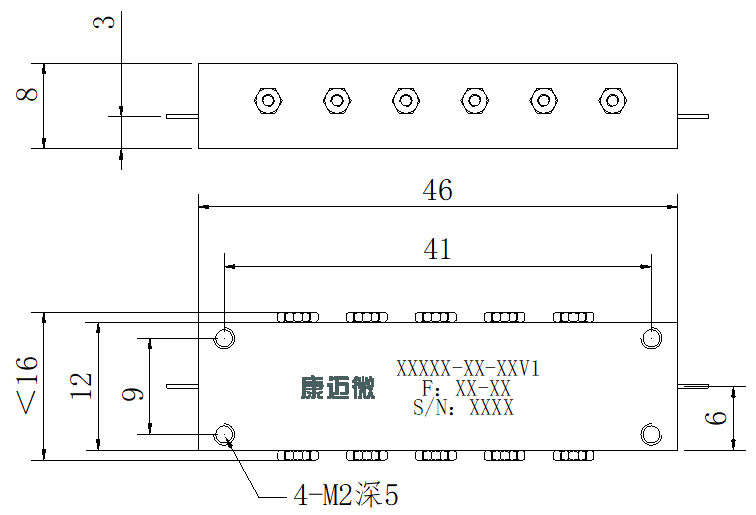

ZBF4-C15.5-1G-290 Filter

Filter ZBF4-C15.5-1G-290

Passband15~16GHz, DC-14.5GHz≥55dBc, 16.5-25GHz≥55dBc, Pin
View Details →

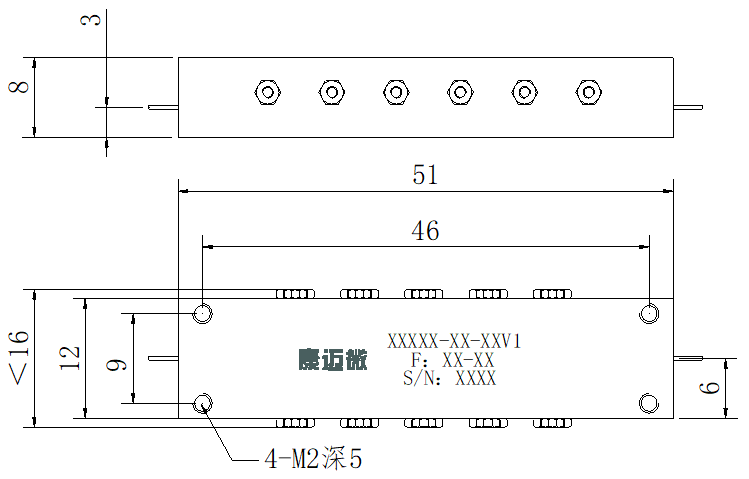

ZBF4-C15.5-1.36G-291 Filter

Filter ZBF4-C15.5-1.36G-291

Passband14.82~16.18GHz, DC-14.3GHz≥55dBc, 16.7-25GHz≥55dBc, Pin
View Details →
ZBF4-C15.5-0G-462 Filter

Filter ZBF4-C15.5-0G-462

Passband15.5~15.5GHz, DC-15GHz≥85dBc, 16-20GHz≥85dBc, Pin
View Details →

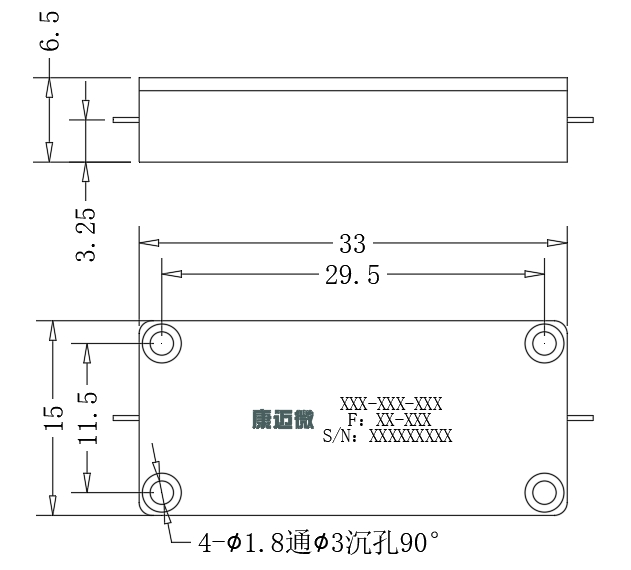

ZBF16-C15500-400-470 Filter

Filter ZBF16-C15500-400-470

Passband15.3~15.7GHz, DC~13.5GHz≥40dB, 17.5GHz≥40dB, 18GHz≥60dB,
View Details →

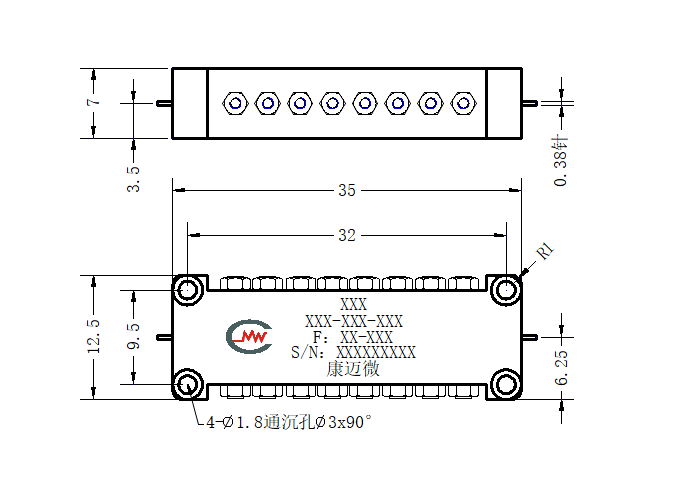

ZBF13-C15.55-1.9G-444 Filter

Filter ZBF13-C15.55-1.9G-444

Passband14.6~16.5GHz, DC-10GHz≥65dB, 10-14GHz≥40dB, Pin
View Details →

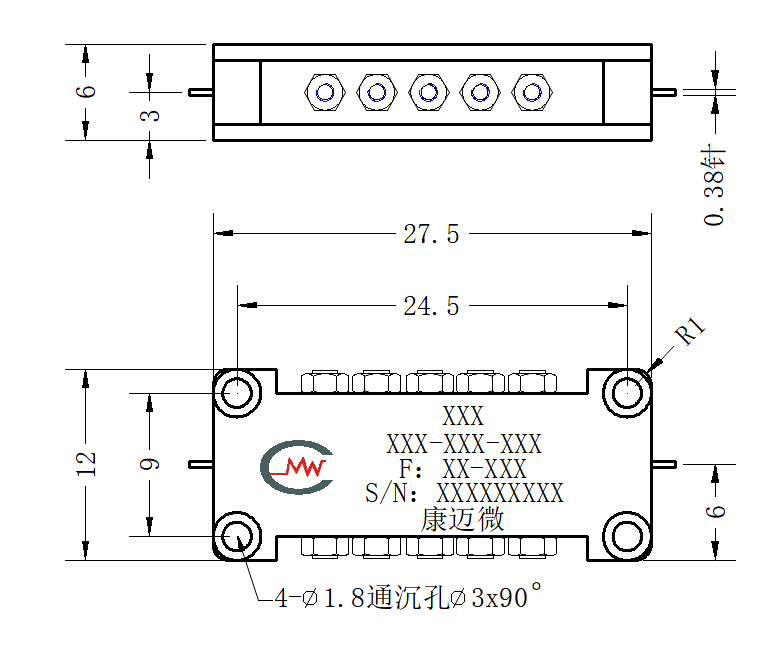

ZBF13-C15.5-2G-398 Filter

Filter ZBF13-C15.5-2G-398

Passband14.5~16.5GHz, DC-11.5GHz≥65dB, 11.5-12GHz≥60dB, Pin
View Details →

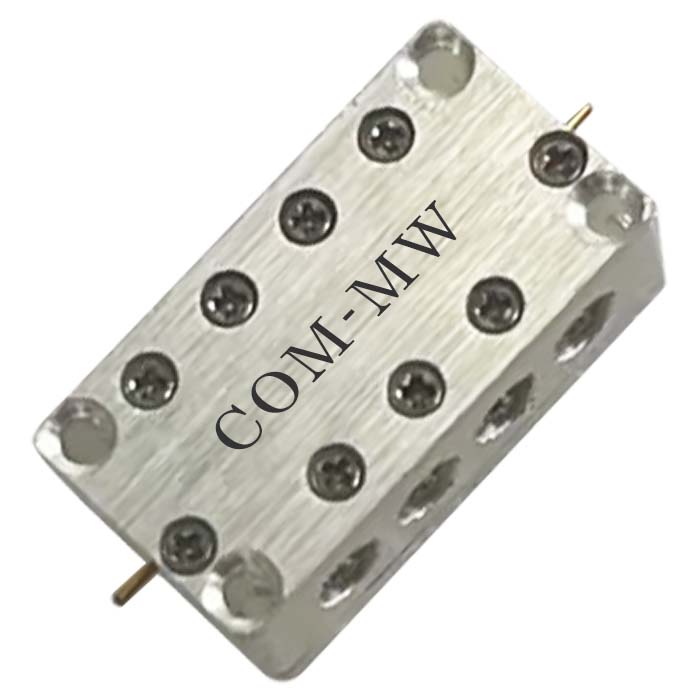

ZBF13-C15.5-2G-3616 Filter

Filter ZBF13-C15.5-2G-3616

Passband14.5~16.5GHz, DC-13.4GHz≥40dBc, 17.7-30GHz≥55dBc, Pin
View Details →
ZBF13-C15.5-2G-2856 Filter

Filter ZBF13-C15.5-2G-2856

Passband14.5~16.5GHz, DC-13.4GHz≥40dBc, 17.8-30GHz≥55dBc, SMA
View Details →
ZBF13-C15.5-2G-2275 Filter

Filter ZBF13-C15.5-2G-2275

Passband14.5~16.5GHz, DC-14GHz≥60dBc, 17-19.2GHz≥60dBc, Pin
View Details →
ZBF13-C15.5-2.08G-2024 Filter

Filter ZBF13-C15.5-2.08G-2024

Passband14.46~16.54GHz, DC-13GHz≥60dB, 13-14GHz≥20dB, Pin
View Details →
ZBF13-C15.5-1G-2584 Filter

Filter ZBF13-C15.5-1G-2584

Passband15~16GHz, DC-14.5GHz≥60dBc, 16.5-28GHz≥60dBc, Pin
View Details →
ZBF13-C15.5-0.5G-3321 Filter

Filter ZBF13-C15.5-0.5G-3321

Passband15.25~15.75GHz, 15GHz≥30dB, 16GHz≥30dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
