RF Filter

Total 31 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
1450 - 1460 5 1462 - 1475 5 1500 - 1700 15 1875 - 2000 5 2400 1
–
Connector
SMD 4 SMA 16 N 1 Microstrip needle 10
Power Handling
1 - 2 13 5 - 10 6 20 - 30 9 40 - 50 2 100 1
–
Maximum loss of side frequency dB
0.8 - 1 7 1.5 - 1.8 8 2 - 2.5 9 3 - 3.5 5 5.5 - 6 2
–
Rejection dB
30 - 40 13 50 - 52 5 55 - 60 9 65 - 70 3 73 1
–
F Low MHz
500 - 1025 6 1200 - 1400 14 1410 - 1440 6 1447 - 1452.5 5
–
Feature
Bandpass 30 Notch 1
Center frequency MHz
1450 25 1452 2 1455 3 1457 1
–
IL on center frequency dB
0.5 7 1 16 2 5 4.5 1 6 1
–
Filter type
LC 13 Cavity&waveguide 14 stripline 1 Dielectric 3
Center frequency：1450 - 1457 MHz× Clear all
matches 31 models Default Newest
ZBF9-D1450-100-3248 Filter

Filter ZBF9-D1450-100-3248

Passband1400~1500MHz, DC-1350MHz≥40dB, 1550-2100MHz≥40dB, SMD
In Stock View Details →
ZBF2-C1455-90-2644 Filter

Filter ZBF2-C1455-90-2644

Passband1410~1500MHz, DC-1320MHzMHz≥45dBc, 1600&2000MHzMHz≥65dBc, Pin
In Stock View Details →
ZBSF6-C1400-1500-2819 Filter

Filter ZBSF6-C1400-1500-2819

Stopband F1400~1500MHz, ≥30dB, DC~1300MHz, 1600~3000MHz, SMA
View Details →
ZBF9-D1.45-0.1G-3211 Filter

Filter ZBF9-D1.45-0.1G-3211

Passband1400~1500MHz, DC-1300MHz≥30dB, 1600-2200MHz≥30dB, SMD
View Details →
ZBF6-C1455-5-2509 Filter

Filter ZBF6-C1455-5-2509

Passband1452.5~1457.5MHz, DC-1445MHz≥30dB, 1465-3000MHz≥30dB, SMA
View Details →
ZBF6-C1450-500-773 Filter

Filter ZBF6-C1450-500-773

Passband1200~1700MHz, DC-900MHz≥60dB, 2000-3400MHz≥60dB, N
View Details →
ZBF6-C1450-100-5293 Filter

Filter ZBF6-C1450-100-5293

Passband1400~1500MHz, DC-1340MHz≥60dB, 1550-3000MHz≥60dB, SMA
View Details →
ZBF5-L1450-400-2748 Filter

Filter ZBF5-L1450-400-2748

Passband1250~1650MHz, DC-0.8GHz≥60dB, 2-4GHz≥60dB, Pin
View Details →
ZBF5-L1450-1900-686 Filter

Filter ZBF5-L1450-1900-686

Passband500~2400MHz, DC-200MHz≥40dBc, 3000-6000MHz≥40dBc, SMA-K
View Details →
ZBF5-L1450-120-2722 Filter

Filter ZBF5-L1450-120-2722

Passband1390~1510MHz, DC-1225MHz≥40dB, 1575.42MHz≥30dB, SMA-K
View Details →
ZBF5-L1450-1100-1185 Filter

Filter ZBF5-L1450-1100-1185

Passband950~2000MHz, DC-650MHz≥40dBc, 2400-6000MHz≥40dBc, Pin
View Details →
ZBF5-L1450-0-1531 Filter

Filter ZBF5-L1450-0-1531

Passband1450MHz, DC-1300MHz≥60dB, 1600-1750MHz≥70dB, Pin
View Details →

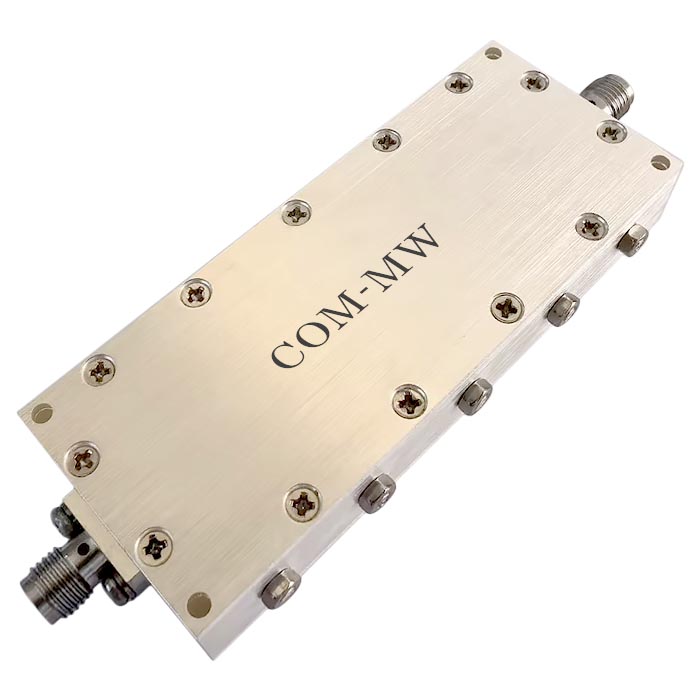

ZBF5-C1450-500-262 Filter

Filter ZBF5-C1450-500-262

Passband1200~1700MHz, DC-1090MHz≥40dB, 1800-4000MHz≥40dB, SMA
View Details →

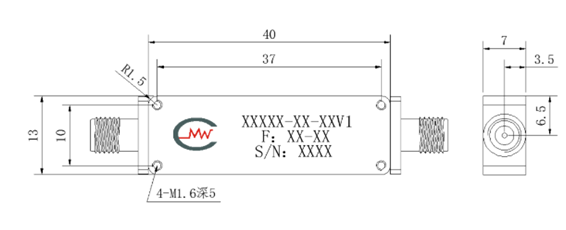

ZBF3-L1450-900-2308 Filter

Filter ZBF3-L1450-900-2308

Passband1000~1900MHz, Industrial grade
View Details →

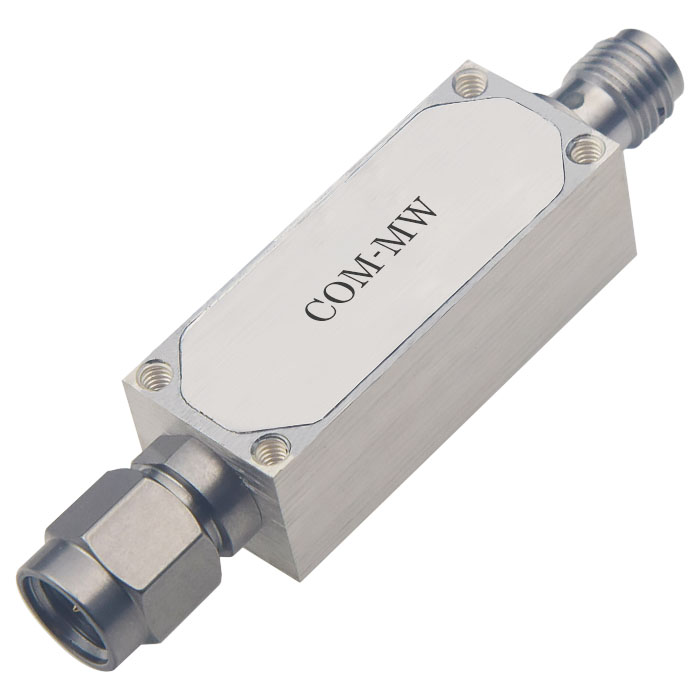

ZBF3-L1450-500-3232 Filter

Filter ZBF3-L1450-500-3232

Passband1200~1700MHz, DC-950MHz≥40dB, 1950-4000MHz≥40dB, SMA-JK
View Details →
ZBF3-C1450-20-1817 Filter

Filter ZBF3-C1450-20-1817

Passband1440~1460MHz, 1420MHz≥35dB, 1480MHz≥35dB, SMA
View Details →
ZBF2-D1450-50-2624 Filter

Filter ZBF2-D1450-50-2624

Passband1425~1475MHz, DC-1300MHz≥30dB, 1575-2000MHz≥30dB,
View Details →
ZBF15-L1450-850-2770 Filter

Filter ZBF15-L1450-850-2770

Passband1025~1875MHz, DC-850MHz≥50dBc, 2.25-4GHz≥50dBc, Pin
View Details →
ZBF15-L1450-1000-1610 Filter

Filter ZBF15-L1450-1000-1610

Passband950~1950MHz, DC-0.6GHz≥40dBc, 2.3-5GHz≥40dBc, SMD
View Details →

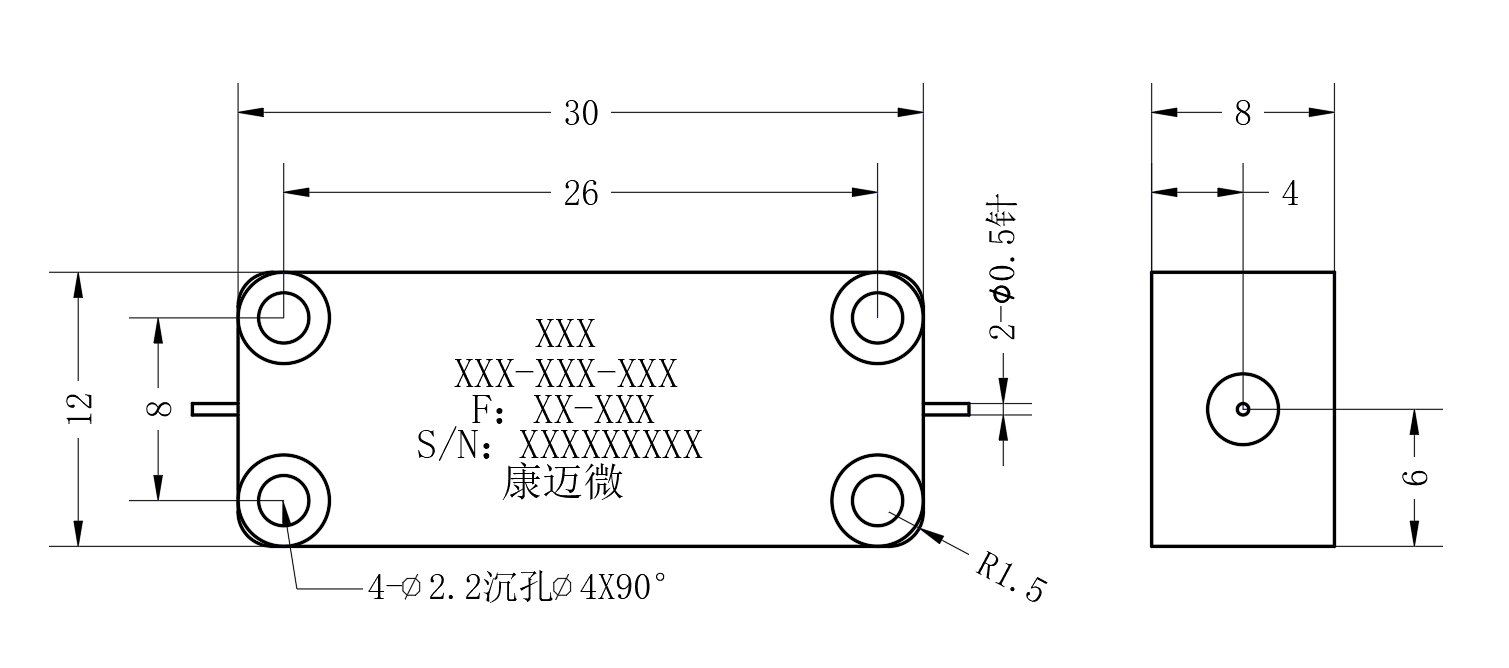

ZBF14-L1450-500-736 Filter

Filter ZBF14-L1450-500-736

Passband1200~1700MHz, 960-1070MHz≥20dBc, 700-960MHz≥30dBc, Pin
View Details →
ZBF14-C1495-94-003 Filter

Filter ZBF14-C1495-94-003

Passband1448~1452MHz, DC-1280MHz≥52dBc, 1.77-2.5GHz≥52dBc, Pin
View Details →
ZBF13-L1452.66-40-2398 Filter

Filter ZBF13-L1452.66-40-2398

Passband1432.66~1472.66MHz, DC-1288MHz≥30dBc, 1.65-3GHz≥30dBc, Pin
View Details →
ZBF13-L1450-1000-2214 Filter

Filter ZBF13-L1450-1000-2214

Passband950~1950MHz, DC-0.7GHz≥50dBc, 2.4-6GHz≥60dBc, Pin
View Details →
ZBF13-C1457-20-3239 Filter

Filter ZBF13-C1457-20-3239

Passband1447~1467MHz, DC-1.41GHz≥40dBc, 1.51-4GHz≥40dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
