RF Filter

Total 21 models
Categories
Categories RF Filter
RF Filter16043
RF Filter15371 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1427
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter192 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F High MHz
1437 - 1447 9 1448 - 1455 6 1465 - 1480 4 1500 - 1690 2
–
Connector
Other 3 SMD 2 SMA 12 N 2 Microstrip needle 2
Power Handling
1 - 2 4 5 - 10 8 20 - 50 7 100 - 150 2
–
Maximum loss of side frequency dB
0.5 - 1 4 1.2 - 1.3 2 1.5 - 1.8 5 2 - 2.5 6 4 - 5 4
–
Rejection dB
40 - 50 9 55 - 60 4 65 - 70 5 75 - 80 3
–
F Low MHz
1190 - 1380 2 1400 - 1410 2 1415 - 1425 3 1427 - 1428 7 1430 - 1437 7
–
Feature
Bandpass 21
Center frequency MHz
1436 2 1437 7 1438 4 1440 8
–
IL on center frequency dB
0.3 1 0.5 3 1 13 3 1 4 3
–
Filter type
LC 5 Cavity&waveguide 15 Dielectric 1
Center frequency：1436 - 1440 MHz× Clear all
matches 21 models Default Newest
ZBF6-L1440-20-1487 Filter

Filter ZBF6-L1440-20-1487

Passband1430~1450MHz, DC-1200MHz≥50dB, 2020-3000MHz≥50dB,
View Details →
ZBF6-C1440-30-5661 Filter

Filter ZBF6-C1440-30-5661

Passband1425~1455MHz, DC-1300MHz≥60dB, 1480-1510MHz≥40dB, 1560-3000MHz≥60dB, MCX
View Details →
ZBF6-C1438-20-4218 Filter

Filter ZBF6-C1438-20-4218

Passband1428~1448MHz, DC-1408MHz≥80dB, 1468-2500MHz≥80dB, SMA
View Details →
ZBF6-C1437-0-5778 Filter

Filter ZBF6-C1437-0-5778

Passband1437MHz, DC-1431MHz≥60dB, 1443-3000MHz≥60dB, SMA
View Details →
ZBF3-L1440-60-4187 Filter

Filter ZBF3-L1440-60-4187

Passband1410~1470MHz, DC-280MHz≥75dB, 280-1200MHz≥55dB, Pin
View Details →
ZBF3-C1437-14-4334 Filter

Filter ZBF3-C1437-14-4334

Passband1430~1444MHz, DC-1330MHz≥40dB, 1540-2000MHz≥40dB, SMA
View Details →

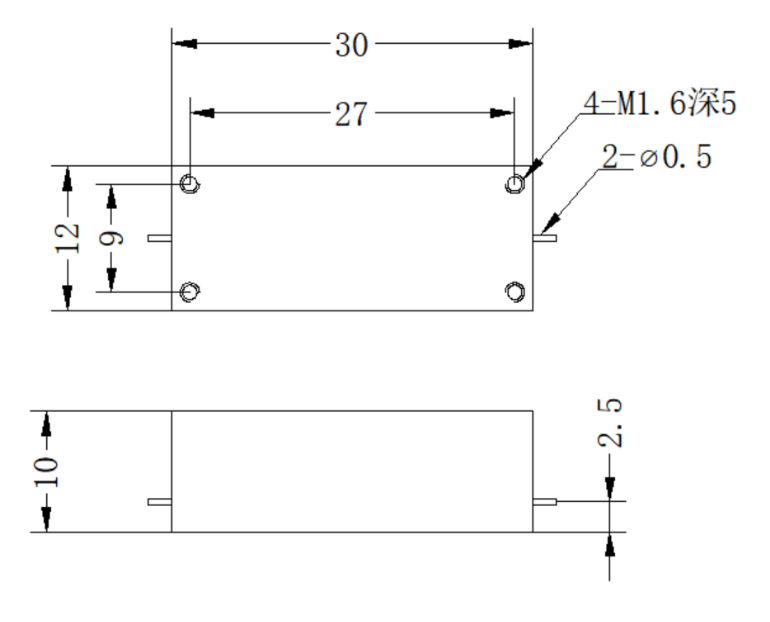

ZBF2-L1.44-0.08-1602 Filter

Filter ZBF2-L1.44-0.08-1602

Passband1400~1480MHz, 1.2GHz≥75dBc, 1.68GHz≥70dBc, Pin
View Details →
ZBF2-C1440-50-1869 Filter

Filter ZBF2-C1440-50-1869

Passband1415~1465MHz, 1385-1405MHz≥35dBc, 1475-1495MHz≥35dBc, SMA, N
View Details →
ZBF16-C1437-14-2148 Filter

Filter ZBF16-C1437-14-2148

Passband1430~1444MHz, DC~1400MHz≥70dBc, 1474~3500MHz≥70dBc, SMA
View Details →
ZBF16-C1437-14-2147 Filter

Filter ZBF16-C1437-14-2147

Passband1430~1444MHz, DC~1400MHz≥70dBc, 1474~3500MHz≥70dBc, SMA
View Details →
ZBF16-C1437-14-2121 Filter

Filter ZBF16-C1437-14-2121

Passband1430~1444MHz, 2120-2888MHz≥70dBc, 3180-4332MHz≥70dBc, SMA
View Details →
ZBF16-C1436-16-351 Filter

Filter ZBF16-C1436-16-351

Passband1428~1444MHz, DC~1398MHz≥60dBc, 1474~2500MHz≥60dBc, GHz≥dB, GHz≥dB, SMA
View Details →
ZBF15-L1440-500-2820 Filter

Filter ZBF15-L1440-500-2820

Passband1190~1690MHz, DC-700MHz≥60dB, 2350-3450MHz≥65dB, SMD
View Details →
ZBF14-D1436-16-657 Filter

Filter ZBF14-D1436-16-657

Passband1428~1444MHz, DC-1391MHz≥40dB, 1481-2000MHz≥40dB, MCX
View Details →
ZBF13-L1440-120-3722 Filter

Filter ZBF13-L1440-120-3722

Passband1380~1500MHz, DC-1.28GHz≥40dB, 1.6-5GHz≥40dB, SMD
View Details →
ZBF13-C1440-50-499 Filter

Filter ZBF13-C1440-50-499

Passband1415~1465MHz, DC-1385MHz≥50dBc, 1385-1405MHz≥35dBc, SMA, N
View Details →
ZBF13-C1438-20-945 Filter

Filter ZBF13-C1438-20-945

Passband1428~1448MHz, DC-1408MHz≥40dBc, 1468-2500MHz≥40dBc, SMA
View Details →
ZBF13-C1438-20-1142 Filter

Filter ZBF13-C1438-20-1142

Passband1428~1448MHz, DC-960MHz≥65dB, 960-1280MHz≥50dB, SMA
View Details →
ZBF13-C1437-14-2921 Filter

Filter ZBF13-C1437-14-2921

Passband1430~1444MHz, DC-1405MHz≥50dBc, 1469-3000MHz≥50dBc, SMA
View Details →
ZBF-BC1438-20-004 Filter

Filter ZBF-BC1438-20-004

Passband1428~1448MHz, DC-1388MHz≥40dB, 1488-2000MHz≥40dB, SMA
View Details →
OQZBF6-C1437.9-20-3414 Filter

Filter OQZBF6-C1437.9-20-3414

Passband1427.9~1447.9MHz, DC~1377.9MHz≥55dBc, 1497.9~2500MHz≥55dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
