Filters
Filters 1
F High MHz
1400 - 1437.5 4 1450 - 1505 7 1560 - 1650 3 1700 - 1750 2
–
Connector
SMD 5 SMA 5 Microstrip needle 6
Power Handling
1 - 2 11 5 - 20 2 100 - 150 2 200 1
–
Maximum loss of side frequency dB
0.8 - 1 2 1.5 - 2 6 2.5 - 3 7 4 1
–
Rejection dB
30 1 40 5 45 1 50 8 60 1
–
F Low MHz
1000 - 1100 3 1130 - 1245 4 1250 - 1312.5 6 1350 - 1360 3
–
Feature
Bandpass 16
Center frequency MHz
1375 11 1379.5 1 1380 4
–
IL on center frequency dB
0.4 - 0.5 2 1 - 1.5 7 2 - 3 7
–
Filter type
LC 12 Cavity&waveguide 4
Center frequency：1375 - 1380 MHz× Clear all
matches 16 models Default Newest
ZBF5-L1375-750-1243 Filter

Filter ZBF5-L1375-750-1243

Passband1000~1750MHz, DC-750MHz≥50dBc, 2000-6000MHz≥50dBc, SMA-K
View Details →
ZBF5-L1375-550-3713 Filter

Filter ZBF5-L1375-550-3713

Passband1100~1650MHz, DC-850MHz≥40dB, 1900-5000MHz≥40dB, SMA
View Details →
ZBF5-C1380-500-1121 Filter

Filter ZBF5-C1380-500-1121

Passband1130~1630MHz, DC-980MHz≥40dBc, 1700-2500MHz≥40dBc, SMA
View Details →
ZBF3-L1379.5-59-2825 Filter

Filter ZBF3-L1379.5-59-2825

Passband1350~1409MHz, 1625-1785MHz≥40dBc, dB, SMD
View Details →
ZBF20-L1.38-0.12G-133 Filter

Filter ZBF20-L1.38-0.12G-133

Passband1.3125~1.4375GHz, DC-900MHz≥50dBc, 1.86-6.0GHz≥50dBc, SMA
View Details →
ZBF2-L1375-260-1660 Filter

Filter ZBF2-L1375-260-1660

Passband1245~1505MHz, DC-985MHz≥50dBc, 1.765-5GHz≥50dBc, Pin
View Details →
ZBF16-C1375-50-531 Filter

Filter ZBF16-C1375-50-531

Passband1350~1400MHz, DC~1320MHz≥60dBc, 1430~2500MHz≥60dBc, GHz≥dB, GHz≥dB, SMA
View Details →
ZBF15-L1380-40-1647 Filter

Filter ZBF15-L1380-40-1647

Passband1360~1400MHz, DC-1.1GHz≥50dBc, 1.5GHz≥30dB, Pin
View Details →
ZBF15-L1375-260-507 Filter

Filter ZBF15-L1375-260-507

Passband1245~1505MHz, DC-985MHz≥50dBc, 1765-5000MHz≥50dBc, Pin
View Details →
ZBF15-L1375-250-1416 Filter

Filter ZBF15-L1375-250-1416

Passband1250~1500MHz, DC-1150MHz≥50dB, 1.6-6GHz≥50dB, Pin
View Details →
ZBF13-L1380-360-3416 Filter

Filter ZBF13-L1380-360-3416

Passband1200~1560MHz, DC-780MHz≥45dB, 1.8-2.8GHz≥45dB, SMD
View Details →
ZBF13-L1375-250-3837 Filter

Filter ZBF13-L1375-250-3837

Passband1250~1500MHz, DC-1100MHz≥30dBc, 1680-4000MHz≥30dBc, SMD
View Details →

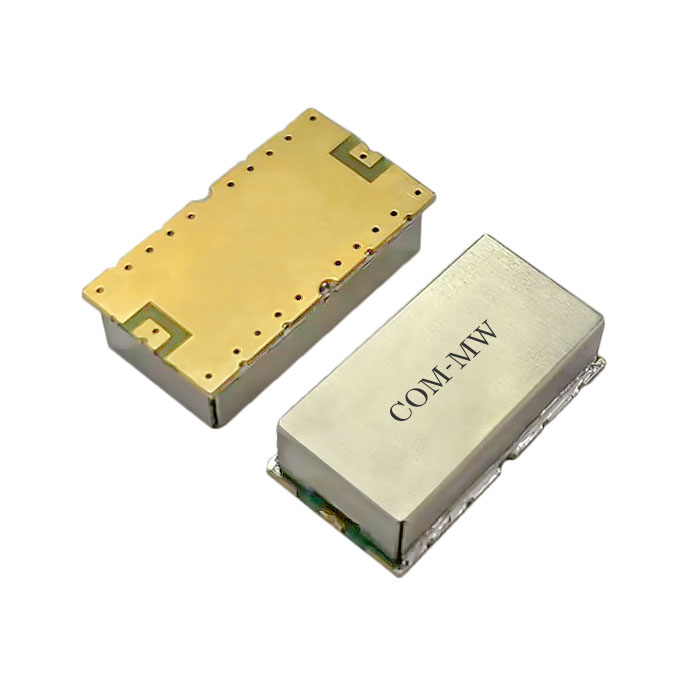

ZBF13-L1375-150-3905 Filter

Filter ZBF13-L1375-150-3905

Passband1300~1450MHz, DC-1175MHz≥40dBc, 1575-4000MHz≥40dBc, SMD
View Details →

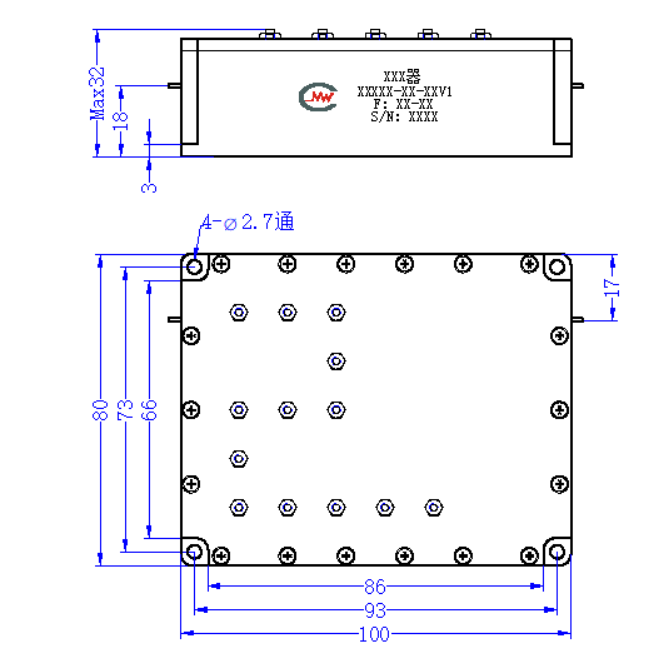

ZBF13-C1375-150-3897 Filter

Filter ZBF13-C1375-150-3897

Passband1300~1450MHz, DC-1268MHz≥40dBc, 1575MHz≥40dBc, Pin
View Details →

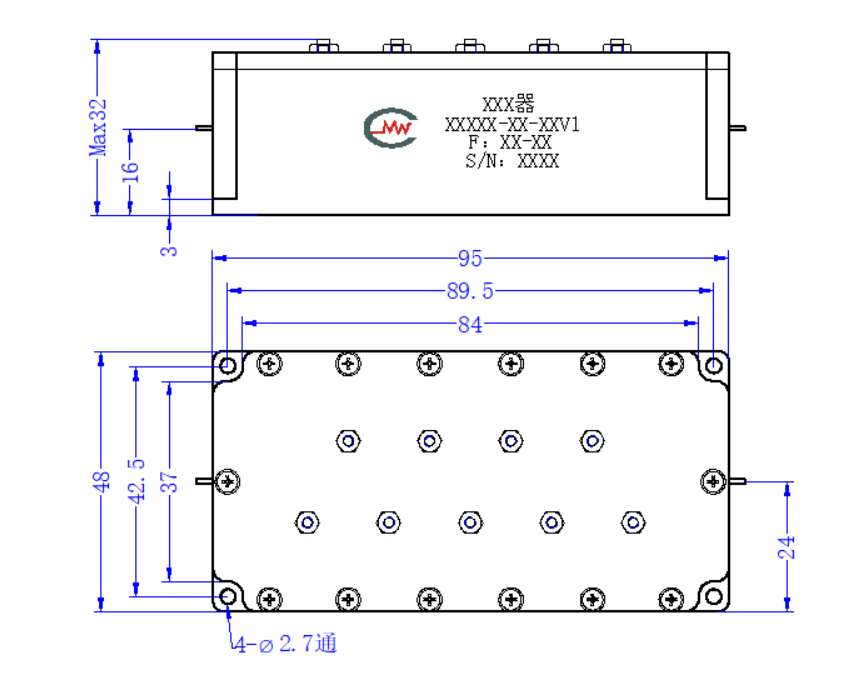

ZBF13-C1375-150-3872 Filter

Filter ZBF13-C1375-150-3872

Passband1300~1450MHz, DC-1268MHz≥40dBc, 1575MHz≥40dBc, Pin
View Details →
XPF-L1375M650M-T Filter

Filter XPF-L1375M650M-T

Passband1050~1700MHz, DC-850MHz≥40dBc, 2.1-4.0GHz≥40dBc, SMD
View Details →
